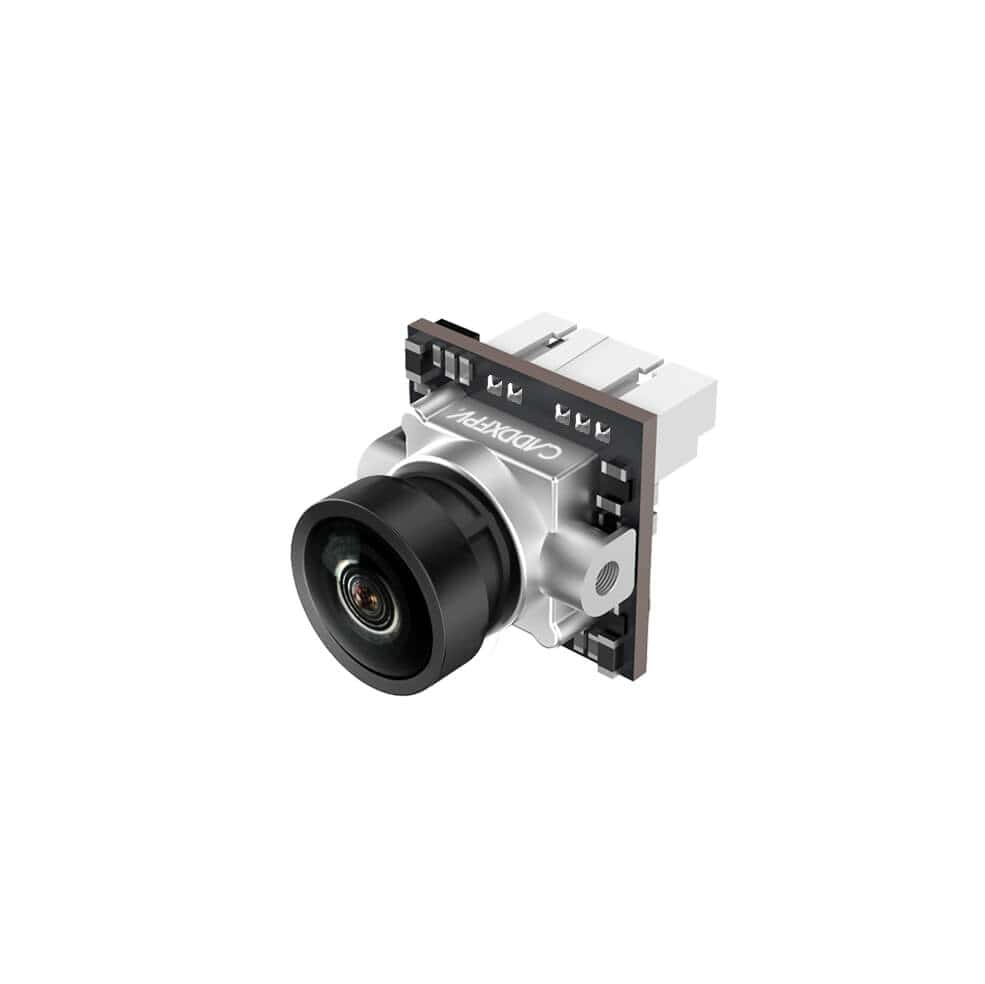

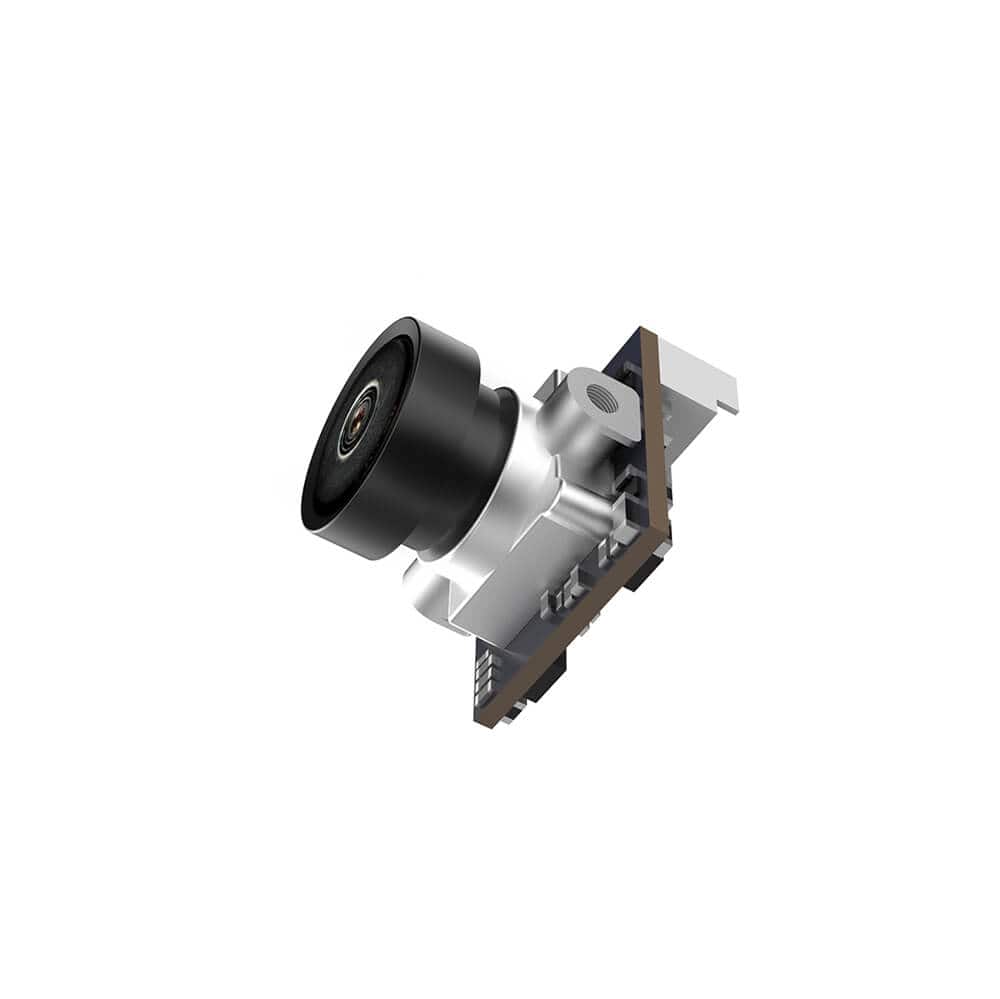

Introducing the CADDXFPV Ant Analog Camera – a new generation nano camera designed for FPV enthusiasts seeking compactness without compromising on features. With its lightweight design, advanced imaging capabilities, and user-friendly OSD menu, the Ant is set to redefine your FPV experience. Let’s explore the key specifications and features that make the Ant an ideal choice for nano-sized setups.

Key Features:

• Ultra-Lightweight Design: Weighing a mere 2g, the Ant is one of the lightest nano cameras available, ensuring minimal impact on your drone’s overall weight and aerodynamics.
• High Resolution: Boasting 1200TVL resolution, the Ant delivers clear and detailed images, providing a heightened level of visual clarity during your FPV flights.
• Wide Voltage Range: Compatible with a wide voltage input range of 5-25V, the Ant offers versatility and can be used with various power sources.
• Global WDR: Experience superior image quality across varying lighting conditions with Global Wide Dynamic Range (WDR) technology.
• OSD Menu: Easily navigate and customize camera settings using the on-screen display (OSD) menu, allowing you to fine-tune parameters to suit your preferences.
• Full-Featured Nano Camera: Despite its compact size, the Ant is a full-featured nano camera with normal and 3D DNR (Digital Noise Reduction) capabilities.

Technical Specifications:

• Model: CADDX Ant
• Image Sensor: 1/3″ CMOS Sensor
• Resolution: 1200TVL
• Horizontal Resolution: 1200 TVL
• System: NTSC and PAL (Switchable)
• Menu: Support
• Image Format: 16:9 or 4:3 (Switchable)
• Synchronization: Internal
• Electronic Shutter: PAL: 1/50100,000; NTSC: 1/60100,000
• SIN Ratio: >52dB (AGC OFF)
• Video Output: CVBS
• Lens: 1.8mm
• Min. Illumination: 0.001Lux@F1.2
• Auto Gain Control: YES
• BLC: YES
• WDR: Global WDR
• DNR: 3D DNR
• Dimensions: 14mm (Bracket 19mm x 19mm)
• Wide Input: DC 5-25V
• Working Temperature: -20°C to +60°C
• Working Humidity: 20%~80%
• Weight: 2g (Net Weight)

Package Contents:

• CADDX Ant Camera x1
• 19mm Case x1
• 3Pin Silicone Cable x1
• Warranty Card x1
• Screws

Compact yet powerful, the CADDXFPV Ant Analog Camera is engineered to provide exceptional performance in a nano-sized package. Whether you’re a seasoned FPV pilot or a beginner looking for a lightweight solution, the Ant delivers outstanding image quality and flexibility to enhance your drone flying experience. Upgrade to the Ant and enjoy FPV like never before.
