BoYing Paladin V3 Overview

The PALADIN V3 Agriculture Controller is a high-precision, versatile agricultural control system designed to enhance the efficiency and accuracy of agricultural operations. Equipped with advanced GNSS and RTK modules, it ensures precise positioning and stable flight for drones. The controller supports multiple interfaces, allowing seamless integration with various sensors and expansion modules, making it suitable for a wide range of agricultural applications.

BoYing Paladin V3 Key Features

  • Advanced Navigation: Includes dual GPS and RTK modules for high-precision positioning and navigation.
  • Comprehensive Interfaces: Equipped with multiple ports for power, CAN, SBUS, USB Type-C, and more, enabling extensive connectivity options.
  • Robust Design: Operates efficiently in extreme temperatures ranging from -20°C to 70°C and humidity levels from 5% to 95%.
  • High Integration Capability: Supports various expansion devices such as 4G modules, obstacle avoidance radar, terrain radar, and water pumps.
  • Flight Modes: Offers multiple flight modes including altitude hold, position hold, and autonomous mode for flexible operation.
  • High Compatibility: Compatible with different drone types including quadrotors, hexarotors, and octarotors.
  • Safety Features: Features out-of-control protection, low voltage alarm, and breakpoint continuation to ensure safe and reliable operations.
  • Ease of Use: Simplifies operations with one-click takeoff, electronic fence, and intelligent spray point functionalities.

BoYing Paladin V3 Application Scenarios

  • Precision Agriculture: Ideal for crop monitoring, spraying pesticides and fertilizers, and assessing field health using integrated sensors and modules.
  • Field Mapping: Utilizes high-precision GNSS and RTK for creating detailed and accurate maps of agricultural fields.
  • Irrigation Management: Supports integration with liquid level gauges and water pumps for efficient irrigation and water management.
  • Planting and Seeding: Compatible with seed spreaders and weigh systems for precise planting and seeding operations.
  • Obstacle Avoidance: Equipped with obstacle avoidance radar for safe navigation in complex environments.
  • Data Collection: Gathers and analyzes data from various sensors to provide insights into crop health, soil conditions, and environmental factors.

The PALADIN V3 Agriculture Controller stands out as a reliable and multifunctional tool, enhancing the productivity and efficiency of modern agricultural practices through its advanced features and robust design.

BoYing Paladin V3 Specifications

Parameter Category Details
Configuration List
Main Controller 1
GNSS Module 1
Power Module 1
GNSS Module Mount 1
Power Module Output Cable 1
Flight Indicator Light 1
Data Transmission/Bluetooth Cable 1
Optional Support Power Module (12S-28S), 4G Module, Companion Computer, Expansion Dock, RTK Module, Front Obstacle Avoidance Radar, Full Obstacle Avoidance Radar, Terrain Radar, Enhanced Fixed-point Module, Single North Positioning Module

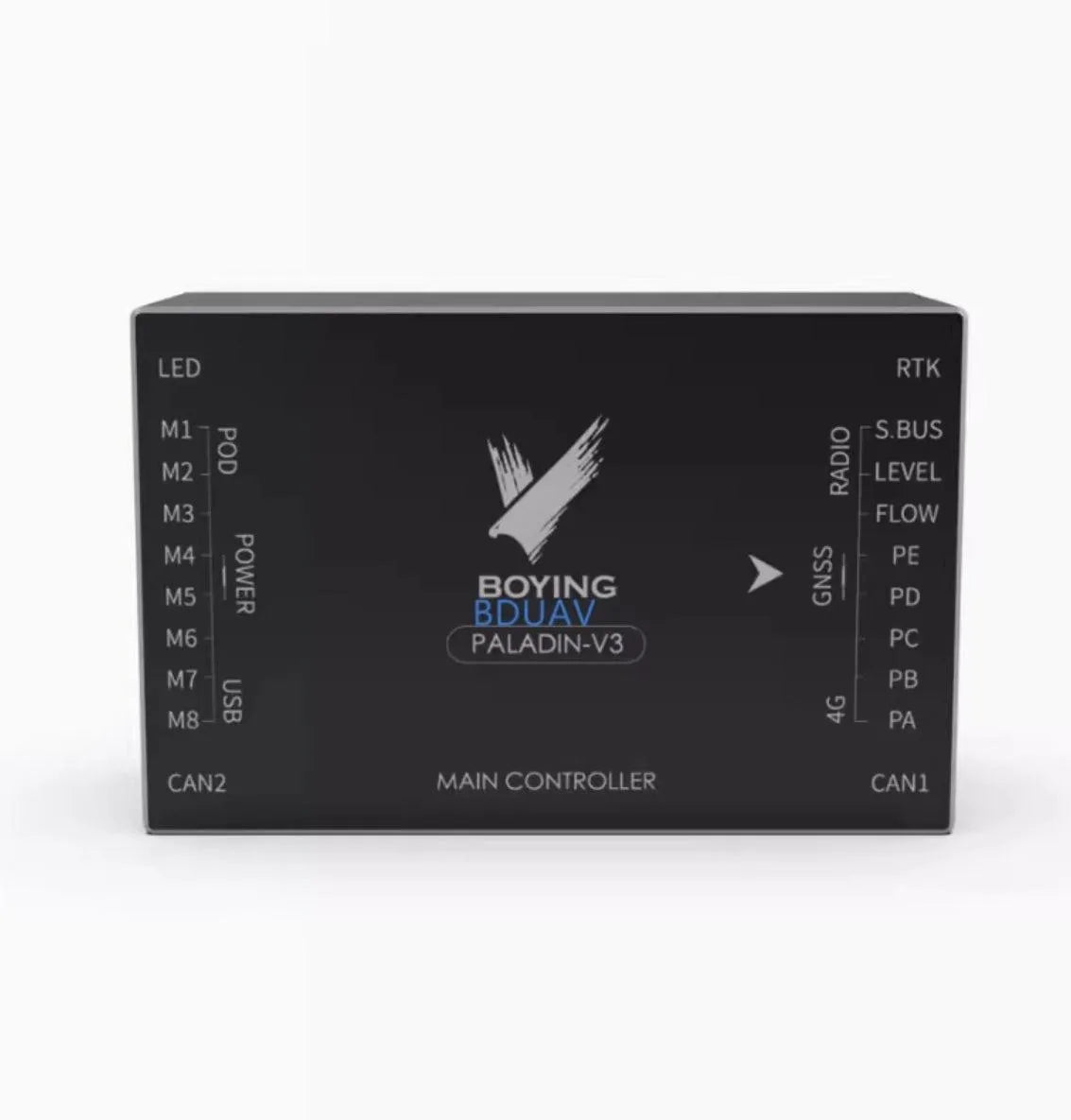

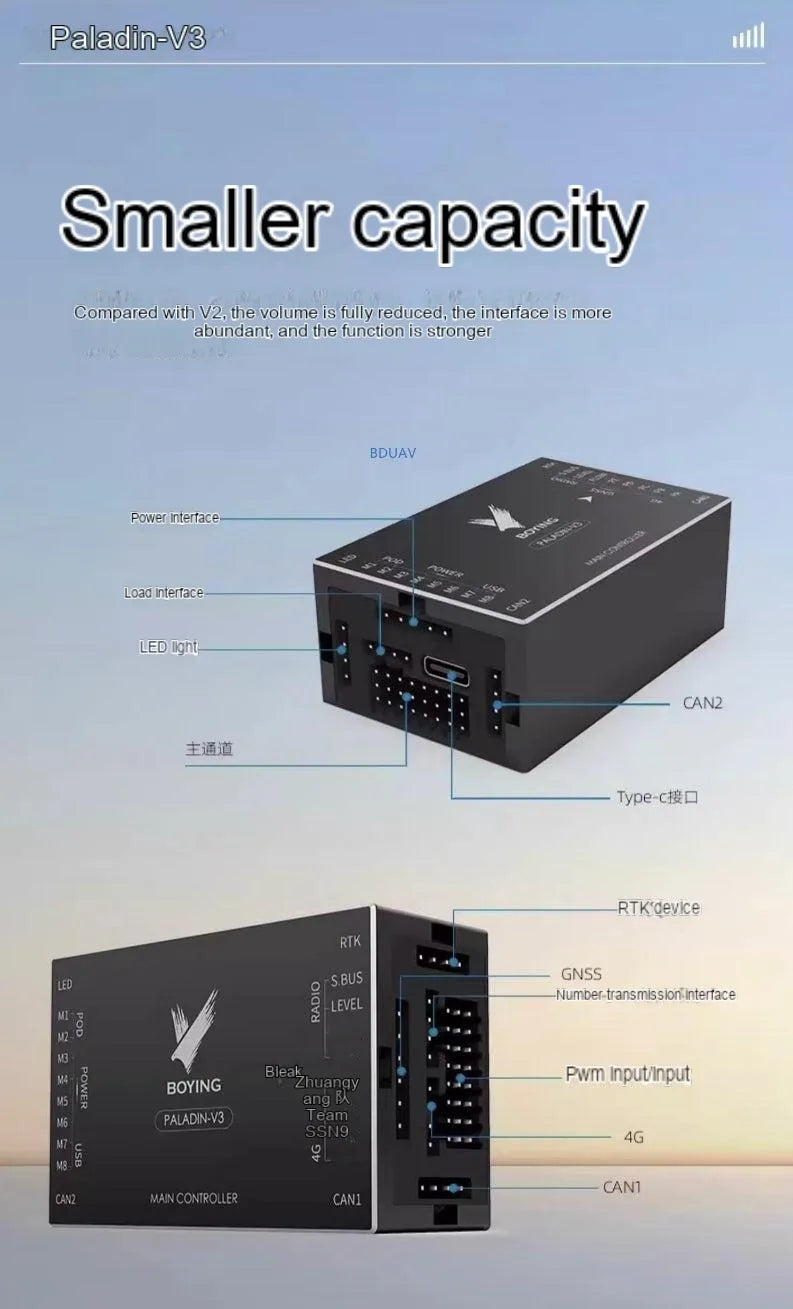

Basic Parameters (Interface)
Power 1 port
Liquid Level Interface 1 port
LED Indicator 1 port
CAN 2 ports
GNSS Module 1 port
RTK Interface 1 port
Remote Receiver SBUS 1 port
Data Interface 1 port
ESC Interface 8 ports
Payload Interface 1 port
Auxiliary Interface 4 ports output
4G Interface 1 port
Flow Meter Interface 1 port
Type-C USB Interface 1 port
Physical Parameters
Size 67mm x 44mm x 27mm
Weight 70g
Supported Battery Voltage 6-28S
Power Consumption <5W
Maximum Inclination Angle 35°
Operating Temperature -20 to 70°C
Operating Humidity 5% to 95%
Suitable for Drone Load <50kg
Degree of Integration Non-integration
Hover Accuracy Horizontal ±1.5m, Vertical ±0.5m
Main Channel Route B
Flight Mode Altitude Hold / Position Hold / Autonomous Mode
Cloud Platform Boying Agricultural Cloud
Aircraft Type Quadrotor (X-type), Hexarotor (X-type), Octarotor (X-type, Coaxial Propeller), Other Variants
Supported Expansion Devices Dual GPS, RTK onboard terminal, RTK base station, 4G module, expansion dock, obstacle avoidance radar, terrain radar, remote control, flow meter, weighing system, spreader, seed spreader, liquid level gauge, water pump, engine CAN equipment
Main Functions Manual flight, autonomous operation, AB point flight, AB-T mode, route planning, one-click takeoff, out-of-control protection, continuing task, low voltage alarm, breakpoint continuation, electronic fence, dual water pump function, forward and rear obstacle avoidance, intelligent spray point



BoYing Paladin V3 Descriptions

Boying Paladin V3 Automatic Flight Controller for Agriculture Drone

Boying Paladin V3 Automatic Flight Controller for Agriculture Drone

Boying Paladin V3 Automatic Flight Controller for Agriculture Drone

Boying Paladin V3 Automatic Flight Controller for Agriculture Drone

BoYing Paladin V3 Automatic Flight Controller for Agriculture Drone

BoYing Paladin V3 Automatic Flight Controller for Agriculture Drone

Boying Paladin V3 Automatic Flight Controller for Agriculture Drone
