ATOMRC Swordfish Fixed Wing Aircraft SPECIFICATIONS
Video Capture Resolution: Other
Remote Distance: 0-10km
Remote Control: Yes
Recommend Age: 12+y
Package Includes: Original Box
Origin: Mainland China
Operator Skill Level: Intermediate,Expert,Beginner
Model Number: ATOMRC Swordfish
Material: Foam
Indoor/Outdoor Use: Outdoor
Features: FPV Capable
Controller Mode: MODE1,MODE2
Controller Battery: 2-4S
Control Channels: 6 Channels
Camera Mount Type: Other
Brand Name: uuustore

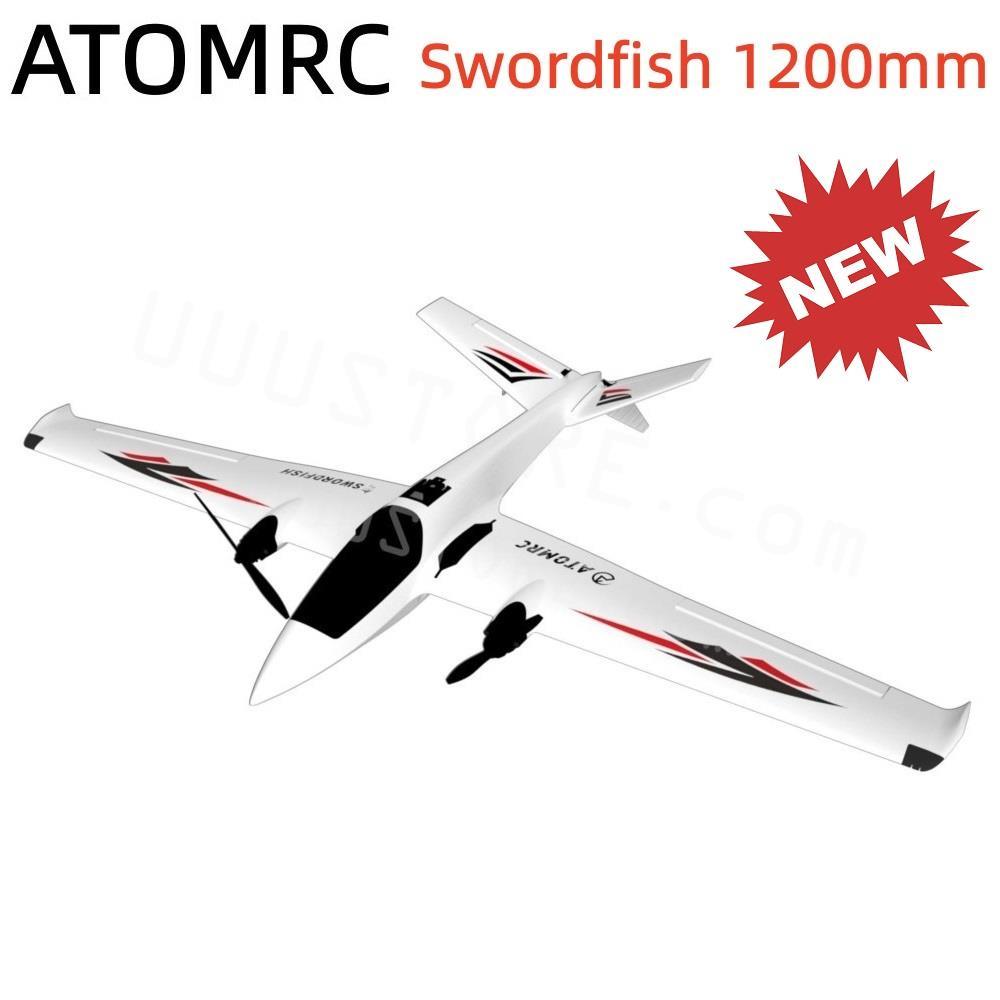

ATOMRC Swordfish 1200mm Fixed Wing Wingspan FPV Aircraft RC Airplane KIT PNP FPV PNP Outdoor Hobby Toys for Children RC Model
Description:
Brand: ATOMRC Fixed Wing
Wingspan:1200mm
Length:810mm
Material: EPP
WingArea:15.35 dm²
Package size:815*220*185mm
Recommend motor: 2004~2306
Recommendprop: 7045
Recommend battery:4s 5000mAh/21700 1P4s
Servo: 4Pcs 9g servo
The specs is testing by PNP version：
Recommend take off weight: 1000g
Max. take off weight: 1300g
Cruse speed：50km/h
Feature:

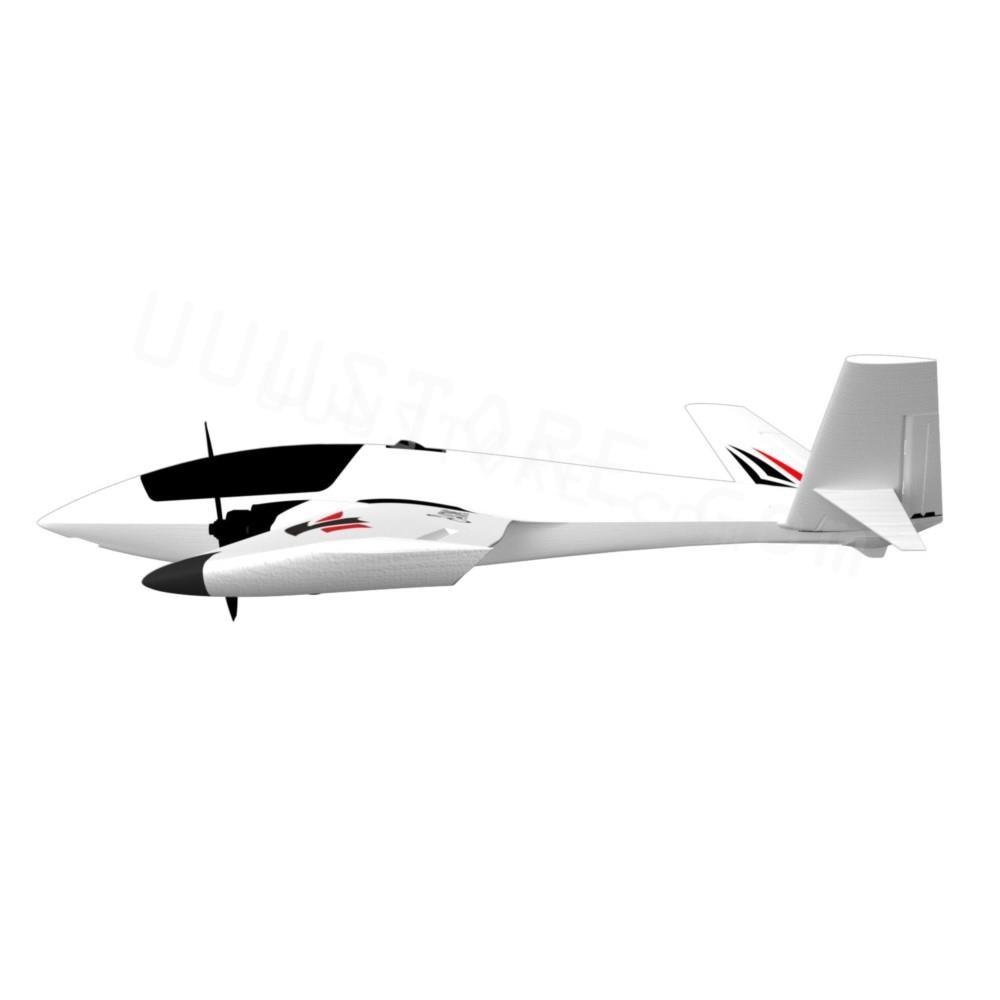

1.The swordfish is a 1200mm wing span middle speed twin motor glider, the large V-tail
improves the cruising speed stability, the aerodynamic shape and low cross-sectional
area reduce flight resistance and improve endurance.
2.We use lots of plastic injection parts to reduce the wight, size and also improved the
strength.

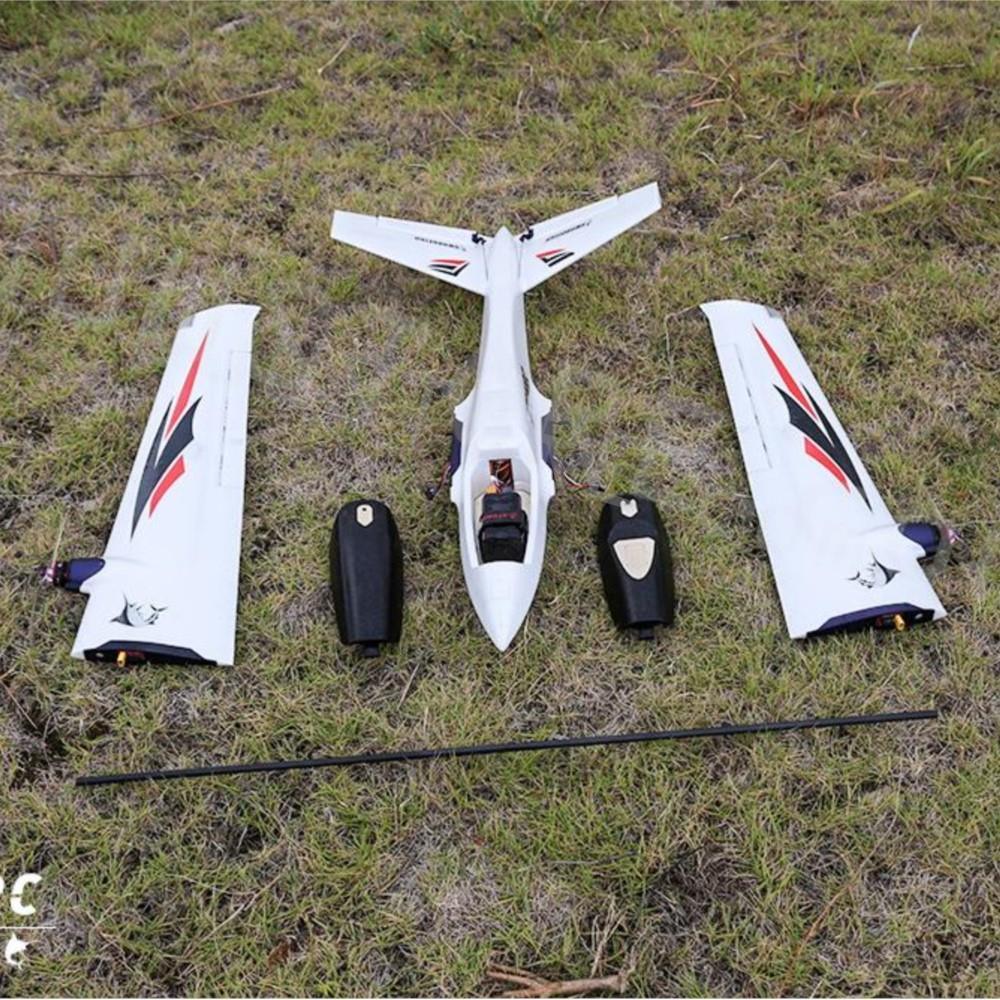

3.The fuselage and the wing are embedded with reinforced carbon tubes to maximize the
torsional rigidity of the wing during flight and the structural strength of the tail connection.
Improved the control of precise flight. The belly wheel and the tail skid design protect the
bottom of the fuselage from landing.
4.The glider support DJI air unit, also support analog system, the 1000g±200g take off weight
made the plane achieves balanced load on the take-off wing, balanced cruise speed, and
convenient assembly and maintenance.
| ATOMRC Swordfish Fixed Wing | ||||||
| Version | KIT | PNP | FPV | RTH | RTF+FPV | |
| Description | Pre-glued Fixed WING | KIT+Motor +ESC+Servo | PNP+VTX+Camera | PNP+Pre-turned FC+GPS, all electronics are installed | RTH+VTX+Camera, all electronic are installed | |
| Basic Pack | Pre-Build KIT | √ | √ | √ | √ | √ |

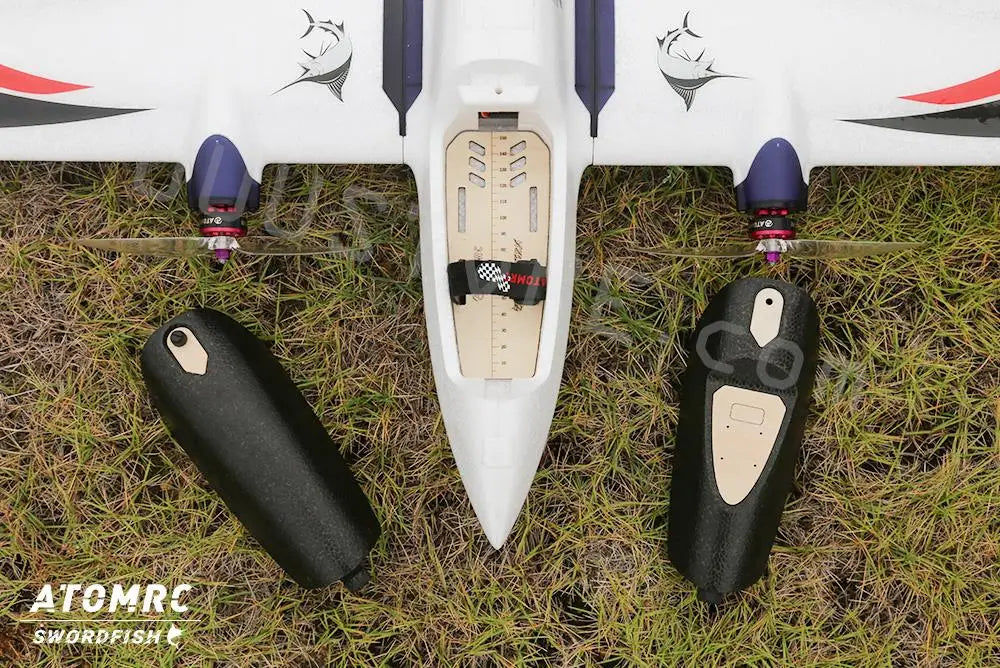

| Wood plate | √ | √ | √ | √ | √ | |
| Screws and Nuts | √ | √ | √ | √ | √ | |
| Sticker and user manual | √ | √ | √ | √ | √ | |

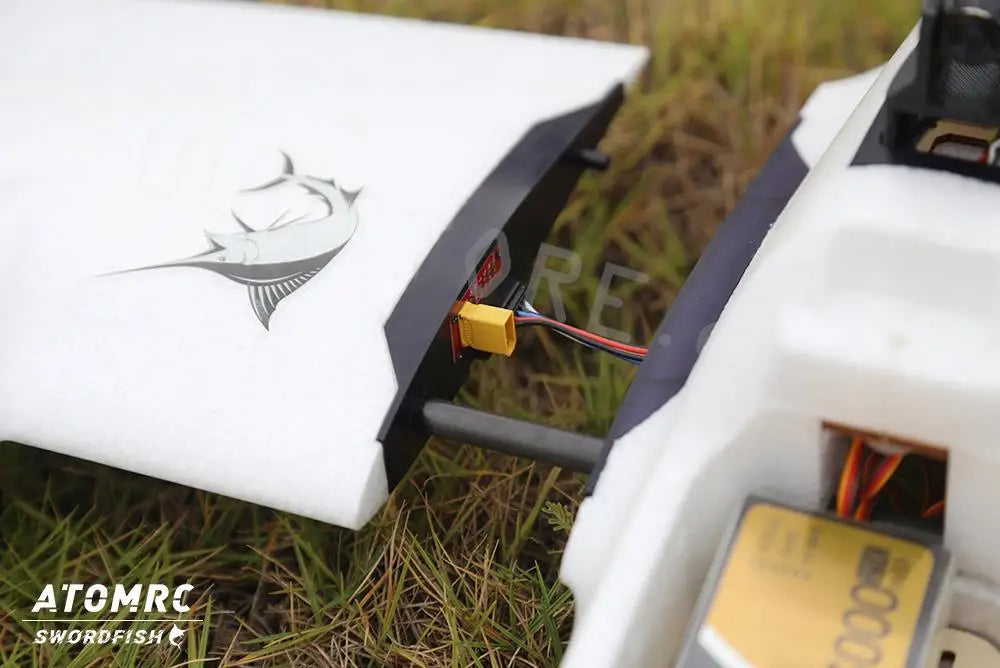

| Quick Release Connector | √ | √ | √ | √ | √ | |
| Flight Light | √ | √ | √ | √ | √ | |

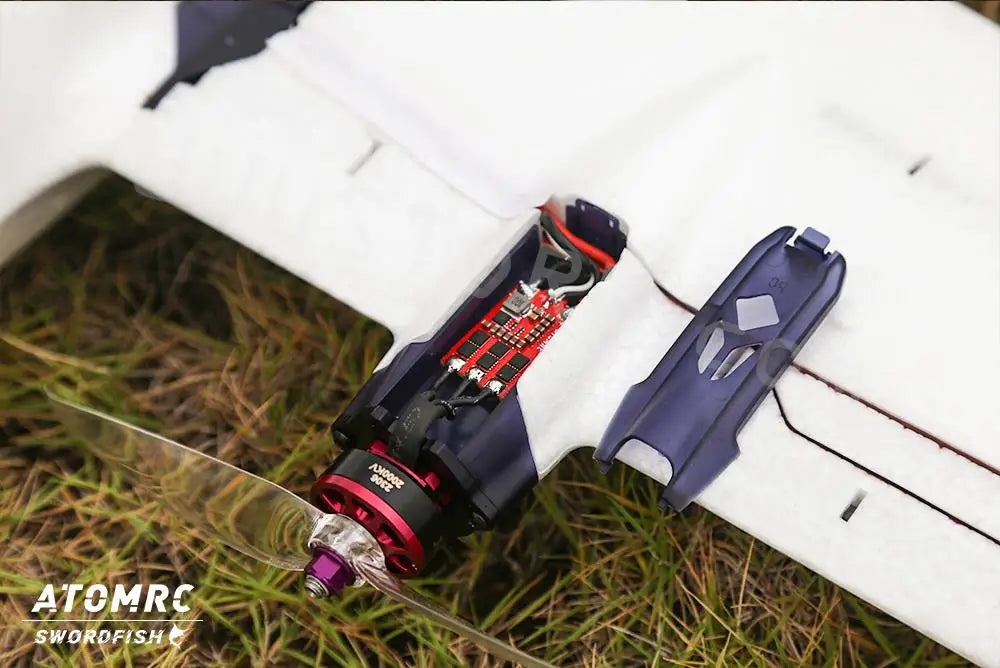

| Motor | ATOMRC 2306 2000kv | 2pcs | 2pcs | 2pcs | 2pcs | |
| ESC | ATOMRC BLS 30A 2~4S | 2pcs | 2pcs | 2pcs | 2pcs | |
| Servo | ATOMRC 9g *300mm | 4pcs | 4pcs | 4pcs | 4pcs | |
| Prop | 7040-2 | 4pcs | 4pcs | 4pcs | 4pcs | |

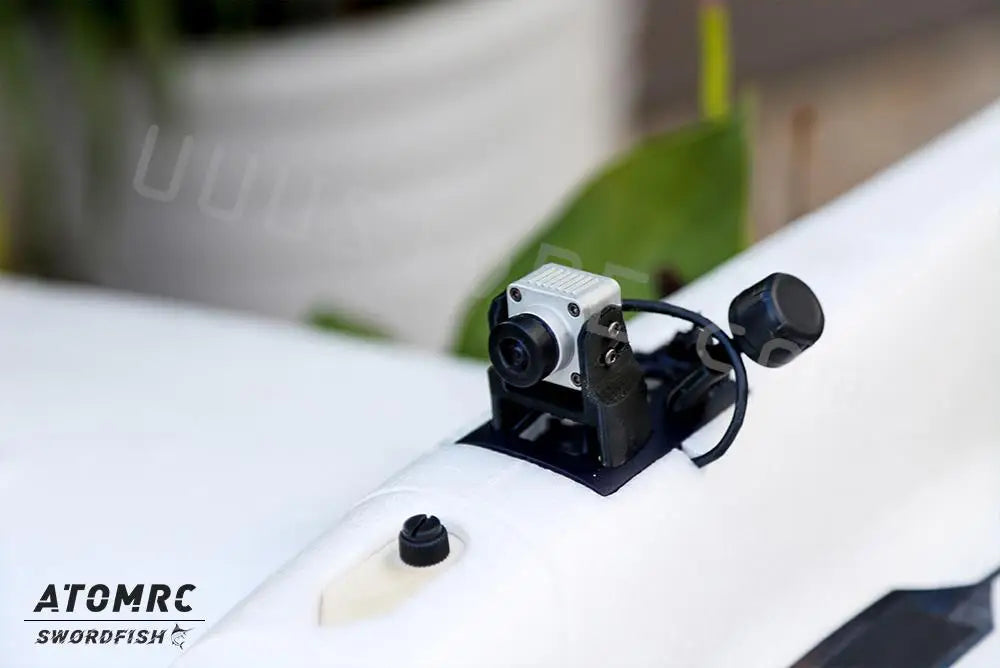

| Cam | Foxeer Toothless NANO | √ | √ | |||
| VTX | ATOMRC Exceed TX500 VTX | √ | √ | |||
| Antenna | ATOMRC | √ | √ | |||
| FC | ATOMRC F405 NAVI | √ | √ | |||
| GPS | BN220 | √ | √ | |||
| The specs will be slightly adjusted according to different， actual specs are subject to the latest manual and real objects. | ||||||
ATOMRC Swordfish Build for FPV Golden Raltio Specia esigned for Elegant shape Low drag design, science fiction outlook Compatible with multiple camera andVTX system Defau ith 2lm Other size download fro PRECISE PLASTIC INJECTIONPARTS tliggco Plasti light weigh V-tail Mount Carbon fiber = eintorcement and lastic injection mount for tail, more rigid for high speed and landing: Hatch Lock the hatcl In theair
