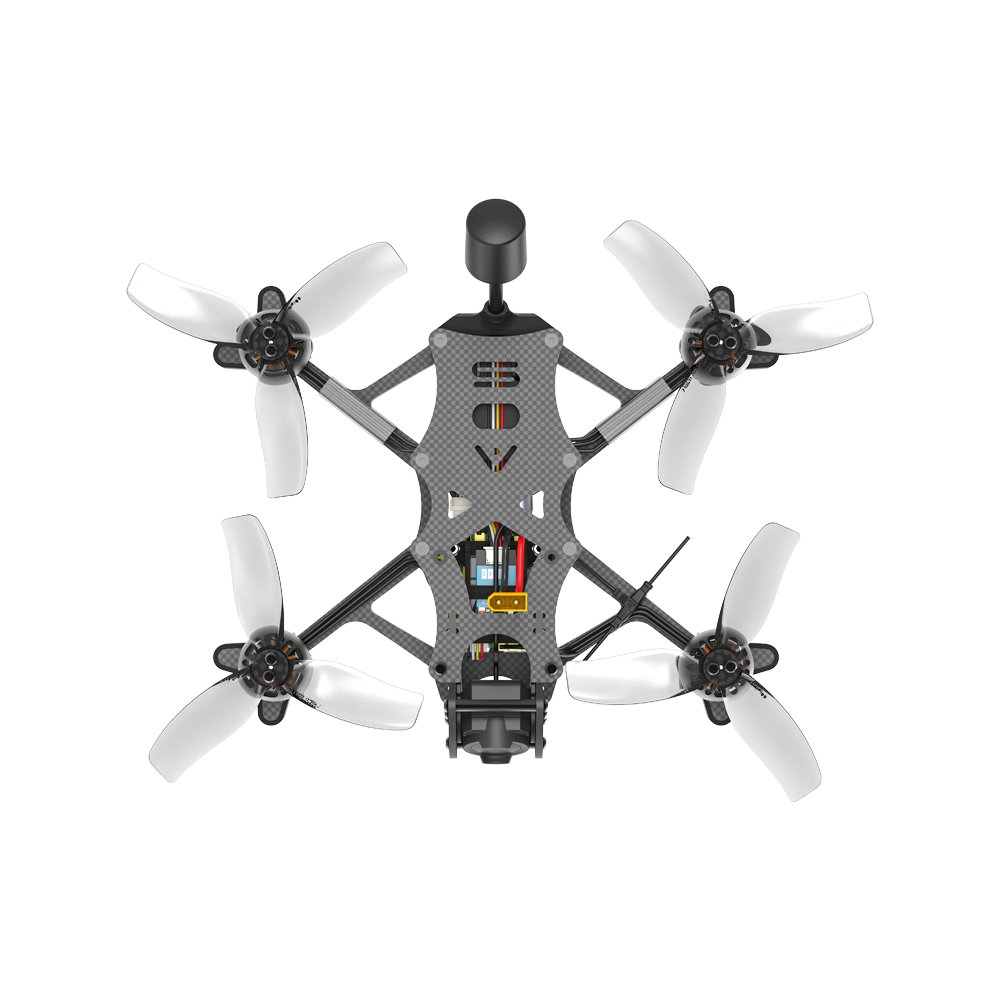

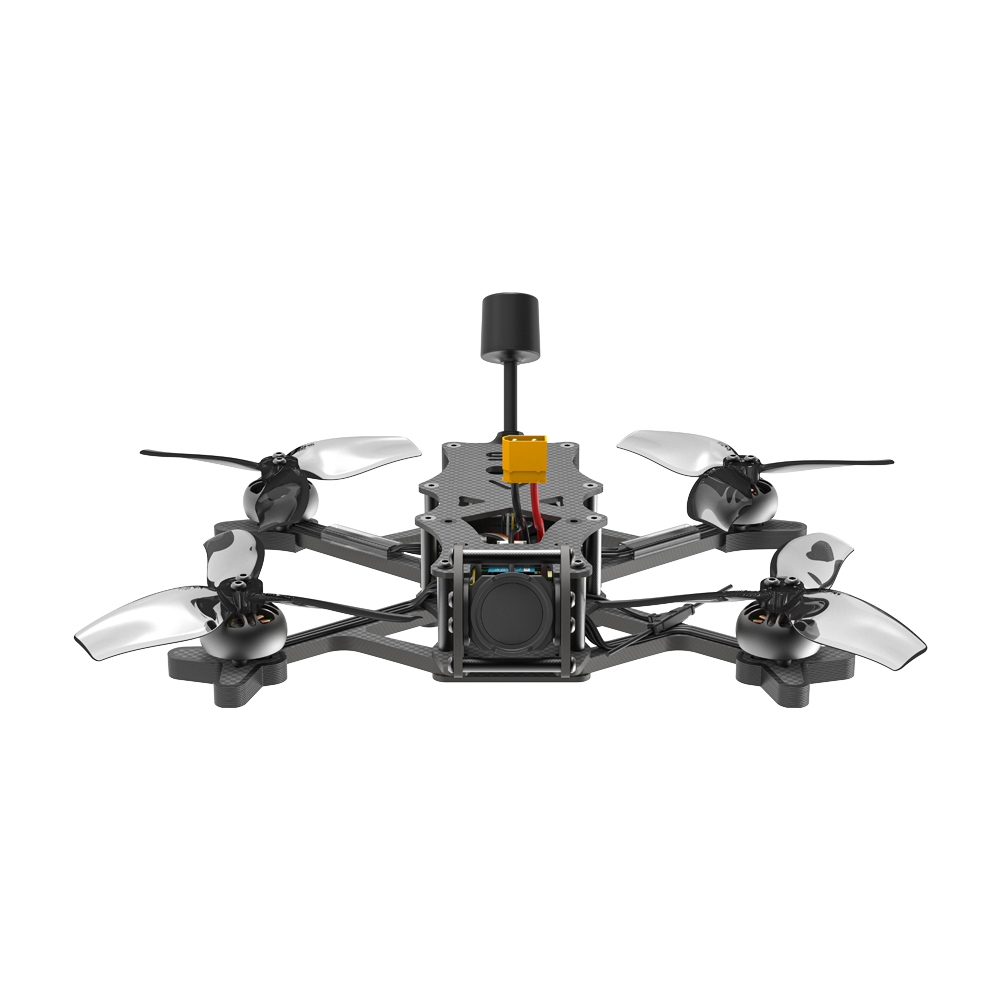

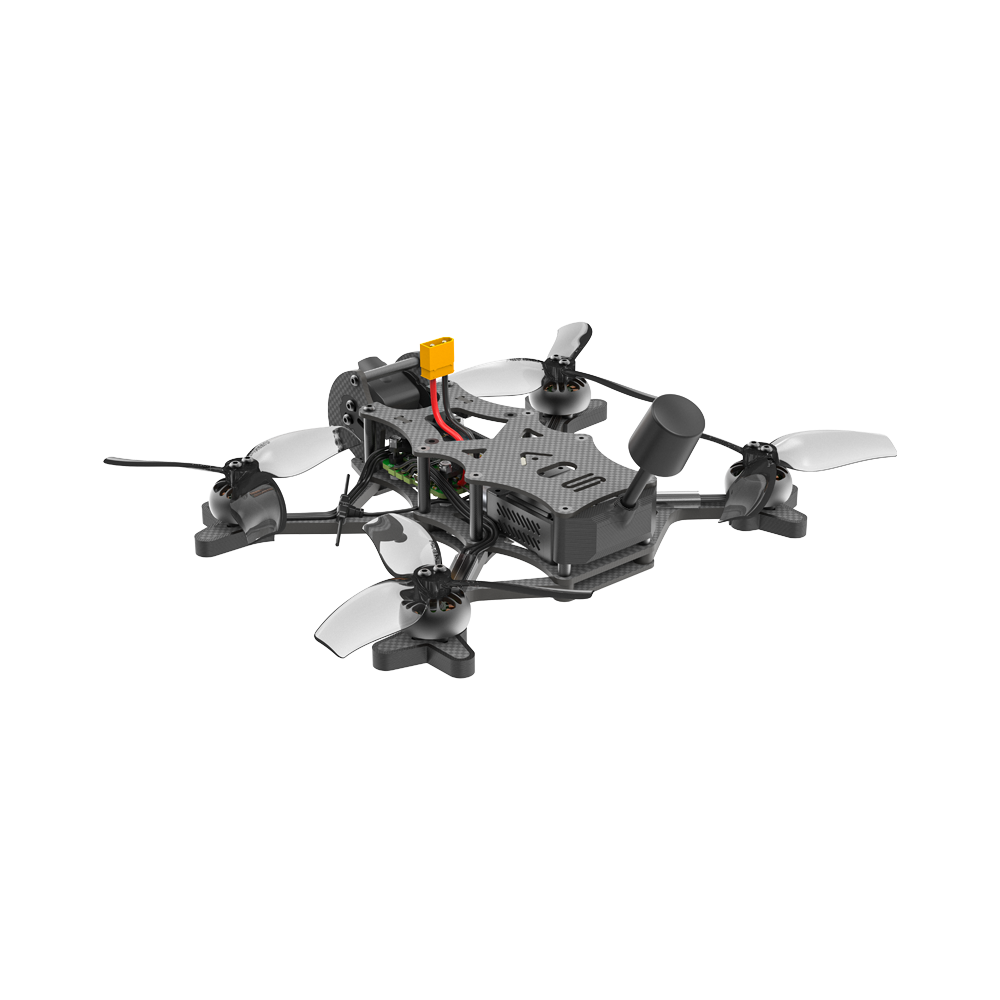

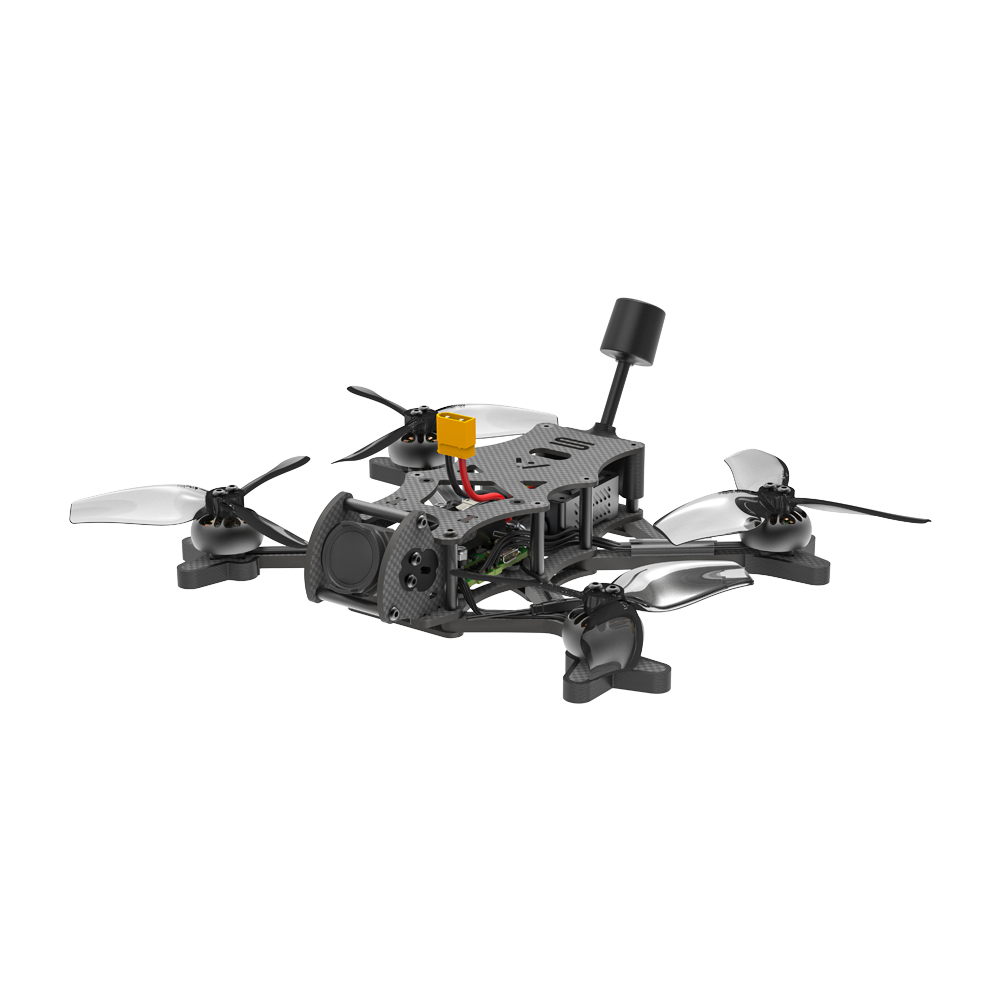

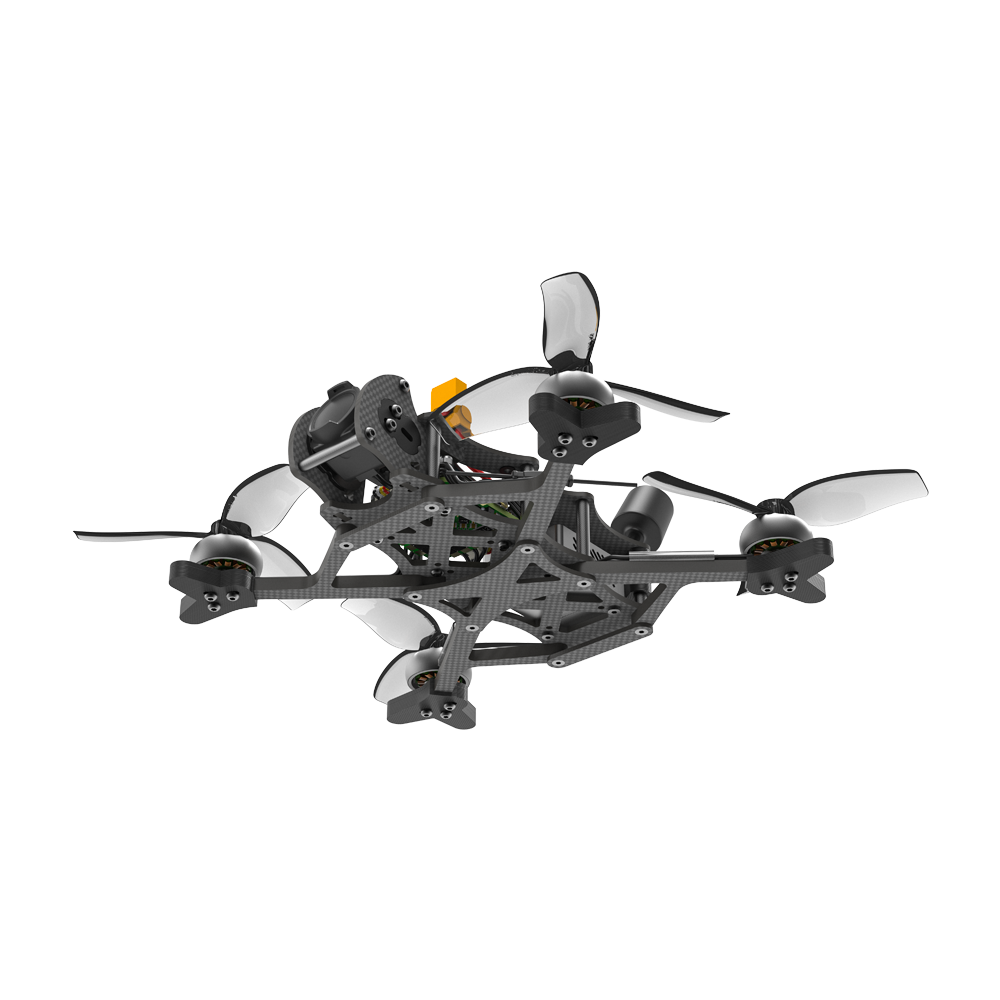

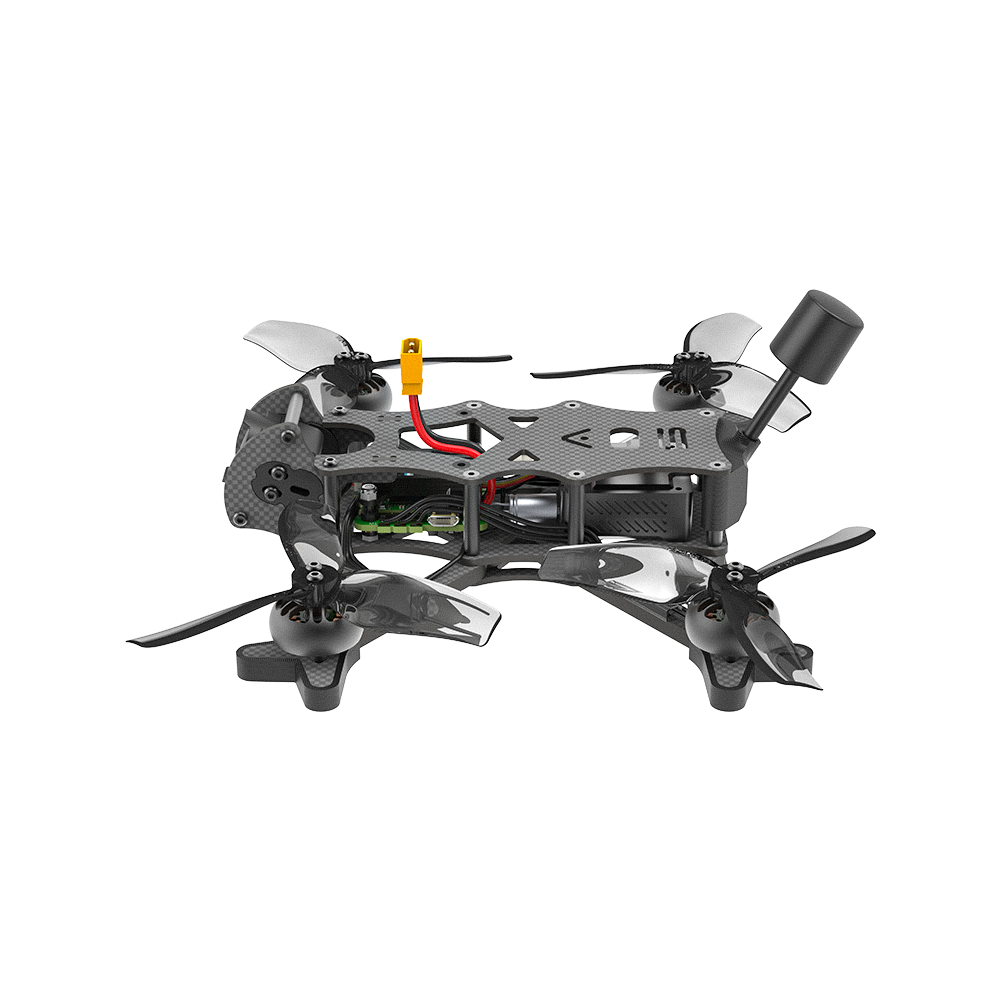

AOS 3.5 EVO HD 4S 3.5inch FPV Drone BNF with O3 Air Unit for FPV

$703.06$719.04

Description

AOS 3.5 EVO HD 4S 3.5inch FPV Drone SPECIFICATIONS

Wheelbase: Bottom Plate

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Frame

Tool Supplies: Battery

Technical parameters: Value 2

Size: 3.5inch

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

RC Parts & Accs: Antennas

Quantity: 1 pcs

Origin: Mainland China

Model Number: AOS 3.5 EVO HD

Material: Carbon Fiber

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Certification: CE

Brand Name: IFLIGHT

Description´╝Ü

  • Built to go toe to toe with 5″ Freestyle quads whilst weighing under 250g. The AOS 3.5 EVO has been updated to be compatible with the new DJI O3 Air Unit as well as existing 20x20mm and 25.5×25.5mm electronics. The camera cage and arms have been reinforced to improve durability. As with all AOS frames exceptional vibration and resonance performance is guaranteed, eliminating IMU resonance issues with O3 image stabilisation.
  • The AOS 3.5″ was born from an analysis of quadcopter weight against prop size. The result was the identification of disc loading as a key parameter that could be compared between quads of different sizes and was a strong predictor of flight performance for freestyle flying.
  • By looking at the flight performance of a large number of quads it was possible to identify the ideal disc loading for a freestyle drone and thereby calculate the ideal prop size for an FPV freestyle drone of a given weight.
  • When that analysis is performed for 250g the ideal prop size turns out to be very close to 3.5″ and several good 3.5″ props are available.

Highlights

  • Designed for up to 3.5 inch props
  • 160mm wheelbase
  • 4 mm Arms
  • One 25.5×25.5 or 20×20 mm stack in the front and one 25.5×25.5 or 20×20 mm stack in the rear OR One 25.5×25.5 or 20×20 mm stack in the centre
  • Fits the DJI O3 Air Unit, Caddx Vista or HDZero Whoop VTX perfectly
  • Fits both 20mm (DJI and O3 camera) and 19mm (Micro sized) cameras

Specifications

  • Product Name´╝ÜAOS 3.5 EVO
  • Flight Electronics: BLITZ F7 AIO
  • Video Transmission: DJI O3 Air Unit
  • Frame: 162┬▒2mm wheelbase
  • Motor: XING 1504 3100KV motors
  • Prop: HQ D-T90MMX3 propellers
  • Takeoff Weight´╝ÜApprox. 281┬▒5 g
  • Dimensions (L├ŚW├ŚH)´╝Ü131├Ś95├Ś29 ┬▒2mm
  • Max Speed´╝Ü110 Km/h (Manual Mode)
  • Maximum Takeoff Altitude´╝Ü300 m
  • Max Hover Time´╝ÜApprox. 6 mins
  • Max Flight Distance´╝Ü2-3 km
  • Max Wind Speed Resistance´╝Ü100 Km/H (Level 4)
  • Operating Temperature Range´╝Ü-10┬░ to 40┬░ C (14┬░ to 104┬░ F)
  • Antennas: 1 Antenna
  • GNSS´╝ÜN/A

Video Transmission

  • Product Name´╝ÜDJI O3 Air Unit
  • Communication Frequency´╝Ü2.400-2.4835 GHz (RX only)┬á /┬á 5.725-5.850 GHz (RX and TX)
  • Communication Bandwidth´╝Ü Max 40 MHz
  • Live View Quality and Latency

With DJI FPV Goggles V2:

  • 810p/120fps Video Transmission Quality: The video transmission latency is lower than 28 ms.
  • 810p/60fps Video Transmission Quality: The video transmission latency is lower than 40 ms.

With DJI Goggles 2:

  • 1080p/100fps Video Transmission Quality: The video transmission latency is as low as 30 ms.
  • 1080p/60fps Video Transmission Quality: The video transmission latency is as low as 40 ms.
  • Max Video Transmission Bitrate´╝Ü50 Mbps
  • Max Video Transmission Range´╝Ü10 km (FCC), 2 km (CE), 6 km (SRRC)
  • Audio Transmission´╝ÜN/A

Packing List

  • 1 x AOS 3.5 4S EVO HD BNF
  • 2 x Battery pads
  • 2 x Prop(Pairs)

Important

  • Don’t worry about tuning, we did that for you already! A basic PID- and Filter tuning was applied for a great flight experience!
  • To restore lost tunes or updates, please check our linked article on “Firmware/Factory Dumps”
  • Angle-Mode (self balancing level mode) is enabled by default to make sure your first flight doesn’t end in a mess!
  • Please check our linked article on “How to disable Angle-Mode, activate Acro-Mode

Additional information

Color

ELRS 868 915MHz, with ELRS 2.4GHz, TBS Crossfire NANO, NO RX For DJI RC
