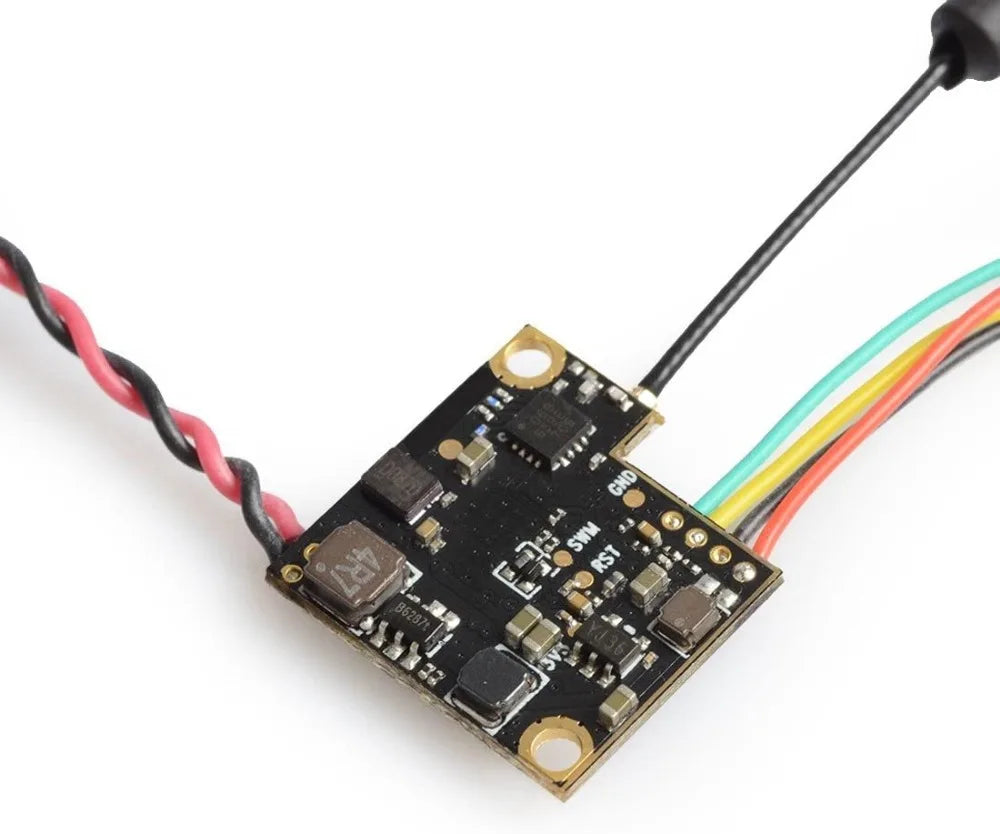

AKK NANo3/X5 VTX – 5.8GHZ 40CH 25/50/100/200mW Switchable Micro FPV Transmitter/IPEX antenna/regular cable

$16.34$25.00

Description

SPECIFICATIONS

Brand Name: akk

Origin: Mainland China

Material: Composite Material

RC Parts & Accs: Transmitters

For Vehicle Type: Airplanes

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: other

Remote Control Peripherals/Devices: other

Tool Supplies: Assembly Category

Model Number: Nano3

Four-wheel Drive Attributes: Assemblage

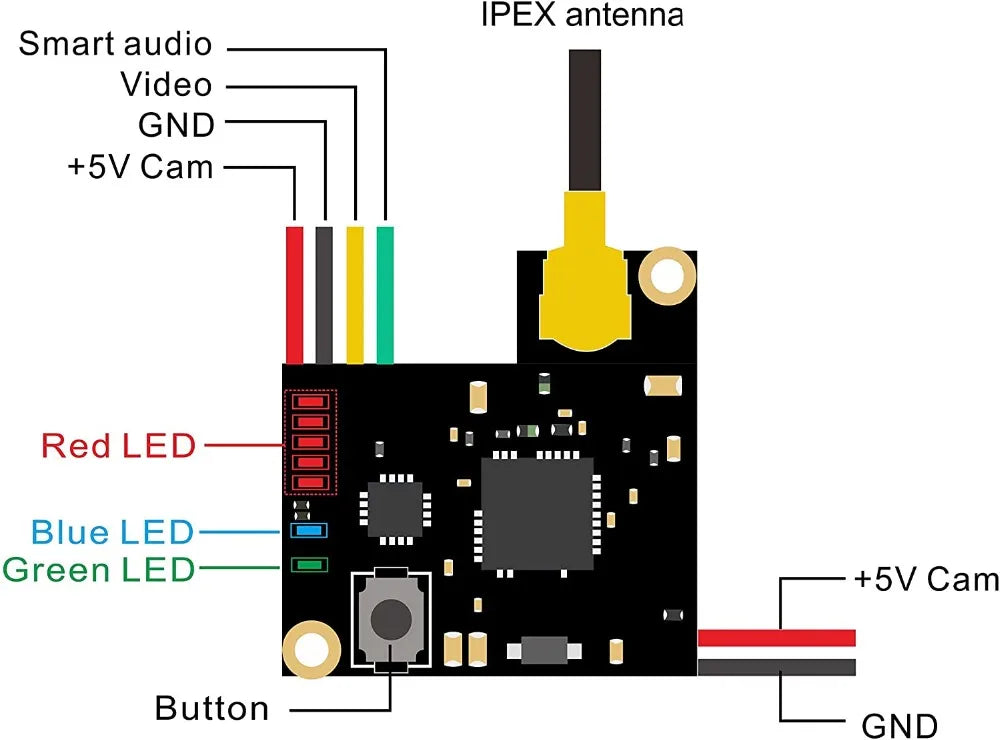

AKK Nano3 OSD configuration VTX:

AKK Nano3 5.8GHz Support OSD Configuring with mounting hole a stackable transmitter designed for Runcam micro and Foxeer micro.The first micro stackable vtx for runcam/foxeer micro with smart audio.

product features:

25mW and 200mW switchable

One button frequency and power setup

OSD configuration using smart audio

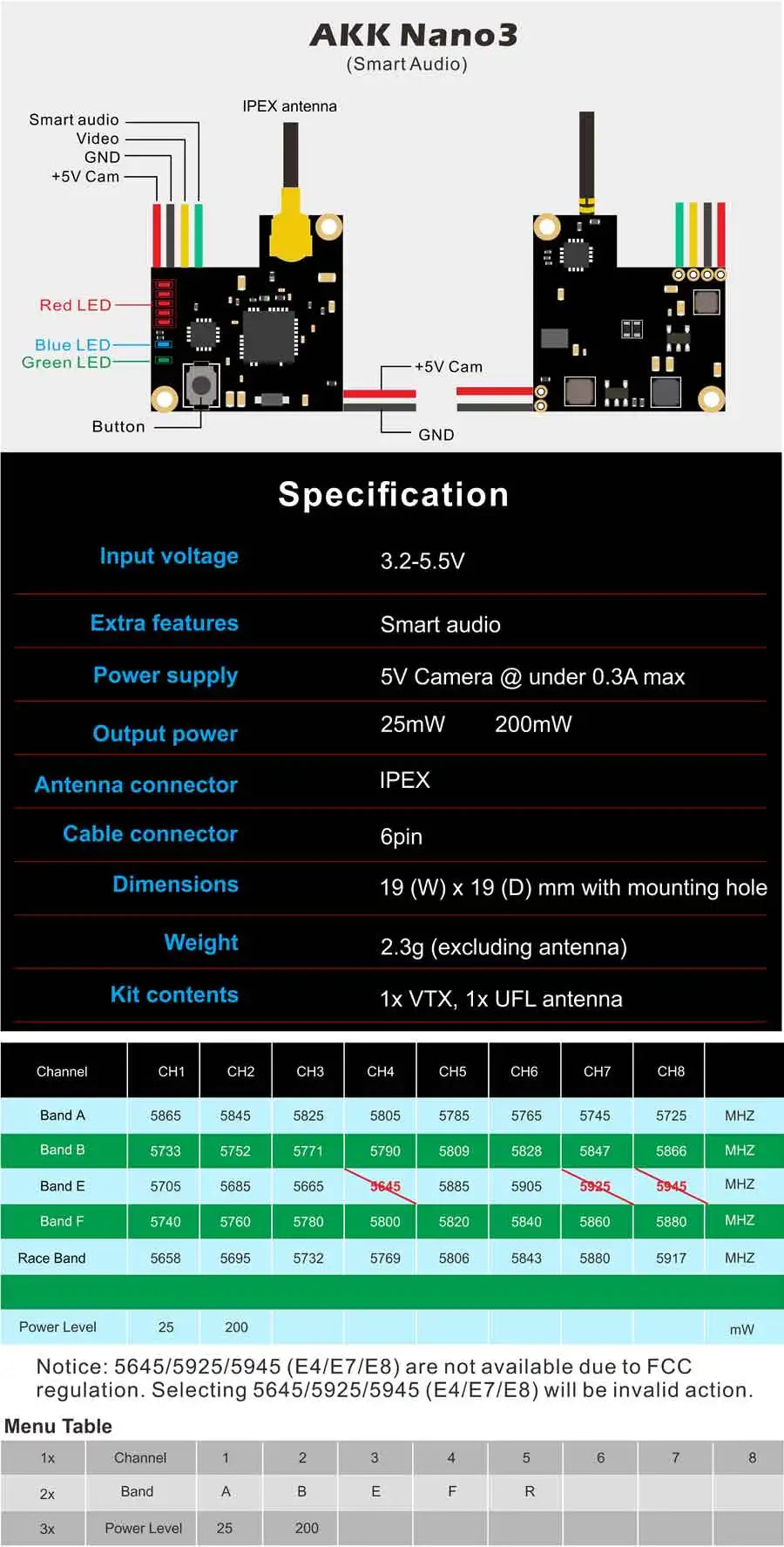

Specification:
Support Pit mode (0.01MW)

power supply: 5v camera @ under 300mA max.
Output power: 25mW/200mW switchable
Input voltage: 3.2-5.5V
Antenna connector: IPEX
Cable connector: 6pin
Dimension(without mounting hole): 19*19mm
Weight: 2.3g

Enter Pit Mode(0.01MW) Via Betaflight OSD:
You need set pit mode and power off and power on again, then it will enter the pit mode.

To exit Pit Mode:
Long presses the botton until LED won’t
flash.

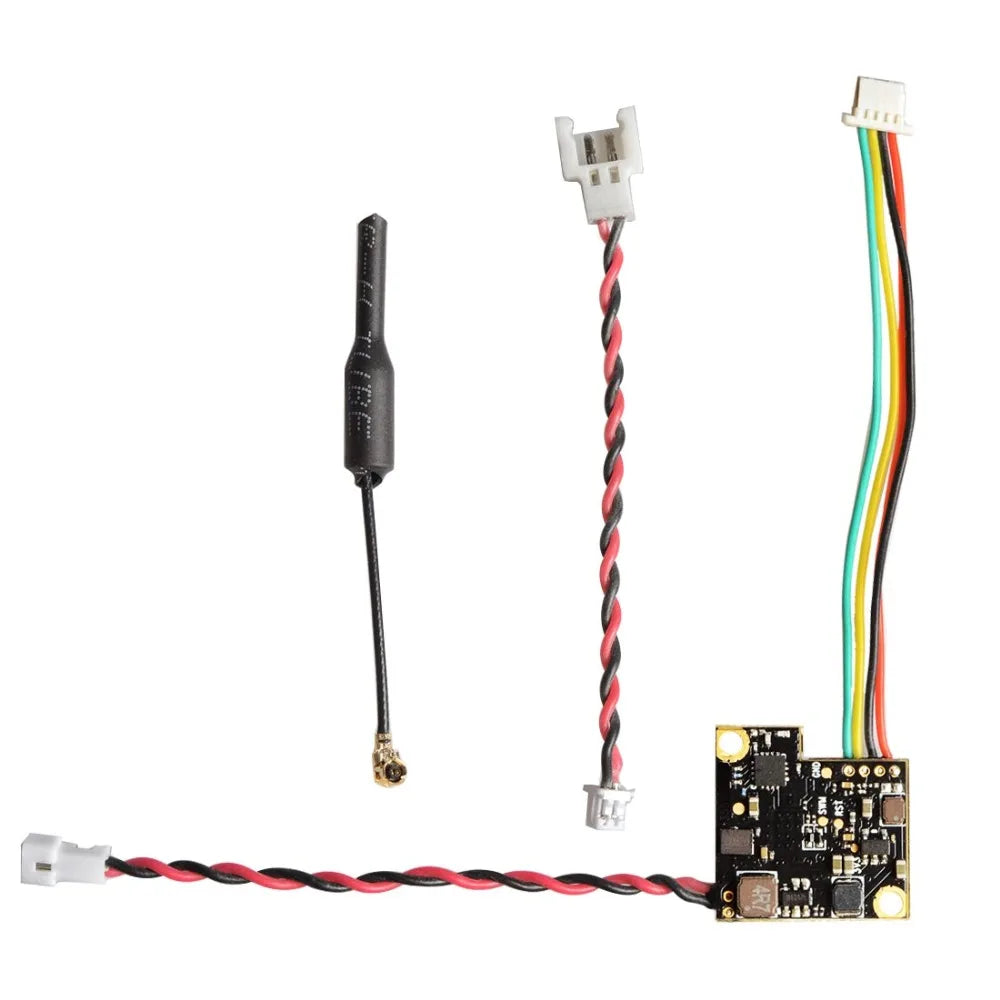

Package includes:

1*Nano3 VTX
1*Cable
1*IPEX Antenna
1*product manual

AKK NANo3/X5 VTX, Betaflight OSD: You need set pit mode and power off and power on again,

AKK NANo3/X5 VTX, 1*Nano3 VTX 1*Cable 1*IPEX AnAKK NANo3/X5 VTX, this VTX can be mounted on top of your mini FC/PDB stack .AKK NANo3/X5 VTX, 1*Nano3 VTX 1*Cable 1*IPEX AnAKK NANo3/X5 VTX, product features: 25mW and 200mW switchable One button frequency and power setup OSAKK NANo3/X5 VTX, Betaflight OSD: You need set pit mode and power off and power on again,

AKK NANo3/X5 VTX, AKK NANo3/X5 VT

AKK X5 Micro video VTX:

Specification:
Input voltage: 5V
Extra features: FC Uart, Parameter-adjusting Mode(0.01mW)
Built-in BEC: 5V camera @under 300mA
Output power:
25mW:100mA @5V
50mW:120mA @5V
100mW:180mA @5V
200mW:220mA @5V
Antenna connector: IPEX
Port connector: JST,6pin
Dimensions: 20(W)X20(D)mm, 16X16mm(hole)
Weight: 2.5g(excluding antenna)
Kit contents: 1XVTX, 1XUFL pigtail

AKK X5 5.8G 40CH with IPEX Antenna Connector 25/50/100/200mW Switchable FPV Transmitter with FC Uart Support OSD Configuring

Feartures:

It’s similar to the FX2 but has a smaller profile that uses 20x20mm mounting pattern, which be designed for smaller micro builds.
One cool feature about this VTX is that you can mount it on top of your mini FC/PDB stack thanks to the 16x16mm mounting pattern.
OSD configuration using FC Uart (F3/F4/F7 with OSD)
Built-in BEC: 5V camera @under 300mA
One button frequency and power setup
25/50/100/200mW power switchable

Note :

Before powering the VTX up, it’s very important to first installed antenna otherwise the product will have static
The vtx can power up 5V camera @ under 300mA

Feb 3, 2018, the VTX be advanced, Upgrade Version Compatible with Betaflight 3.2 and 3.3
AKK NANo3/X5 VTX, Supper mini size and light weight Only2.5
AKK NANo3/X5 VTX, product features: 25mW and 200mW switchable One button frequency and power setup OS AKK NANo3/X5 VTX, 55mm Weight: 2.5g (excluding antenna) 16mm 20 AKK NANo3/X5 VTX, product features: 25mW and 200mW switchable One button frequency and power setup OS AKK NANo3/X5 VTX, built-in BEC: 5V camera @ under 300mA One button frequency and power AKK NANo3/X5 VTX, Akk Nano3 Four-wheel Drive Attributes : Assemblage VT

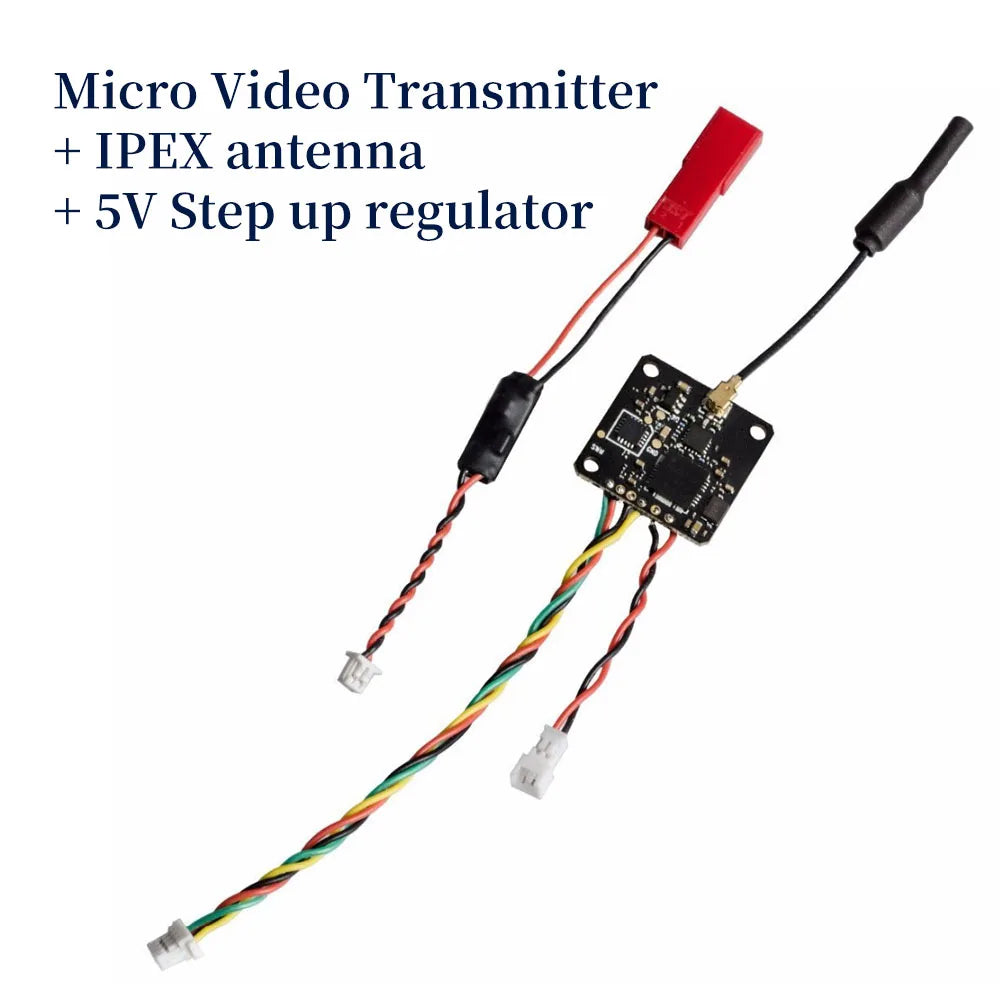

AKK NANo3/X5 VTX, Micro Video Transmitter IPEX antenna + SV Step up regulator Input:
