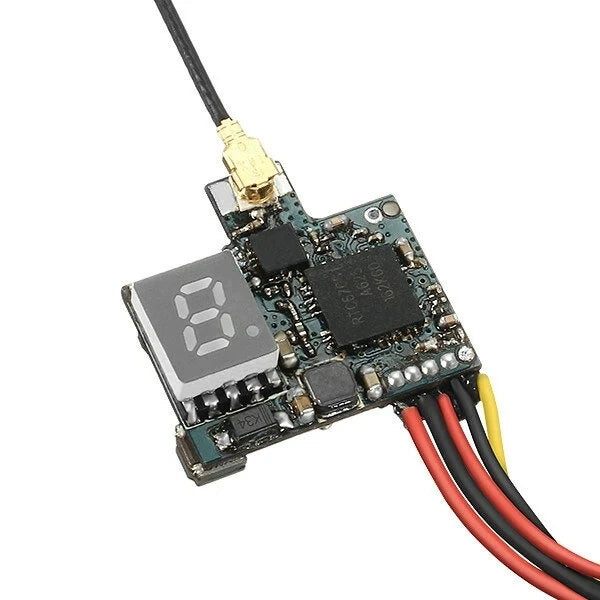

AKK Eachine A10 VTX – 5.8Ghz 40CH 200mW Mini FPV Transmitter for RC Tiny Racing Drone

$29.00$50.00

Description

AKK
Eachine A10 VTX SPECIFICATIONS

Brand Name: akk

Origin: Mainland China

Material: Composite Material

RC Parts & Accs: Transmitters

Use: Vehicles & Remote Control Toys

Quantity: 2

Model Number: A10

A10 5.8Ghz 40CH 200mW Mini FPV Transmitter for RC Tiny Racing Drone

Specification:
Brand name: Eachine
Item name: VTX02 Super Mini FPV Transmitter
Output power: 200mW
Input voltage: 3.2-5.5V
5V camera supply, 580mA (Max)
Video system: NTSC/PAL
Antenna dimensions: 55mm X 5mm diameter
Antenna: IPEX
Frequency: 5.8Ghz 5 bands 40 channels, with Raceband: 5658-5917MHz
Size: 20*14mm (L*W)
Weight: 2.8g

Operation:
Three adjustable gears, on/off switch, CH, FR automatically cycle display three gears on LED after power on.
Short press button to adjust “CH”, 1-8 adjustable.
Press and hold button 2s, transfer to FR, A, B, E, F, R adjustable, then short press button to adjust FR.
Press and hold button 5s to adjust on/off, “0” and “=” adjustable, short press button to adjust, “0” stands for “off”, and “=” stands for “on”.

Package Included:
1 X FPV Transmitter
1 X IPEX antenna

AKK Eachine A10 VTX, Eachine TXO2 5.86 4OCH 20OmW VTX 6AKK Eachine A10 VTX, Product Feature Press Is,select CH Press 2s and select FR B

Product Feature Press Is,select CH Press 2s and select FR Button LED display 3.2V-5V CAM GND GND .

AKK Eachine A10 VTX, Super mini size and light weight Weight: 2.89 5Smm 14mm 4mm ZOAKK Eachine A10 VTX, 5.8Ghz IPEX Antenna replaces fragile clover leaf antenna

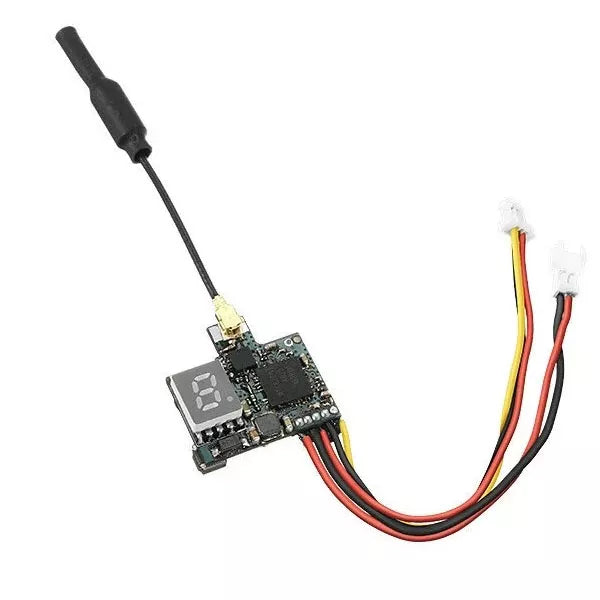

The 5.8GHz IPEX antenna replaces the traditional, fragile clover leaf antenna, offering improved performance while being slightly lighter.

AKK Eachine A10 VTX, 5.8Ghz 40CH 20OmW Transmitter Output power ZCO

5.8Ghz 40CH 20OmW Transmitter Output power ZCOmw Input voltage 3.2-5.5V Video system NTSC/PAL SV camera supply, 58OmA (Max

AKK Eachine A10 VTX, Package Included XVTXO2 FPV Transmitter XIPE

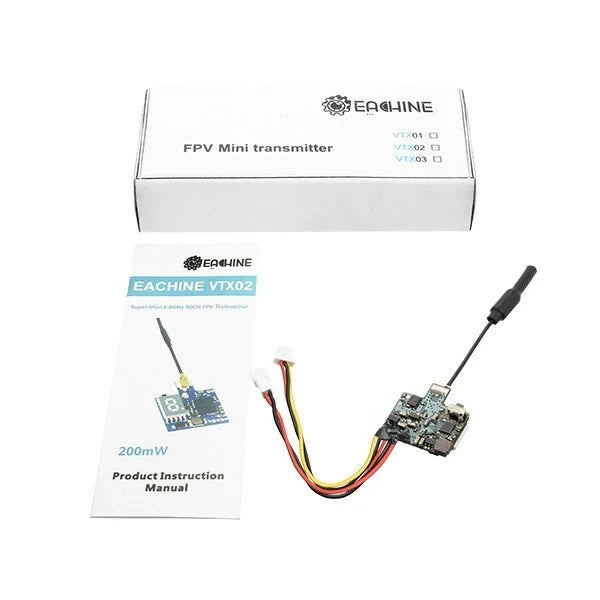

Package Includes:
– AKK Eachine A10 VTX mini FPV transmitter
– XIPEX antenna
– User Manual (EACHHINE VT701 M)
– Packaging and Accessories

AKK Eachine A10 VTX, Package Included: 1 x FPV Transmitter 1 X IPEX
