AKK diversity Receiver – Built-in Low Power Buzzer with two RX modules For Fatshark Goggles

$43.81

SKU: N/A Category:

Description

AKK diversity ReceiverĀ  SPECIFICATIONS

Brand Name: akk

Origin: Mainland China

Material: Composite Material

Recommend Age: 6-12y

RC Parts & Accs: Transmitters

For Vehicle Type: Airplanes

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Other

Remote Control Peripherals/Devices: Other

Tool Supplies: Assembly Category

Model Number: diversity receiver

Four-wheel Drive Attributes: Assemblage

Ā

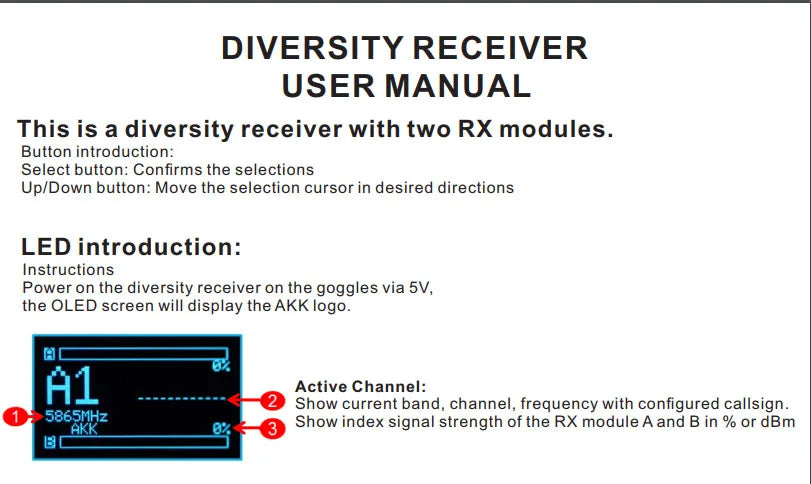

AKK diversity Receiver, the diversity receiver has two RX modules . the goggles are powered via 5V

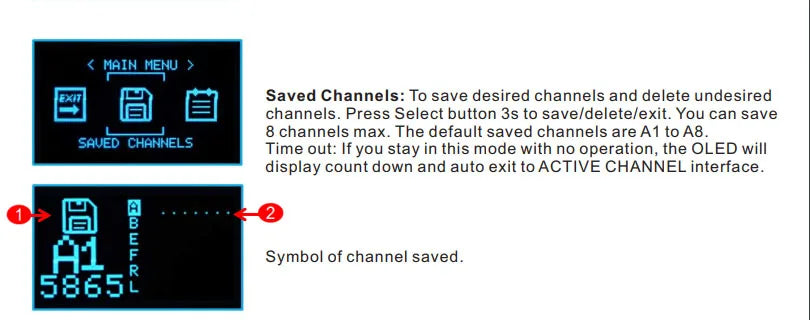

AKK diversity Receiver, default saved channels are A1 to A8 SAUED CHANNELS Time out:

default saved channels are A1 to A8 SAUED CHANNELS Time out: if you in this mode with no operation, the OLED will display count down to ACTIVECHANNEL interface .

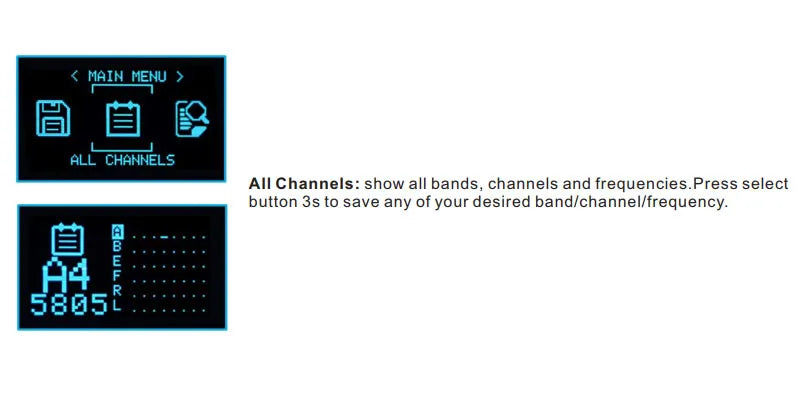

AKK diversity Receiver, NAIN NENU E ALL CHANNELS AII Channels: show all bands

All Channels Display: Show all available bands, channels, and frequencies. Press and hold the select button for 3 seconds to save any desired band/channel frequency combination.

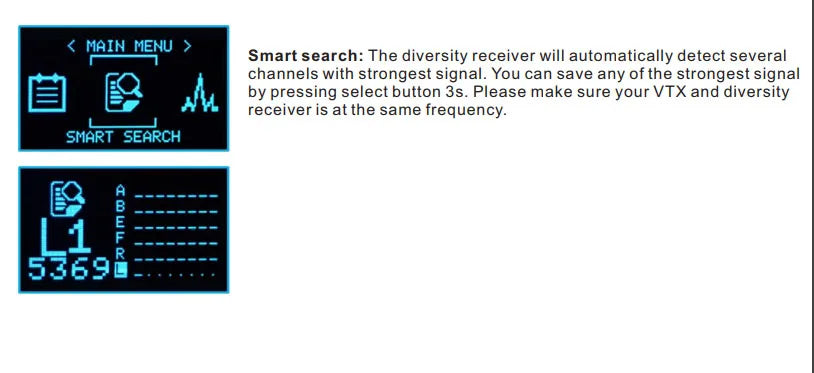

AKK diversity Receiver, the diversity receiver will automatically detect several channels with strongest signal . you can save any of the

The Diversity Receiver automatically detects multiple channels with the strongest signal. You can save the strongest signal detected by holding down the Select button for 3 seconds.

AKK diversity Receiver, MAN MENU EXIT Settings: To configure functions of the diversity receiver: SET

Menu > Settings (EXIT): Configure the settings for the Diversity Receiver by selecting this option.

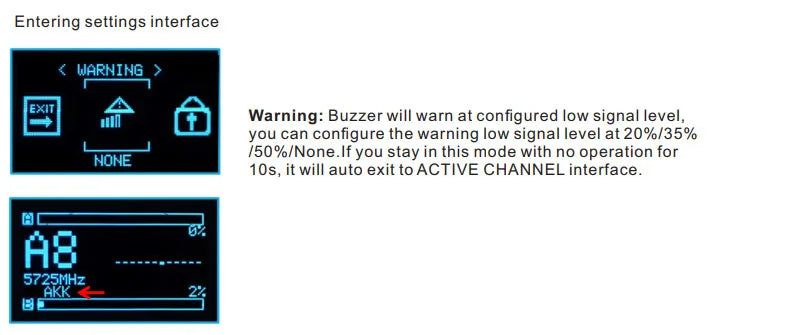

AKK diversity Receiver, Buzzer will warn at configured low signal level at 20%/35% NONE 150%/N

The Buzzer will alert you when the signal level falls below the configured threshold. If there is no further operation after 10 seconds, the receiver will automatically switch back to Active Channel mode.

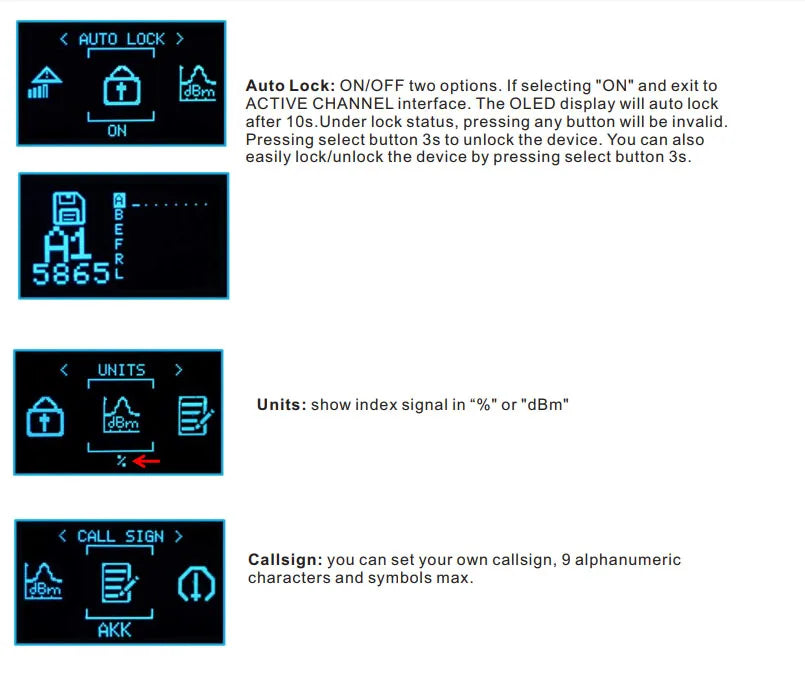

AKK diversity Receiver, auto lock: ONIOFF two options. if selecting "ON" and exit to

Auto Lock: This feature can be turned ON or OFF. When set to ‘ON’, the receiver will automatically switch to Active Channel mode when no operation is detected for 10 seconds. To unlock the device, press and hold the Select button for 3 seconds.

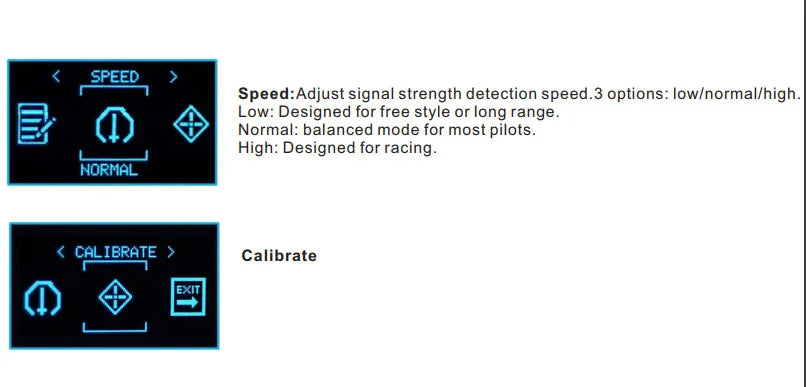

AKK diversity Receiver, SPEED Speed:Adjust signal strength detection speed.3 options: lowlnormal

Speed Setting: Adjust the signal strength detection speed. You have three options: Low, Normal, and High.

* Low: Designed for freestyle or long-range flying.
* Normal: A balanced mode suitable for most pilots.
* High: Optimized for racing applications.

To calibrate your receiver, select ‘Normal’ and then press the [Calibrate] button to refine the settings.
