AKK CA20 600TVL High Picture Quality Sony CCD Camera :

600TVL high picture quality Mirror function
Low Power Consumption and Low illumination
1/3″ SONY SUPER HAD II CCD,Nextchip 2040 DSP

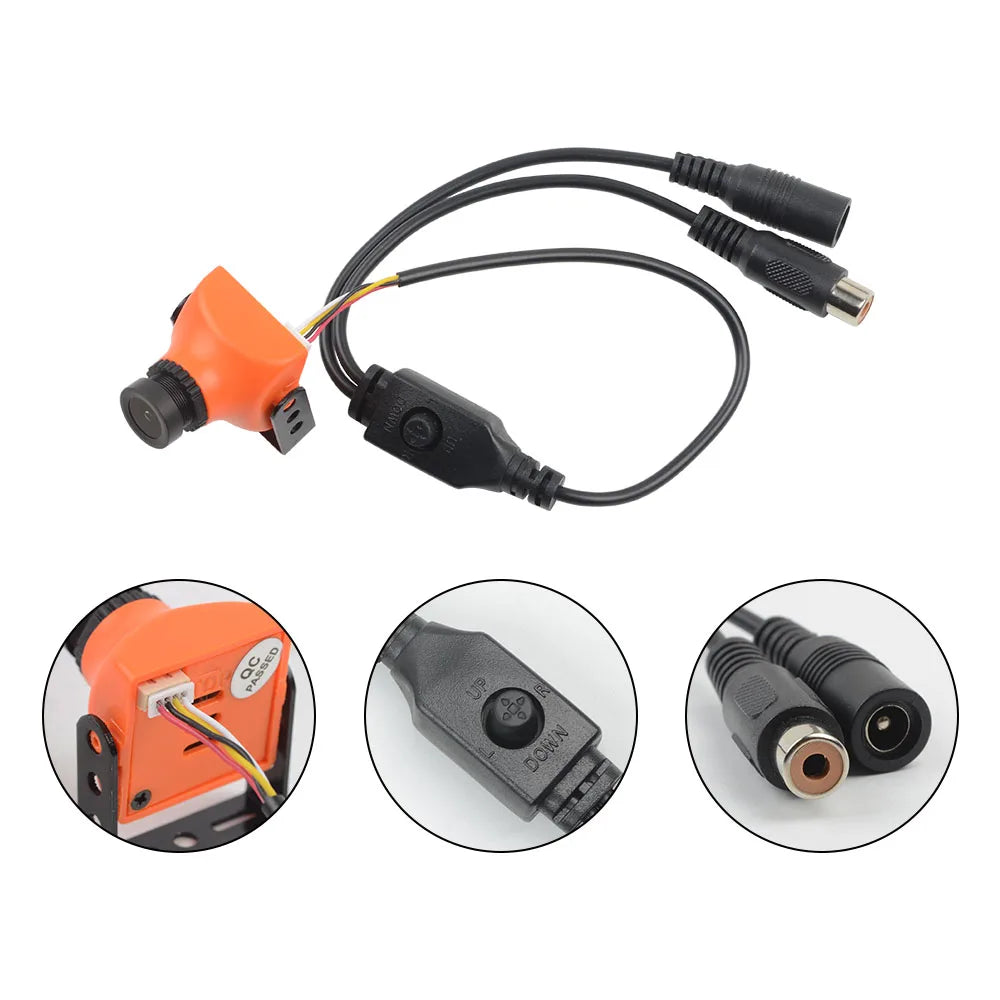

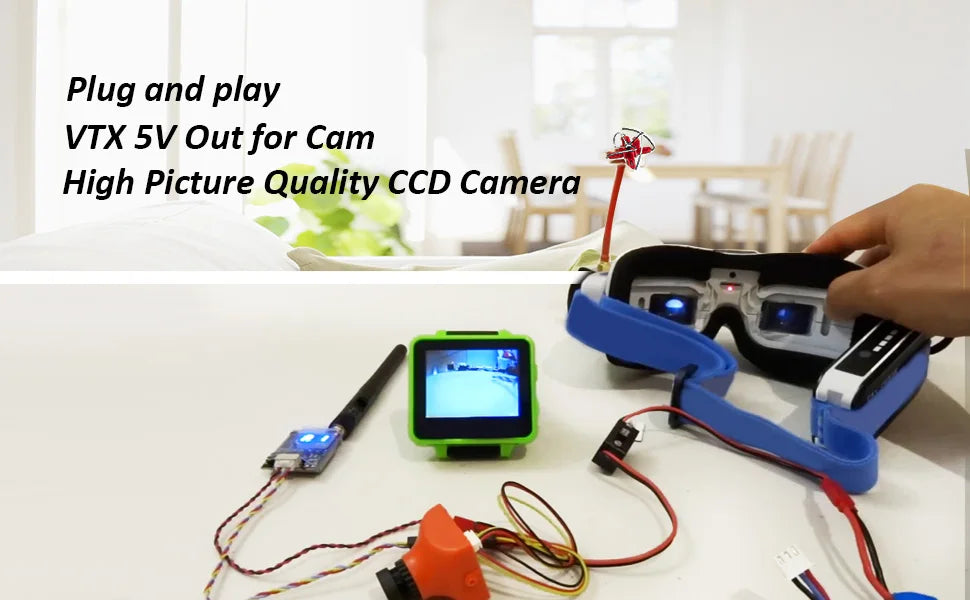

Special connecting cable for camera and FPV transmitter
Low power consumption and supper light, extremely suitable for mini quadcopter

600TVL Perfect high picture CA20 Camera :

CCD: 1/3” Sony SUPER HAD II CCD
Pixel: NTSC: 768(H)×494(V)
TV System: NTSC
Resolution: 650TVL(b/w), 600tvl(color)
Synchronization : internal synchronize
Shutter Speed: (CCD IRIS) NTSC: 1/60~1/100000 sec
Noise: > 60 (AGC OFF)
Video Out: 75ohm, synchronize
Min. Illumination: 0.01Lux
Auto Gain: Off/Low/Mid/High
Back Light Compensation (BLC): Off /Back light compensation/ Strong light suppression
Private shading (PRIVACY): 1~8 private shading area
Motion Detection (MD): On/ Off (Multi level sensitivity settable)
Auto White Balance: Manual / Auto / Auto track
Mirror: Horizontal Mirror optional
Negative: Positive / Negative optional
Color to B&W: Auto
DNR: 2DNR; WDR: D-WDR
Day / Night Shift: Auto/ Color/ B&W
Menu (OSD): English menu
White Dot Repair: Support
Image Adjustment: Support
Camera Title: Support
Power Requirement: DC5V~22V
Working Humidity: 20~80%
Storage Temperature: -40 ℃ ~ +60 ℃
Storage Humidity: 20~95%

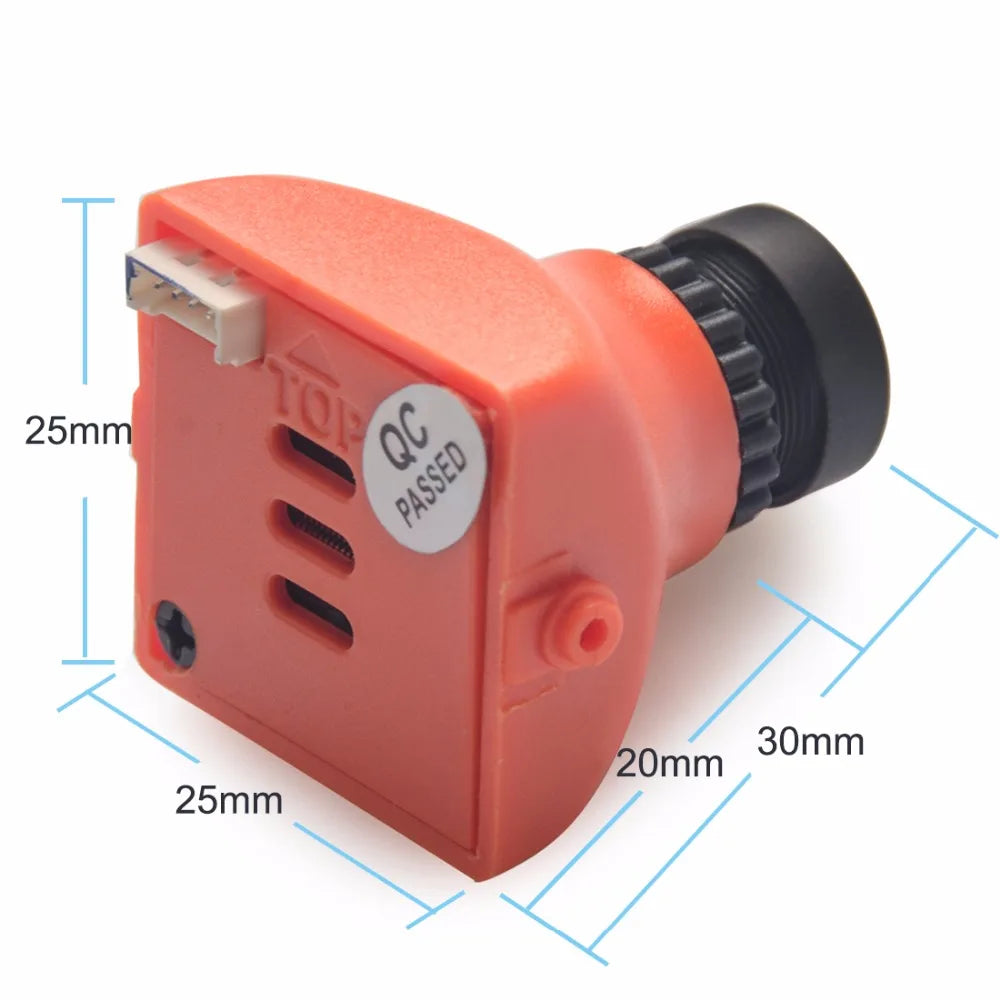

Dimensions(mm): 25X25(W*L)
Power Consumption: 70mA

Resolution: 700TVL
Size: 25* 25mm
Net weight: 9.5g
Total pixels: PAL/NTSC: 1020H×508V
Pixels: PAL: 976H×494V
Signal System: PAL/NTSC
Video output: 1.0Vp-p/75Ω
Automatic gain: 0.25/0.50/0.75/1.00 ;Can be up to 55dB
White Balance: automatic
Electronic Shutter: 1/50(1/60)~1/100000S
Gamma Correction: 0.45/1.0
Synchronization : internal
Lens: 2.8mm
Power Supply: 5-12V
Power Consumption: 70mA
Working Temperature: -20 °C ~ 60°C

Note: Please plug antenna before powering on the vtx to avoid static electricity.

K31P AV FPV Transmitter with digtail:

Feature:

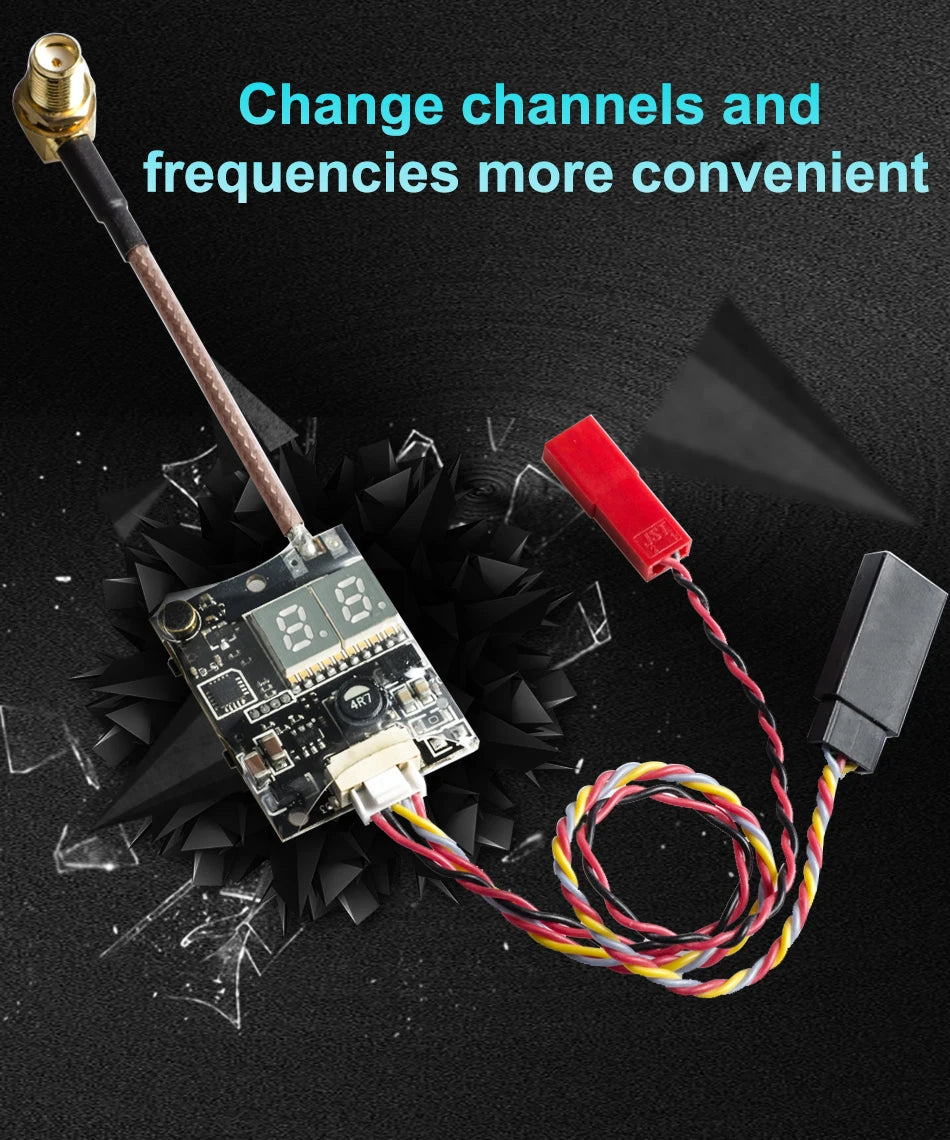

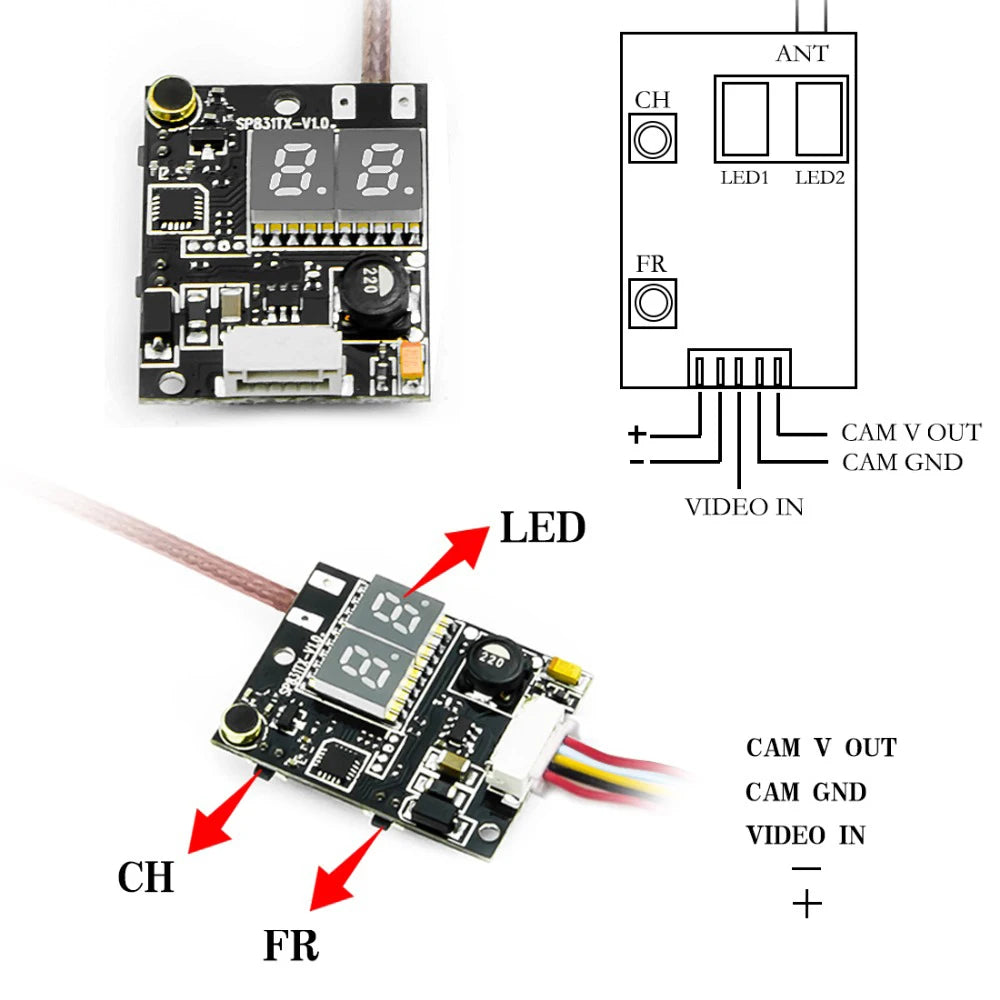

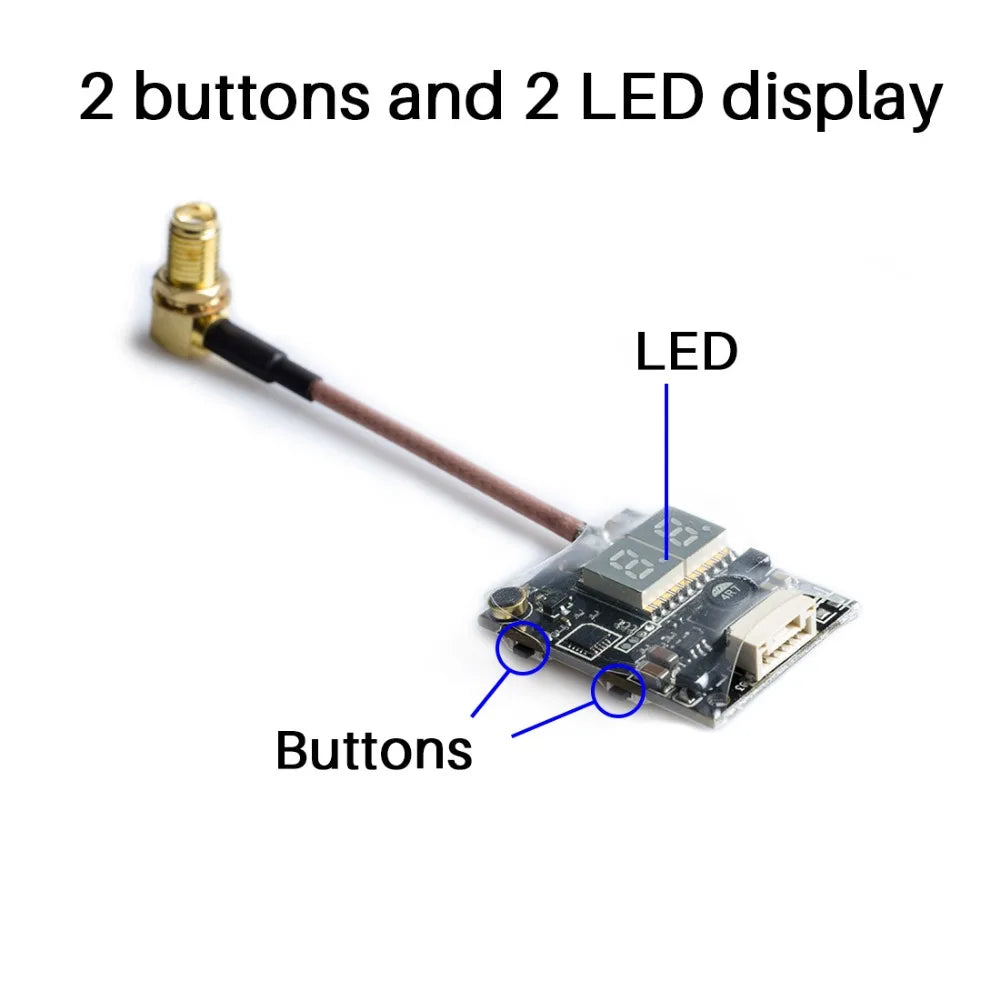

This 5.8GHz 40CH 600MW 5V OUT for Cam Mini AV FPV transmitter has double push buttons for easy changing CH and FR.

40 channels: Cover A, b, E, F, r bands, Small size and light weight.

Power off memory: replay the very last frequency band and channel

Specifications:

Video Format: NTSC/PAL

Output Impedance: 50 Ohm

Transmitter frequency range: 5645-5945MHz

Transmitting distance: > 3000m (open area)

Pigtail connector: RP-SMA

Operating Voltage: 7-20 V

Output Voltage(VOUT): 5 V

Supply current: 280 mA

Operating Temperature: -10 +85°C

Video Band Width: 0-8.0 MHz

Audio carrier Frequency: 6.5 MHz

Video Input Level: 0.8,1.0,1.2 Vp-p

Video Input Impedance: 75 Ohm

Audio Input Level: 0.5 ,2.0 Vp-p

Audio Input Impedance: 10K Ohm

Package includes:

1X FPV transmitter with Pigtail

1XConnector and cable set

1X Product manual

Notice:The VTX can supply 5V output for Camera. Please make sure your camera is less than 300mA

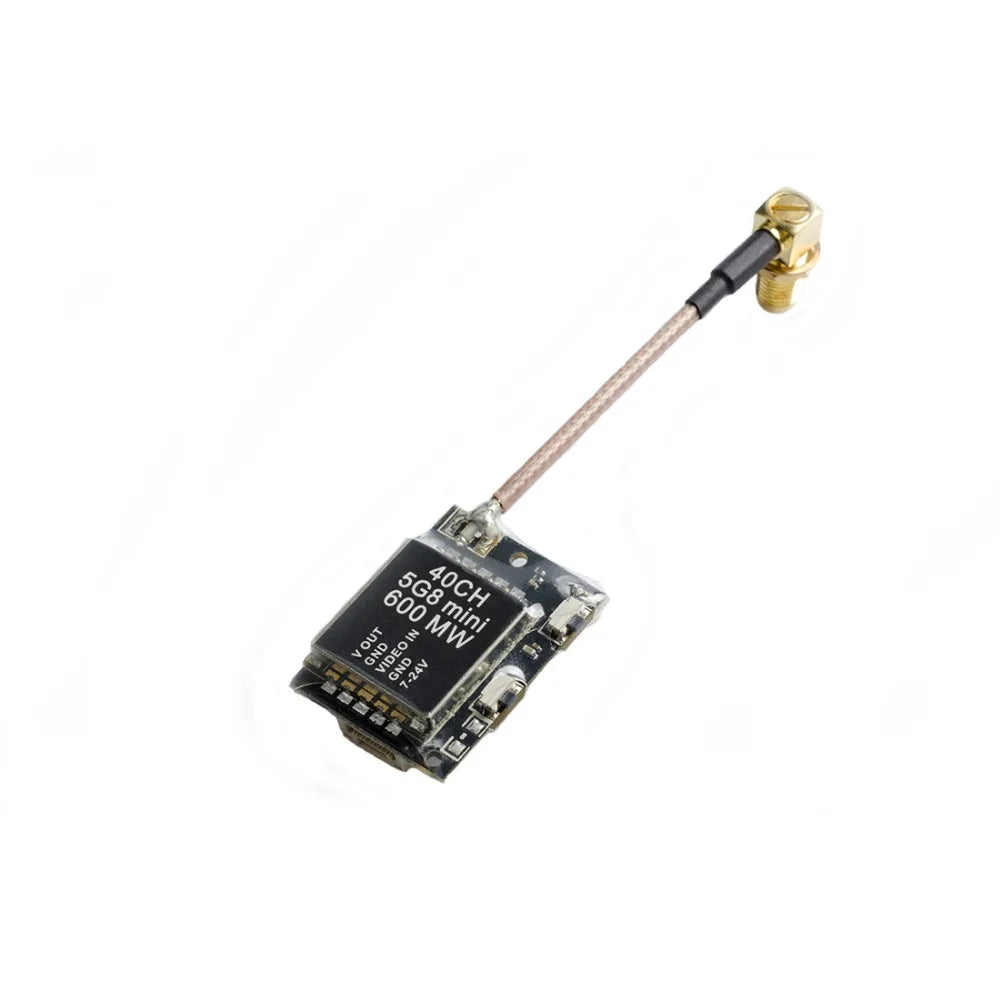

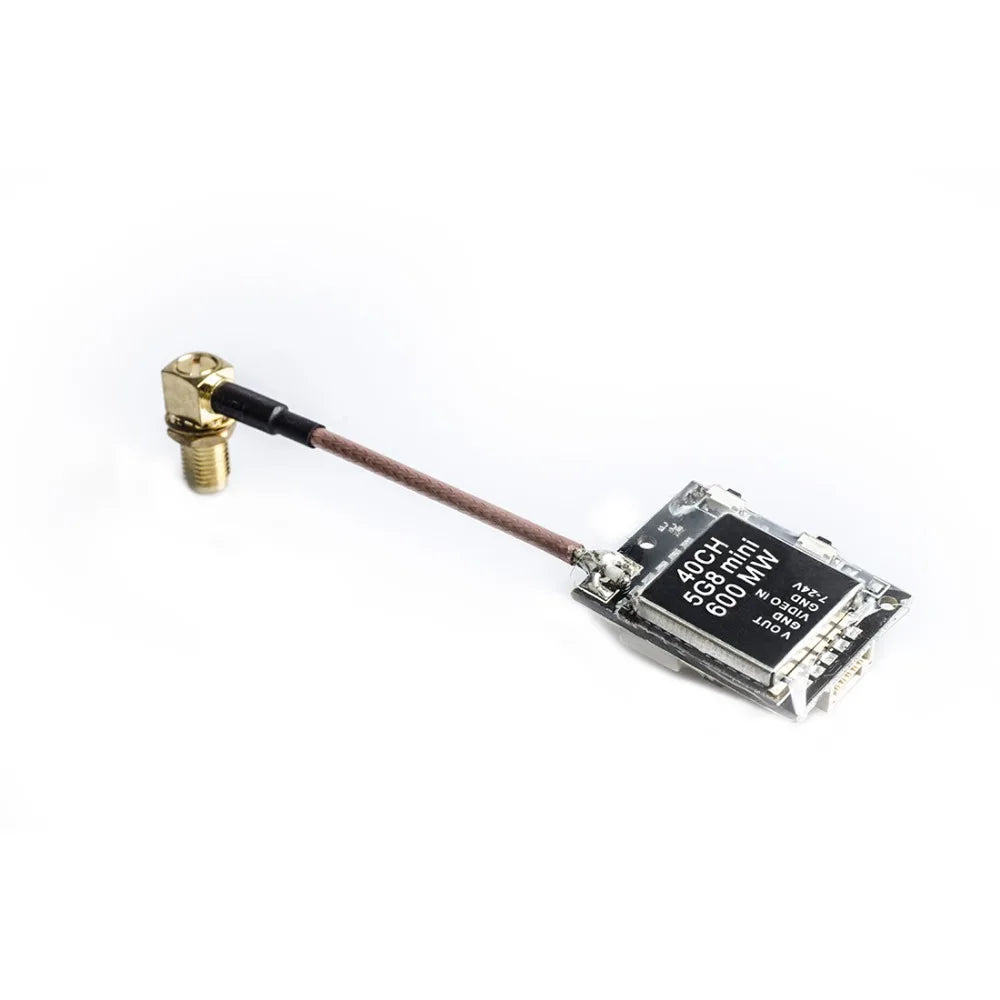

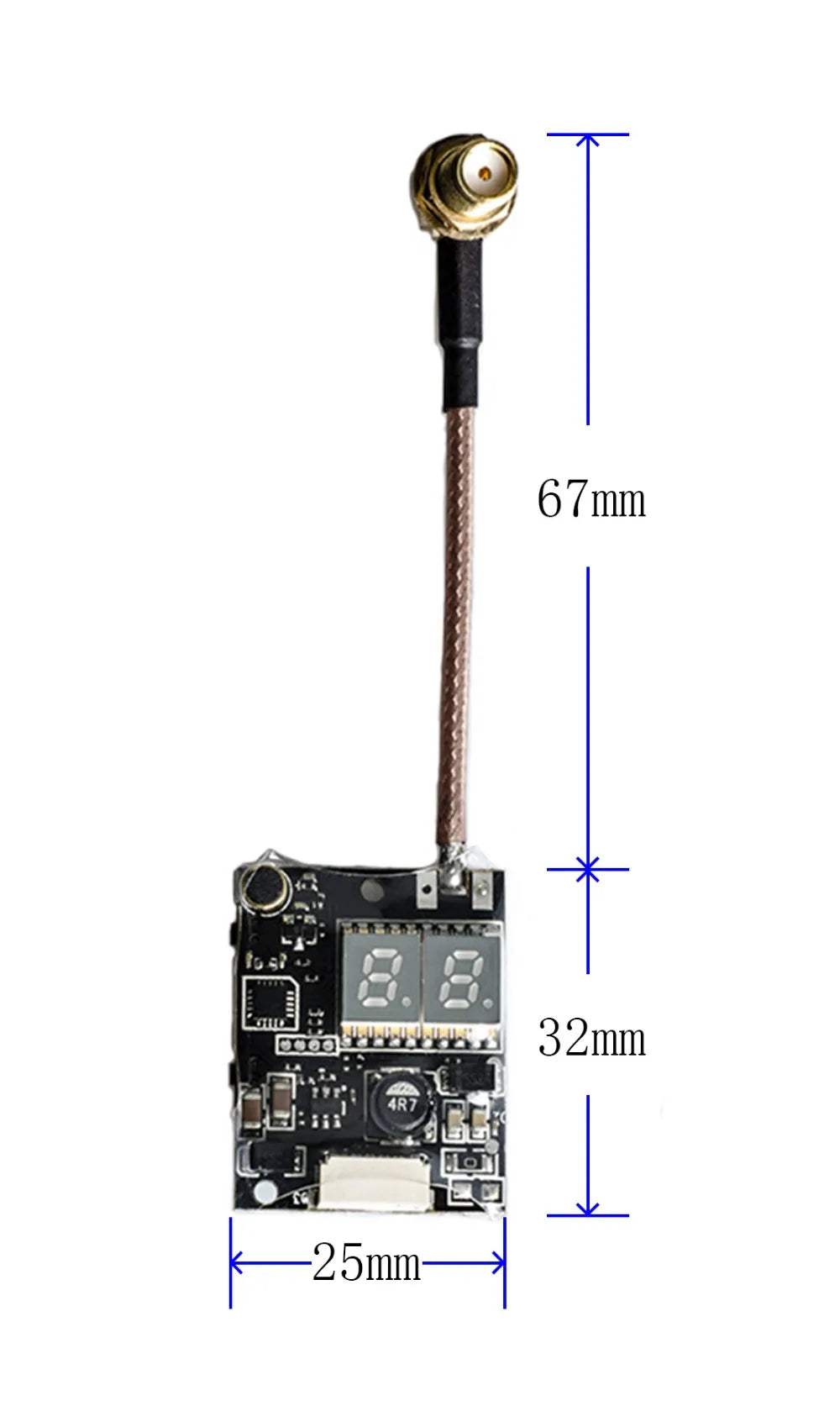

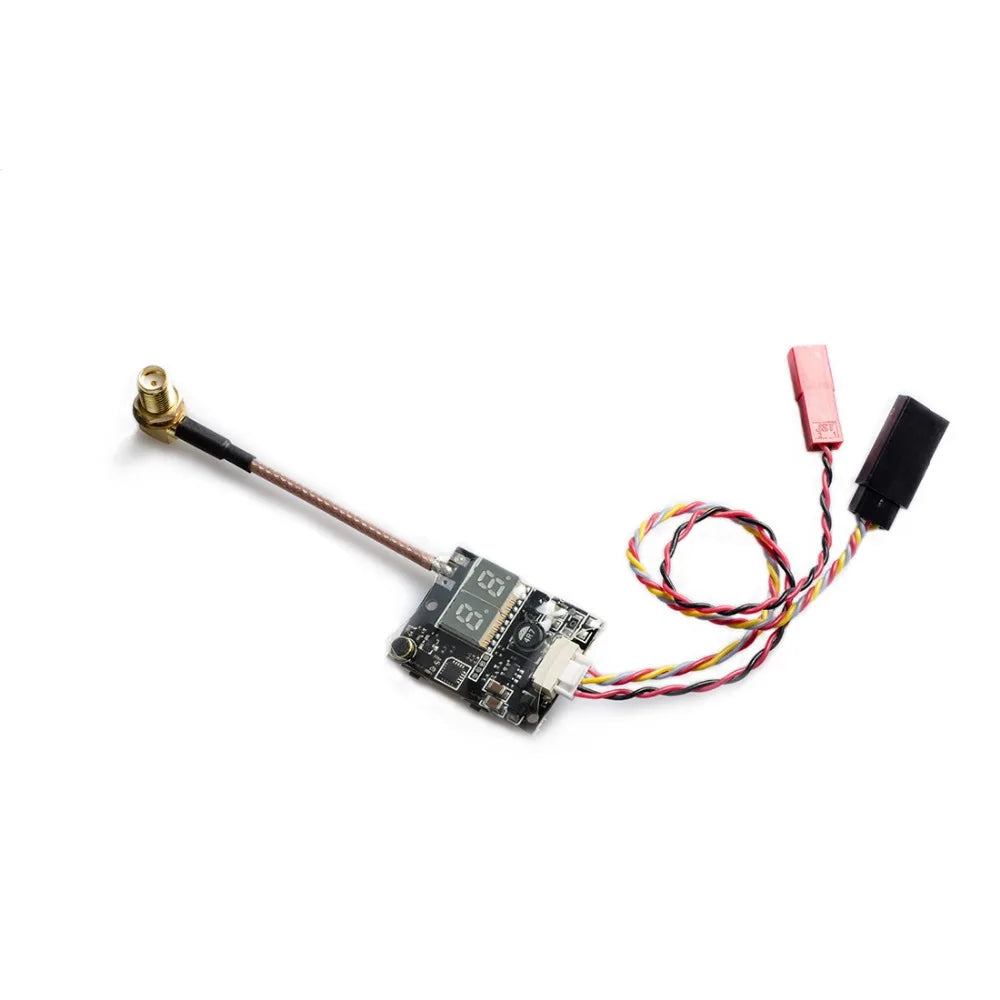

K31P Product show

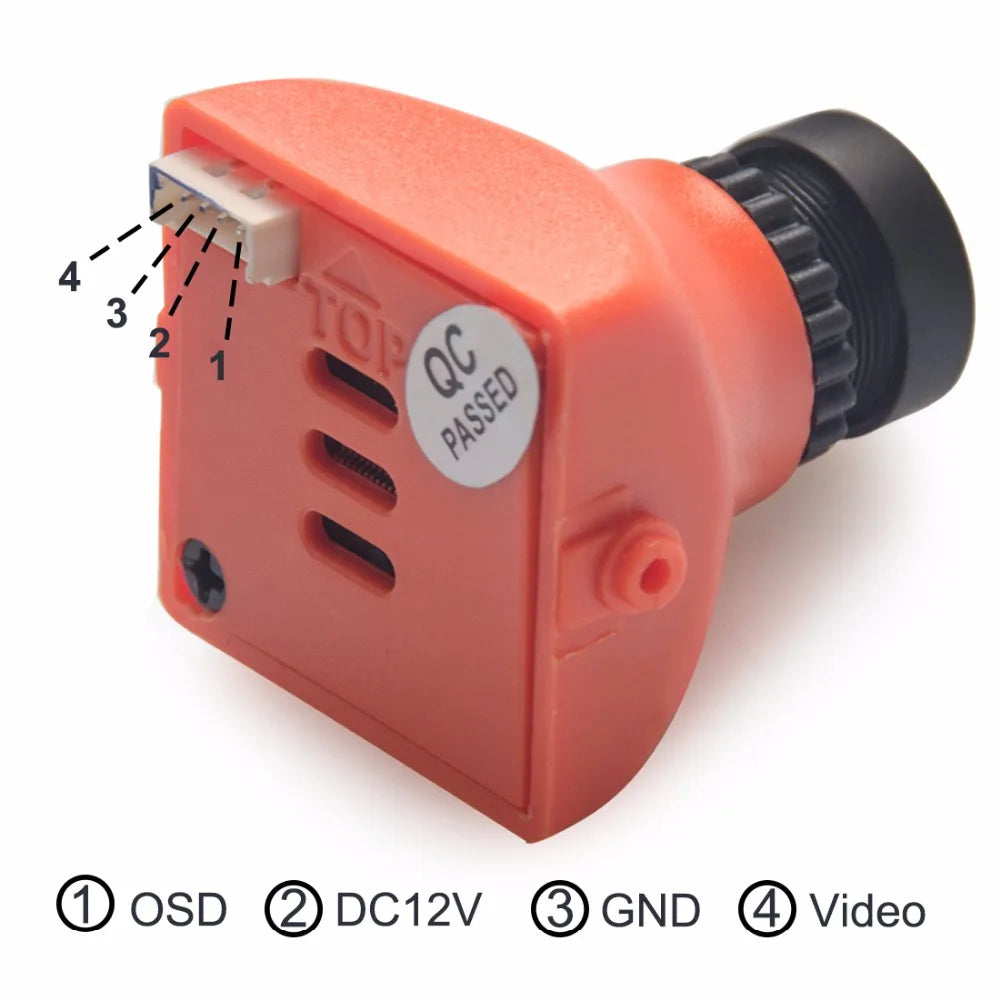

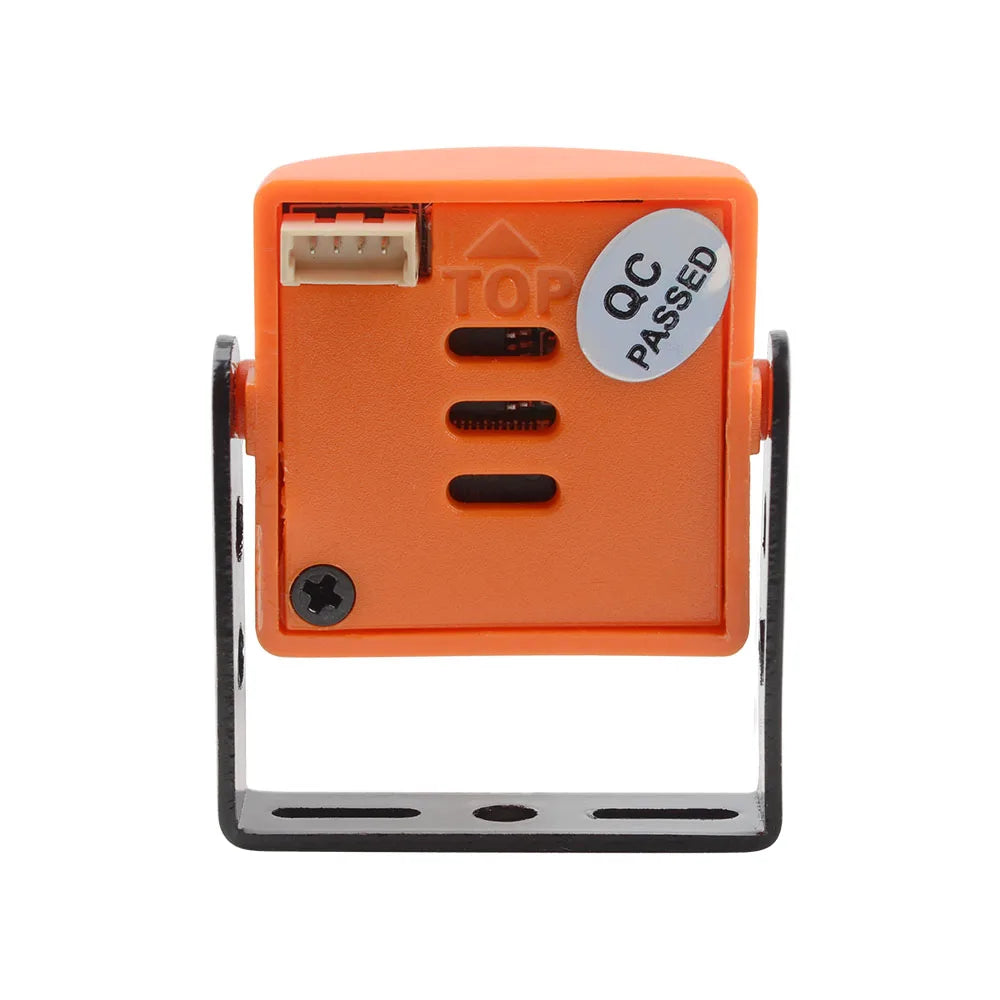

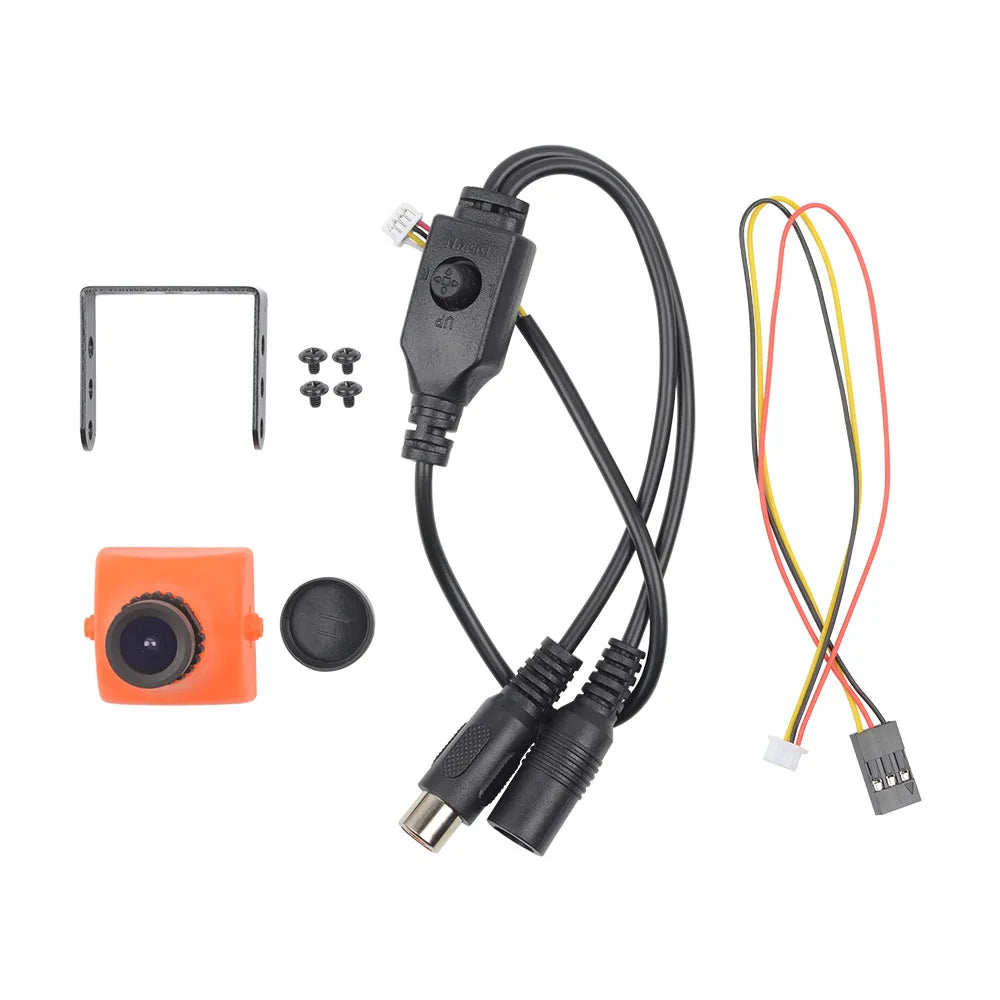

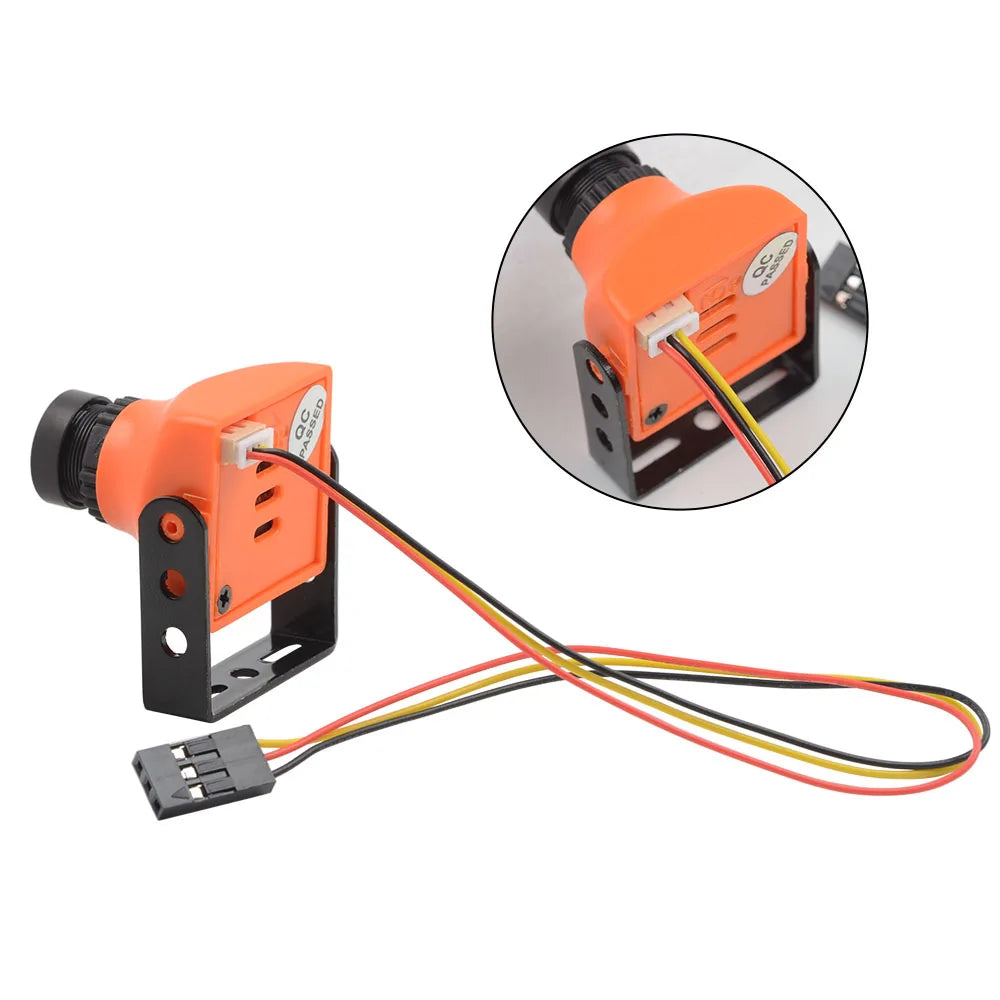

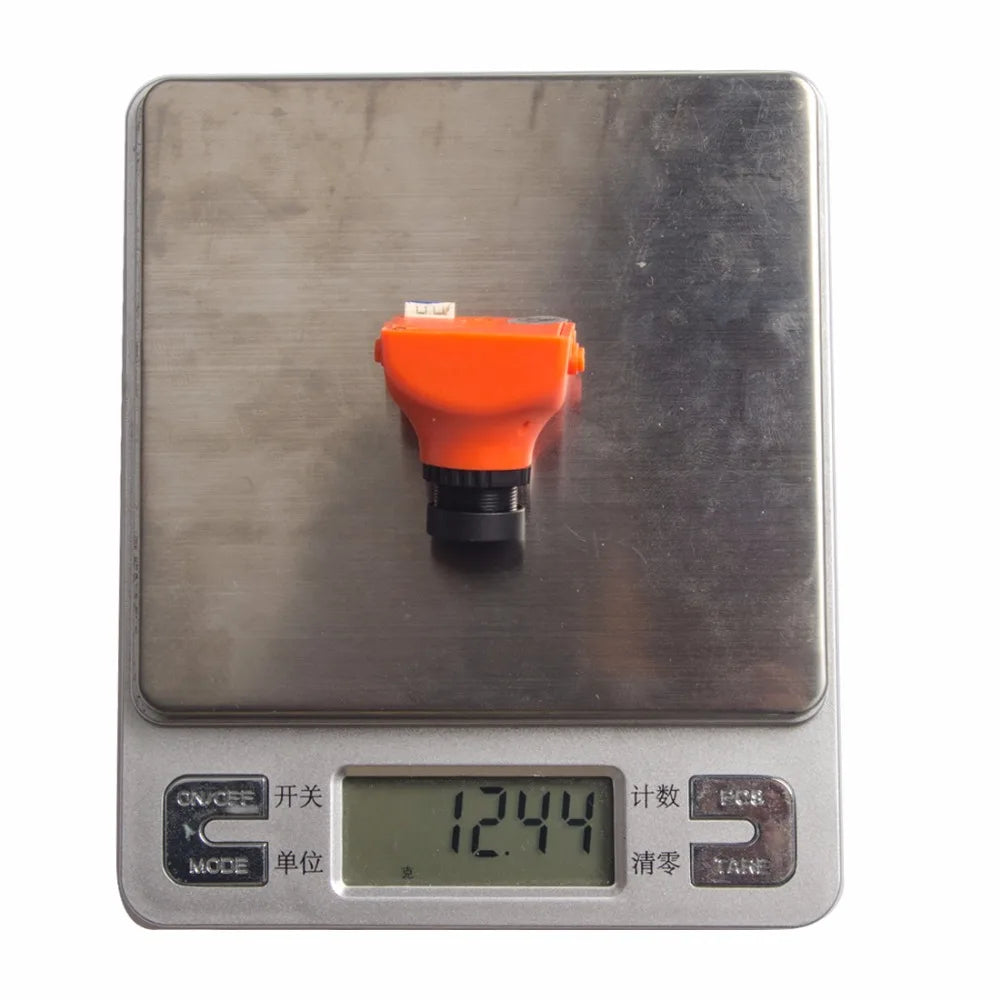

CA20 Cam Product show

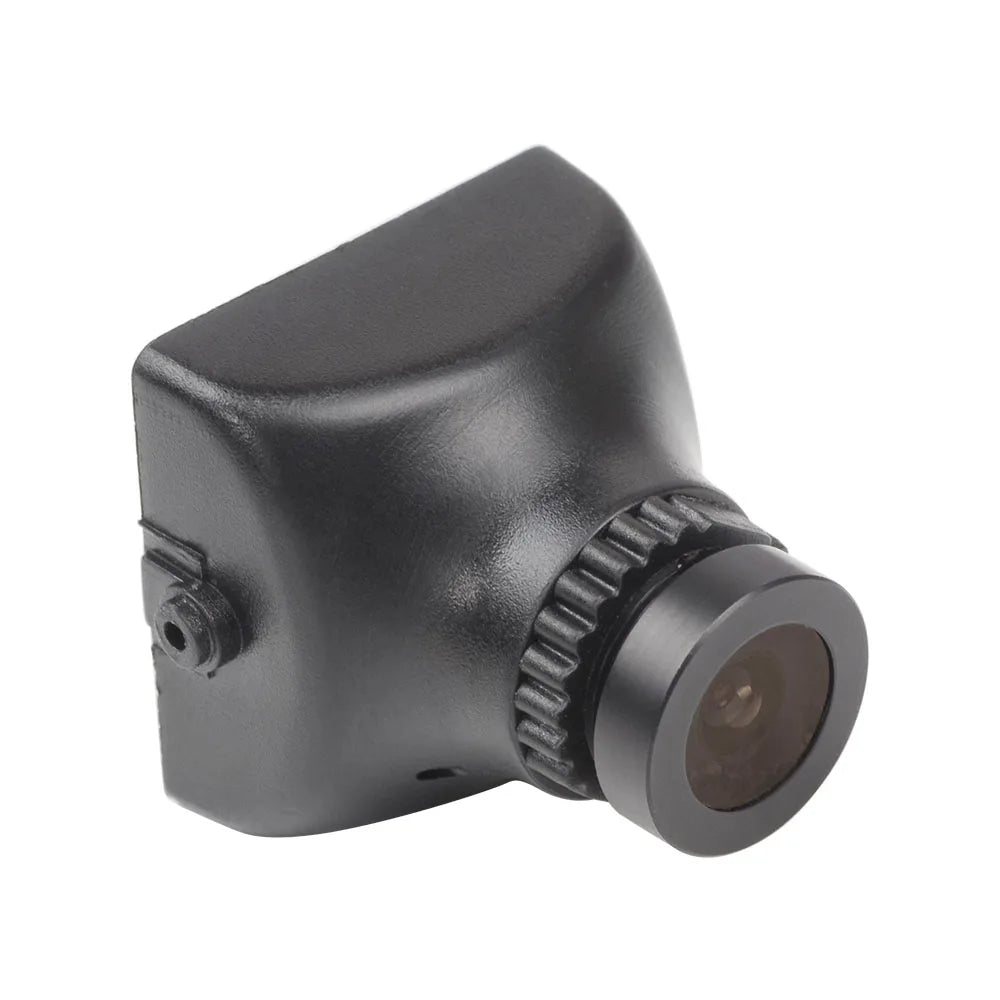

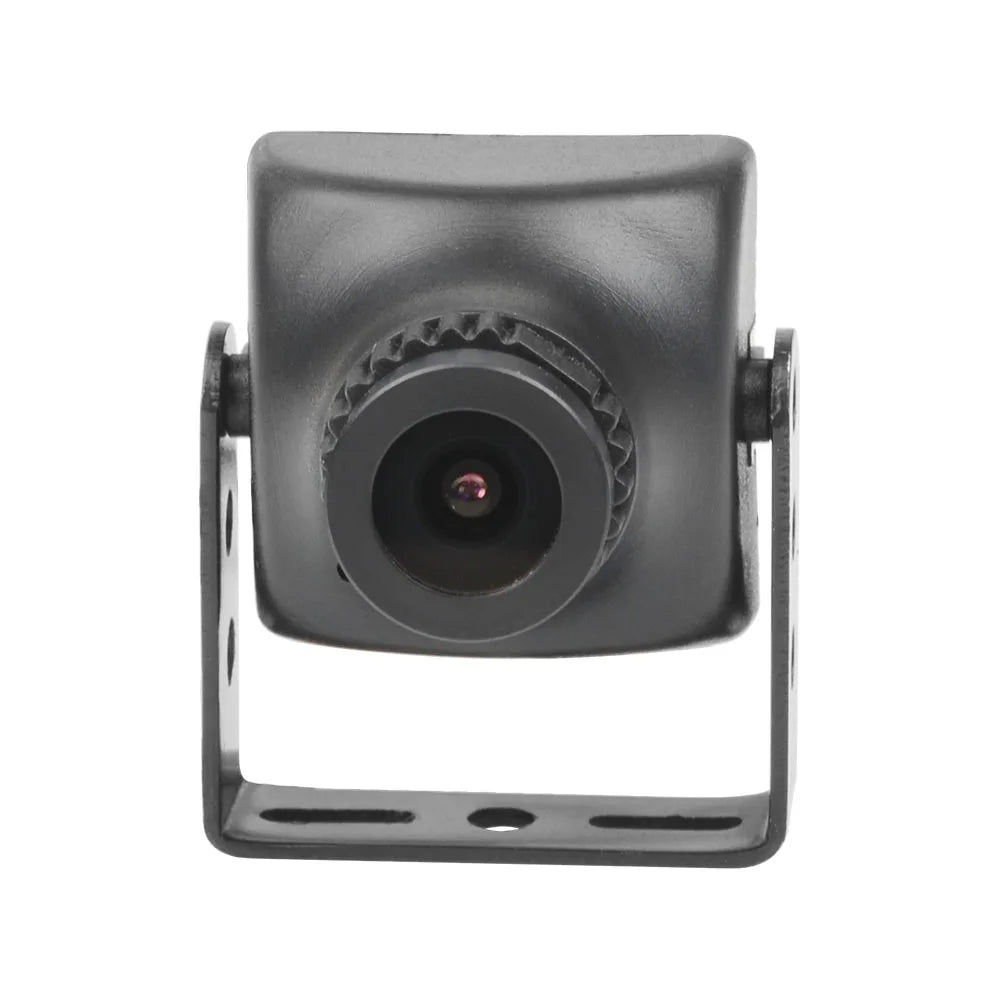

CA40 Cam Product show
