AKK Alpha 8 8W VTX – 5.8GHz 80CH 8W 5W 3W 1W Power Switchable FPV Video Transmitter

$159.00$169.00

Description

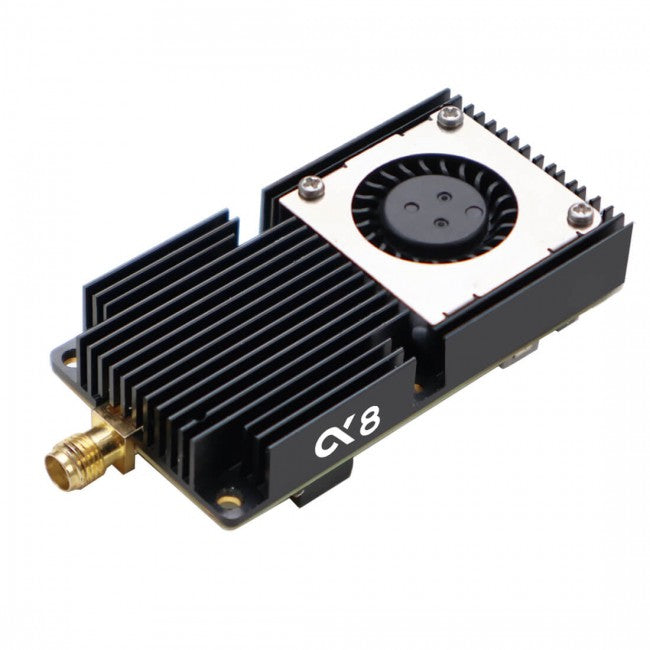

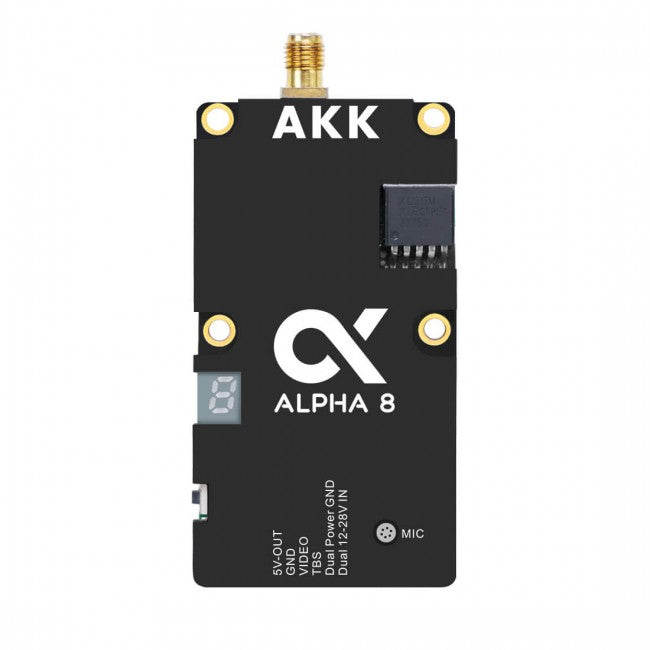

AKK Alpha 8 8W VTX Description

1w/3w/5w/8w Power Switchable.

Support Smart Audio.

More intuitive LED nixie tube display.

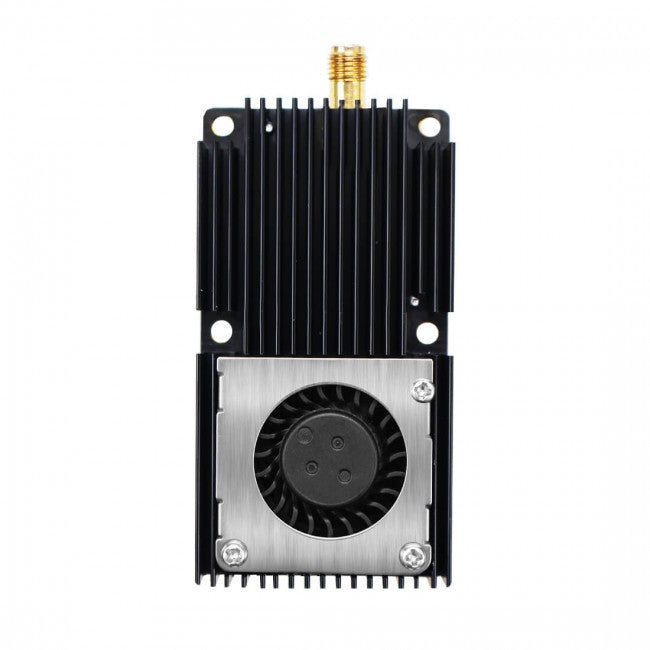

Fan-embedded heatsink brings powerful heat dissipation.

Stable performance without frequency fluctuation.

Package List

Choise 1:

1 x AKK Alpha 8 8W VTX

Choise 2:

1 x AKK Alpha 8 8W VTX

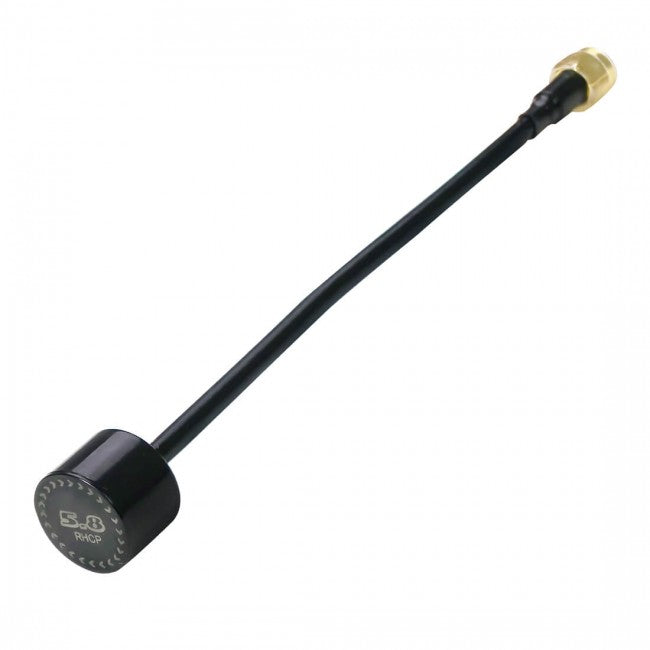

1 x AKK 5.8GHz 4.5DBi Tube Antenna 160MM

 AKK Alpha 8 8W VTX, 39dBm-8W 5645MHz 5945MHz 39.654dB

the actual data for the VTX needs to add 3OdBm from the value shown by the spectrometer . pK_Pi Scaran Hor Coator 5,945 GHr Spon 20 Det BM CALI Vol Snude Alu Wwindon nOut Lon Jcudo Mtt Out LtDn Mtd Fi0 Llt JaDc .

 AKK Alpha 8 8W VTX, eal Sear req/Cha Mkrl 7.98995

Real Search Required: Channel Marker, Operating Frequency 7.98995 GHz, Master Frequency 5.47390 GHz, Reference Level 30 dB, Attenuation 40 dB, Return Loss 9234 dBn, Reference Level 30 dBm, Attenuation 10 dB, Output Power 9 dBm.



AKK Alpha 8 VTX: Unleash the Power of 8W for Elevated FPV Exploration

Embark on a new level of FPV exploration with the AKK Alpha 8, a high-performance Video Transmitter (VTX) designed to push the boundaries of your flying experience. Packed with advanced features and robust technology, the Alpha 8 is your gateway to higher altitudes and extended distances.

Key Features:

  1. Explore Higher & Further: The AKK Alpha 8 empowers drone enthusiasts to explore higher altitudes and cover greater distances, providing an immersive and exhilarating FPV experience.

  2. Built-in Fan and Mic: Featuring a built-in fan and microphone, the Alpha 8 ensures efficient cooling during prolonged flights and clear audio communication, enhancing the overall flying experience.

  3. All Components Protected Under Heat Sink: To ensure durability, all internal components are safeguarded under a heat sink, providing protection against overheating and ensuring consistent, reliable performance.

  4. 4 Mounting Holes for Easier Installation: With four mounting holes, installation becomes a breeze, offering flexibility for various mounting configurations and ensuring a secure fit on your drone.

Specifications:

  • Input Voltage: 12-28V
  • Output Voltage: 5V
  • Channels: 80CH
  • Power: 8W (1W/3W/5W/8W switchable)
  • Mounting Hole: 30.5*30.5mm
  • Connector: SMA
  • Power Consumption: 12V-2.5A, 28V-1A
  • Weight: 48g
  • Size: 68*36*15mm

Frequency Bands and Channels:

The Alpha 8 covers a broad spectrum of frequency bands and channels, providing flexibility for different flying environments. Bands A to X offer multiple channels, ensuring a customizable and interference-free FPV experience.

Innovative Technology:

Utilizing a 30dBm attenuator on the spectrometer ensures accurate power measurement, guaranteeing optimal performance during flights. The actual data for the VTX needs to add 30dBm from the value shown by the spectrometer, ensuring precise power output.

Conclusion:

The AKK Alpha 8 VTX stands as a testament to AKK’s commitment to pushing the boundaries of FPV technology. Elevate your flying experience with the Alpha 8’s advanced features, powerful design, and unmatched performance. Whether you’re a seasoned pilot or a beginner, the Alpha 8 is engineered to meet the demands of FPV enthusiasts seeking a superior and reliable VTX solution.



Additional information

Style

AKK Alpha 8 8W VTX + Antenna, AKK Alpha 8 8W VTX
