The AKK 331 VRX - 5.8GHz FPV AV Receiver Module for goggles and FPV monitor/ 351 FPV Transmitter Module for Racing Drone DIY Build is a drone product in the Drone category priced at $12.83, featuring Mainland China.

Drone Accessories, Drone Transmitter & Receiver, Drones

AKK 331 VRX – 5.8GHz FPV AV Receiver Module for goggles and FPV monitor/ 351 FPV Transmitter Module for Racing Drone DIY Build

Name: AKK 331 VRX - 5.8GHz FPV AV Receiver Module for goggles and FPV monitor/ 351 FPV Transmitter Module for Racing Drone DIY Build
Brand: akk
Price: 12.83 USD
Availability: InStock

$12.83

+ Free Shipping

Color

Clear

- +

Regional payment methods

SKU: N/A Categories: Drones, Drone Accessories, Drone Transmitter & Receiver

Ask for more info

Best Use Cases

Suitable for fatshark goggles.
Suitable for fpv goggles.

Key Specifications

brand_name: akk
origin: Mainland China
material: PCB
rc_parts_&_accs: Receivers
for_vehicle_type: Airplanes
use: Vehicles & Remote Control Toys
upgrade_parts/accessories: RX
remote_control_peripherals/devices: Receivers

Compared to Alternatives

Compared to 3 alternatives in the Drone Accessories category, the AKK 331 VRX - 5.8GHz FPV AV Receiver Module for goggles and FPV monitor/ 351 FPV Transmitter Module for Racing Drone DIY Build is $12.83.

Frequently Asked Questions

What are the key specifications of AKK 331 VRX - 5.8GHz FPV AV Receiver Module for goggles and FPV monitor/ 351 FPV Transmitter Module for Racing Drone DIY Build?
Brand Name: akk; Origin: Mainland China; Material: PCB.
What is AKK 331 VRX - 5.8GHz FPV AV Receiver Module for goggles and FPV monitor/ 351 FPV Transmitter Module for Racing Drone DIY Build best used for?
Suitable for fatshark goggles. Suitable for fpv goggles.
How much does AKK 331 VRX - 5.8GHz FPV AV Receiver Module for goggles and FPV monitor/ 351 FPV Transmitter Module for Racing Drone DIY Build cost in the Drone Accessories category?
AKK 331 VRX - 5.8GHz FPV AV Receiver Module for goggles and FPV monitor/ 351 FPV Transmitter Module for Racing Drone DIY Build is available at priced at $12.83 on 100drone.com.

Description
Additional information

AKK 331 VRX SPECIFICATIONS

Brand Name: akk

Origin: Mainland China

Material: PCB

RC Parts & Accs: Receivers

For Vehicle Type: Airplanes

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: RX

Remote Control Peripherals/Devices: Receivers

Tool Supplies: soldering

Model Number: K331

Four-wheel Drive Attributes: Assemblage

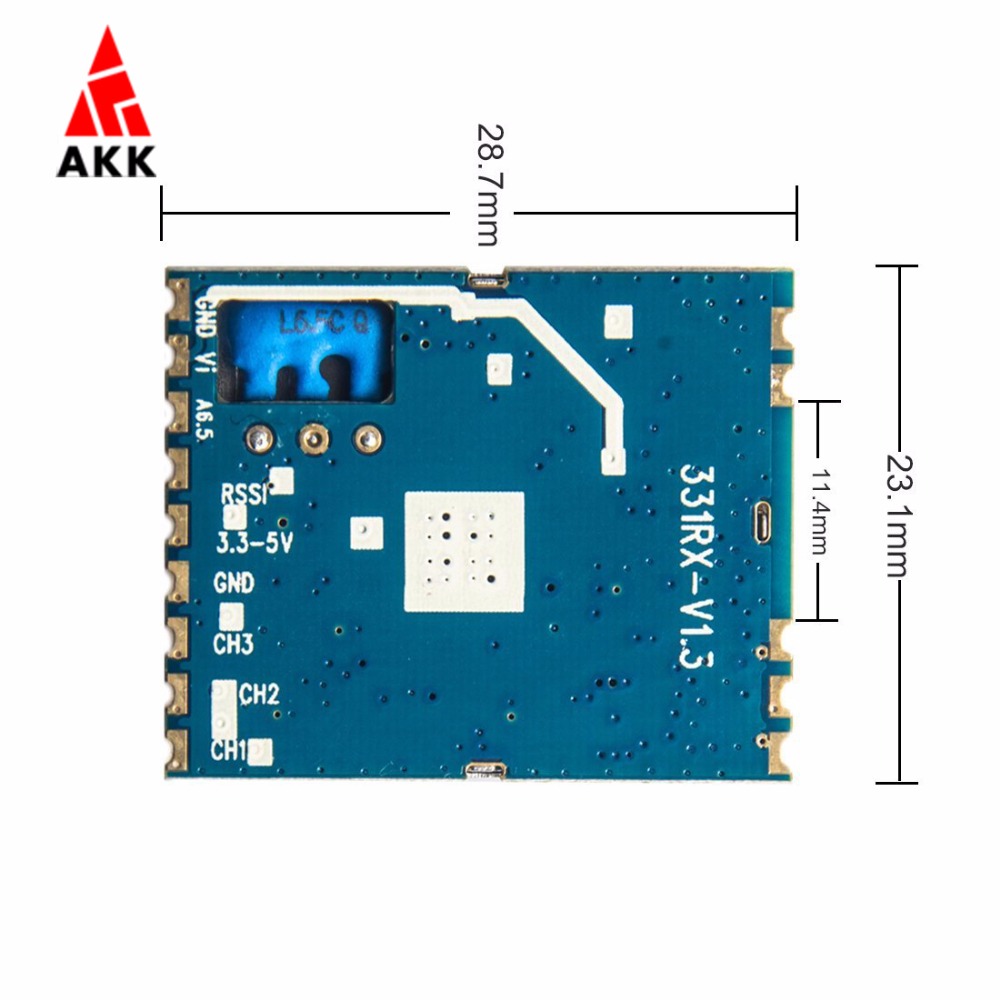

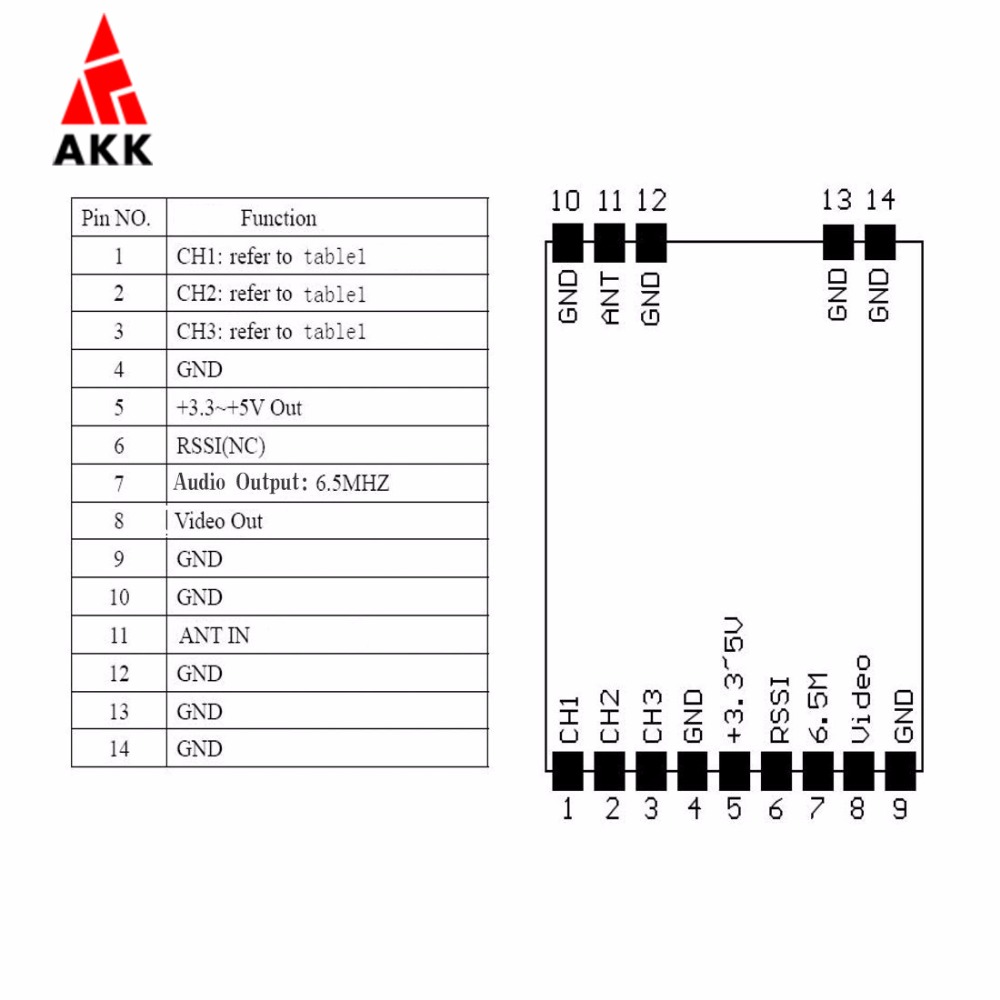

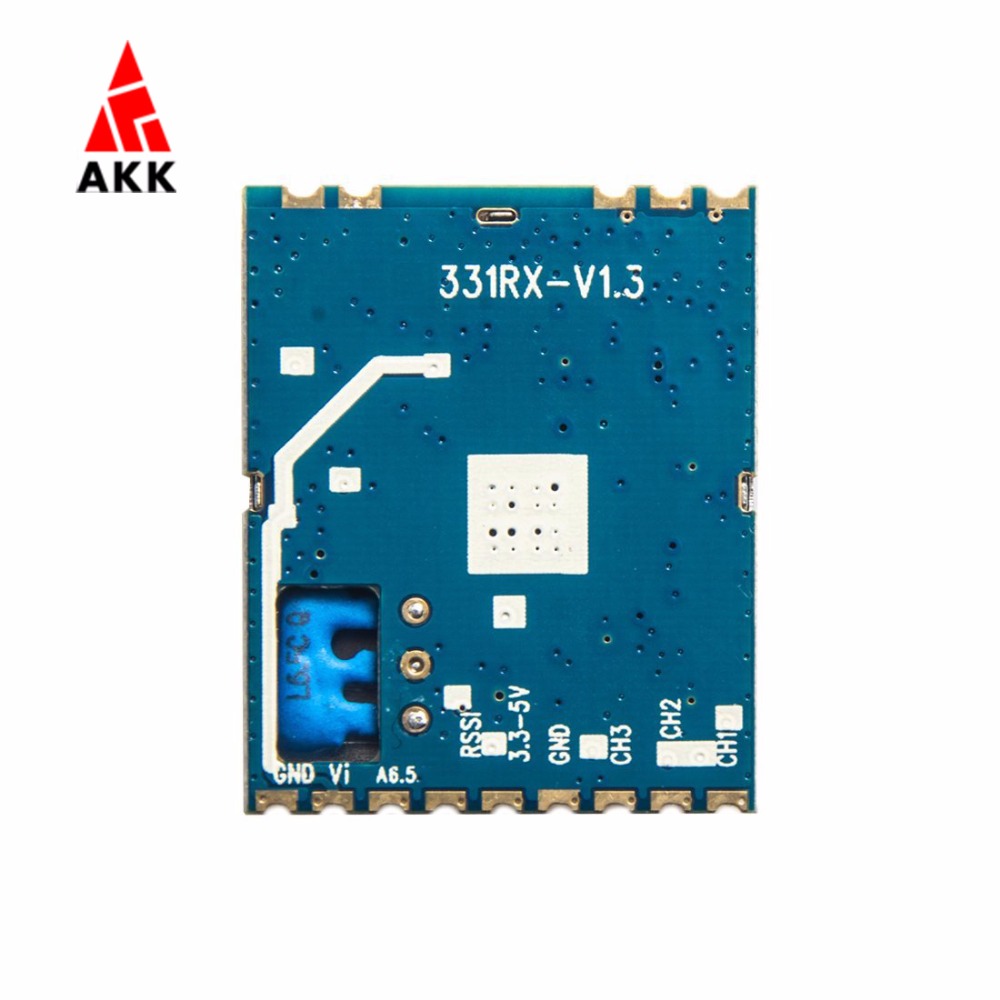

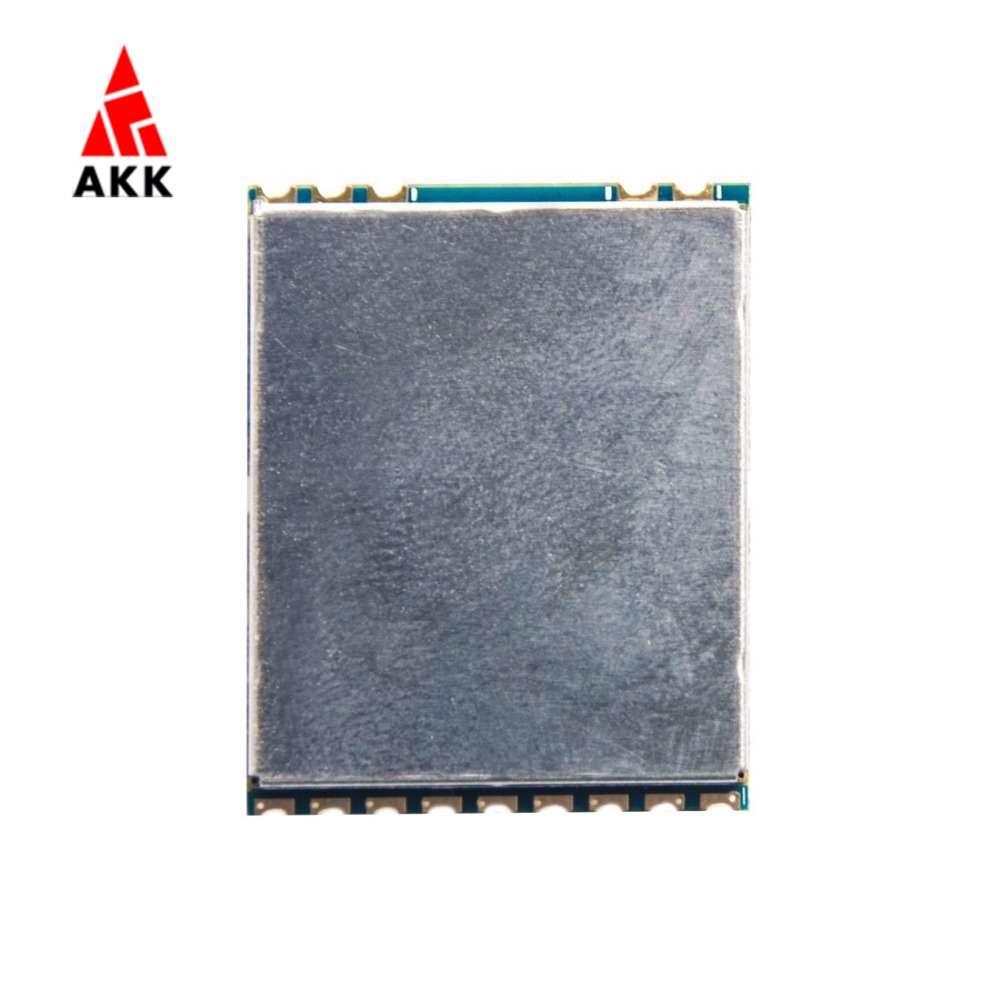

331 Receiver Module:

product features：
POWER SUPPLY：+3.3~5.0V, Current Consumption：200mA , Max

For fpv receiver for goggles and monitors.

For DIY hobby fan and hams.

Support audio and SPI.

Suitable for fatshark goggles.

Specifications:
POWER SUPPLY：+3.3~5.0V
Current Consumption：200mA , Max
Operating Temperature：-10~+65 ºC
Storing Temperature：-30~+85 ºC
Operating humidity：85%RH

RF：
Receiving frequency range：5645 ~ 5945MHz
Voltage Standing Wave Ratio：2:1
Demodulation system：FM/PLL
IF：480MHz
ANT. input impedance：50Ω, Typ.
LO Frequency stabilization：±100kHz
LO Frequency Precision：±100kHz
LO Control：PLL
Input LO Leak：-55dBm
Receiving Sensitivity：-93dBm
Input Level Range：-93 dBm ~+5 dBm

Video Characteristics：
Video Output impedance：75Ω, Typ.
Video Output Level：1Vp-p, Typ.
Video Polarity：NEGATIVE
Video Frequency Respone：±5 dB, Max. 50Hz ~ 6MHz
Differential Gain：±5 %, Max
Differential Phase：±5 Deg., Max
3Db IF WIDEBAND：16.5MHz
S/N：38dB, Min

Audio：
Audio Output impedance：2KΩ, Typ.
Audio Output Level：1±0.2Vp-p, Typ.
Audio Output Frequency Range：100Hz ~ 20kHz
Audio carrier：6.5MHz(AL)
Audio carrier precision：±30kHz
S/N (50Hz ~ 15kHz): 50dB, Min
THD：(50Hz ~ 15kHz, 3 Vp-p): 1.5 %, Max
Audio input voltage：1.0Vp-p , 1KHz

Package Included:
1 x 331 Receiver Module

Product shows:

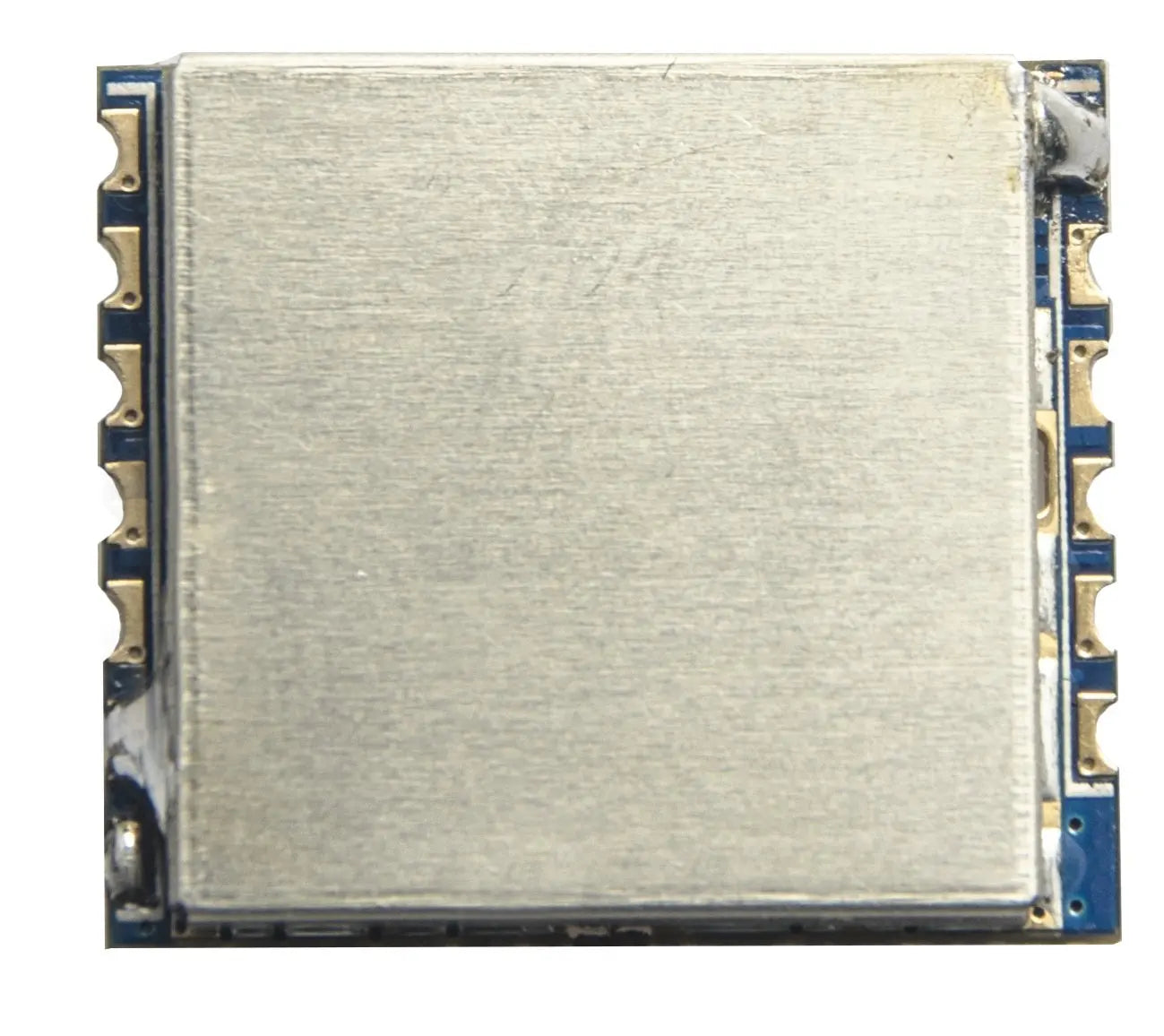

351T 5.8GHz 40CH FPV Transmitter Module:

Features:

Supply voltage: 5v.

Impedance: 75 ω.

Audio input voltage：1. 0vp-p.

Tx power: 25mw/200mw/600mw.

Suitable for fpv goggles.

Specifications:

Modulation type： FM
Transmitter Frequency: 5645-5945MHz
Temperature: -10℃ ~ +60℃
Video input voltage：1.0Vp-p,150 (IRE)
Audio input voltage：1.0Vp-p（sine wave signal） 1KHz
Supply Voltage: 5V
Current Consumption: 600mW: 500-560mA
200mW: 300-360mA
25mW: 190-230mA
Input Impedance: 75 Ω
Peak Deviation: 1.2 MHz
Tx Power: 600mW: 26-28dBm
200mW: 22-24dBm
25mW: 13-15dBm
Audio subcarrier Level: -26- -30 dBc

Package Include:

1 x 351T transmitter module

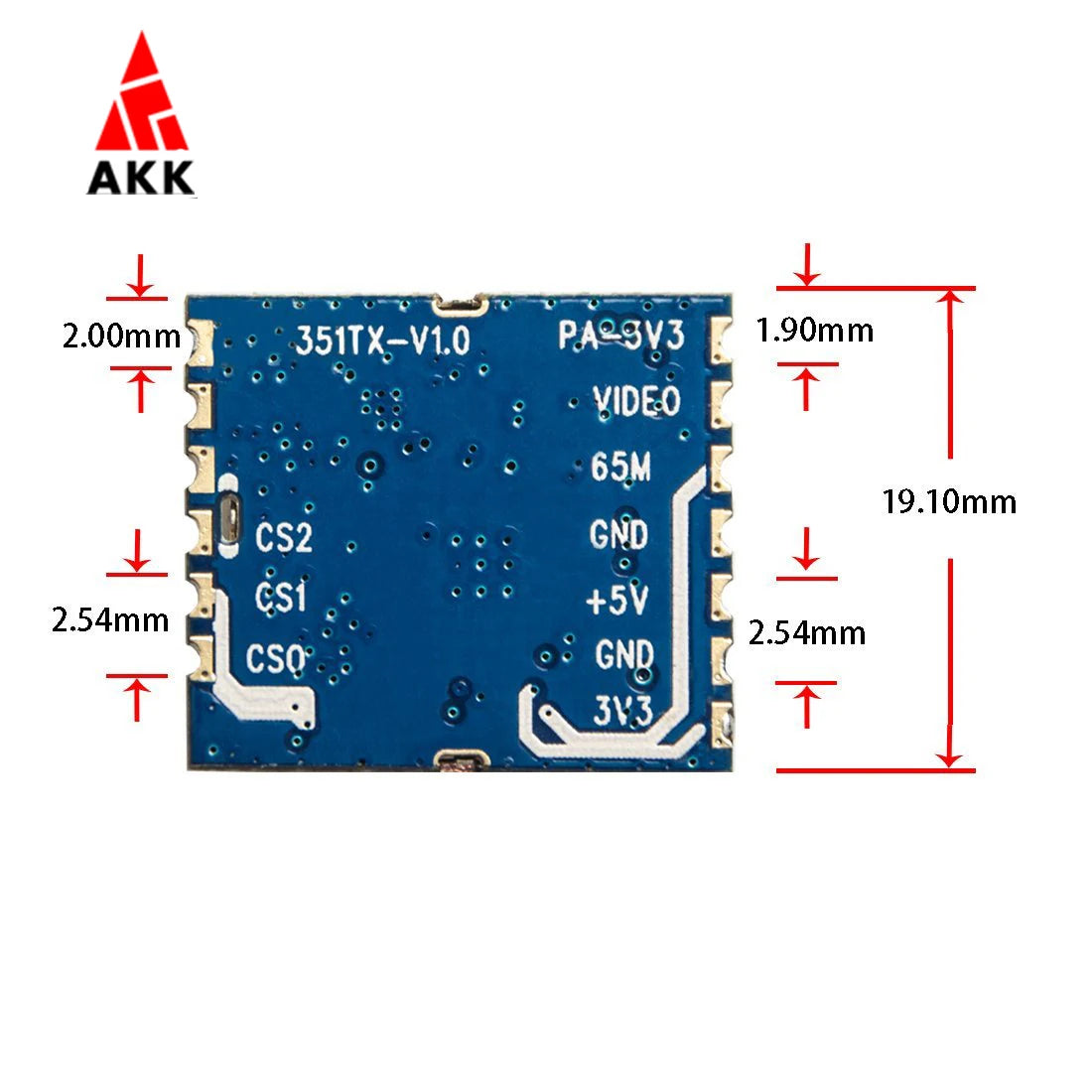

AKK 2.0Omm 351TX-V1.O PAegV3 1.9Omm Video 65M 19.1Omm CS2 GND csI +5V2.54mm 2.54mm .

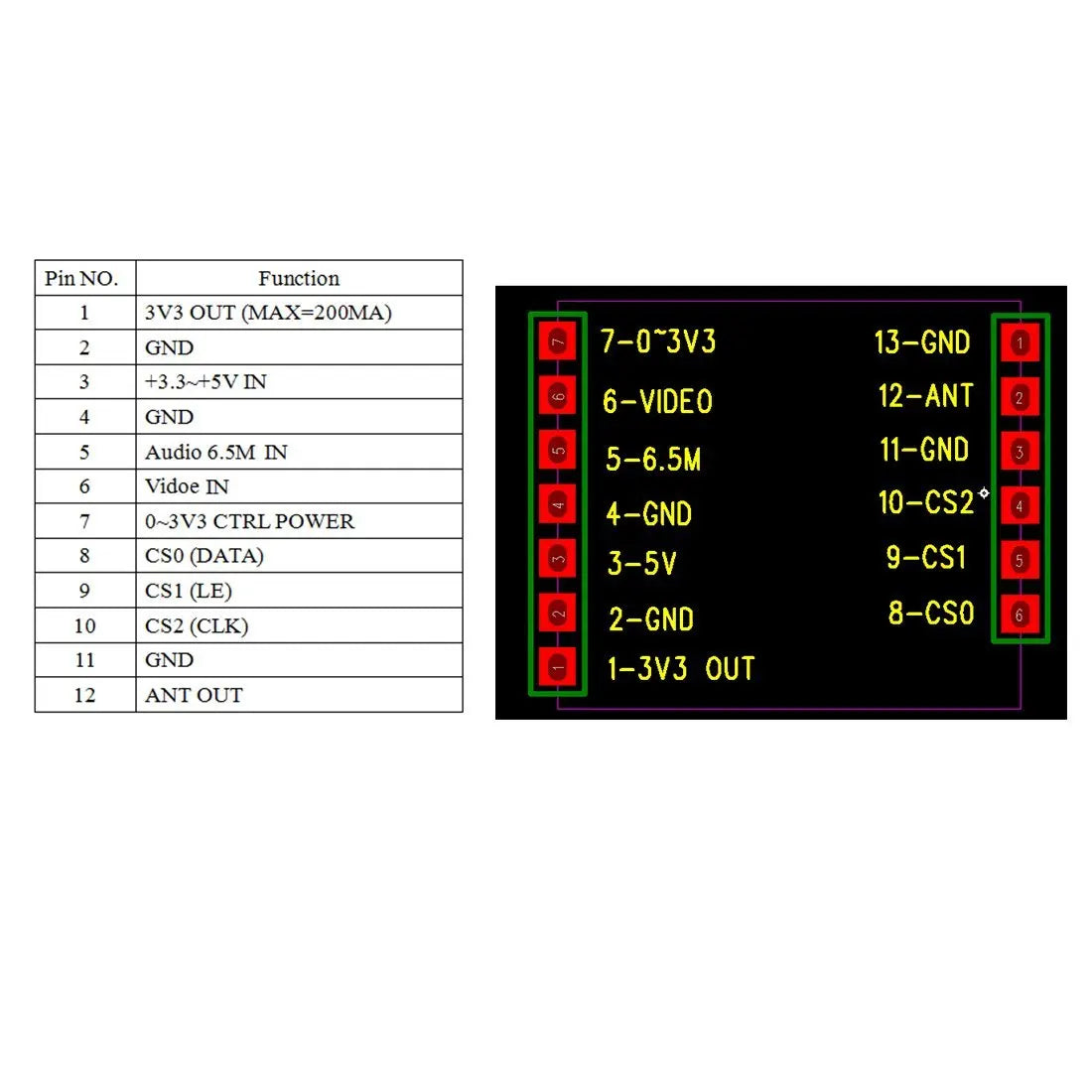

Pin NO Function 3V3 OUT (MAX-ZOOMA) GND 7-0*3V3 13-GND +3.3-+SVNN 6-VIDEO 12-ANT GND Audio 6.SM NN 5-6.5M 11-GNd Vidoe IN 03V1 CTRL POWER 4-GND 10-CS2 CSO (DATA) 3-5V 9-CS1 CS1 (LE) 10 CS2 (CLK) 2-GND 8-CSO 11 GND 1-3

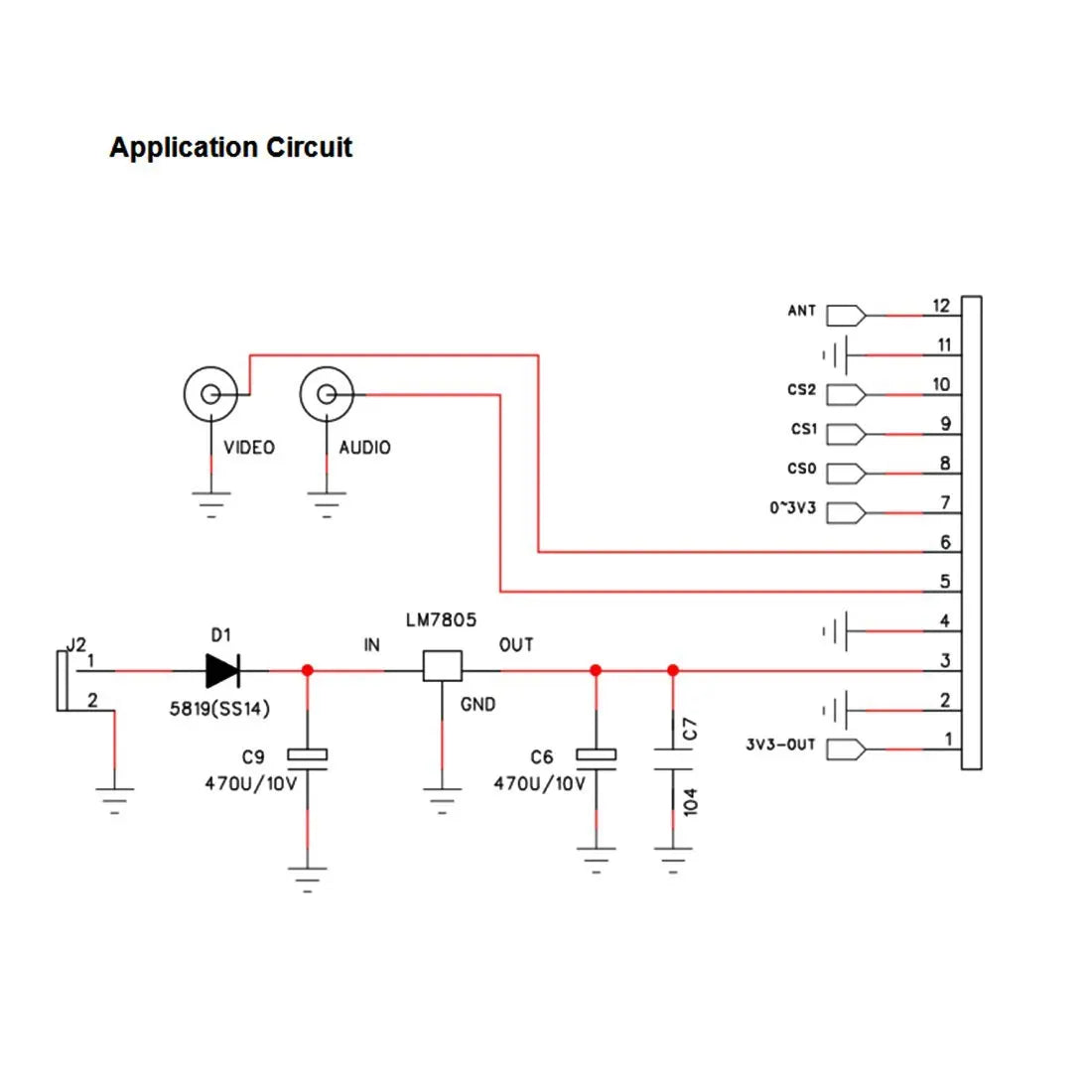

Application Circuit AnT CS2 10 Csi VIDEO AUDIO CSO 0 JvJ Lm7805 01 IN Out 5819(SS14) GND 5 JVJ-Out C9 C6 470u/10v 47ou/10v
