SPECIFICATIONS
Brand Name: Dsservo
Origin: Mainland China
Material: Metal
RC Parts & Accs: Servos
For Vehicle Type: Cars
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Tires
Remote Control Peripherals/Devices: Remote Controller
Tool Supplies: Cutting
Technical parameters: KV1100
Model Number: DS3218 update and DS3218 Pro
Four-wheel Drive Attributes: Assemblage
Sepcification:
Brand: Dsservo

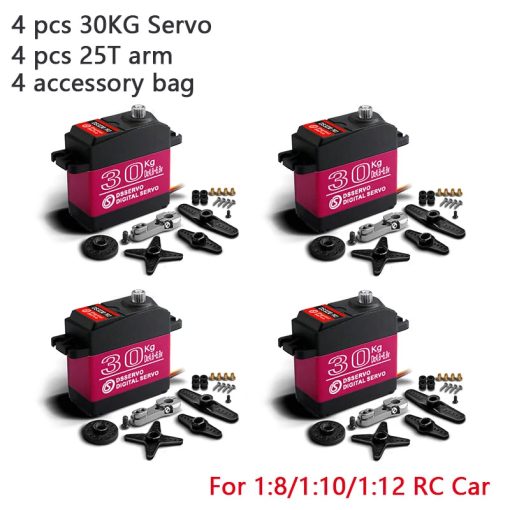

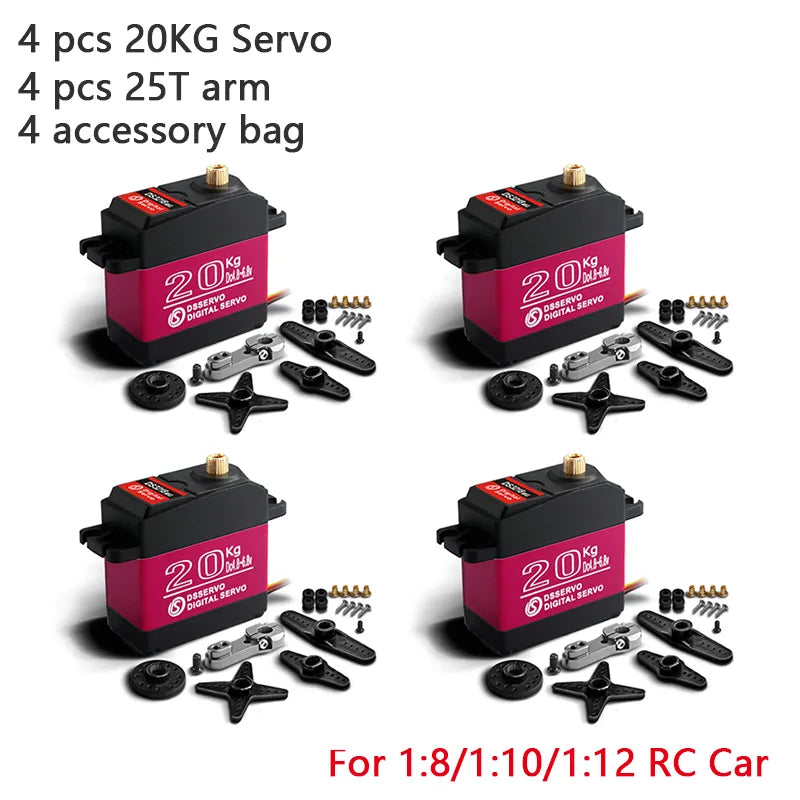

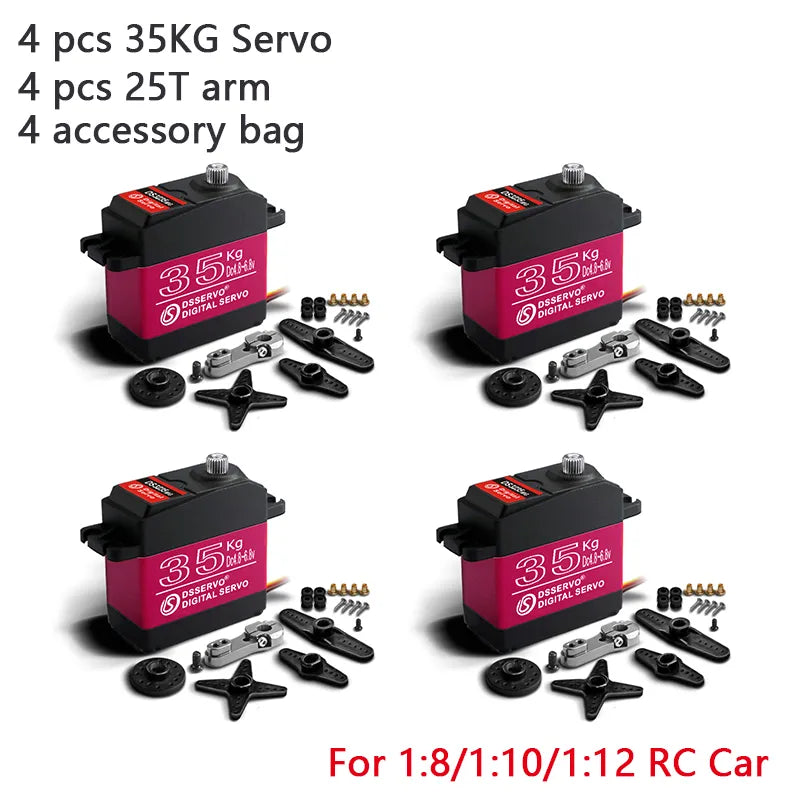

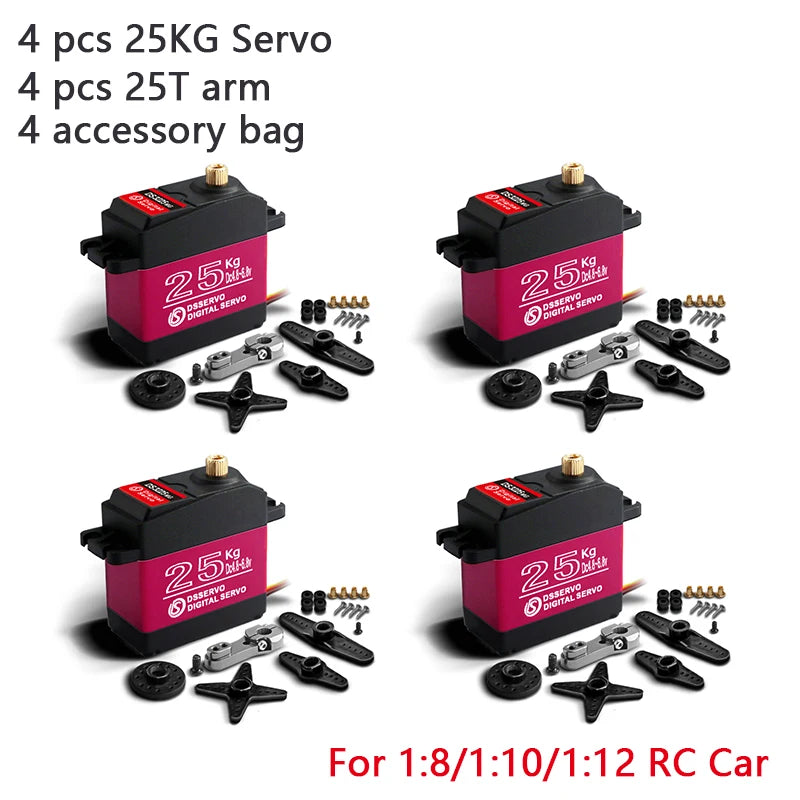

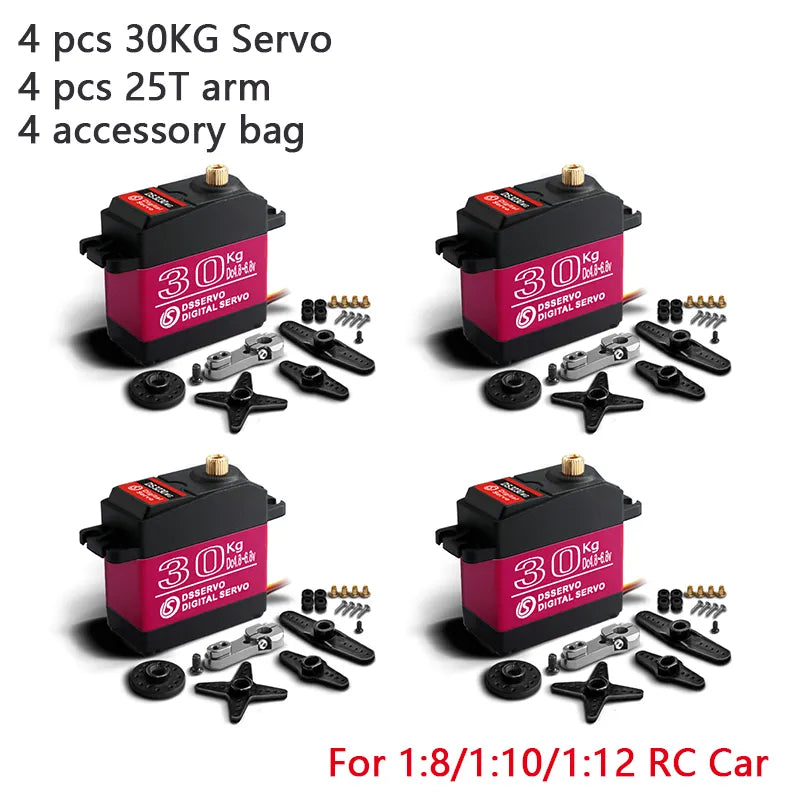

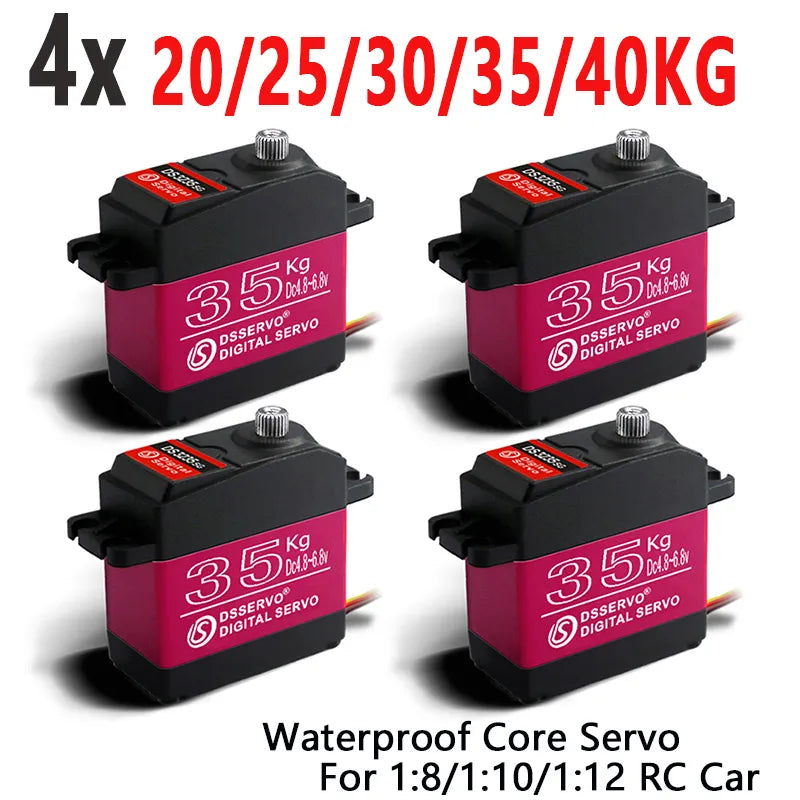

Packing List:
4x digital servo
4x 25T adjustable metal servo arm
4x accessory bag
Apply Environmental Conditon:
1.Storage Temperature Range:-30°C~80°C
2.Operating Temperature Range:-25°C~70°C

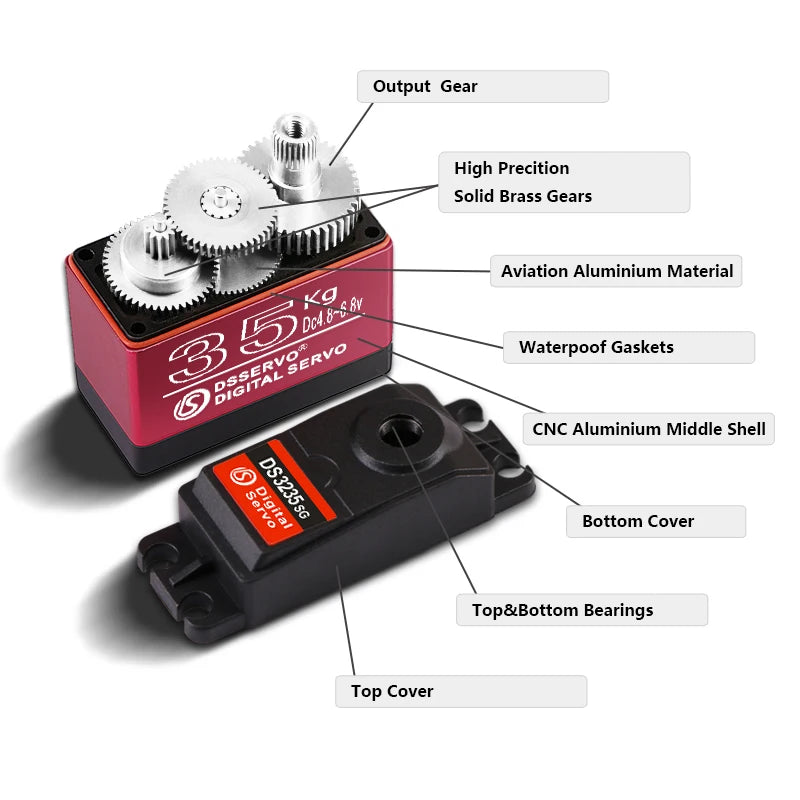

Mechanical Specification:

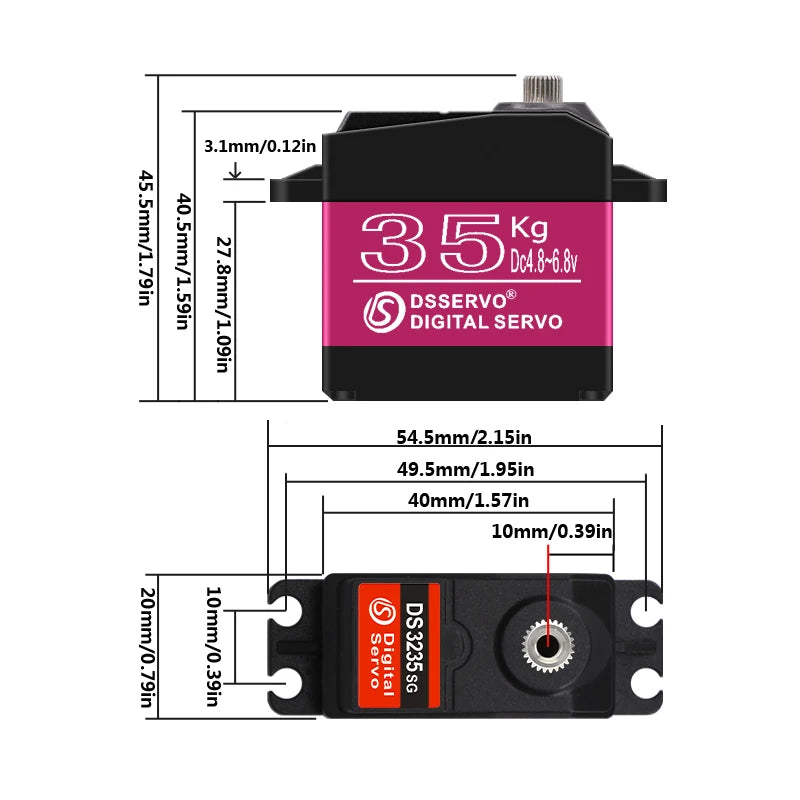

1. Size: 40.0*20.5*40.5mm
2. Weight: 58g±2g
3. Limit angle: 360°
4.Bearing: 2BB
5.Horn gear spline: 25T Diameter:5.9mm
6.Case : Engineering plastics+Aluminum alloy
7.Connector wire: 320mm±5mm
8.Motor: Carbon brush motor

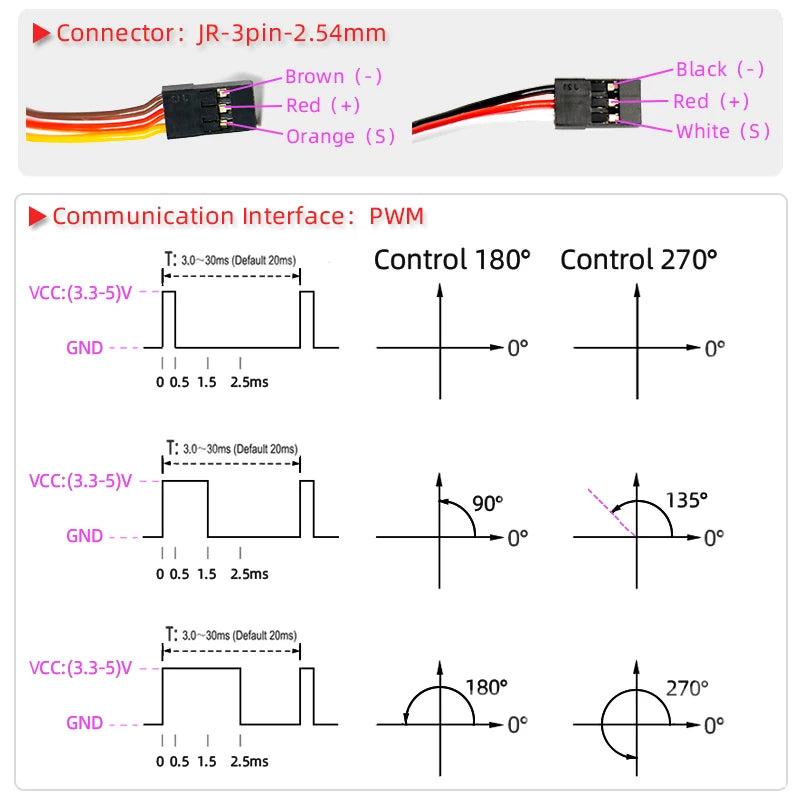

Electrical Specification:
1.Working voltage range: 4.8 – 6.8V
2.Command signal: Pulse width modification
3.Amplifier type: Digital controller
4.Pulse width range: 500～2500usec
5.Neutral position: 1500usec
6.Running degree: 180±3°(PWM 500～2500usec)
or 270±3°(PWM500～2500usec)
7.Dead band width: 3 usec
8.Rotating direction Counterclockwise: (when 1000～2000usec)   Pack includes four waterproof servo units, two ST-style arms, and four accessories, perfect for upgrading your 1/8, 1/10, or 1/12 scale RC cars.
|
If you need to buy a small number of servos for test, please looking for 1X links in the store!
