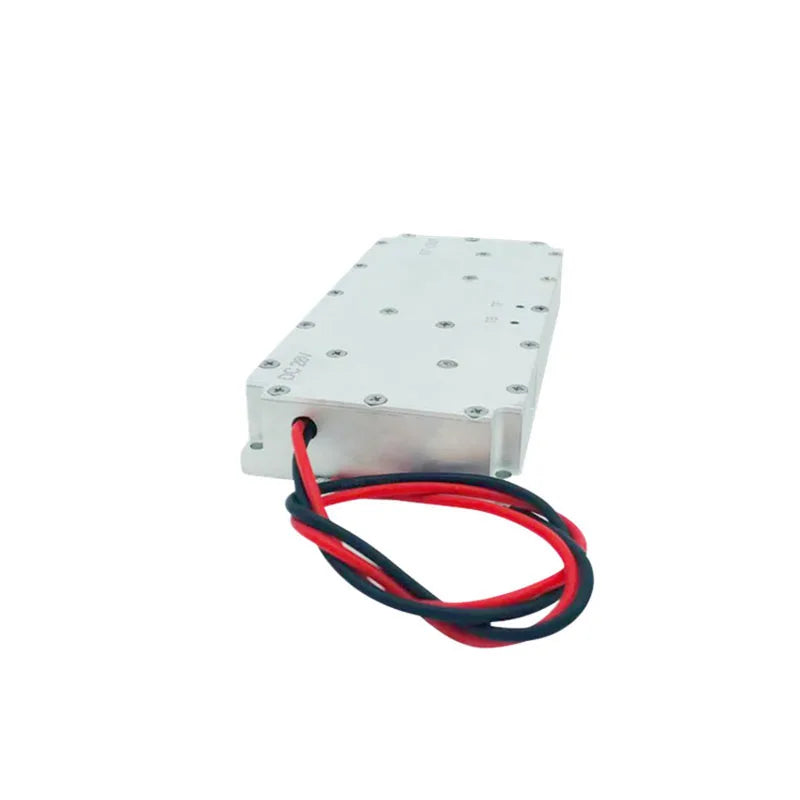

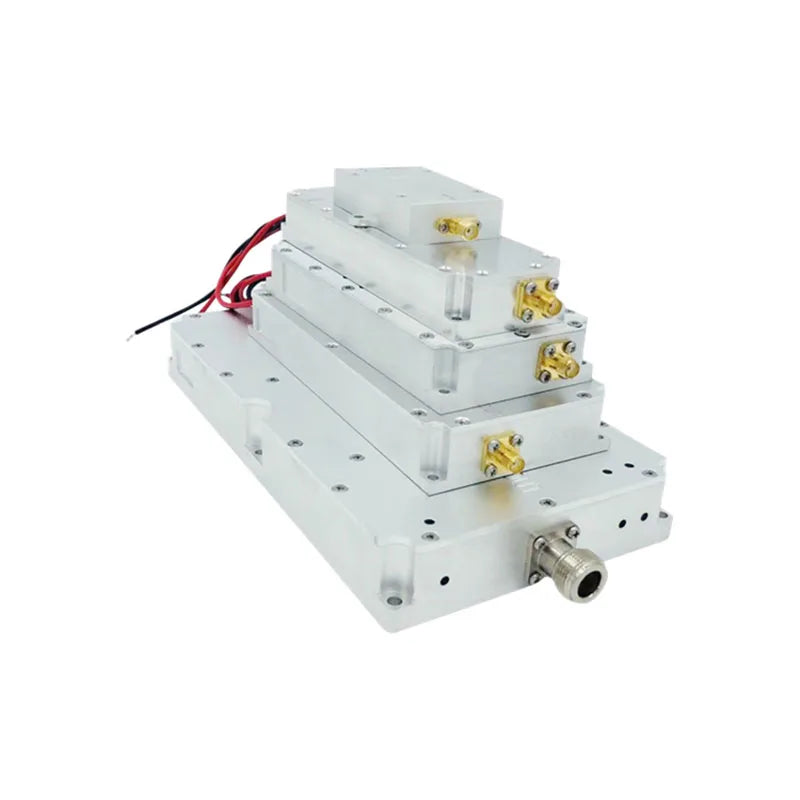

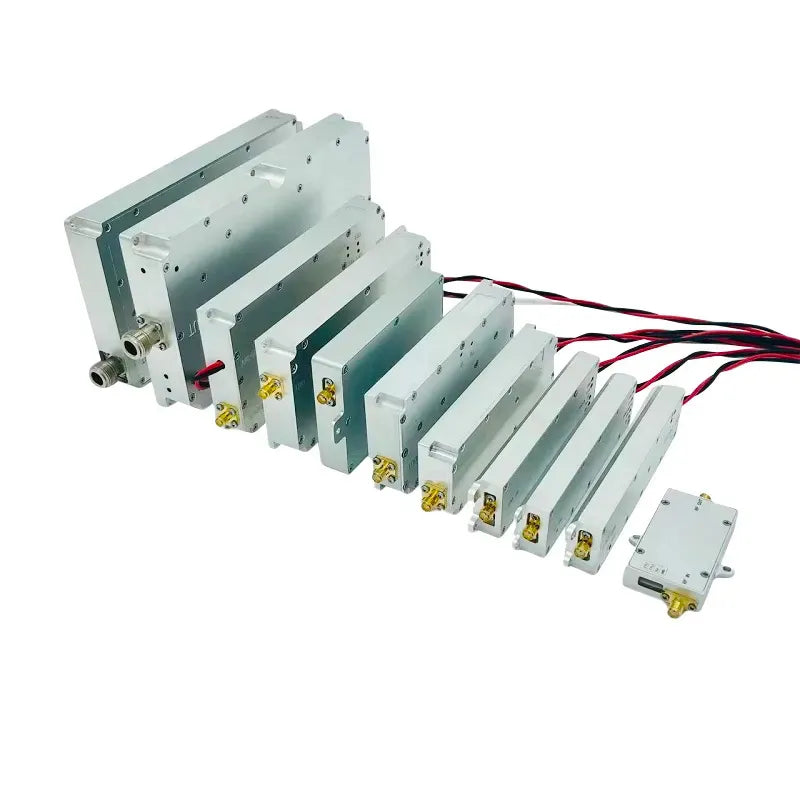

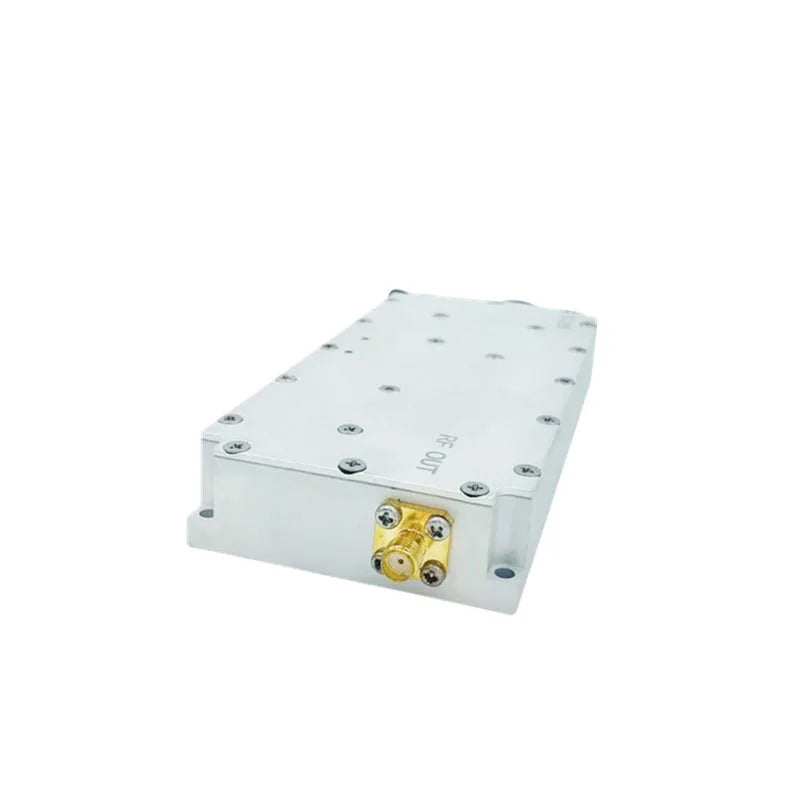

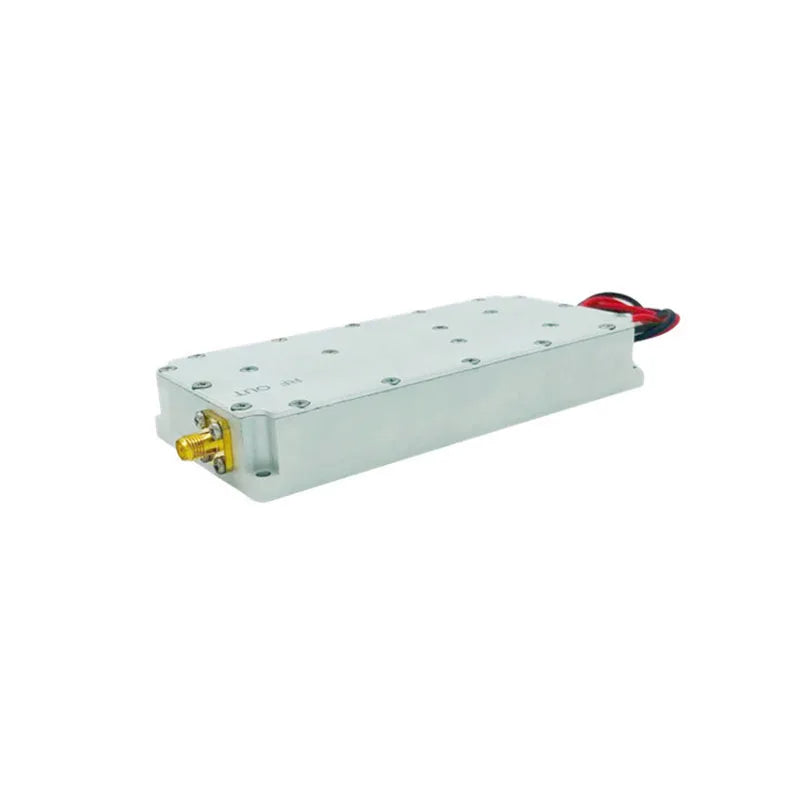

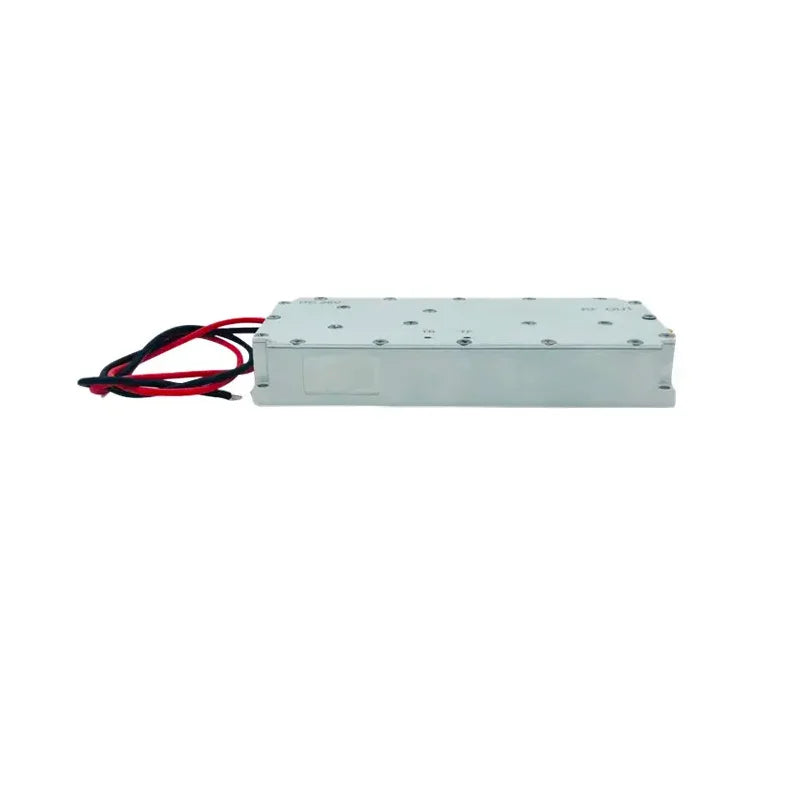

40W Anti Drone Module – 5150-6000MHz RF High Power Amplifier Module For Drone Shield UAV Blocking Anti Drone Device

$1,673.91

+ Free Shipping
Default Title
Default Title
Clear
SKU: N/A Category:
Ask for more info

40W Anti Drone Module  SPECIFICATIONS

Brand Name: NoEnName_Null

Origin: Mainland China

DIY Supplies: ELECTRICAL

Type: RF Amplifier Module

Certification: CE

Certification: RoHS

Model Number: DW-PA-07

Size: 157×78.5x21mm

Style: amplifier module

Output Type: 40W

Frequency: 5150-6000MHZ

Supply voltage: DC 27-28V

Gain: 46±1dB

Network: GPRS, GSM, wifi

RF connector: SMA

Operating temperature: -20℃~80℃

Supplier Type: OEM/ODM

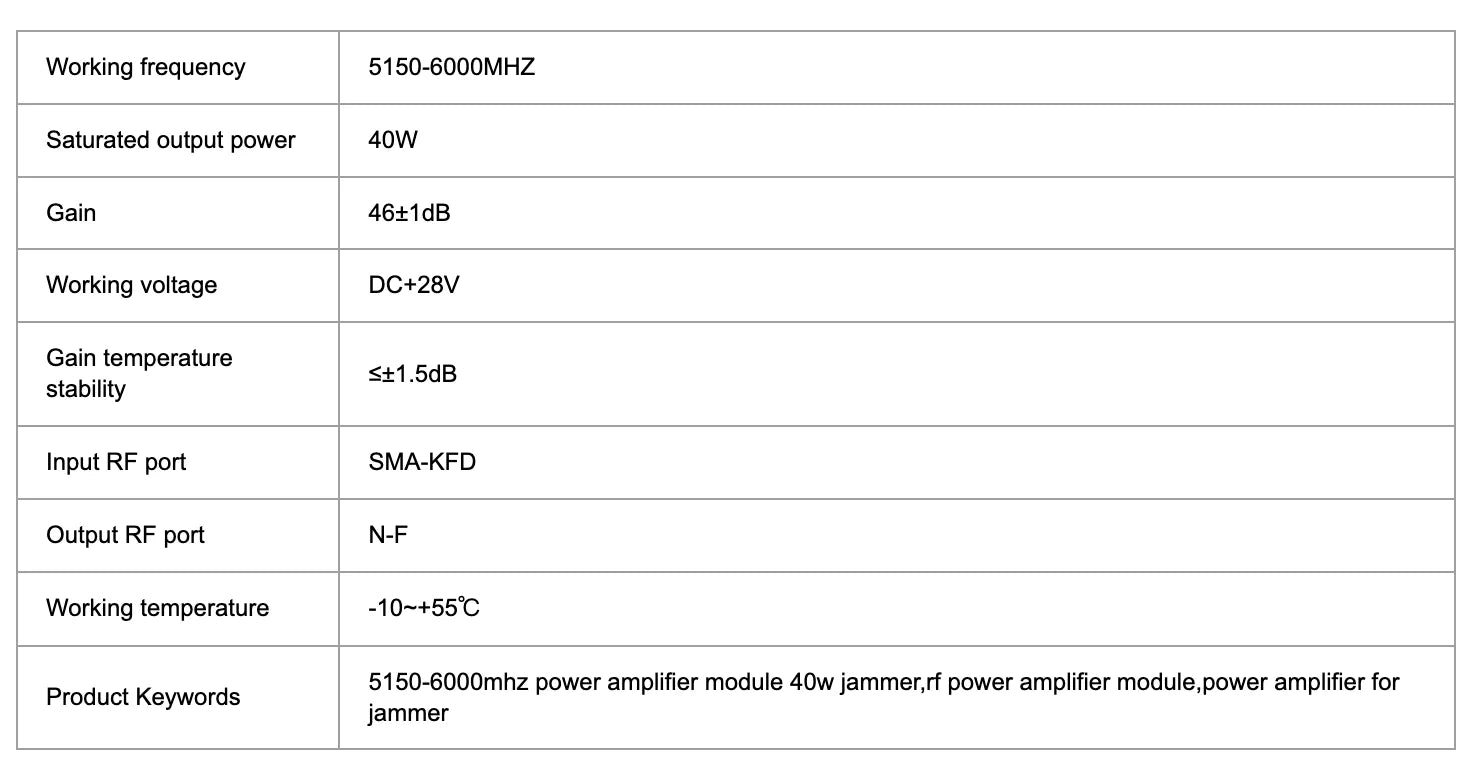

40W Anti Drone Module, 5150-6000MHZ Saturated output power 40W Gain 46+1dB Working

This 40W anti-drone module is a high-power RF amplifier module that operates within the frequency range of 5150-6000MHz. It features a saturated output power of 40W, a gain of 46+1dB, and requires a working voltage of DC +28V. The gain temperature stability is STL. SD dB. The input RF port uses an SMA-KF connector, while the output RF port utilizes an N-F connector. This module can operate within a temperature range of 10°C to +55°C.

40W Anti Drone Module, DW-PA-07 Anti Drone Module SPECIFICATIONS Brand Name 40W Anti Drone Module, DW-PA-07 Anti Drone Module SPECIFICATIONS Brand Name 40W Anti Drone Module, DW-PA-07 Anti Drone Module SPECIFICATIONS Brand Name 40W Anti Drone Module, DW-PA-07 Anti Drone Module SPECIFICATIONS Brand Name 40W Anti Drone Module, DW-PA-07 Anti Drone Module SPECIFICATIONS Brand Name
