AKK Eachine AX03 VTX SPECIFICATIONS
Brand Name: akk
Origin: Mainland China
Material: Composite Material
Use: Vehicles & Remote Control Toys

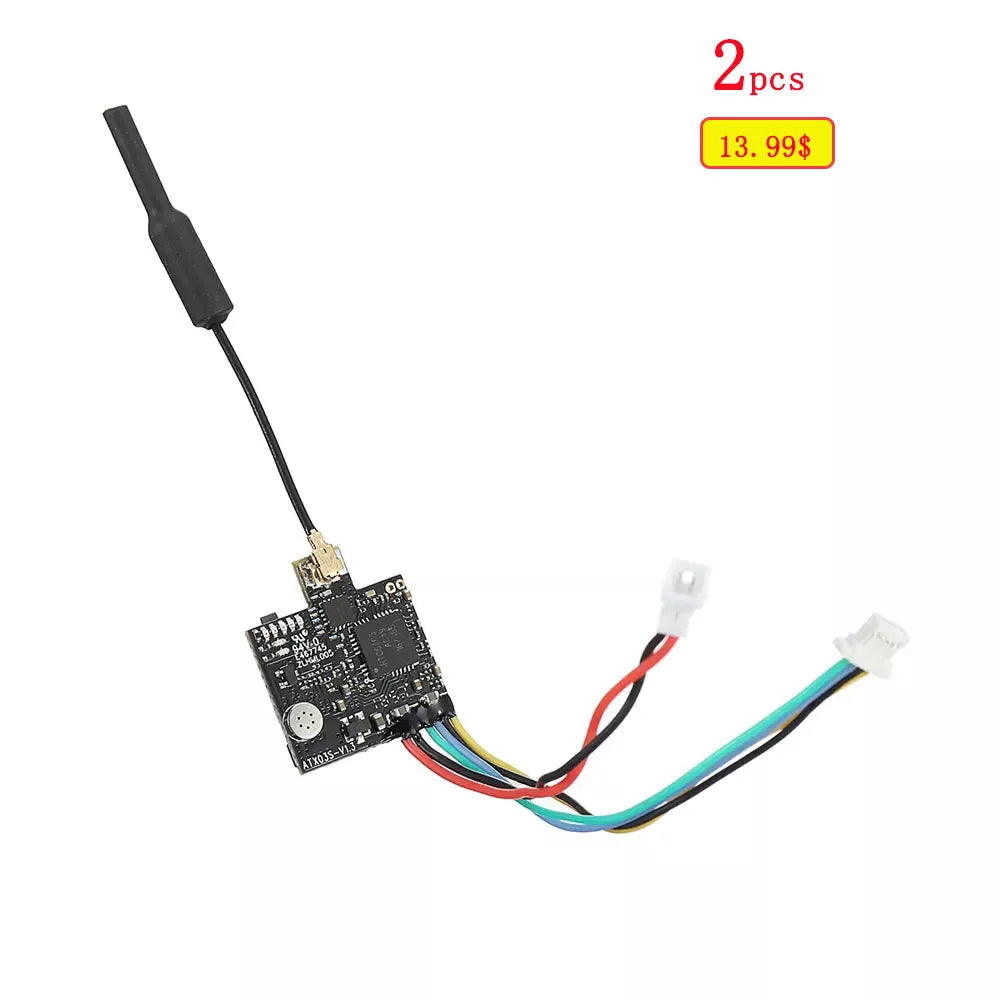

Quantity: 2
AX03 5.8GHz 40CH 25mW/50mw/200mW Switchable FPV Transmitter Smart Audio With Microphone for RC Drone
Description:
Brand name: Eachine

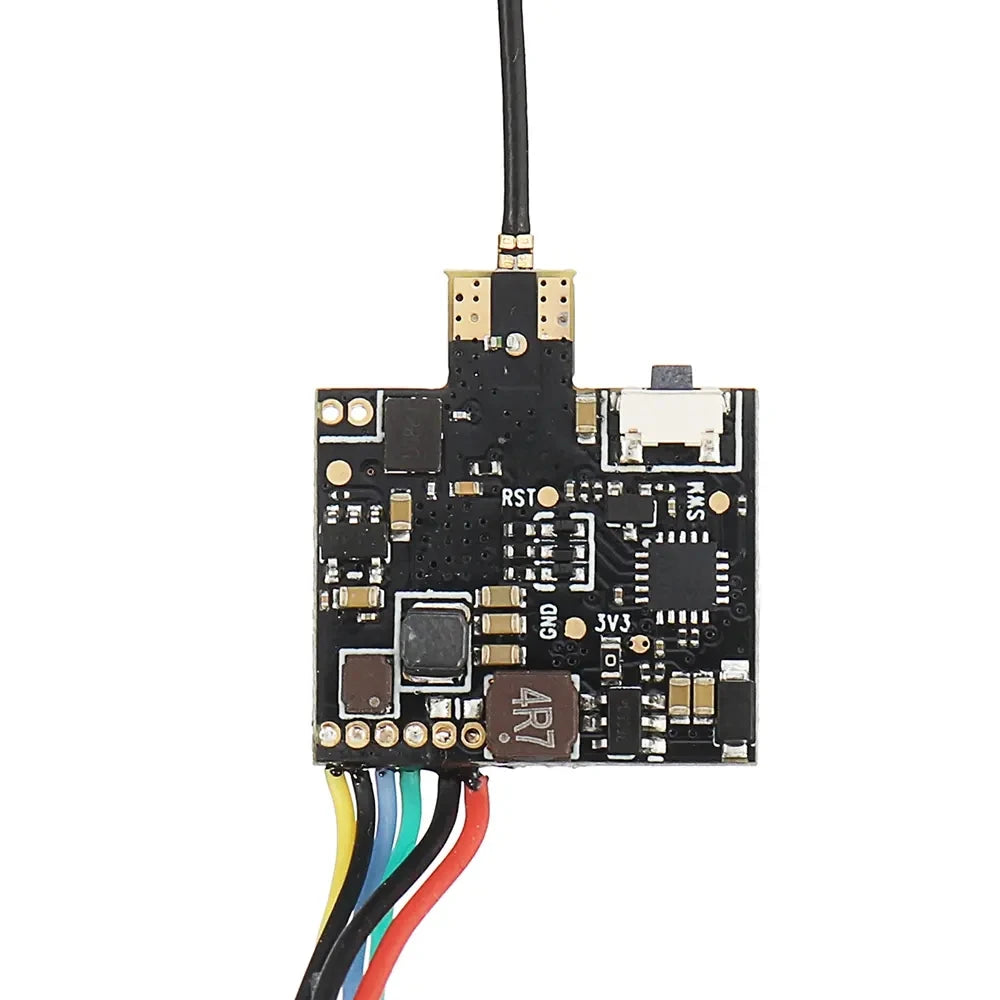

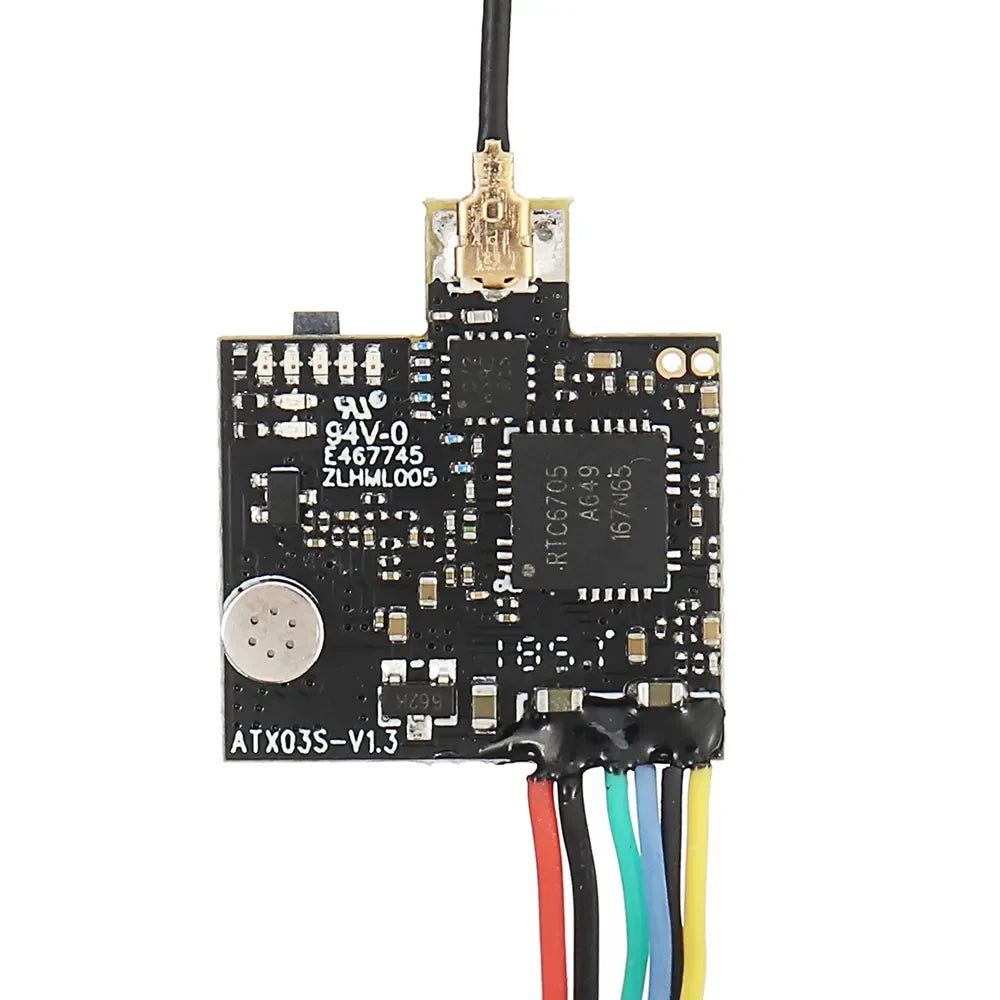

Item name: ATX03S Mini FPV Transmitter
Output power: 25mW/50mW/100mW/200mW adjustable
Input voltage: 3.3V-5V
5V camera supply, 245mA(MAX)—–25mW@4.2V (Typical)
5V camera supply, 310mA(MAX)—–50mW@4.2V (Typical)
5V camera supply, 390mA(MAX)—–100mW@4.2V (Typical)
5V camera supply, 517mA(MAX)—–200mW@4.2V(Typical)
Video format: NTSC/PAL
Antenna dimensions: 55mm X 2mm diameter
Antenna: IPEX
Frequency: 5.8GHz 5 bands 40 channels
Size: 1916mm(LW)
Weight: 2.959
Weight: 2.959
Features:
* Support 0.01mw Parameter-adjusting Mode.
* 25mW, 50mW, 100mW and 200mW power switchable.
* 25mW, 50mW, 100mW and 200mW power switchable.
* One button frequency and power setup.
* OSD configuration using smart audio.
* With mic.
Button control channel select mode Channel select
Select 8 channels by simple short presses.
Green LED light on stands for CH1,short presses to change 8 channels sequentially.
For CH2/3/4/5/6/7/8, Green LED flicker once it won’t light on
Notice: Green LED only light on for CH1.
Band Select
Press button for 2s,Red LED will flicker,then short presses to select 5 band A/B/E/F/r sequentially.
Notice: Red LED1 only light on for Band A.
Power select
Press button for 4s,Blue LED will flicker,then short presses to select power 25mW/50mW/100mW/200mW sequentially. For 50mW/100mW/200mW, Blue LED flicker once, it won’t light on
Notice: Blue LED only light on for 25mW.
Pit Mode(0.01mW)
While in Pit Mode you can change channels and set power levels, but none of these changes will take effect until you quit Pit Mode. By default, Pit Mode will send a very weak signal
Package included:
1 X FPV Transmitter
1 X IPEX antenna

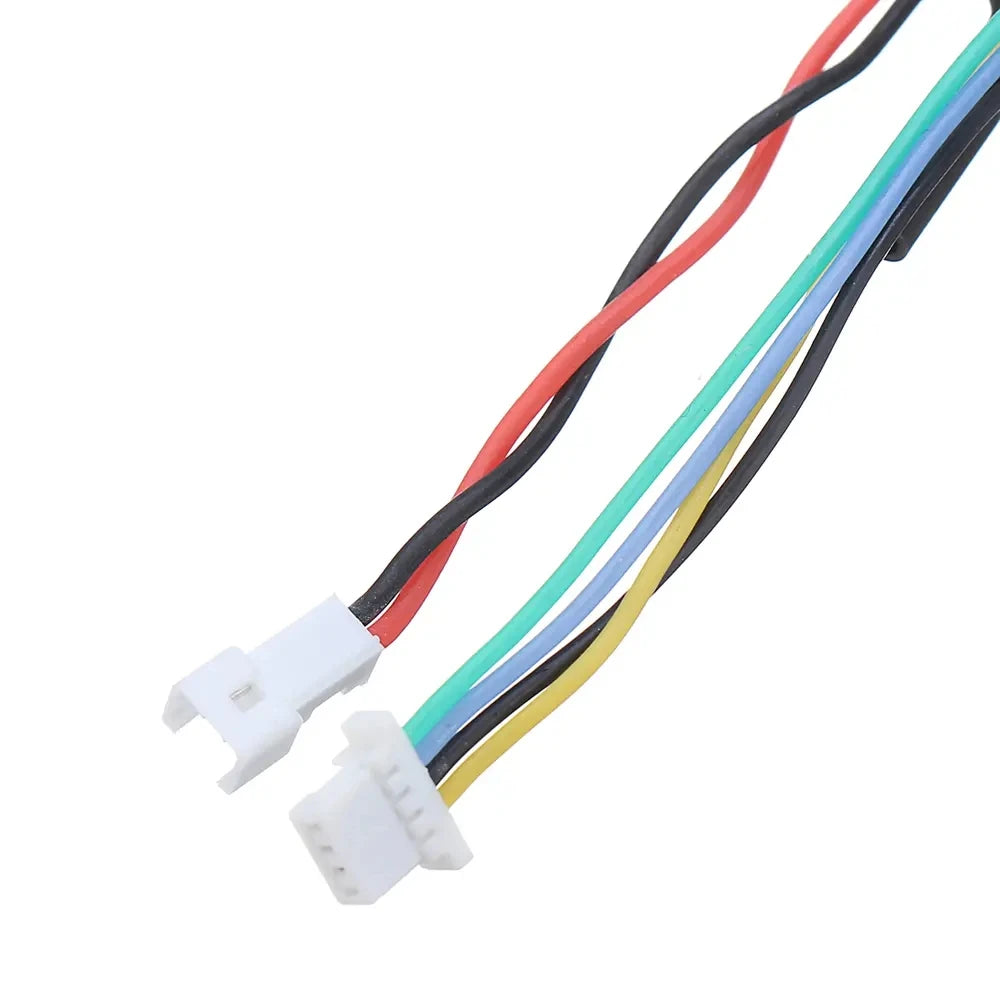

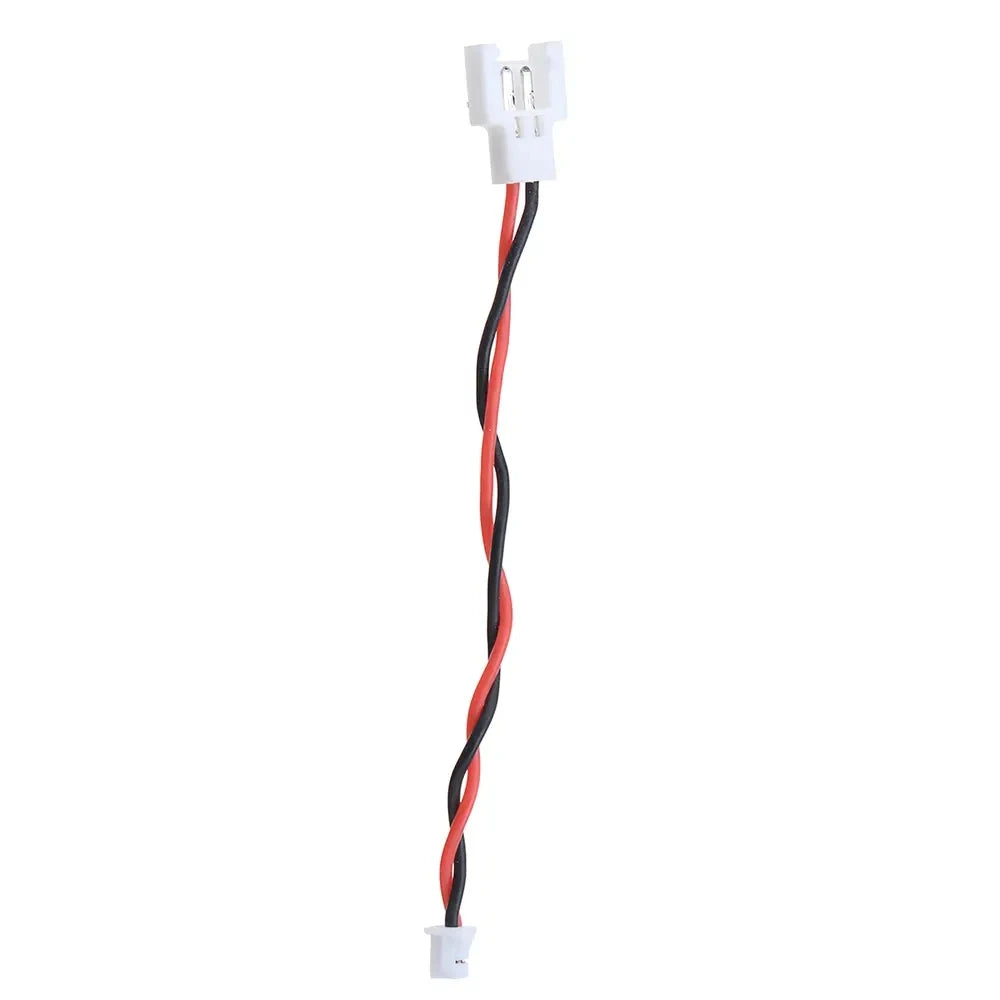

1 X Cable
1 X Instruction

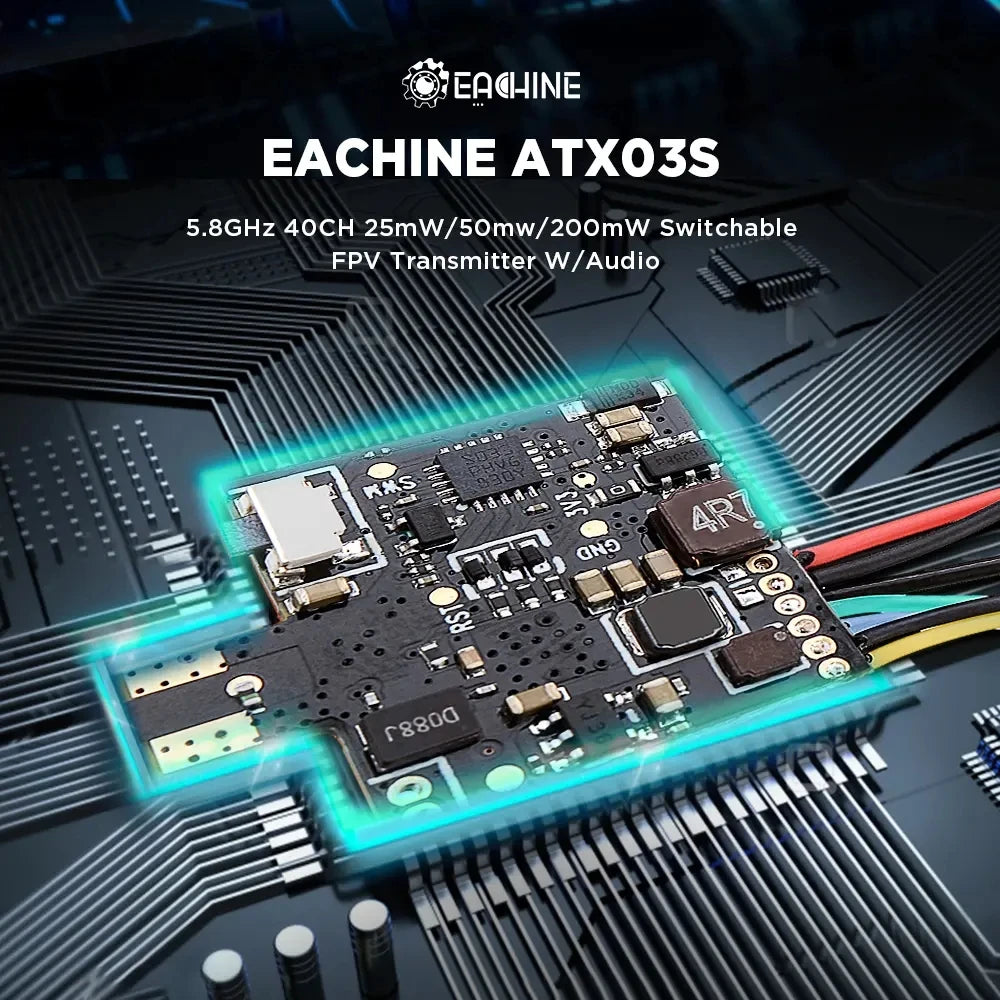

EATYINE EACHINE ATXo3s 5.8GHz 40CH 25mW/sOmw/zoomW FPV Transmitter W/Audio 6 aND c8800
The 5.8GHz IPEX antenna is slightly lighter and more compact than a typical leaf-shaped antenna.
Output Power: Adjustable to 25mW, 1oomW, or 2oomW; Input Voltage: 3.3V to 5V, with a maximum current draw of 24mA (at 4.2V typical) and suitable for camera supplies.
