Description
SPECIFICATIONS
Brand Name: ACASOM
Item Type: Antenna
Origin: Mainland China

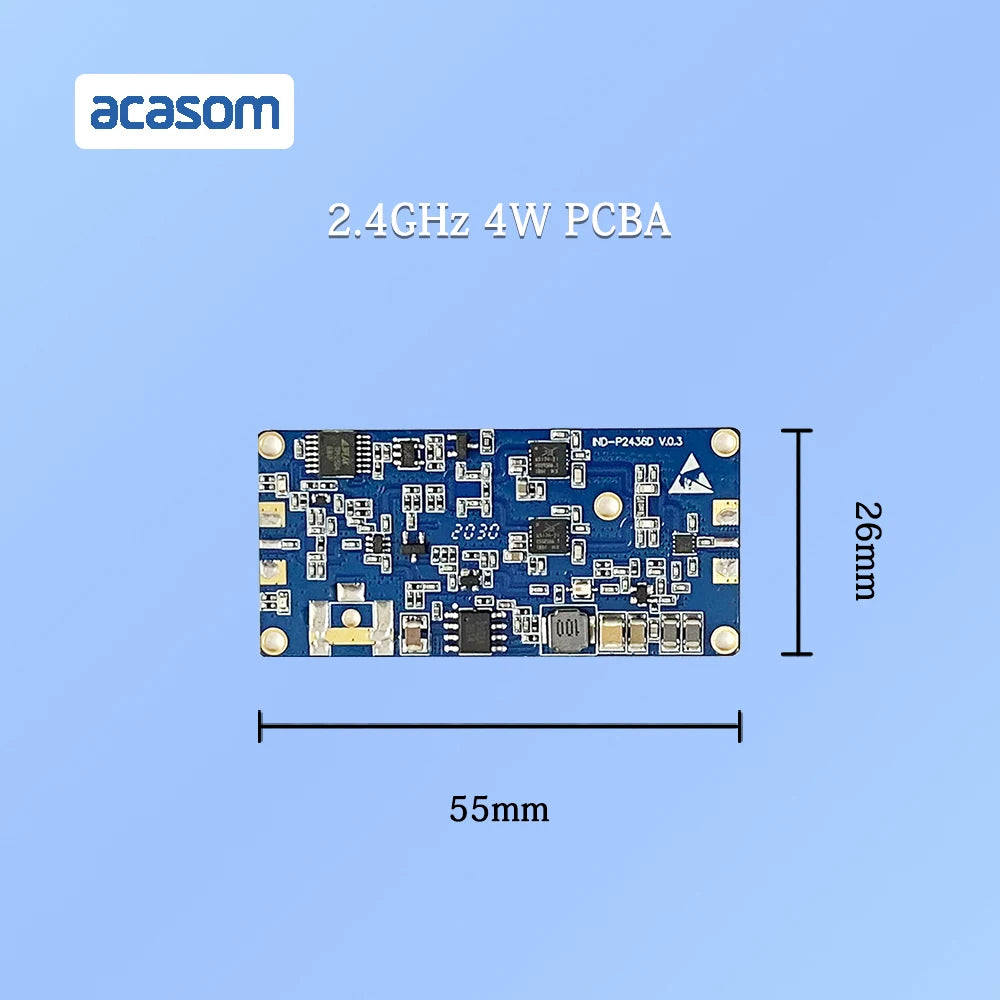

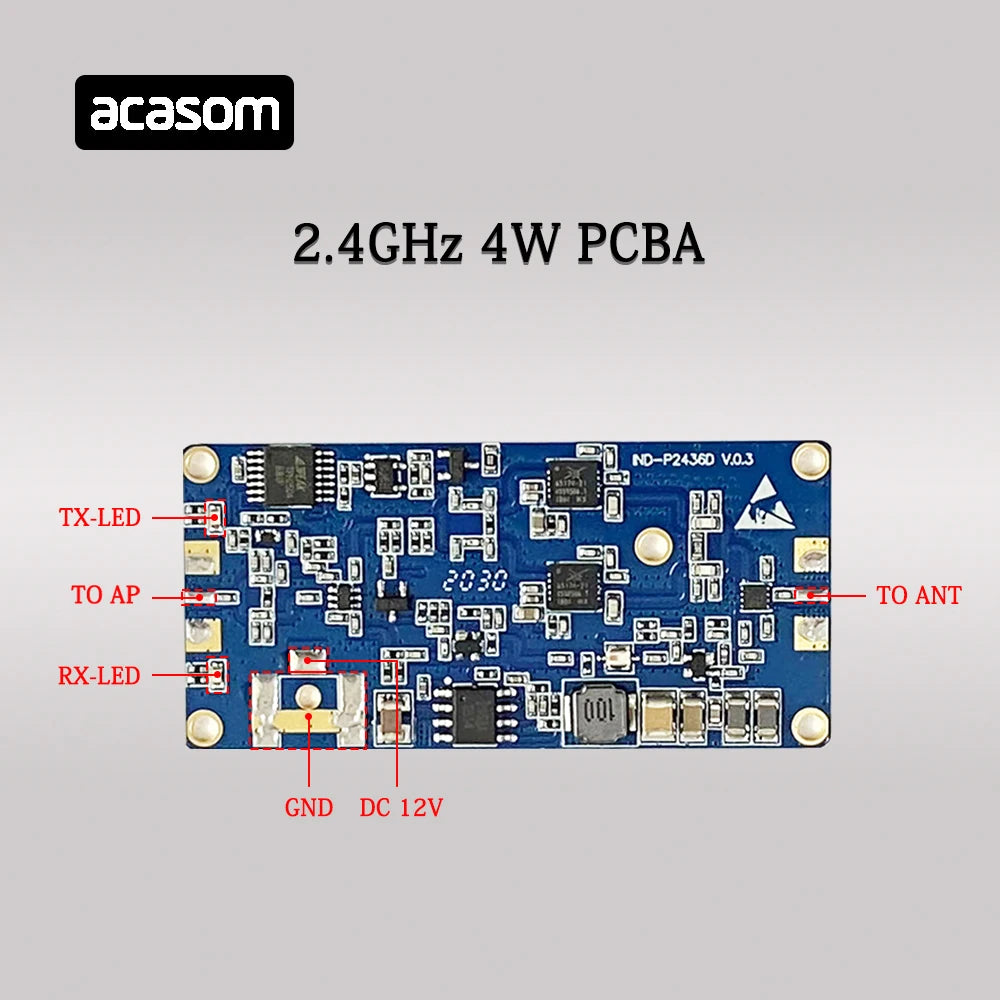

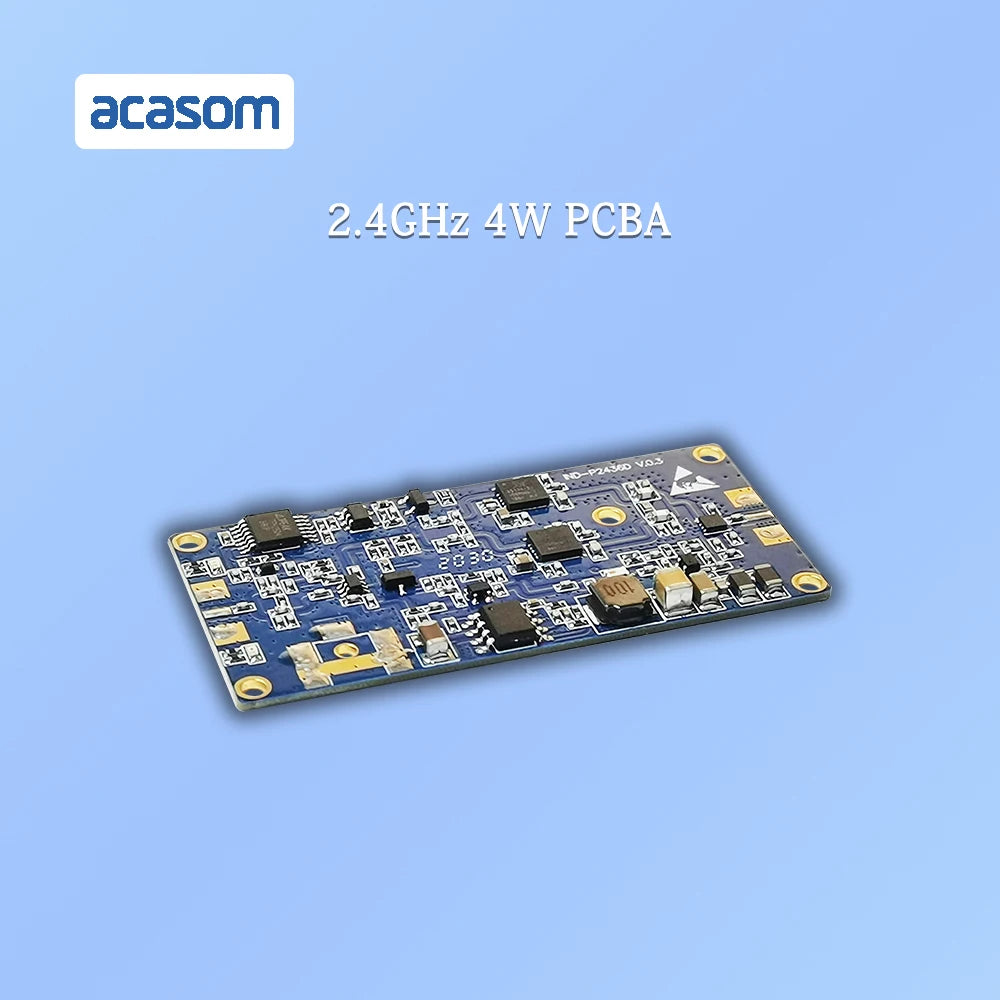

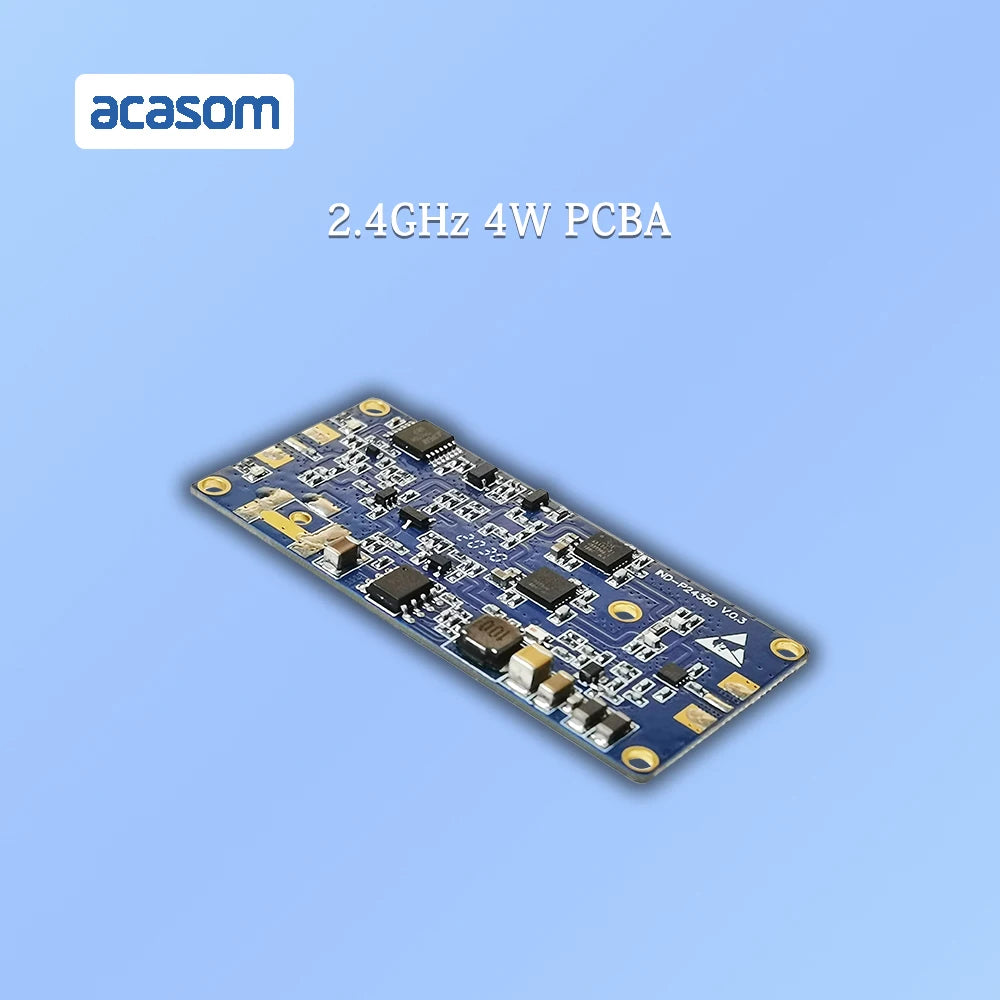

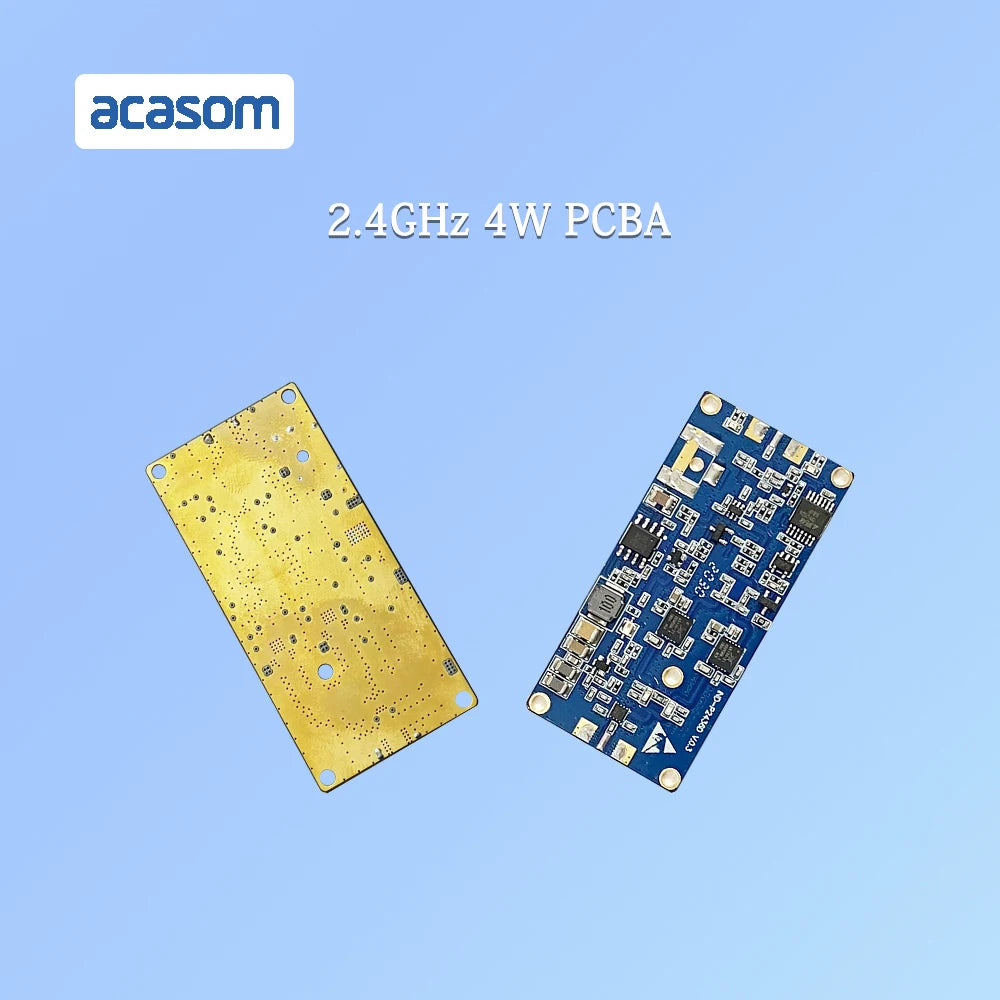

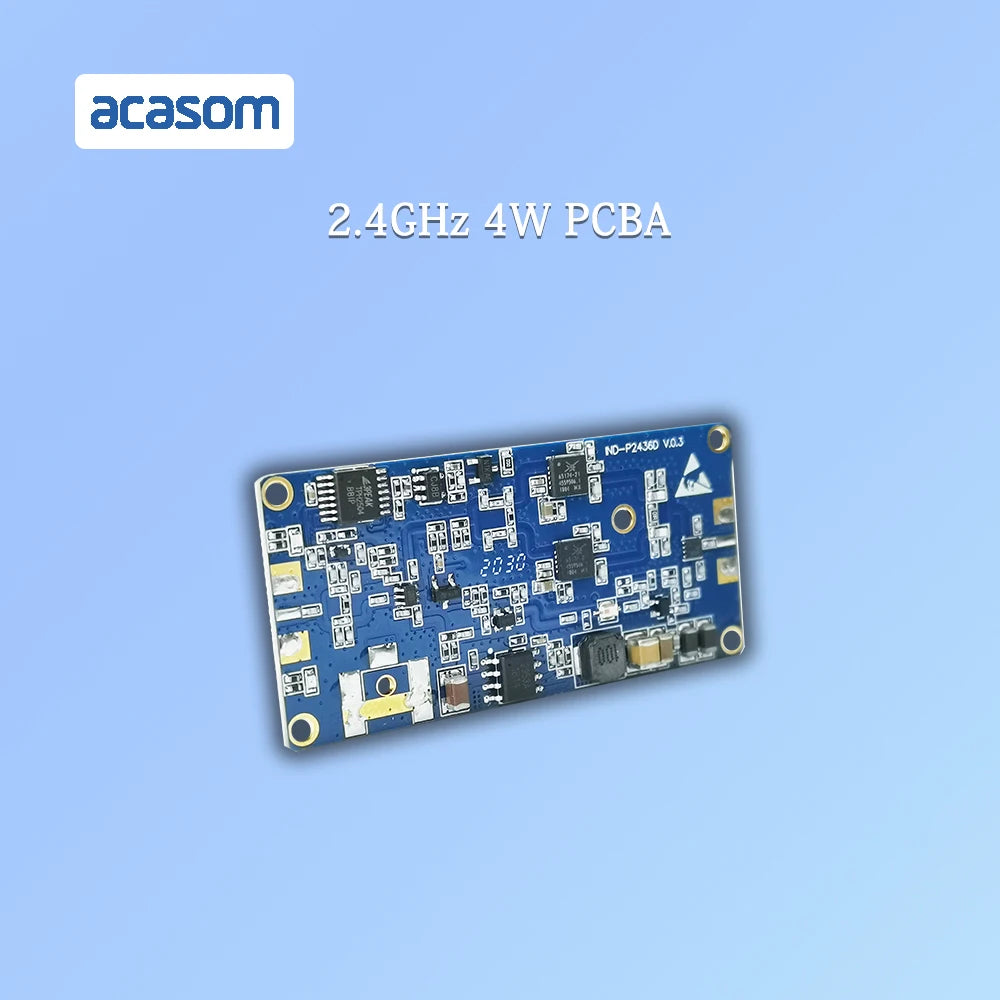

ACASOM 2.4GHz 4W WiFi Signal
Booster/Etender
Working Band: 2.4-2.5GHz
Output Power:4W / 36dBm
4W WLAN transmission module is compatible with ZigBee,Bluetooth and time division duplexing method of WLAN.
2.4Ghz RF transceiver and receiver amplifier module can be used for industrial data transmission, wireless remote control, wireless mouse, wireless keyboard, wireless electronic label, remote control toy, 2.4g wireless amplifier, wireless microphone, wireless speaker,wireless led control, smart home,UAV etc.
![fast commercial express will also provide very favorable price, please contact us for specific express price.](https://rcdrone.top/cdn/shop/files/A44553895e6054e9a99d6b9925a5475faz.webp?v=1715015677)
-
Frequency Range: 2.4~2.5GHz
-
Operating Voltage: 6~16V
-
Receiving Gain: 17dB±1
-
Transmission Gain: 17dB ±1
-
![buyers are responsible for all additional custom fees, duties, and taxes for importation into your country](https://rcdrone.top/cdn/shop/files/S2edc0234f7c84892913e84d094d6b6aeM_f2671468-f075-4f22-bef0-0c212d540b51.webp?v=1715015707)
-
Frequency Range: 2.4~2.5GHz
-
Operating Voltage: 6~16V
-
Receiving Gain: 17dB±1
-
Transmission Gain: 17dB ±1
-
Input Trigger Power: Min:3dBm Max:20dBm
-
Max Output Power(P1dB): 36dBm(4W)
-
EVM: 3%@28dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz
-
DC Supply Current: 435mA@Pout 28dBm 9V
![buyers are responsible for all additional custom fees, duties, and taxes for importation into your country](https://rcdrone.top/cdn/shop/files/A553dd8106f9941e7808a3fa74823268cH_ff1b57d4-5092-426e-aed9-455aa0093385.webp?v=1715015718)
![buyers are responsible for all additional custom fees, duties, and taxes for importation into your country](https://rcdrone.top/cdn/shop/files/S199286ff19734b6cbc1e3d5cb7a604cfH_9a6c0f02-3891-4e97-ae9c-1bd20c8ea438.webp?v=1715015727)
1: Standard express has a certain risk of getting lost. For products with higher value, we recommend to choose fast commercial express, we will also provide very favorable price, please contact us for specific express price.
2: We do not guarantee delivery time on all international shipments due to differences in customs clearing times in special countries. Please note that buyers are responsible for all additional custom fees, duties, and taxes for importation into your country. We will not refund shipping charges for reused shipments.
3: Because some countries have strict regulations on the import of such products, such as Brazil, Russia, Germany, etc., please make sure whether individual could import the product in your country, or if you have the qualification to import the product. The buyers are responsible for the lost if the goods are detained by the customs.
