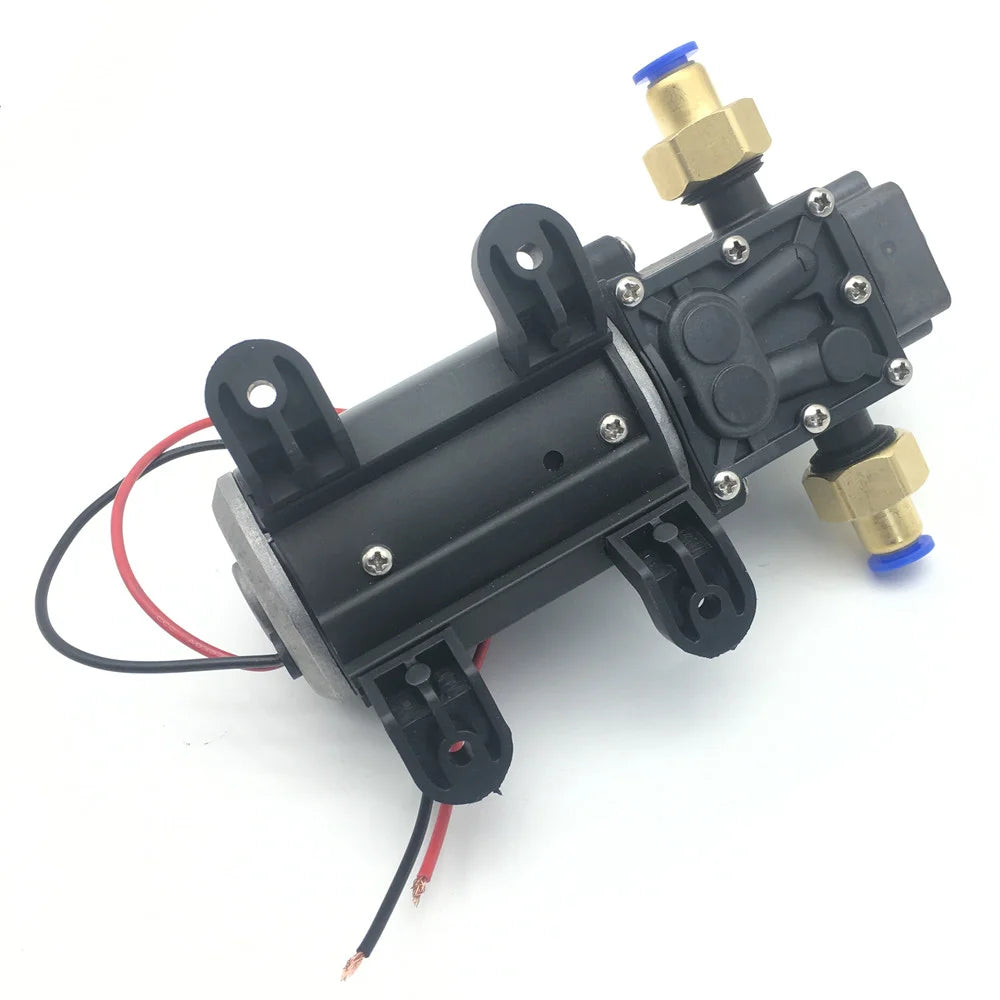

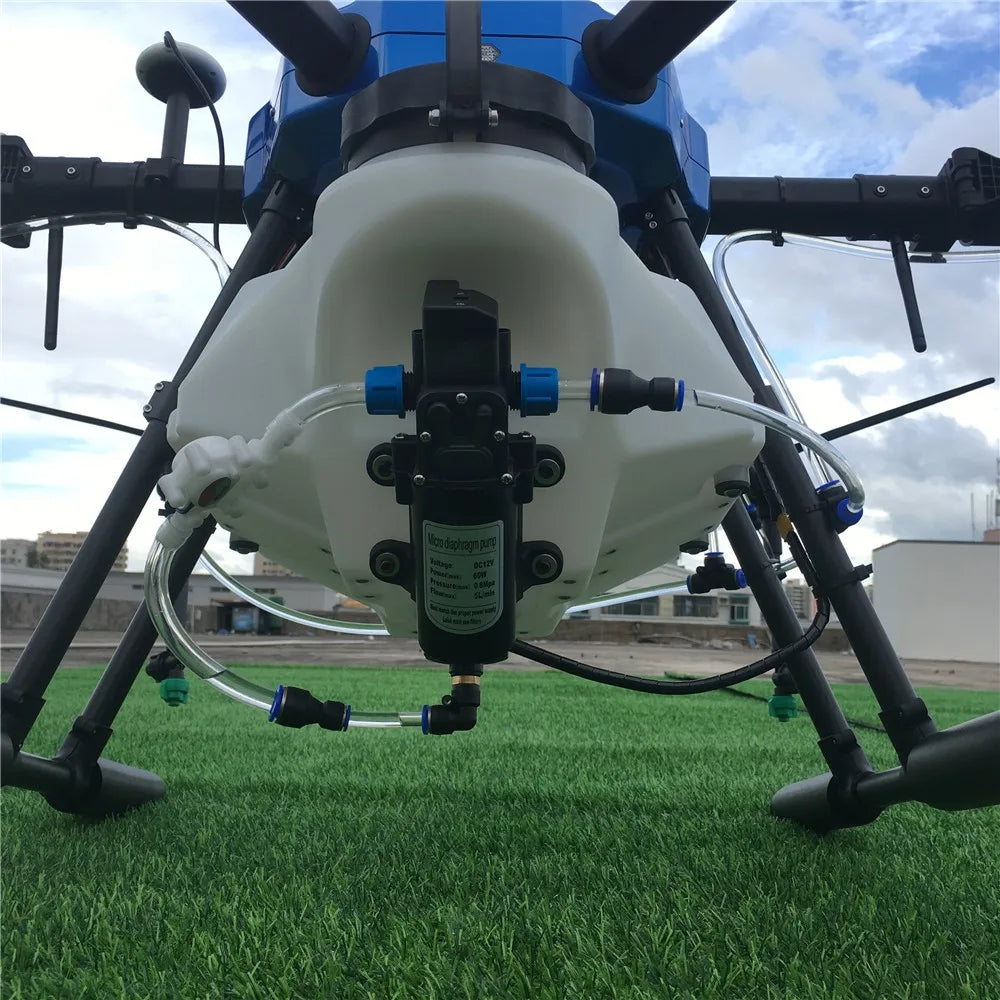

1PCS 8L DC12V 100 W Brush Water Pump Micro Electric Diaphragm Pump for Agriculture Drone XTL 3210

$71.64

+ Free Shipping
Default Title
Default Title
Clear
SKU: N/A Category:

1PCS 8L DC12V  100 W Brush Water Pump SPECIFICATIONS

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: water pump

Tool Supplies: water pump

Technical parameters: Value 2

Size: 100W

Remote Control Peripherals/Devices: water pump

Recommend Age: 14+y

RC Parts & Accs: water pump

Origin: Mainland China

Model Number: 100W

Material: Metal

Four-wheel Drive Attributes: water pump

For Vehicle Type: Airplanes

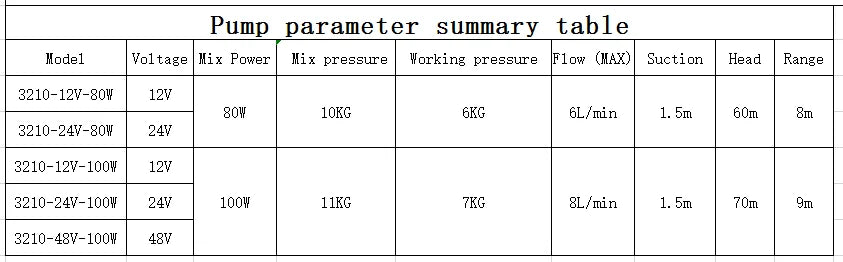

5m 6Om 81 3210-24v-80H 24v 3210-12

Kodel Voltage Kix Power Kix pressure Horking pressure Flow (HAX) Suction Head Range 3210-12V-801 12V 801 1OKG 6KG 6L/min 1. 5m 7Om 9m 3210-48V-100H 48V 100H 11KG 7KG 8L min 1.

the drug detection function is currently limited to the use of 25W water pump . the 33 PROL 7 XTL-3210 Voltage: DCZI 3 Powerimax
ICHINA MADEINC PUMPS PRO XTL-3210 Voltage:

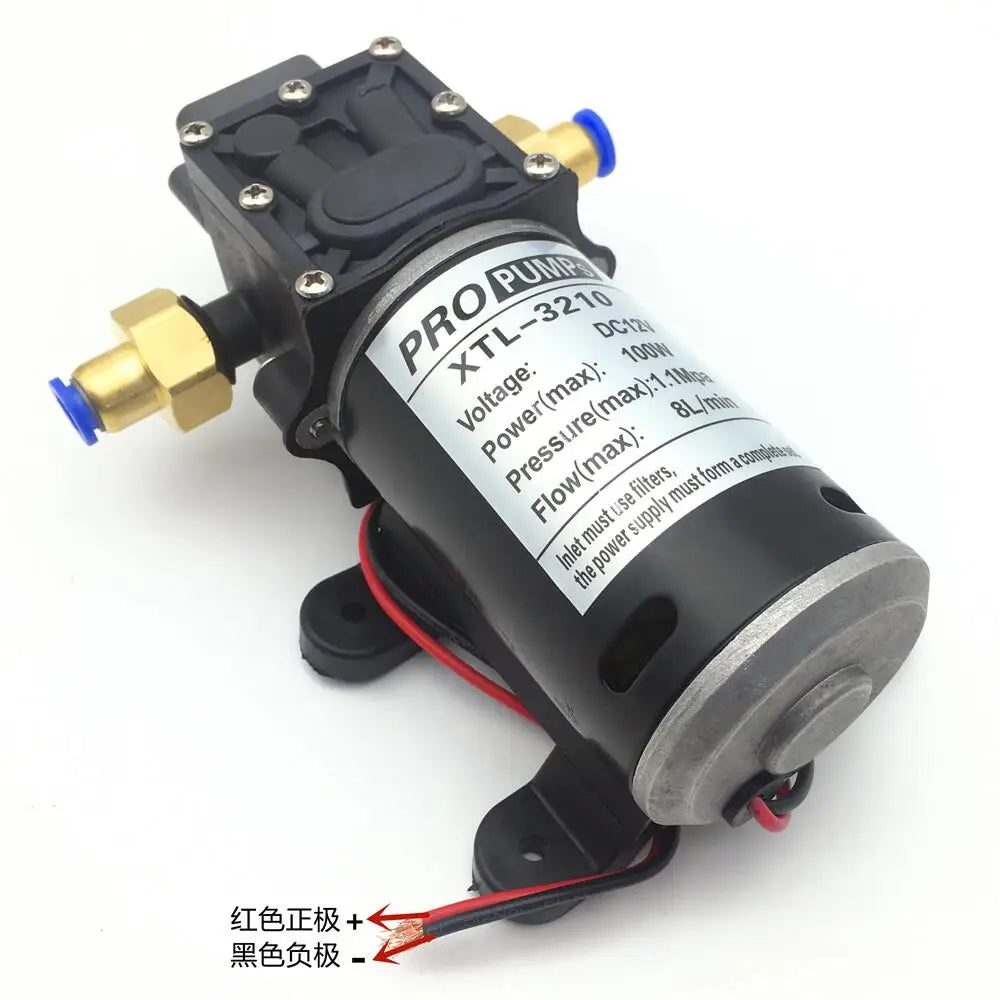

Ichina Made in China Pump, PRO XTL-3210, Voltage: DC12V, Flow Rate (Max): 8L/min. Please note that a filter should be used on the inlet and electrical supply recommendations are provided.

BDUAV RC Store sopejdwuoa e wjo

BDUAV RC Store recommends using a filter with this pump; please note that excessive water pressure may cause damage to the pump and its components.

4BET +- Reft PROPUMN XTL-3210 DCN

4Bet+ recommends the PRO Pump XTL-3210 for use with DC power, with a maximum voltage of 12V, a maximum power output of [insert value], a maximum pressure of [insert value], and a maximum flow rate of [insert value].

the drug detection function is currently limited to the use of 25W water pump . the 3a flat, no water is low, need to discharge the air in the pump before take

PROEN ZtLx Power(max): 0 Pressure(max, Flow

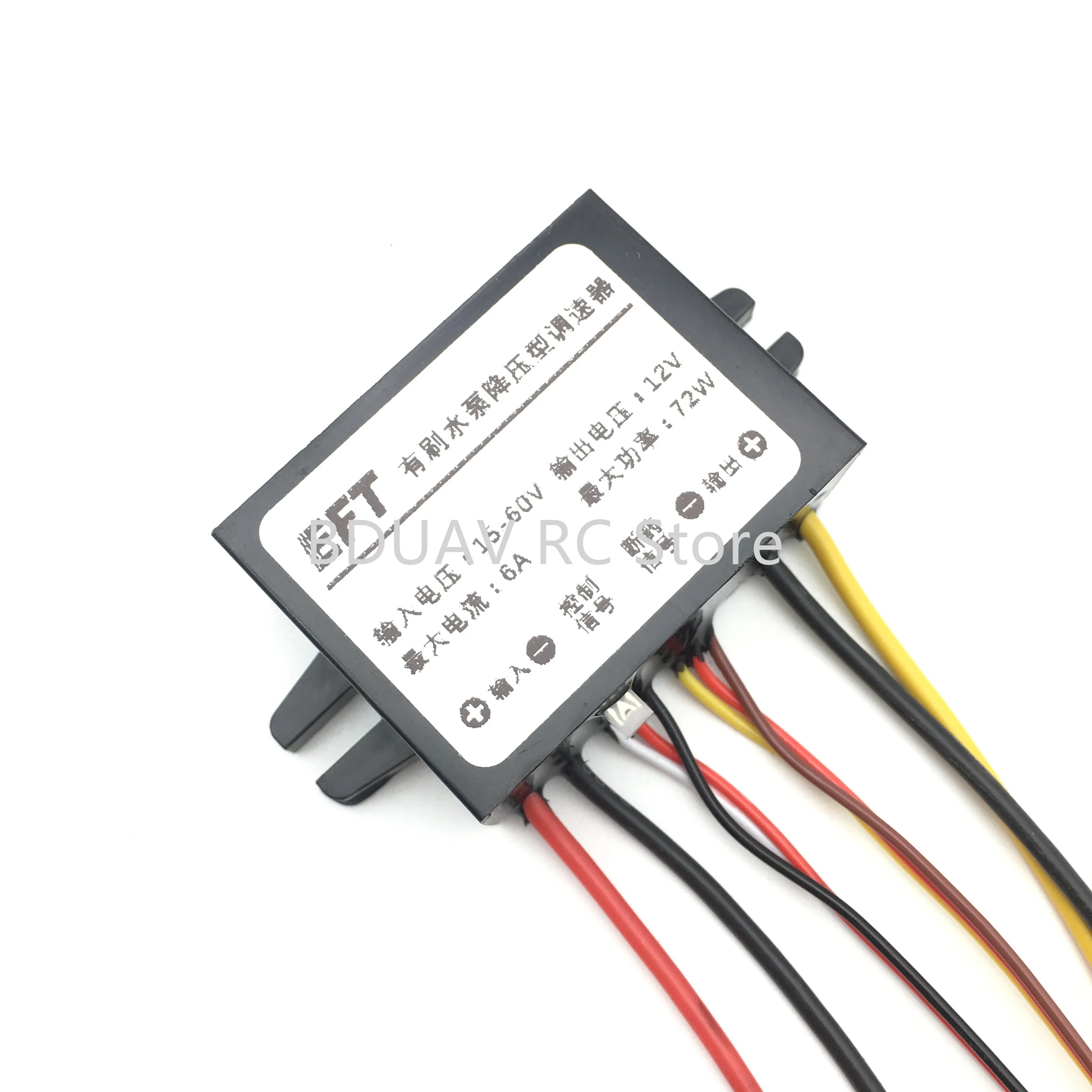

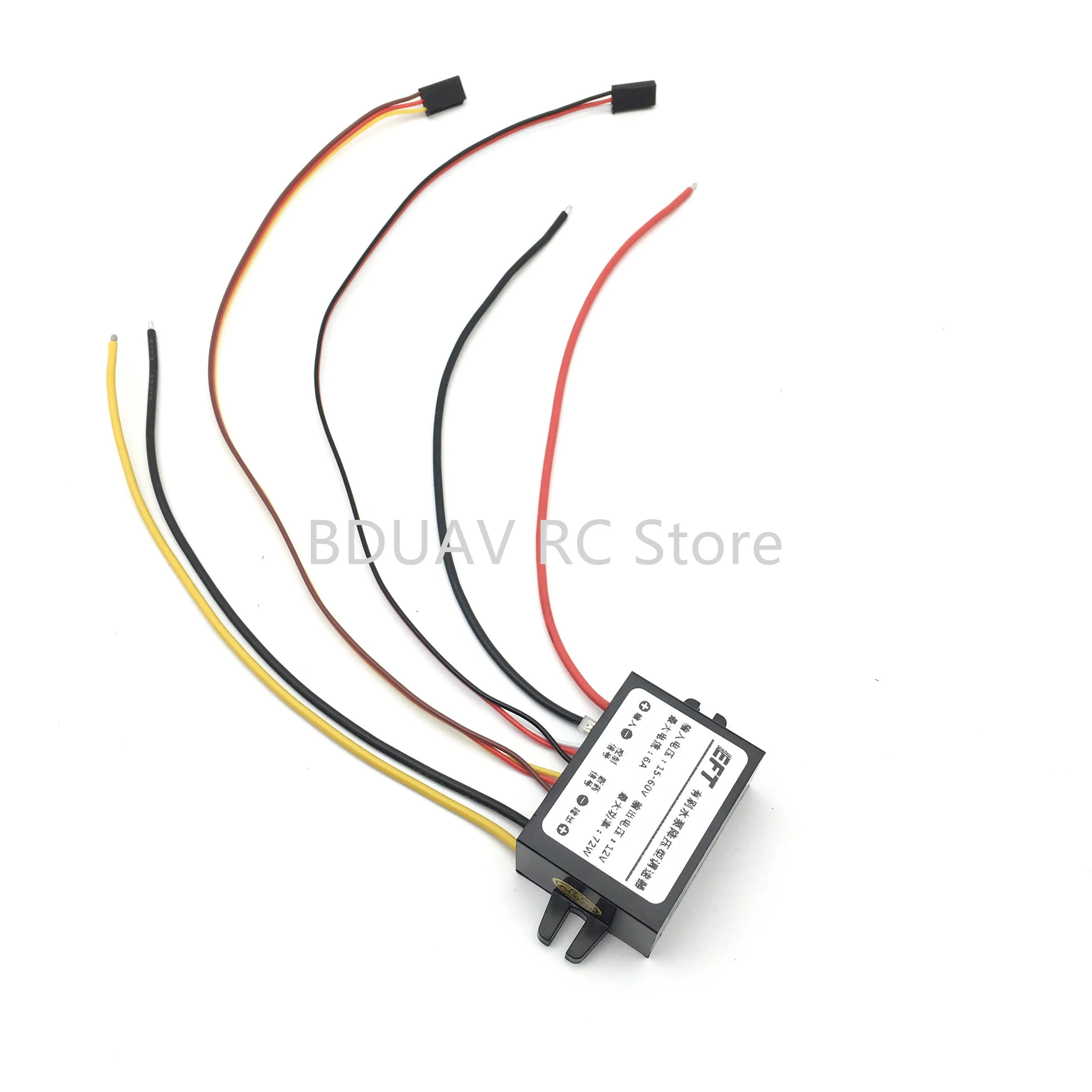

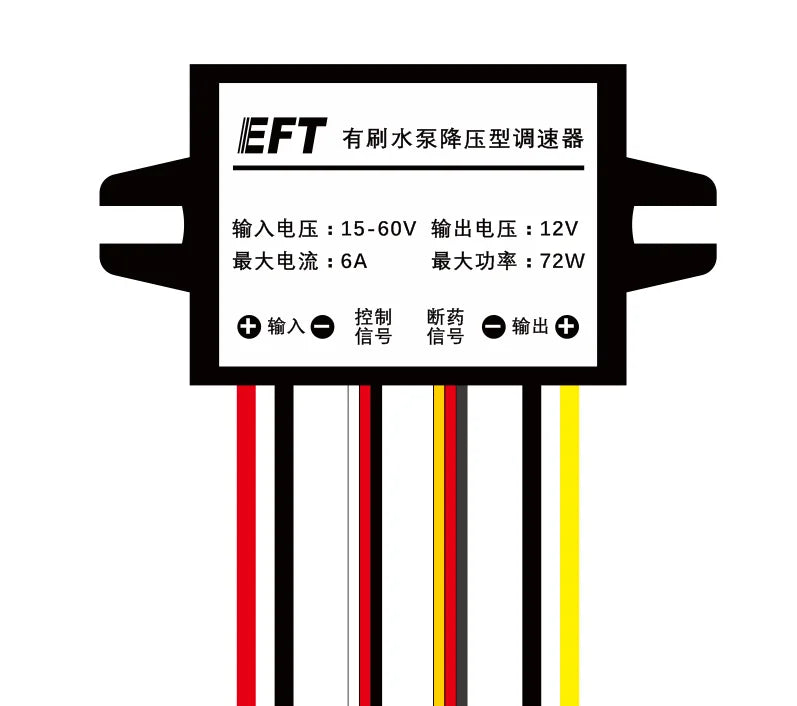

Agriculture Drone special brush water pump step-down governor, integrated buck module and governor as one, streamlined wiring, support 15-60V wide pressure input, external 12V brush pump, built-in drug detection function, module ring Oxygen resin potting, dustproof and waterproof.
Product specifications:
Size: 47mm * 34mm * 22mm (without fixed ears)
Weight: 72g
Mounting hole distance: 54-60mm
Supply voltage: 15-60V
Output voltage: 12V
Maximum current: 6A
Maximum power: 72W
Broken medicine line number: there is water – high level, no water – low level
The use of the drug detection function: the drug detection function is currently limited to the use of 25W water pump, the 3pin line of the drug-breaking signal is connected to the detection interface of the flight control level meter, the drug-breaking signal is output in high and low level mode, and water is high. Flat, no water is low, need to discharge the air in the pump before takeoff, so as not to misjudge after takeoff.

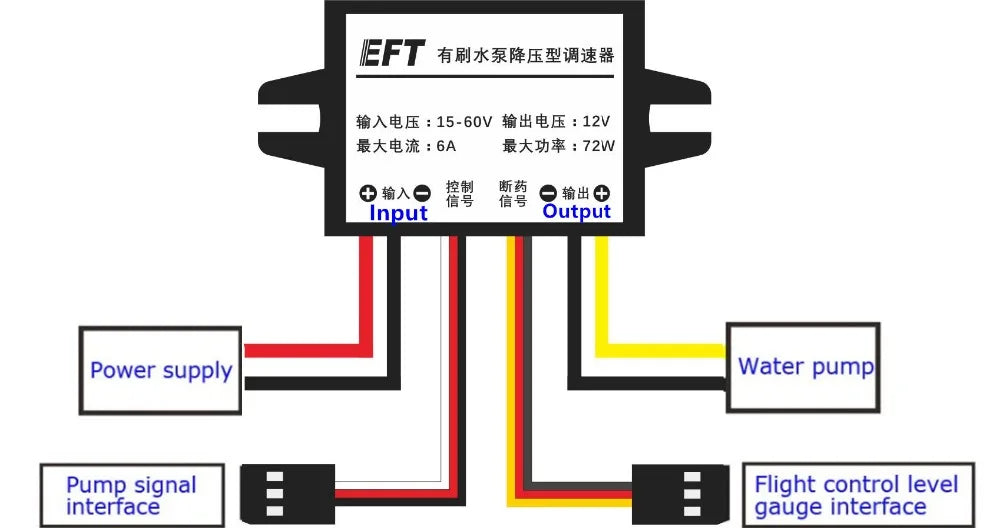

Wiring diagram

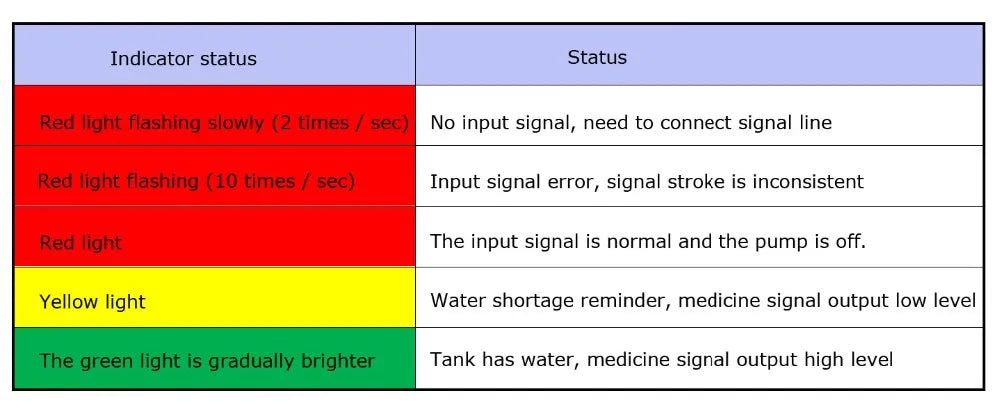

no input signal, need to connect signal line . green light gradually brighter Tank has water

the input signal is normal and the pump is off . the green light is gradually brighter Tank has water, medicine signal output high level .

EEFT #mxEME#ia## #AEE : 15-601PCS 8L DC12V 100 W Brush Water Pump Micro Electric Diaphragm

a flat, no water is low, need to discharge the air in the pump before take1PCS 8L DC12V 100 W Brush Water Pump SPECIFICATIONS
