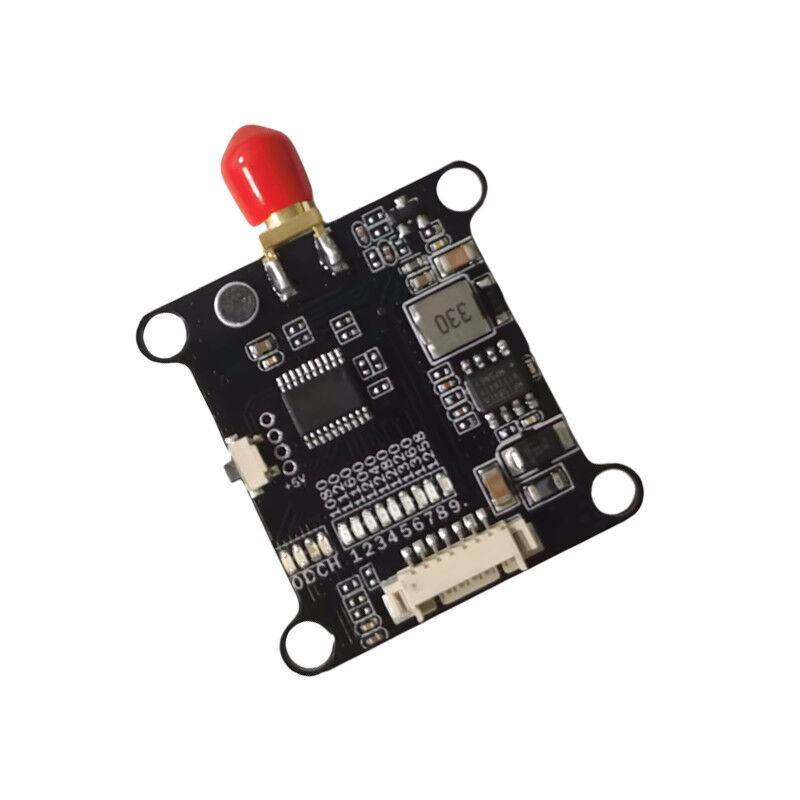

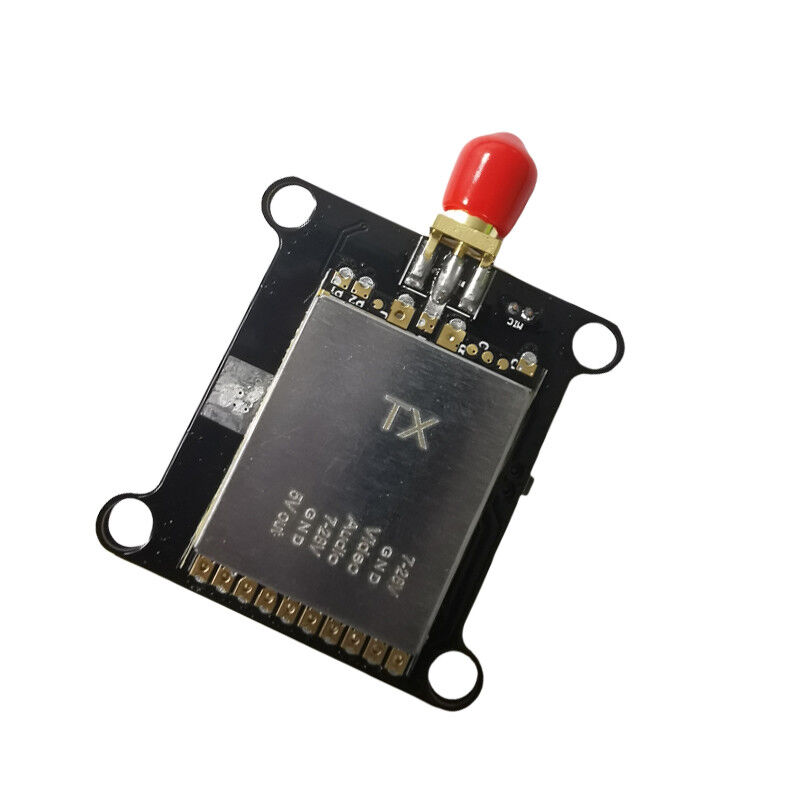

10~20km 1.2G FPV Wireless Video Transmitter Module 1.2Ghz 1W VTX Long Range Digital Transmission — by Kimpok. Industrial-grade FPV video transmission equipment.
| Certification | CE Cerfication |
| Model Number | KP-12VTX1000M |
| Document | 1.2G 2W VTX user manual.pdf |
| Item | SPEC. |
| Frequency band | 1120-1360Mhz |
| Channel | 8 channels |
| Channel Frequency | 1120/1160/1200/1240/1280/1320/1360/1258(MHz) |
| RF power | 0. 1mW / 25mW / 200mW / 1000mW |
| Audio Sub-carrier | 6.5MHz/6.0MHz |
| Modulation type | FM |
| Frequency control | PLL |
| Audio sub-carrier control | PLL |
| Frequency Stability | ±100KHz (Typ.) |
| Frequency precision | ±200KHz (Typ.) |
| A/V (Ratio) | -26±2dB |
| S/N(Fo±3MHz) | >70d Bc |
| Channel Carrier error | 1dB |
| Antenna Port | 50 Ohms |
| Input format | NTSC or PAL |
| Video input level | 1V±0.2Vp-p type |
| Audio input level | 1V±0.2Vp-p type |
| Operating Temperature | -10℃~+60℃ |
| Input power supply | DC 7-36V |
| Output voltage | DC 7-36V ; DC5V |
| Profile dimension | 45.5mm(L)*35.8mm(W)*8.4mm(H) |
| Installation hole position | 30.5mm x 30.5mm |
| Net weight | 10g |
