SPECIFICATIONS
Brand Name: ACASOM
Item Type: Antenna
Origin: Mainland China
ACASOM 1.2GHz Unidirectional Amplifier FOR WiFi/ DRONE
Only the Tansmitting Channel (TX), NO RX
Frequency：1080Hz-1360Hz
RFOUT POWER=47dBm（50W）
ACASOM accept customizing the power you need！
|
Number |
Items |
Specifications |
|
1 |
Frequency Range |
1080-1360MHz |
|
2 |
Operating Voltage |
20-24V（customizable28-32V） |
|
3 |
Gain(S21) |
37dB(customizable 25-37dB) |
|
4 |
Input Return Loss(S11) |
-15dB |
|
5 |
Flatness |
±0.5dB |
|
6 |
Output Power |
47dBm |
|
7 |
Current |
4.3A @24V, 47dBm |
|
8 |
Efficiency |
45%@46dBm |
|
9 |

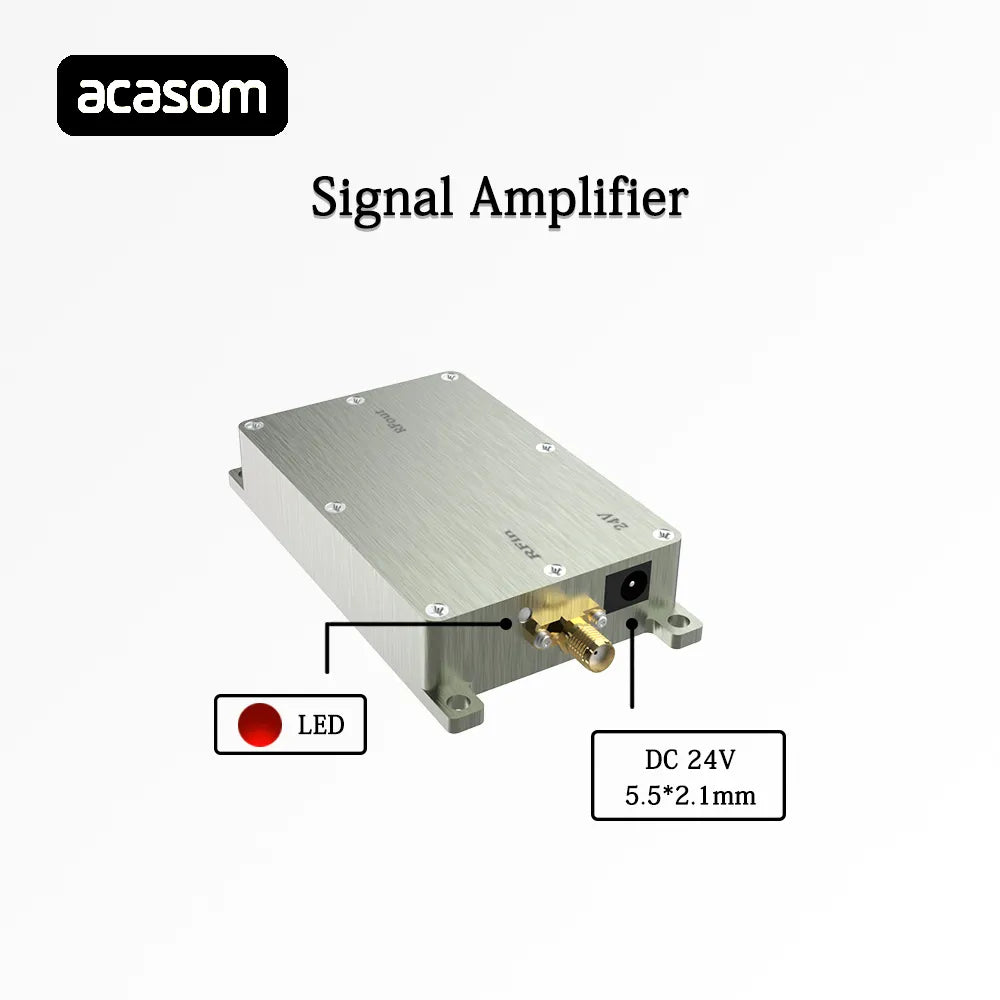

LED State |
Red |
|
10 |
Operating Temperature |
-30℃～85℃ |
|
11 |
Storage Temperature |
-40℃～150℃ |
|
12 |
Operating Humidity |
＜95%RH |
|
13 |

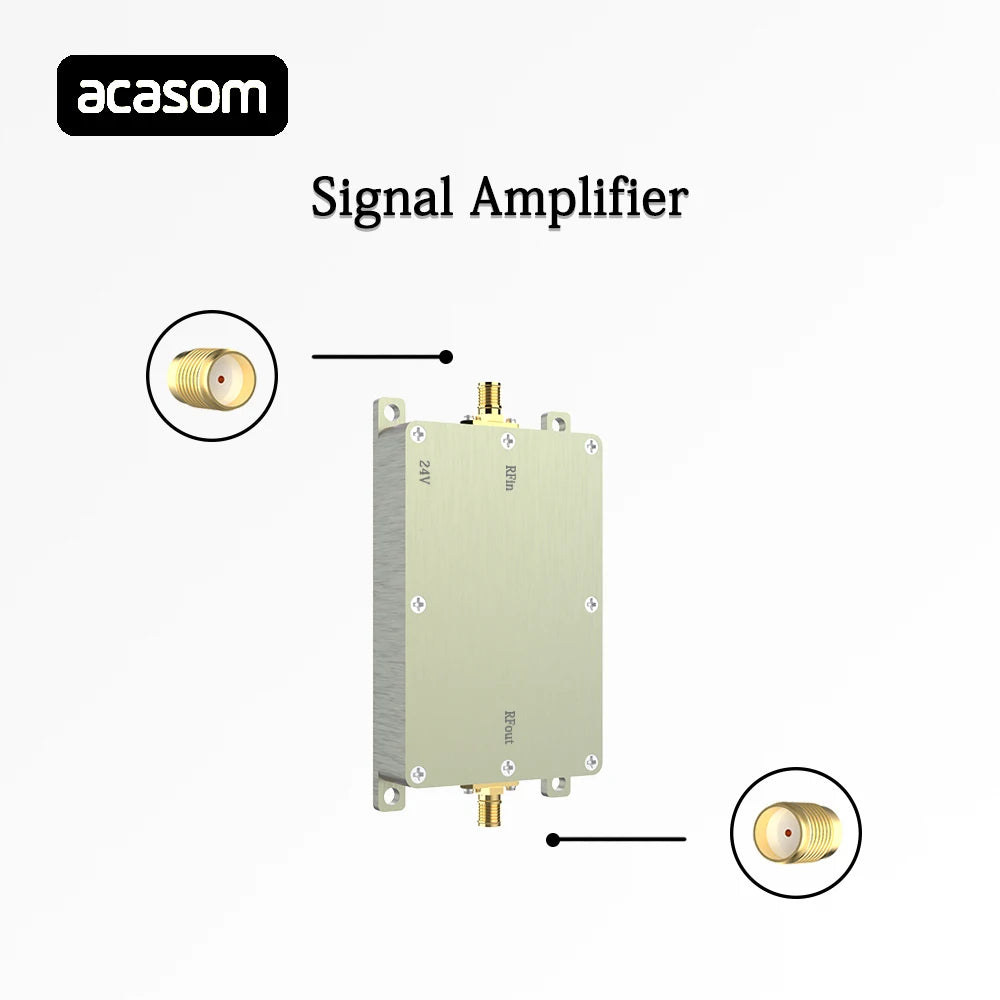

RF Connector |
Input：SMA-Female; Output：SMA-Female |
|
14 |
Power Socket |
5.5*2.0mm DC( default ) or 15cm red/black wire |
|
15 |
Shell Material |
Aluminum |
|
16 |

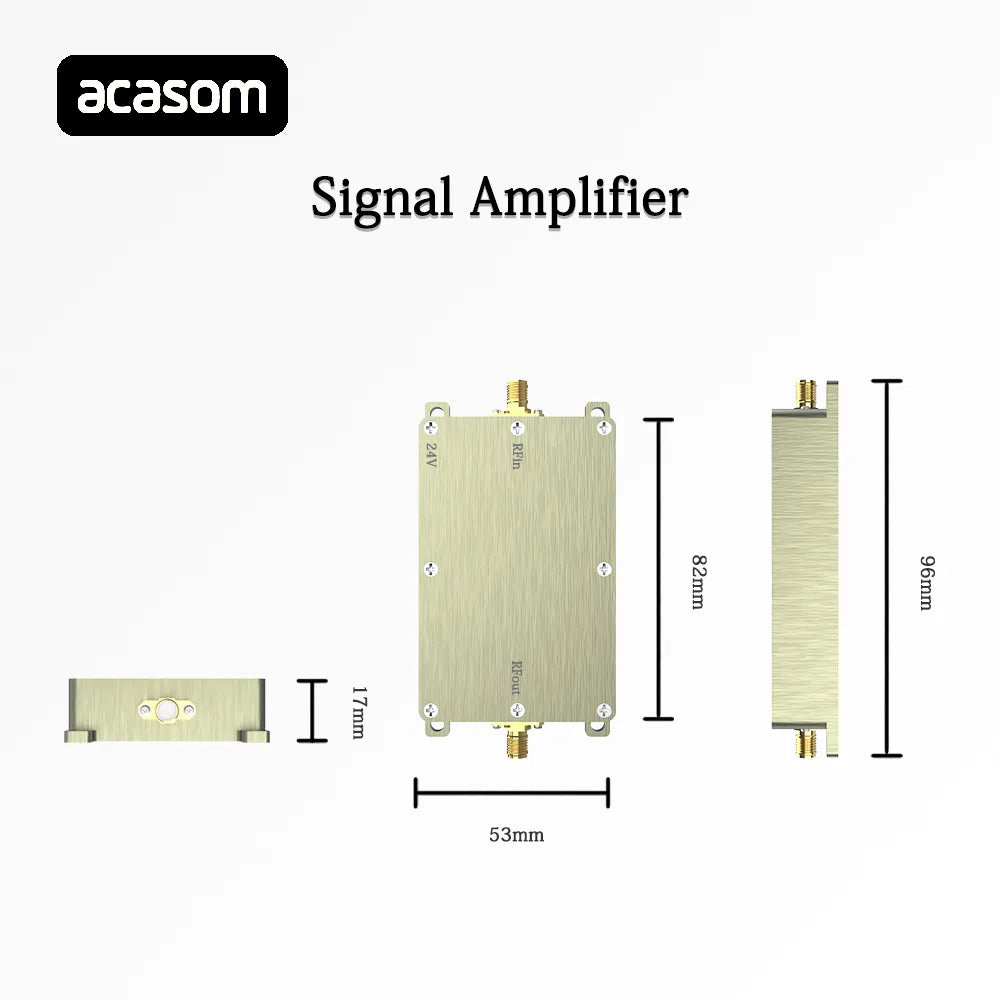

Shell Size |
96*53*17mm |
|
17 |
Net Weight |
0.15Kg |
1 24V /5A power supply.
2 Heat dissipation is recommended, such as adding heat sink or radiator fan.
3 Antenna should be screwed first, then plug the power adapter, finally connect the device.
4 The output could reach 47dBm, when input power is10dBm or 11dBm (default gain is 37dB).
1* Power Amplifier
