1.2G 8CH 700mW AV Analogue Siginal Transmission SPECIFICATIONS
Wheelbase: Bottom Plate
Upgrade Parts/Accessories: Frame
Tool Supplies: Assembly Category
Technical parameters: Value 10
Size: as description
Remote Control Peripherals/Devices: Receivers
RC Parts & Accs: Transmitters
Quantity: 1 pcs
Origin: Mainland China
Model Number: Analogue Siginal Transmission
Material: Composite Material
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Helicopters

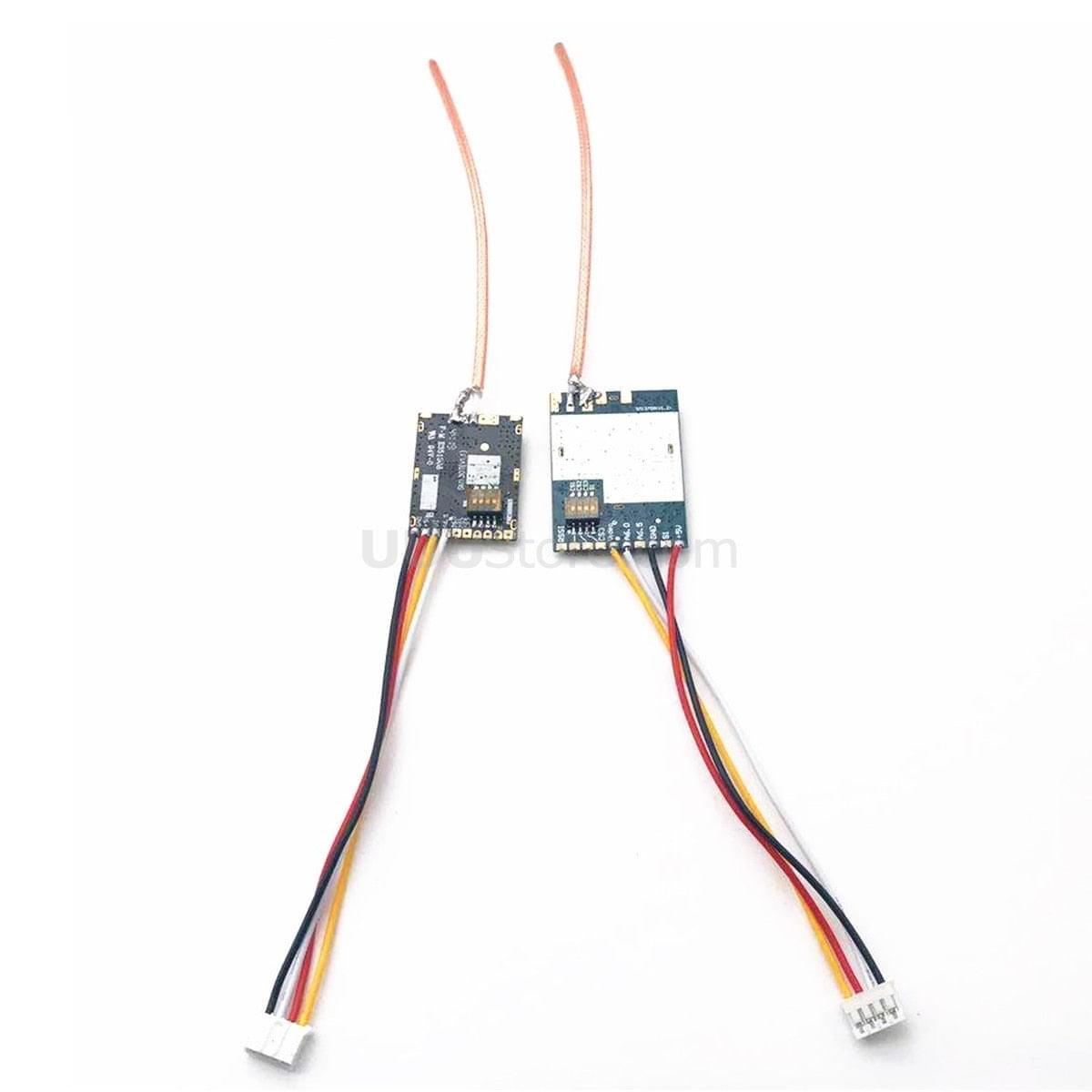

1.2G 8CH 700mW AV Analogue Siginal Transmission FPV System Transmitter Receiver Combo With Antenna For RC FPV Airplane
Description
Item Name : Analogue Siginal Transmission

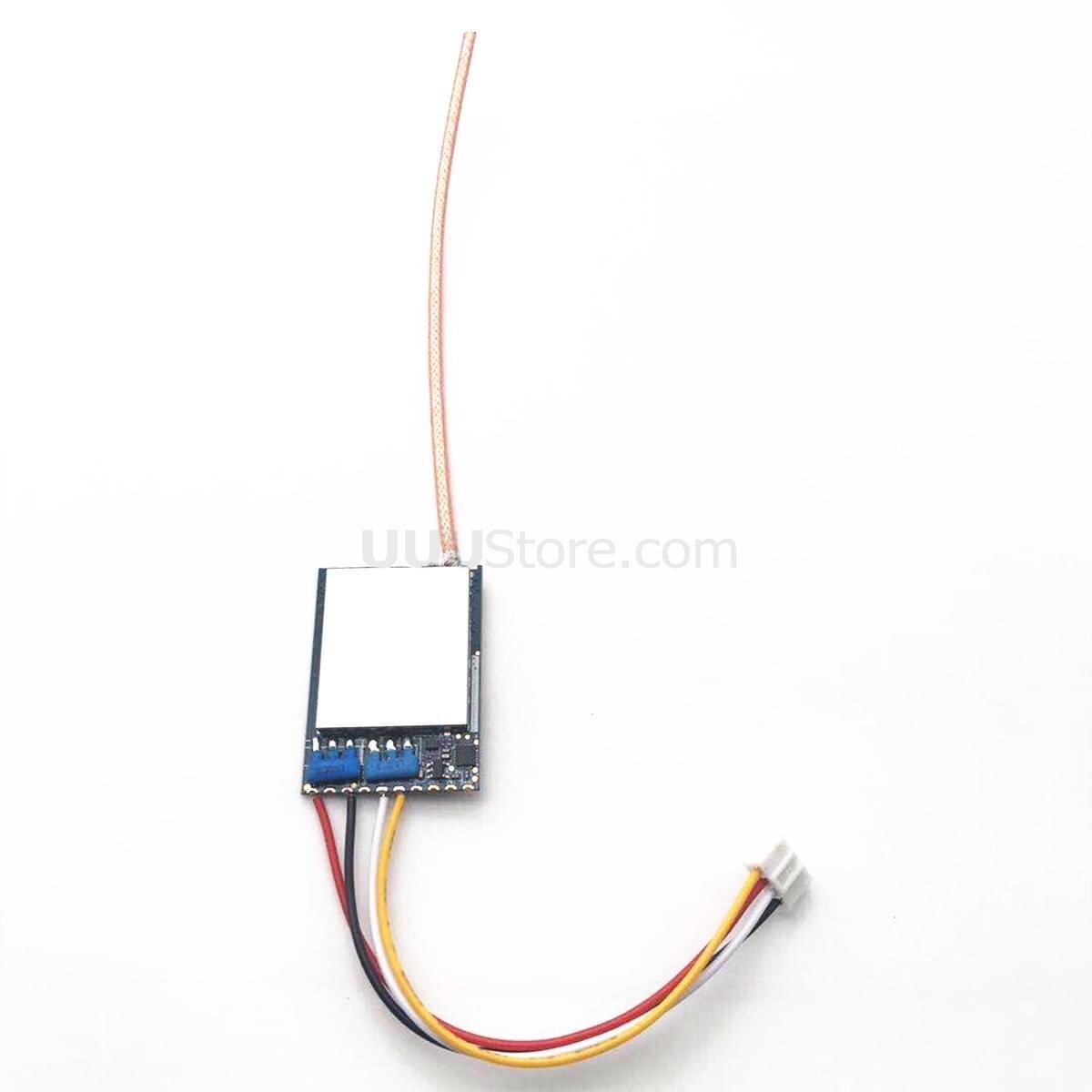

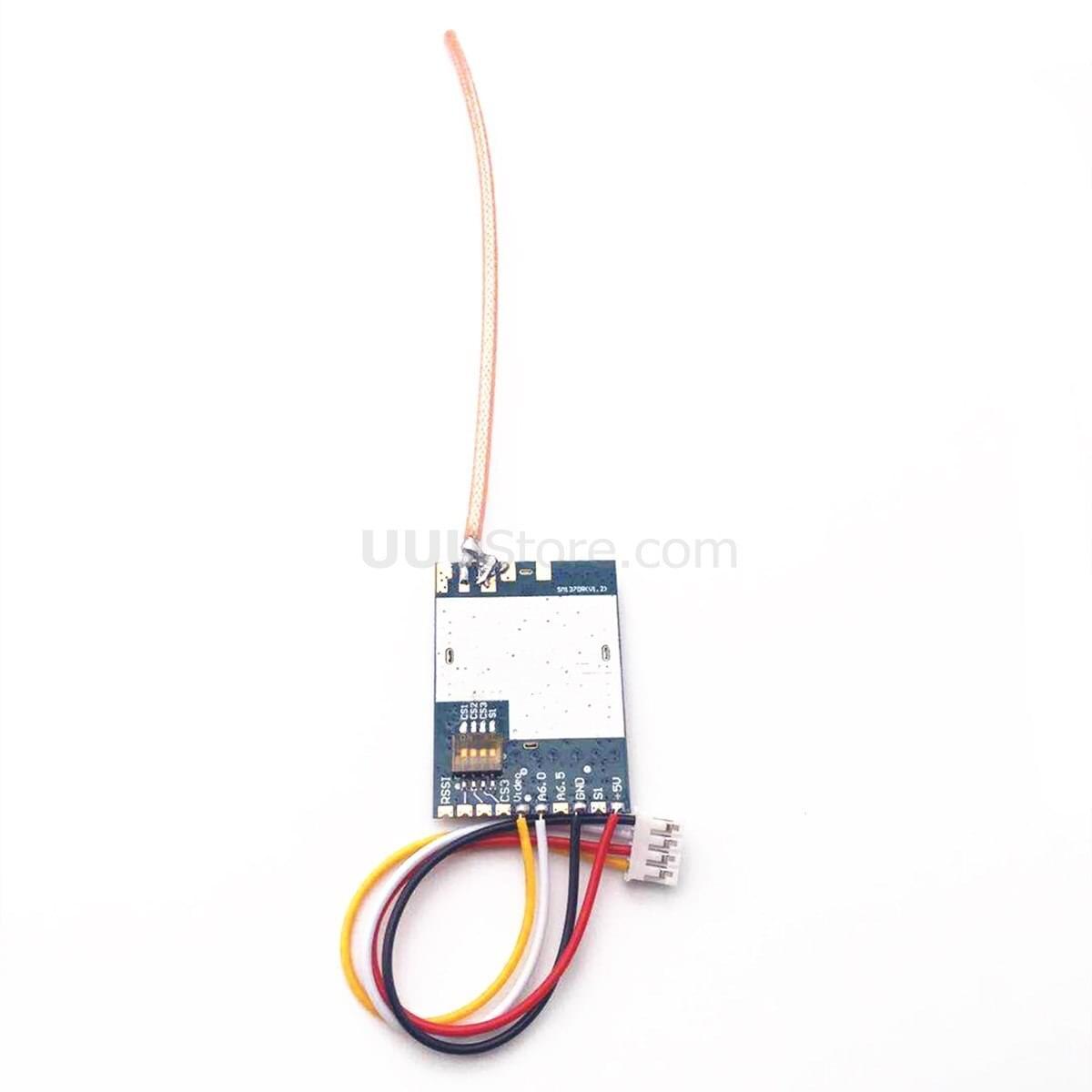

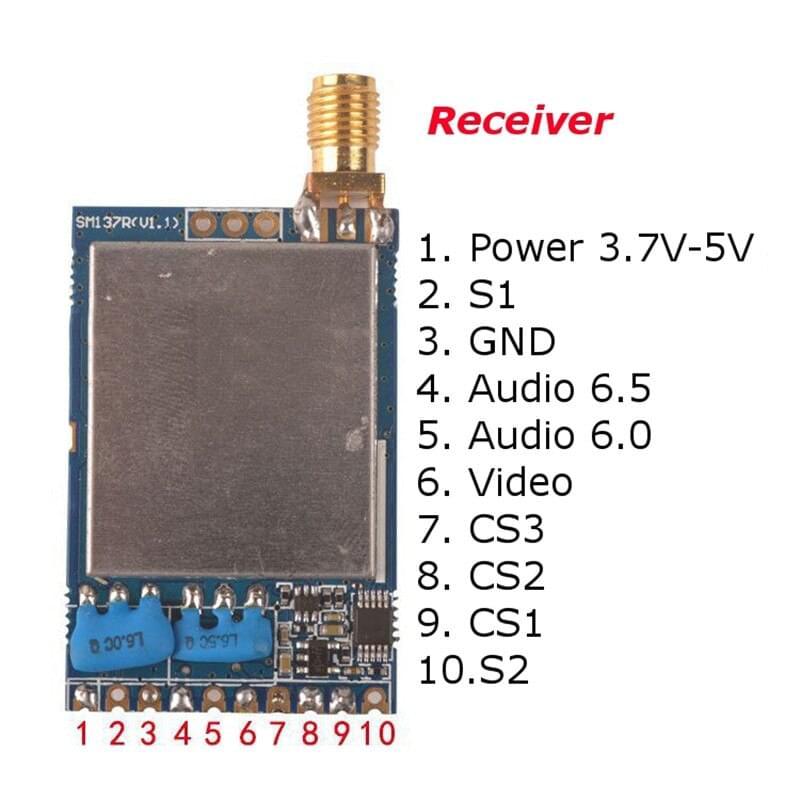

Receiver
Power Supply : 3.3-5V
Temp. : -10~+65°
Frequency : 1000~1380Mhz
Channel : 8CH
Transmission : Video Audio Synchronous Transmission
Connector : SMA Male
Size : 52*26mm
Weight : 20g

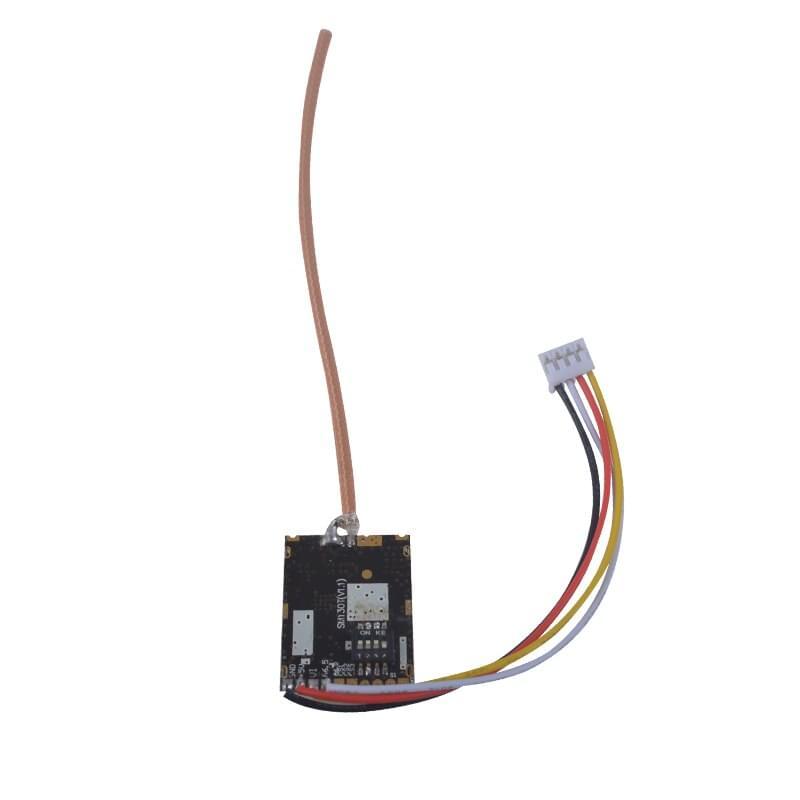

Transmitter
Power : 700mW
Power Supply : 3.3-5v
Working Temp : Temp. : -10~+65°
Frequency : 1000~1380Mhz
Channel : 8CH
Transmission : Video Audio Synchronous Transmission
Connector : SMA Male
Size : 29*21mm
Weight : 10g

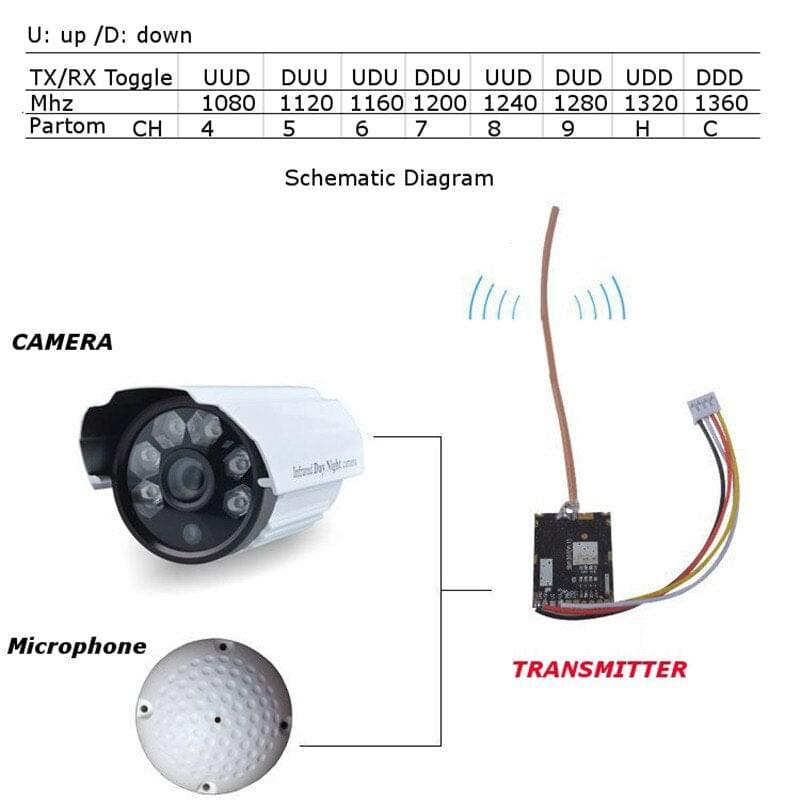

Schematic diagram for 1080-1360 MHz AV analogue signal transmission system, including camera, microphone, and transmitter unit.
