1.2G 1.5W 8CH VTX / 12CH VRX – 1.2GHZ 1500mW 8Channel Wireless FPV Tranmsitter and 12 Channel Receiver Professional Kit for CCCTV DJI Phantom

$53.57 – $79.58

SKU: N/A Categories: , , ,

Description

1.2G 1.5W 8CH VTX / 12CH VRX SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Adapter

Tool Supplies: Cutting

Technical parameters: Value 2

Remote Control Peripherals/Devices: Receivers

Recommend Age: 12+y

RC Parts & Accs: Motor Components

Origin: Mainland China

Model Number: 1.2G 1500MW

Material: Metal

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

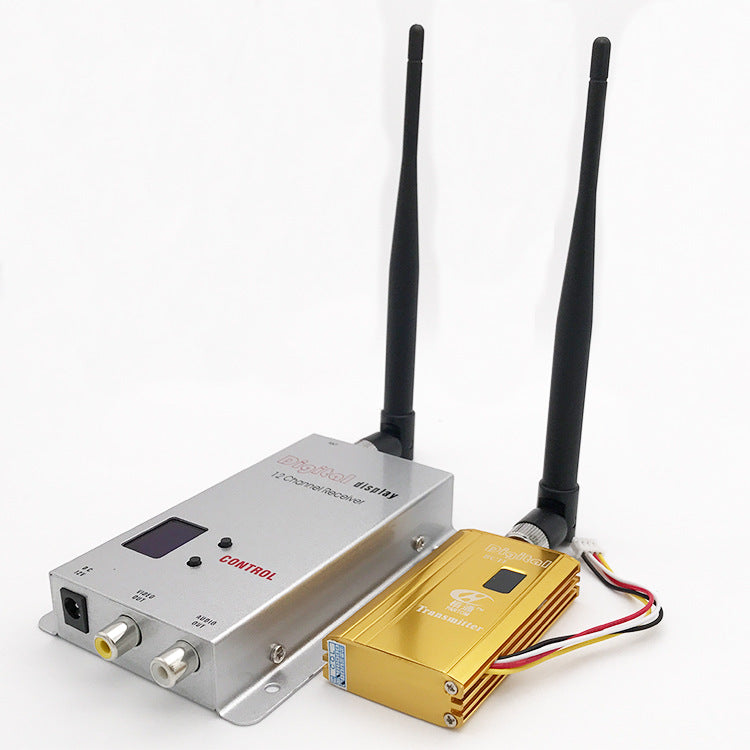

Partom FPV 1.2G 1.2Ghz 1500mW 8 Channels Wireless Transmitter and 12 Channels Receiver Professional Kit for CCCTV DJI Phantom

(U could choose buy 1.2g transmitter/1.2g receiver/1.2g transmitter & receiver,the package is according to your choose )

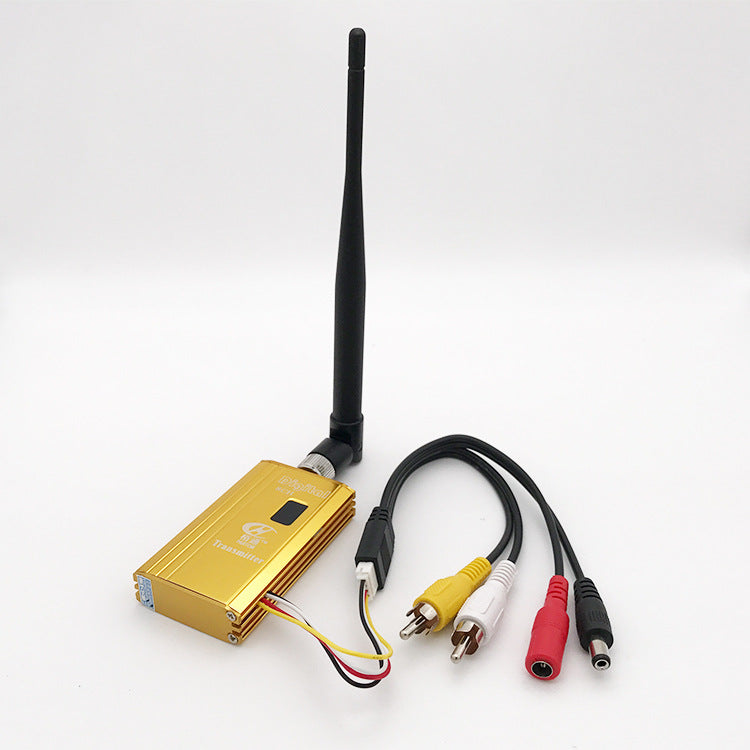

1*1.2GHz 1500mw  Transmitter
1*1.2GHz  Receiver
1*T*power cable and AV cable set
1*R*power cable and AV cable set
2*2dBi 1.2GHz omni-direction antenna

1*User Manual



1.2G 1.5W 8CH VTX / 12CH VRX -

This item includes a wireless display 12 channels receiver and a digital 8 channels transmitter, which can be regarded as a wireless audio & video transmission system. It can wirelessly and simultaneously transmit the analog audio and video signal source of the camera or VCD/DVD players to the Displayer or monitor.  It will bring much convenience and funny to its users.

Note: It cannot solely transmit the audio signal.

Features:
Compatible with digital TV set-top boxes, VCD/DVD players, digital cameras and other suitable devices.
Effectively solve the problems of sharing audio or video with your families: This item will build a wireless family’s audio-visual system of entertainment by working with the HDTV or HD projection machine and let users greatly enjoy the audio-visual system of home theatre.
Transmission distance: 200-250m (Open space,and the transmission distance greatly depends on the surrounding environment).
Easy to use, convenient and quick.
With compact portable design.

Transmitter Parameter:
Weight:80g
Dimension:73*41*14mm
Working Voltage:DC12V
Working Current:400mA
Working Frequency:1.2G
Working Channels:8CH
Frequency:1.2Ghz – HC1:1080 HC2:1120 HC3:1160 HC4:1200 HC5:1240 HC6:1280 HC7:1320 HC8:1360(MHz)
Working Power:1500mW
Transmitting Range:1000m~2000m (In Open Fields)
Transmitter accessories:transmitter,antenna,Tx cable,1.25A adapter.
Receiver Parameter:
Weight:115g
Dimension:115*80*21mm
Working Voltage:DC12V
Working Current:260mA
Working Frequency:0.9G-1.3G
Working Channels:12CH
Receiving frequency:1.2GHz – HC1:910 HC2:980 HC3:1010 HC4:1040 HC5:1080 HC6:1120 HC7:1160 HC8:1200 HC9:1240 HC10:1280 HC11:1320 HC12:1360(MHz)
Receiver Accessories:Receiver,antenna,AV cable.(We don’t offer adatper for receiver,please use DC 12V 1A adapter.)
The whole set is about 585g.

1.2G 1.5W 8CH VTX, DC 12V 1A adapter is not available for receiver .1.2G 1.5W 8CH VTX / 12CH VRX, Note: It cannot solely transmit the audio signal1.2G 1.5W 8CH VTX / 12CH VRX, Note: It cannot solely transmit the audio signal
