Overview
The 1.2G 1.3G 800mW 8CH VTX & VRX system is designed for long-range FPV (First Person View) video transmission, providing high stability, excellent signal-to-noise ratio, and wide compatibility. Operating within the 1060~1380MHz frequency band, this system ensures smooth and clear video transmission for drones, RC vehicles, and other FPV applications.
Key Features
- 8-Channel Support: Operates on eight selectable channels, including frequencies like 1120, 1160, 1200, 1240, 1280, 1320, 1360, and 1258MHz.
- High Power Output: 800mW output power ensures a long-range transmission capability with minimal interference.
- Advanced Stability: Frequency stability and precision at ±100KHz ensure consistent performance.
- Wide Input Power Range: Supports DC 7-28V input, with integrated DC 5V output for compatibility with various devices.
- Compact Design: Slim dimensions of 35.8mm × 30.5mm × 8.4mm and a lightweight build of just 10g for easy integration.
Specifications
| Item | Specifications |
|---|---|
| Frequency Band | 1060~1380MHz |
| Channel Count | 8 Channels |
| Channel Frequencies | 1120, 1160, 1200, 1240, 1280, 1320, 1360, 1258 MHz |
| Audio Sub-carrier | 6.5MHz/6.0MHz |
| Modulation Type | FM |
| Frequency Control | PLL |
| Audio Sub-carrier Control | PLL |
| Frequency Stability | ±100KHz (Typical) |
| Frequency Precision | ±100KHz |
| A/V Ratio | -26±2dB |
| Signal S/N (Fo±3MHz) | >70dBc |
| Channel Carrier Error | ±1dB |
| Antenna Port Impedance | 50 Ohms |
| Input Format | NTSC or PAL |
| Video Input Level | 1Vp-p (typical) |
| Audio Input Level | 0.2Vp-p (typical) |
| Operating Temperature | -10°C to +60°C |
| Input Power Supply | DC 7-28V |
| Output Voltage | DC 5V |
| Profile Dimensions | 35.8mm × 30.5mm × 8.4mm |
| Net Weight | 10g |
Applications
The 1.2G 1.3G VTX & VRX System is ideal for:
- FPV Drones: Seamless long-range video transmission for high-altitude and long-distance operations.
- RC Vehicles: Crystal-clear video feeds for enhanced control and experience.
- Surveillance Systems: Reliable and interference-resistant performance for secure monitoring.
- Custom FPV Projects: Compact and lightweight design ensures easy integration into various platforms.
Package Includes

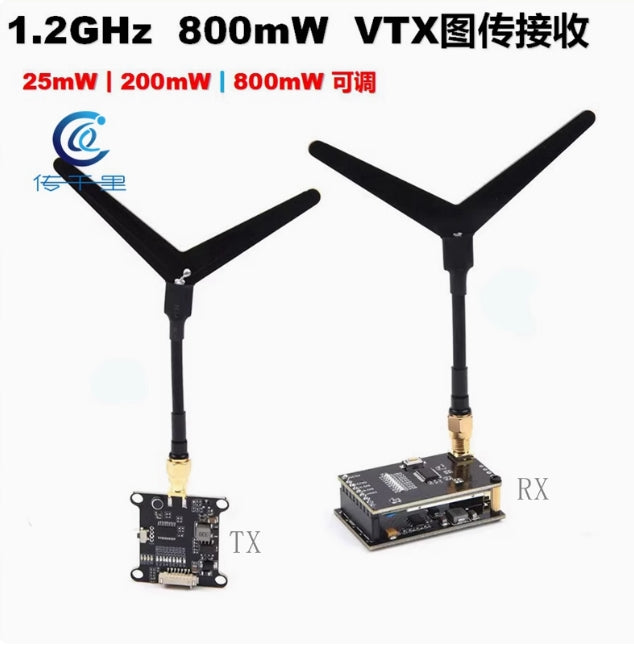

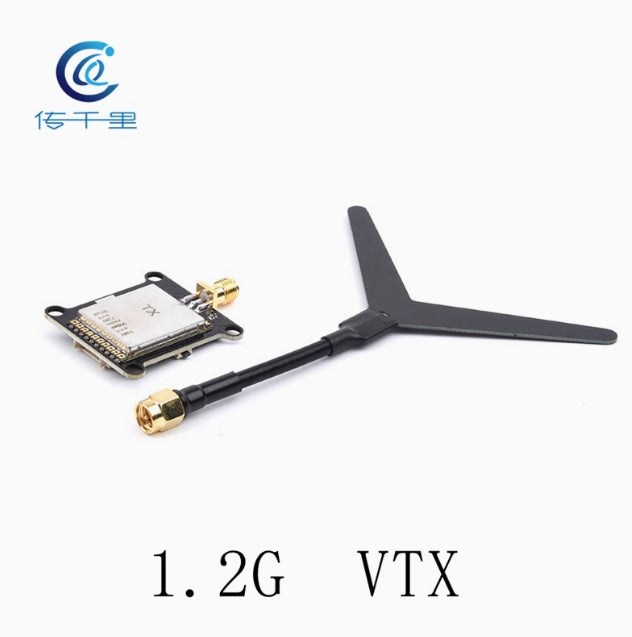

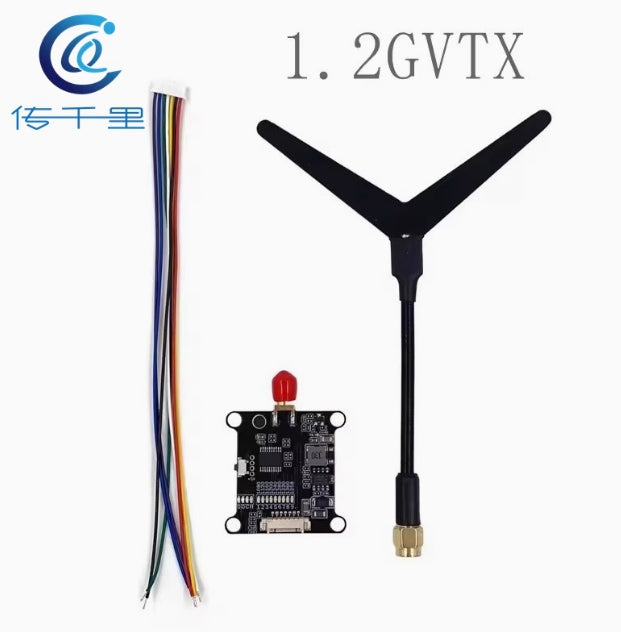

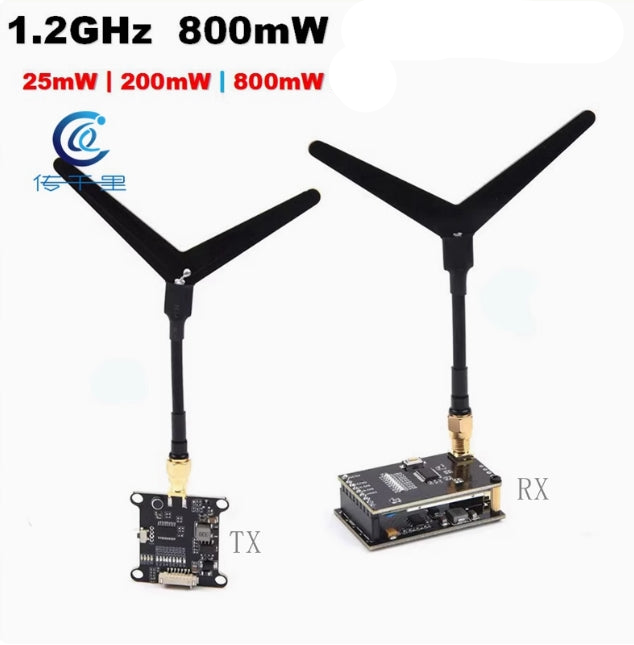

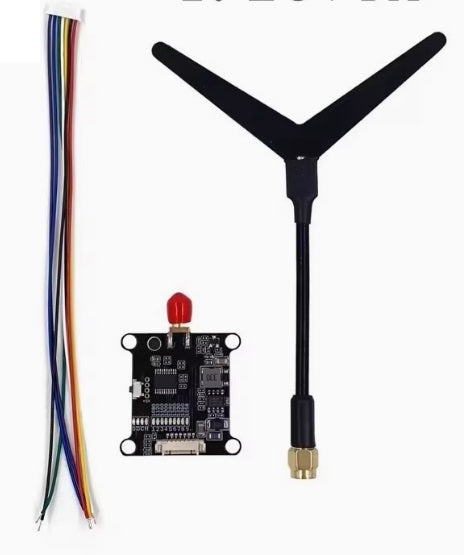

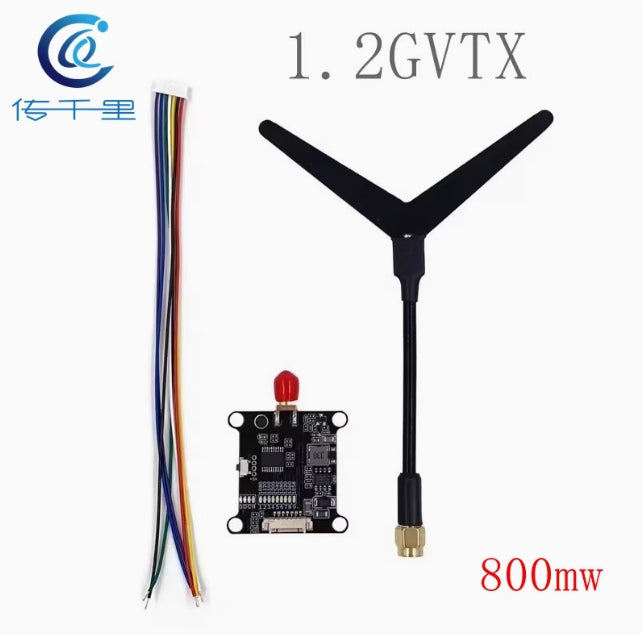

- 1x 800mW 1.2G/1.3G VTX With Antenna

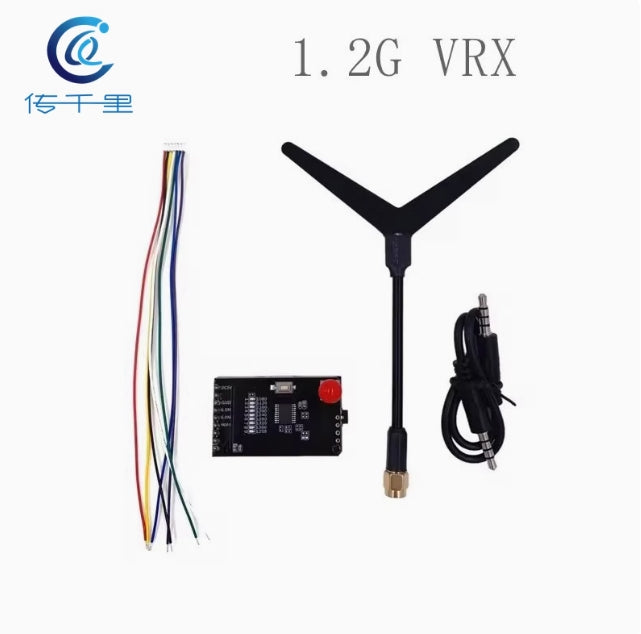

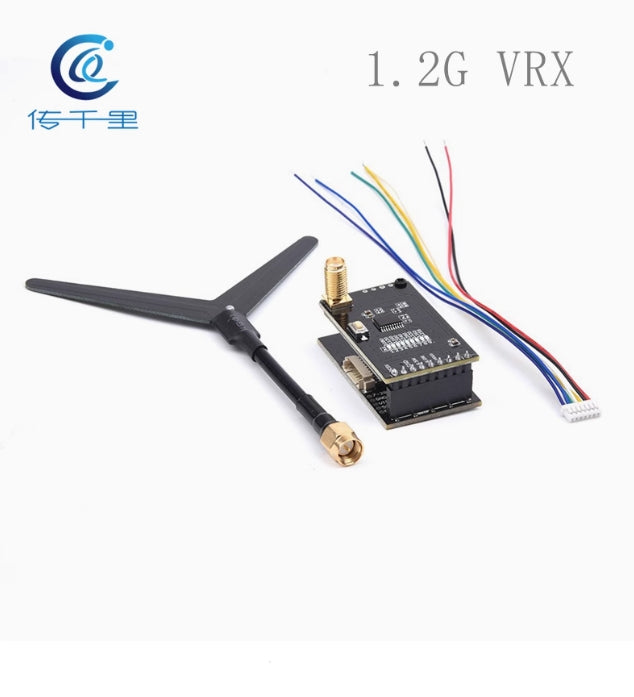

- 1x Receiver (VRX) With Antenna
- Necessary installation screws and connectors for quick setup.
Upgrade your FPV system with the reliable and high-performance 1.2G 1.3G 800mW 8CH VTX & VRX, ensuring smooth, interference-free video transmission for long-range applications.
