SUNNYSKY X3525 SPECIFICATIONS
Use: Vehicles & Remote Control Toys
Remote Control Peripherals/Devices: Motor
Recommend Age: 12+y
RC Parts & Accs: Motors
Origin: Mainland China
Model Number: X3525
Material: Composite Material
Four-wheel Drive Attributes: Motors
For Vehicle Type: Airplanes
Brand Name: uuustore

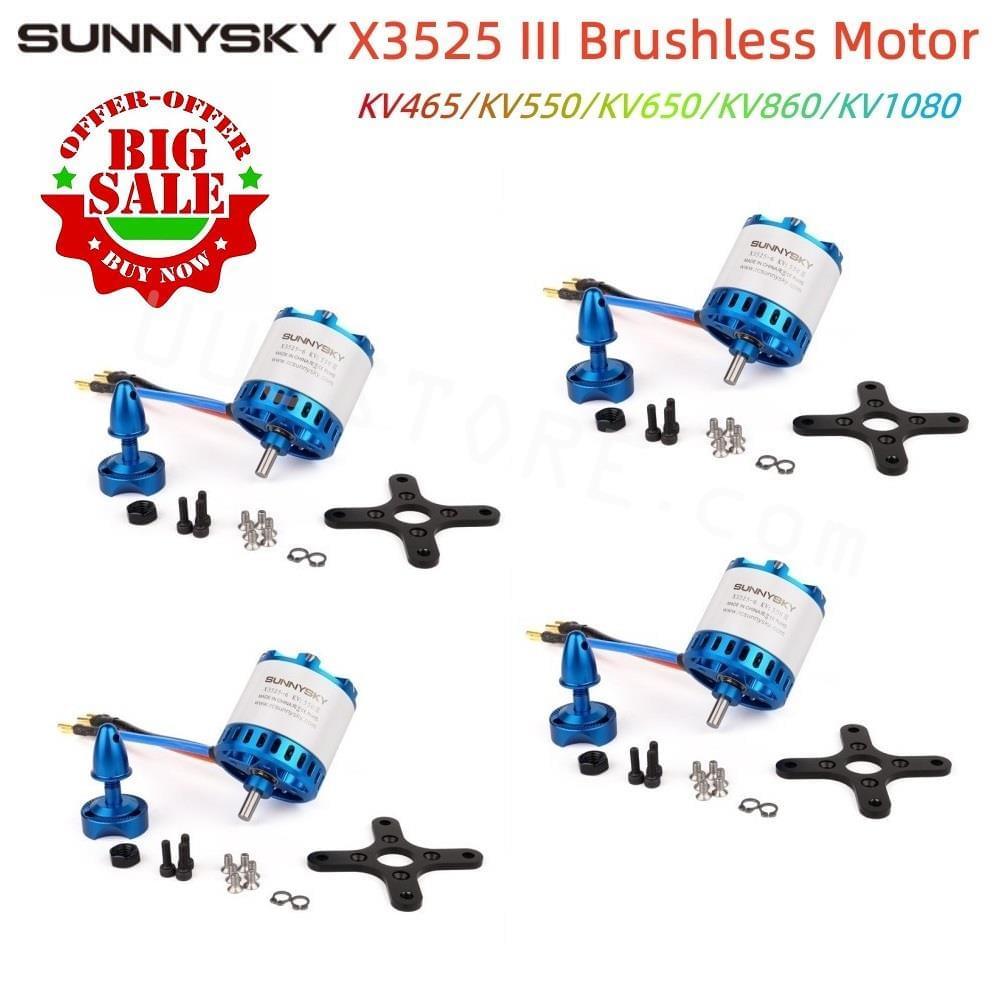

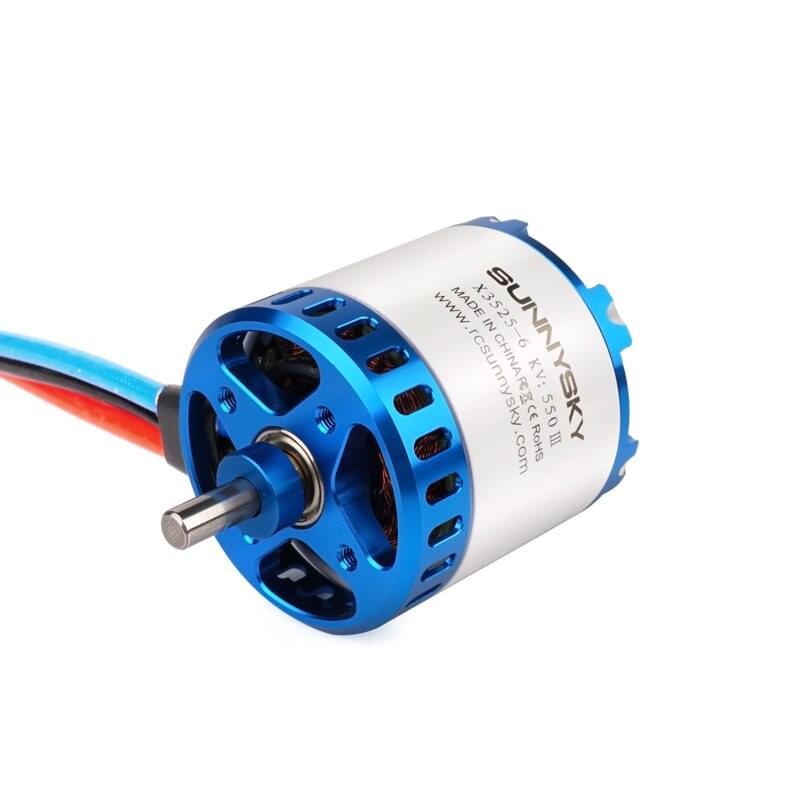

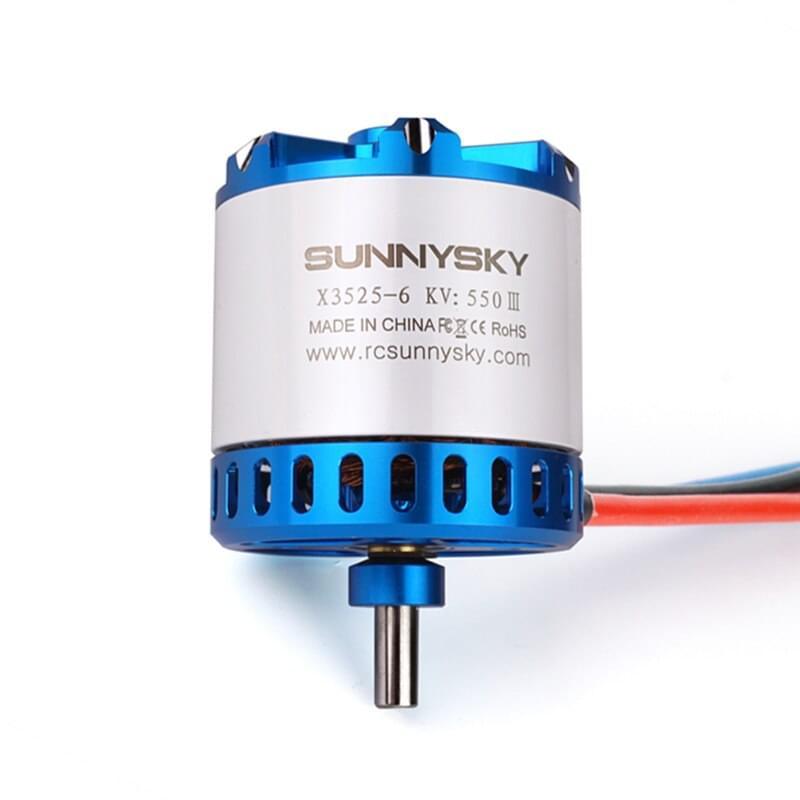

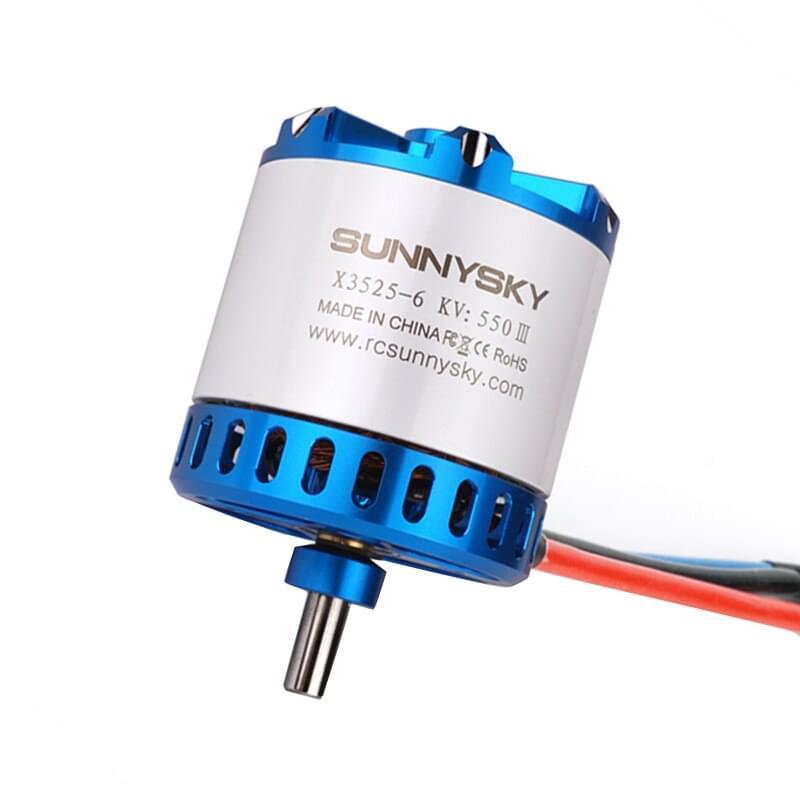

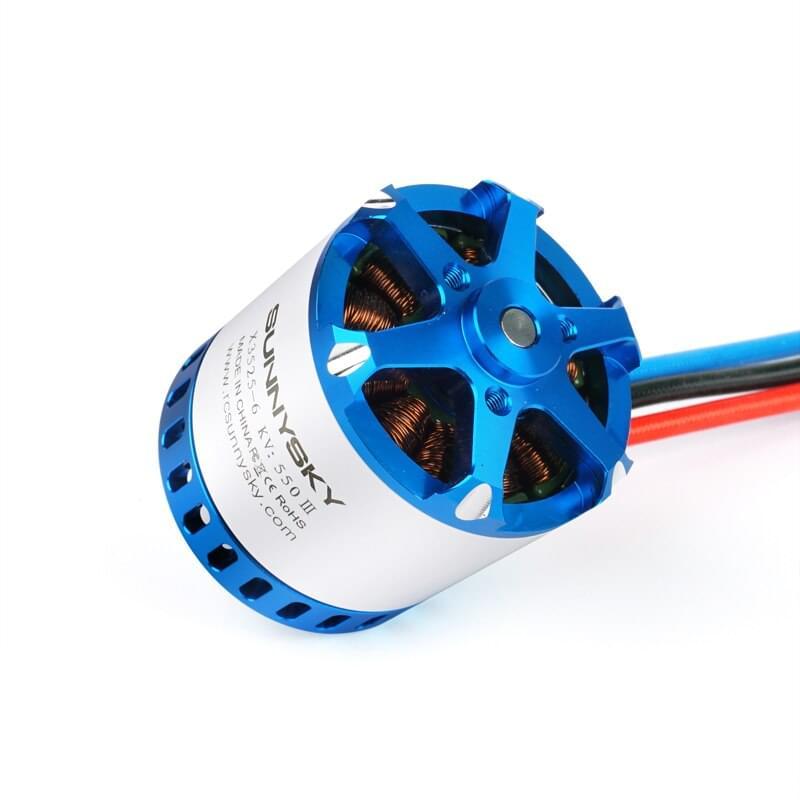

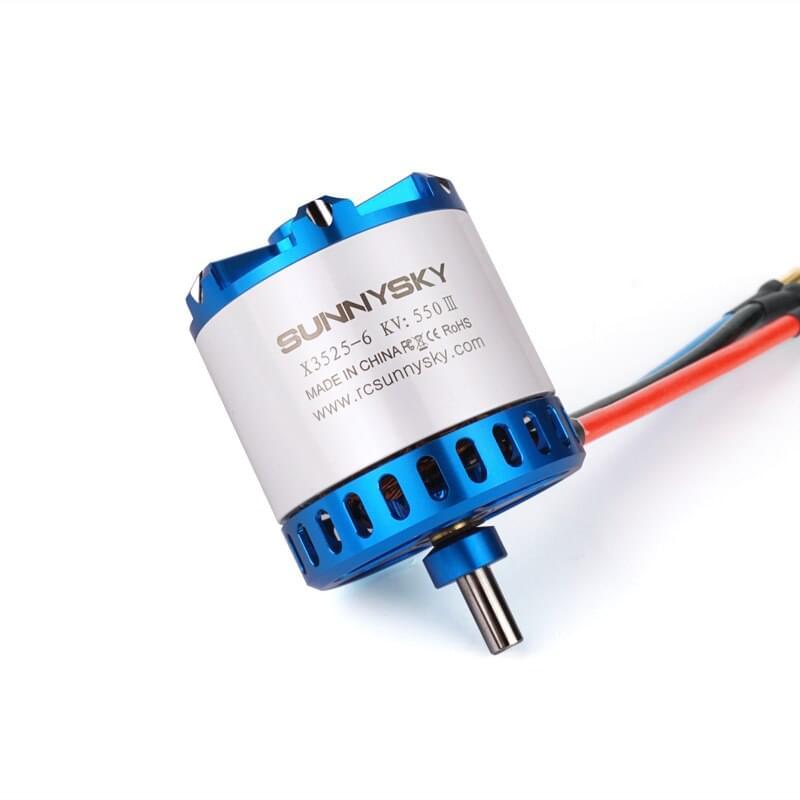

1/2/4PCS Original SUNNYSKY X3525 III KV465 KV550 KV650 KV860 KV1080 Brushless Motor for RC FPV Drone UAV Model Airplane
X3525 Ⅲ:
Features:
1.N48UH Magnets, 0.2mm Air gap, Coil with high copper space factor, Ultimate power.
2.Original NSK bearing,Low noise and friction factor, more stable and smooth.
3.The new type of propeller base is designed with more stable performance andmore convenient disassembly.
4.Around the stator end cover is hollowed design, and the heat dissipation area is increased, so the heat dissipation is better.
5.Hidden motor shaft design is adopted to protect motor shaft more effectively.
Description:
1.This is a brushless motor for Fixed – Wing 3D RC drone parts accessories.
2.Anti-slip: Overlapping curve to increase friction force and prevent propellers from slipping.
3.Excellent workmanship quality guarantees power saving and high efficiency,bring you stimulated flight.

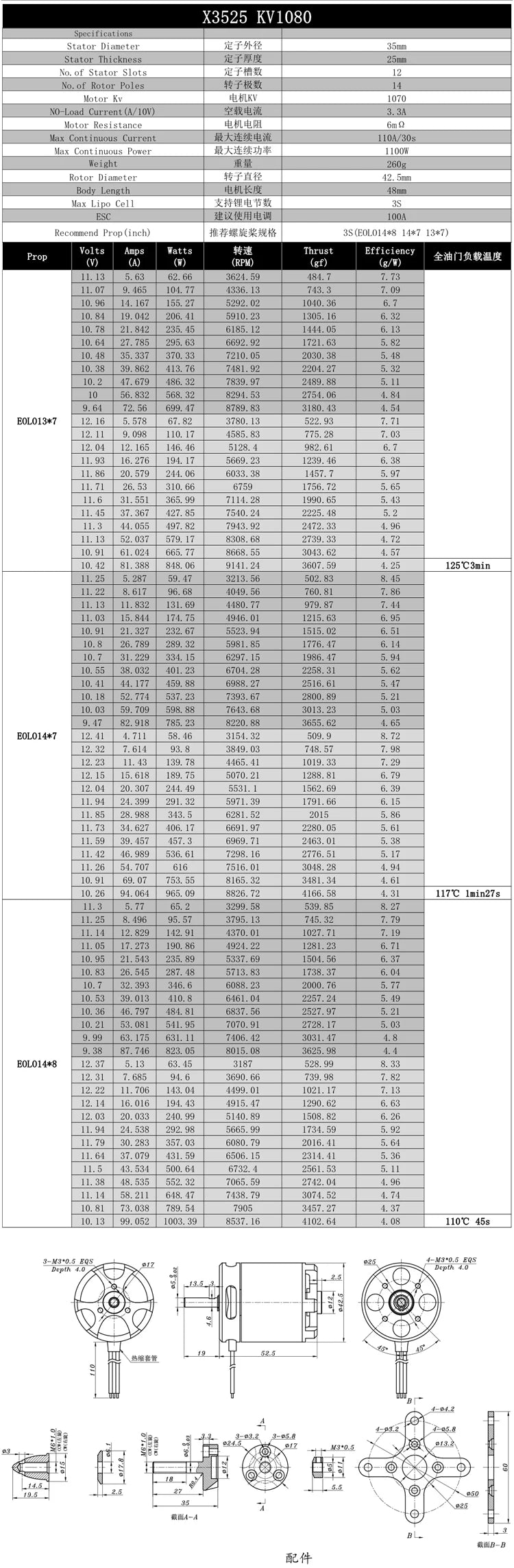

Specifications:
Brand name: SUNNYSKY
Model:X3525 Ⅲ
Item name: Brushless Motor
KV:465KV
Color:Blue
465KV
Stator Diameter:35mm
Stator thickness:25mm
NO. of Statpr Arms:12
NO. of Roter Poles:14
NO-Load Current:1.07A/10V
Moter Resistance:26mΩ
Max Continuous Current:84A/30s
Max Continuous Power:2100W
Rotor diameter:42.5mm
Length of motor (excluding shaft length):48mm
Shaft diameter:6mm
Motor Size:42.5mm/1.66in x 67mm/2.61in
Max Lipo Cell:6S
Recommended ESC:60-80A
Recommended Prop(inch):EOLO14*7 14*8 15*8 15*10
Weight:259g/pcs
