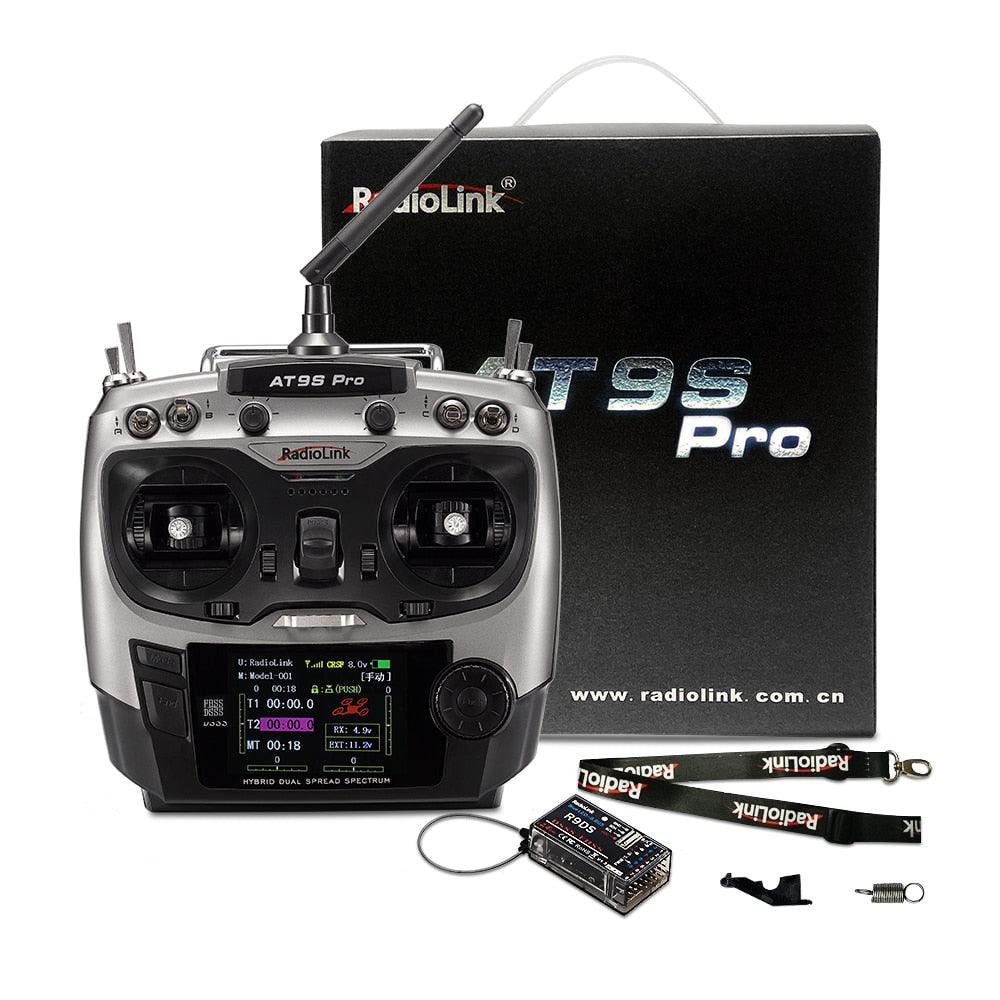

Why the Radiolink AT9 System Remains a Reliable Workhorse for FPV Pilots

As a senior FPV engineer, I’ve seen many transmitters come and go, but the Radiolink 2.4 GHz 9CH remote control system AT9 and its successors like the AT9S Pro continue to offer a unique balance of cost and performance. Whether you are assembling a fresh FPV Frame Kit or looking for a dependable link for long-range cruising, understanding the nuances of the DSSS and FHSS hybrid spread spectrum is key to avoiding the interference issues often seen in cheaper 2.4GHz systems.

Radiolink Series Comparison: AT9S Pro vs. AT10II

When choosing between the mid-range AT9 series and the flagship AT10, the decision usually comes down to channel count and telemetry needs. Below is a quick breakdown:

Feature
Radiolink AT9S Pro
Radiolink AT10II

Channels
10-12 Channels
12 Channels

Control Distance
Up to 4000m (Air)
Up to 4000m (Air)

Signal Protocol
DSSS & FHSS
DSSS & FHSS

Compatibility
R9DS, R12DS, R6DS, CRSF (ELRS)
R12DS, R9DS, R6DS

Overcoming Common “Reddit” Setup Hurdles

Many newcomers on Reddit report issues with Radiolink systems, such as “backwards” controls or signal drops on lower-end models like the RC8X. If you find your throttle or steering is reversed, don’t panic—this is a simple configuration fix in the “REVERSE” menu of the AT9 firmware.

To ensure maximum reliability, always keep your Drone Tools handy for periodic gimbal calibration. Furthermore, high-performance builds require stable power; pairing your receiver with a consistent 100C Lipo Battery ensures that your onboard electronics don’t suffer from brownouts during aggressive maneuvers, which is a common cause of perceived “failsafes” in the Radiolink ecosystem.

Frequently Asked Questions (FAQ)

What is the range of Radiolink AT10 and AT9S?
Both systems offer a control distance of up to 4000 meters in the air, operating on the 2.4GHz ISM band (2400MHz to 2483.5MHz) with a channel bandwidth of 5.0 MHz.

What receivers work with the Radiolink AT9 and AT10?
They are compatible with a wide range of receivers including the R12DS, R9DS, R6DS, and R6FG. Newer versions like the AT9S Pro also support Crossfire (CRSF) and ELRS receivers via the back module bay.

Is Radiolink compatible with Spektrum?
No, Radiolink uses its own proprietary DSSS/FHSS protocol and is not compatible with Spektrum DSM2/DSMX. If you need multi-protocol support, you would need a module-based transmitter like the TX16s, or you must swap the receiver in your aircraft to a Radiolink-compatible model.

How does it compare to 10-meter or FM radios?
Unlike 10-meter ham radios that can reach global distances via atmospheric skip or 10,000-watt FM transmitters limited by optical visibility (roughly 20 miles), the Radiolink system is designed for line-of-sight RC operation, prioritizing low latency over extreme terrestrial distance.
