2487 × 2460 × 685 mm (blades unfolded; RevoSpray system included)
1451 × 1422 × 675 mm (blades folded; RevoSpray system included)
1451 × 1422 × 645 mm (blades excluded; RevoSpray system included)
Weight
Carrier Weight: 39.6 kg (payload system excluded; batteries included)
Empty Weight: 48 kg (RevoSpray system & batteries included) 51.5 kg (RevoCast system & batteries included)
Rated Takeoff Weight: 88 kg (rated spray takeoff weight)
Diagonal Motor Wheelbase
1780 mm
Arm Material
Glass & carbon fibre composite
Protection Rating
IPX7
Flight Parameters
High Precision Positioning Duration with RTK Data Latency
≤ 600 s
Maximum Flight Speed (Good GNSS Signal)
13.8 m/s
Maximum Flight Altitude
2000 m
Hovering Precision (Good GNSS Signal)
RTK Enabled: ± 10 cm (Horizontal), ± 10 cm (Vertical)
RTK Disabled: ± 0.6 m (Horizontal), ± 0.3 m (Vertical)
(Radar function enabled: ± 0.1 m)
Hovering Duration
16 min (with no-load @20000 mAh x 2 & takeoff weight: 48 kg)
6 min (with full-load @20000 mAh x 2 & takeoff weight: 88 kg)
* Tested in an environment near sea level with a wind speed of less than 3 m/s. For reference only.
Propulsion System
Motor
Model
A45
Dimension (Stator)
136 × 27 mm
KV Value
78 RPM/V
Maximum Tension (Single Motor)
45 kg
Rated Power (Single Motor)
4000 W
Electronic Speed Controller
Model
VC13200
Max. Operating Current (30 s)
200 A
Rated Operating Voltage
56.4 V
Foldable Propeller
Model
P4718
Diameter x Pitch
47 × 18 inch
XAG RevoSpray 2
Smart Liquid Tank
Rated Volume
40 L
Sensor
Float Liquid Level Sensor
Centrifugal Atomizing Nozzle
Quantity
2
Spray Disc Rotational Speed
1000 ~ 16000 RPM
Atomized Droplet Size
60 ~ 400 μm (Depending on the actual operating environment, spray flow, and other factors)
Spray Width
5 ~ 10 m (Subject to flight height, dosage, environment, etc) *With a flight height of 3 ± 0.5 m, a flight speed of 3 m/s and a flow rate (single pump) of 5 L/min, a spray width of 8 m is recorded for reference only.
High-Frequency Pulse Peristaltic Pump
Quantity
2
Voltage
50 V
Max. Operating Flow Rate
12 L/min
Max. Flow Rate (Single Pump)
6 L/min
XAG RevoCast 2
Granule Container
Capacity
60 L
Rated Payload
40 kg
Smart Screw Feeder
Applicable Granule Size
1 – 6 mm (Dry and solid granule)
Operating Temperature
0 – 40℃
Storage Temperature
0 – 40℃
Centrifugal Spreading Disc
Spread Width
3 – 6 m (Subject to flight altitude, seed weight and shape, dosage, surroundings, etc.)
Spread Amount Precision
± 10% (Subject to the shapes and moisture of granules)
PSL Camera
Dimensions
70 × 40 × 25 mm
Operating Voltage
24 – 60 V
Resolution
1080P/720P
Encoding Format
H.264
Frame Rate
30 fps
Focal Length
3.2 mm
Image Sensor
1/2.9-inch CMOS sensor
Power System
Smart SuperCharge Battery
Model
B13960S
Type
13S Lithium Polymer Battery
Rated Capacity
20000 mAh (962 Wh)
Rated Output
48.1 V/120 A
Maximum Charging Current
100 A (5C)
Recommended Charging Temperature
10 – 45℃
Super Charger
Model
CM12500P
Charging Adaptor Quantity
1
Power Output
2.5 kW
Input Voltage
AC 90-165 V~50/60 Hz 23 A (Max)
AC 180-260 V~50/60 Hz 23 A (Max)
Output Voltage & Current
DC 50-60 V/25 A (Max)/1250 W (AC 90-165 V~50/60 Hz)
DC 50-60 V/50 A (Max)/2500 W (AC 180-260 V~50/60 Hz)
Recommended Operating Temperature
-20 ~ 40℃
Auto Super Charge Station
Model
GC4000+
Dimensions
482 × 417 × 475 mm
Number Of Cylinders
One
Net Weight
31.5 kg
Startup
Electrical starting
Compression Ratio
8.5:1
Tank Capacity
15 L
Air Intake
Natural Respiration
Ignition
Spark Ignition
Fuel Consumption
≤ 0.6 L/KW.h (25℃, 0 altitude, 92# unleaded gasoline under national standards @charging power of 3.4 KW)
No-load Speed
2600 RPM
Noise
≤ 88 db(A)@1M
Rated Charging Power
3.4 KW
Max Output
5.1 KW
Service Life
> 1000 hours
Total Displacement
223CC
Pollutant Emission
GB Stage II
Communication & Control System
Smart ControlStick
Model
ACS2G
Compatible Device
XAG P100 Agricultural UAV
XAG V40 Agricultural UAV
XAG P40 Agricultural UAV
Operating Frequerncy
SRRC: 2.4000 GHz to 2.4835 GHz
Signal Range (No Interference / Obstruction)
800 m
Power Consumption
< 9 W
Recommended Operating Temperature
-20 ~ 55℃
Recommended Charging Temperature
0 ~ 45℃
XAG Agricultural Drone P1OO Expanded size: 2487+2460*685mm Folding size: 1451+*1422*675mm Empty weight: 48kg/load weight: 88kg Hovering with no load: 1Zmin . Maximum flight speed: 13.8m/s .

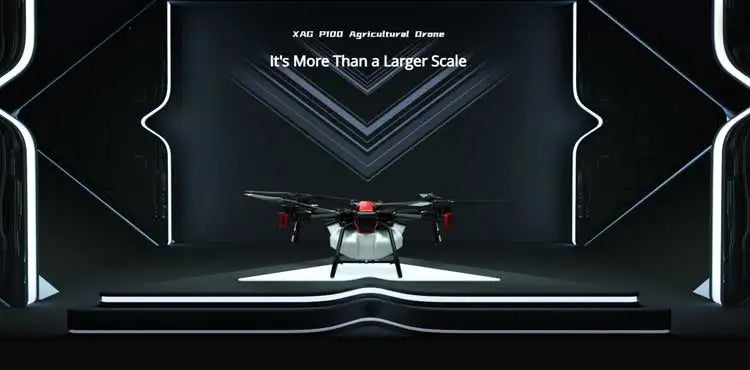

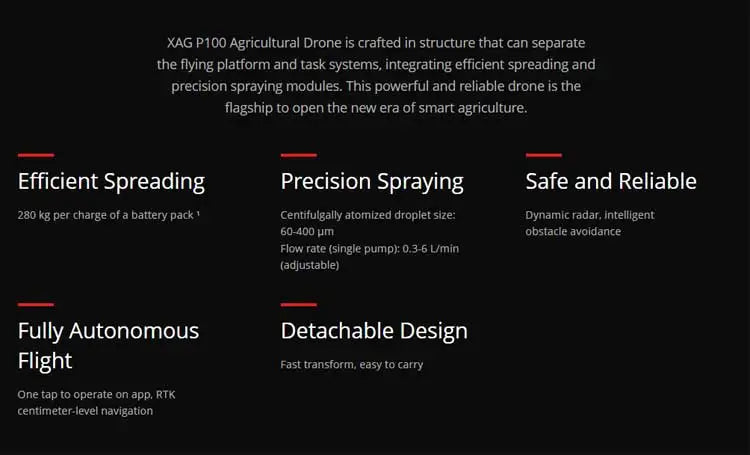

The XAG P100 Agricultural Drone is crafted in structure that can separate the flying platform and task systems, integrating efficient spreading and precision spraying modules. This powerful and reliable drone is the flagship to open the new era of smart agriculture.
XAG P1OO Agricultural Drone iS crafted in structure that can separate the flying platform and task systems . powerful and reliable 280 kg per afa battery pack Centifulgally atomized droplet size: Dynamic Tadar, Intelllgent 60-400 M abstacle avoldance Flow rate (single pump 0.3-6 Umin (adjustablel Fully Autonomous Detach

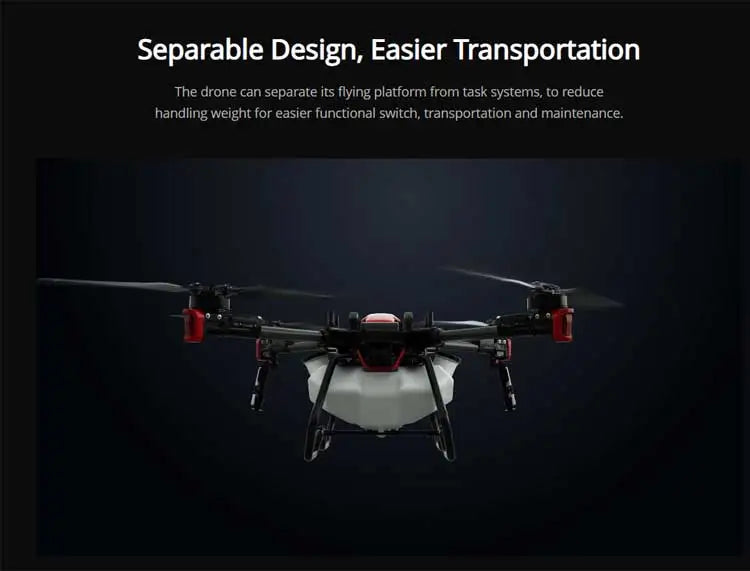

The drone features a modular design that allows it to detach its flight platform from various task systems, thereby reducing its overall weight and making it easier to switch between tasks, transport, and maintain.

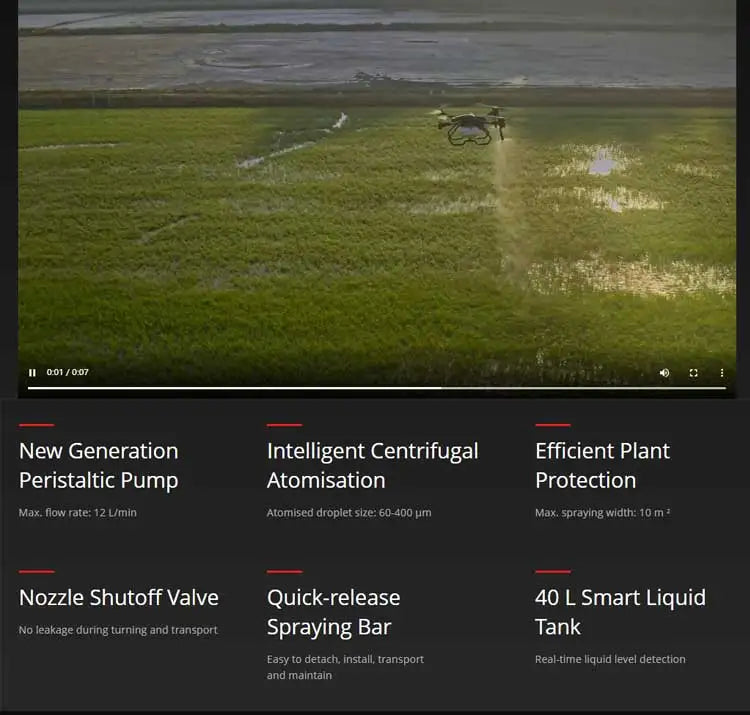

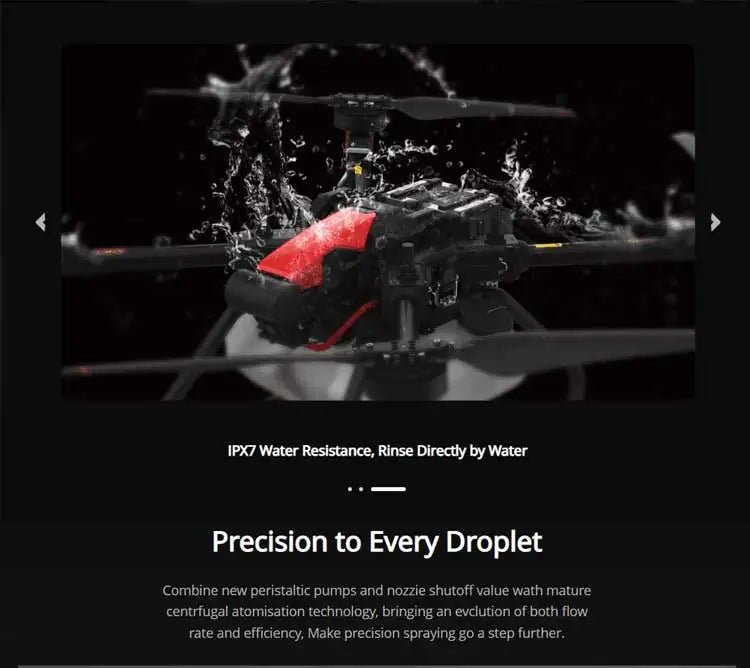

The peristaltic pumps and nozzle shut-off valve combine with mature centrifugal atomization technology to bring about an evolution in both flow rate and efficiency.
Maximum Flow Rate: 12 liters per minute; Atomized Droplet Size: 60-400 micrometers; Maximum Spraying Width: 10 meters. This system features centrifugal efficient pump atomization with intelligent protection.

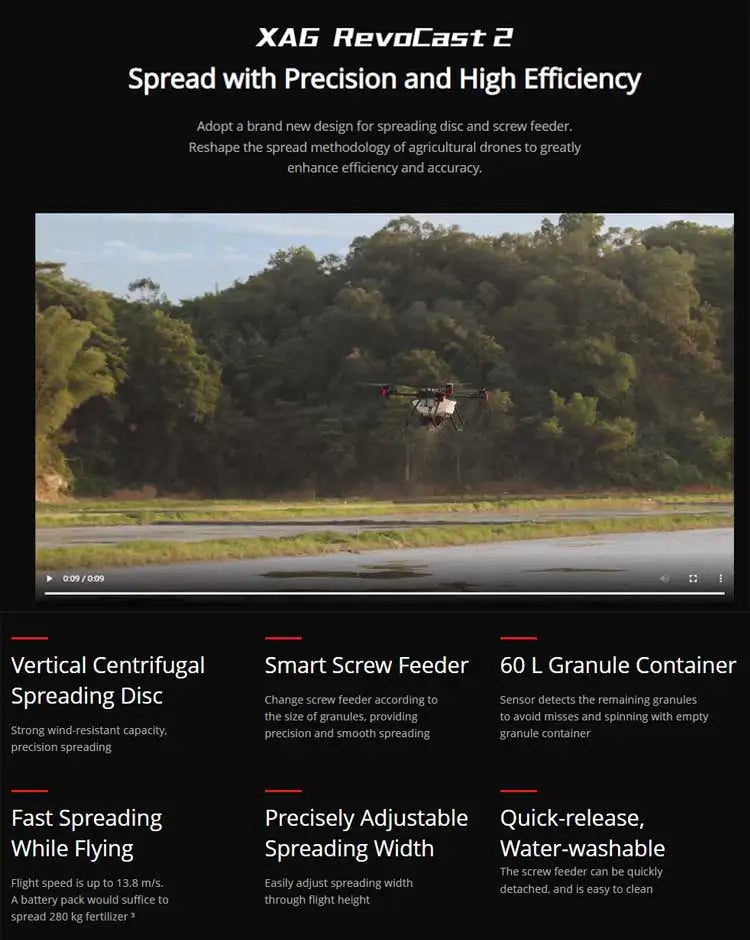

XAG Revoast2 Spread with Precision and High Efficiency adopt brand new design for spreading disc and screw feeder . Vertical Centrifugal Smart Screw Feeder 60 L Granule Container Spreading Disc Change screw feeder according to t0 Sensor detects the remalning granules the size 0f .

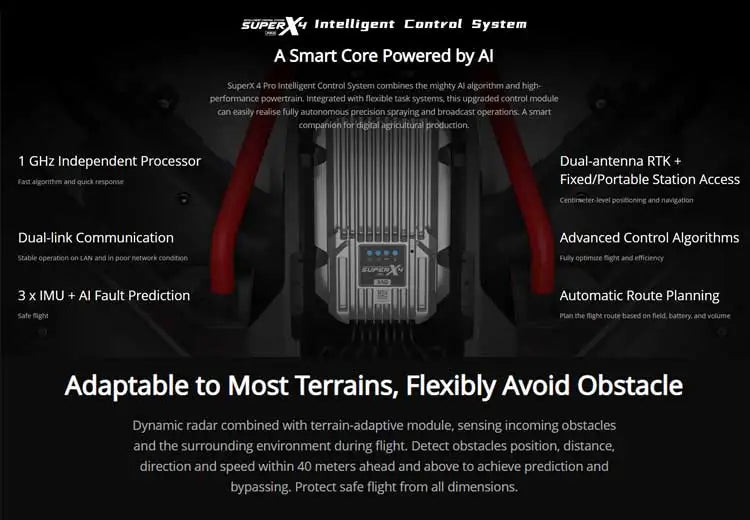

The SUPERX4 Intelligent Control System, powered by AI, features a smart core that contains numerous intelligent elements to enhance agricultural efficiency and precision.
Operating in complex environments, these drones provide real-time visual feedback, enabling users to simultaneously monitor flight status and crop conditions.

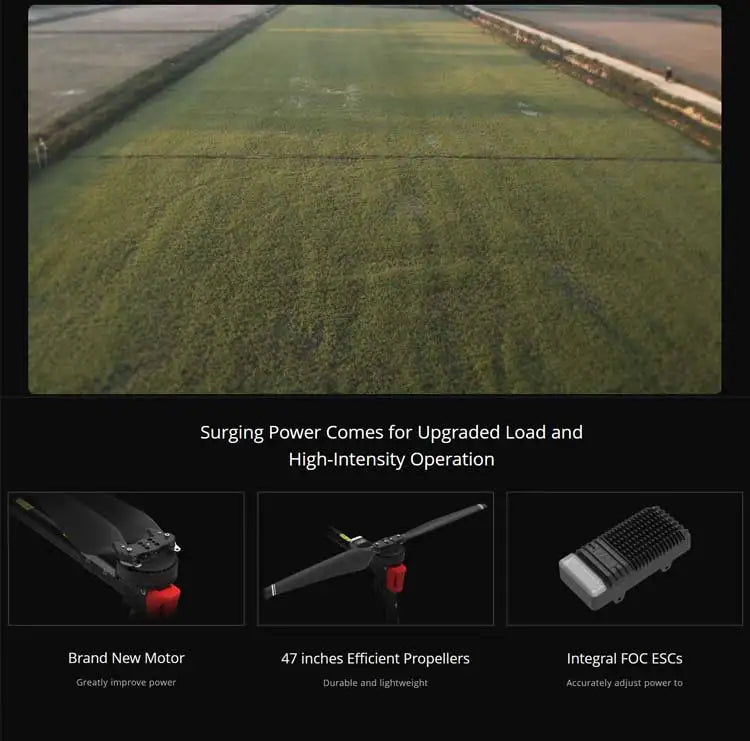

Significant power upgrades enable heavy-duty performance and intense operation. The brand new motor features 47-inch efficient propellers, integrated with FOC ESCs (Field-Oriented Control Electric Speed Controllers) to greatly improve durability and ensure tightly adjusted power delivery.
The XAG P100 40L Agricultural Drone, powered by AI and featuring smart core technology, offers precision and high efficiency in agricultural irrigation. Meanwhile, its GC3O00 Smart Battery boasts increased electric power and the ability to supercharge up to 240 volts.
Equipped with an Intelligent SuperCharge Battery, this drone features a high-capacity battery that’s fully charged and equipped with Wallet cooling technology. The built-in XBMS (Intelligent Battery Management System) ensures self-balancing of battery cells, utilizing new heat-resistant materials and a built-in temperature management system. Two-way interaction is also possible, allowing for seamless control in various conditions.

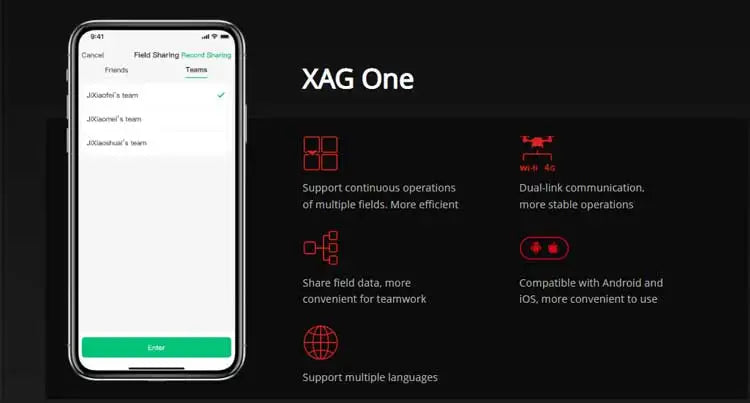

Frequently Asked Questions (FAQ) about XAG P100 40L Agricultural Drone: One Juliette Joatre Julie Support Continuous Operations – Dual-Link Communication, making it more convenient to use. It is compatible with Android and ideal for team work.

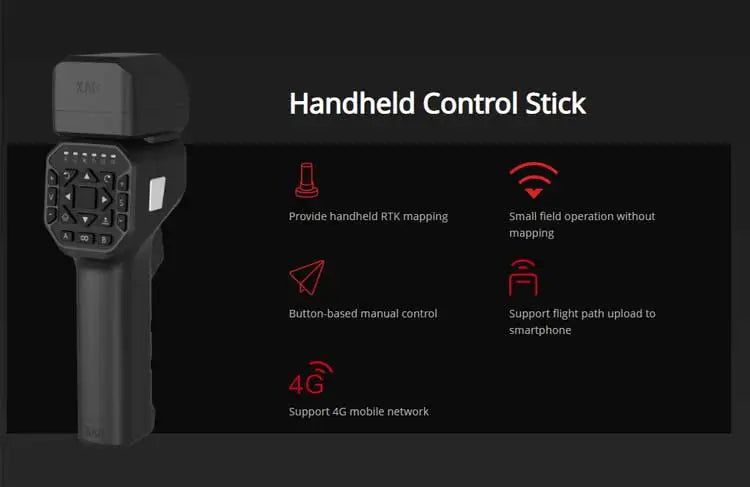

The XAG P100 drone offers a handheld control stick for precise navigation, allowing for real-time kinematic (RTK) mapping in small fields. Additionally, it features manual control options via button-based input or flight path uploads to smartphones via 4G connectivity.

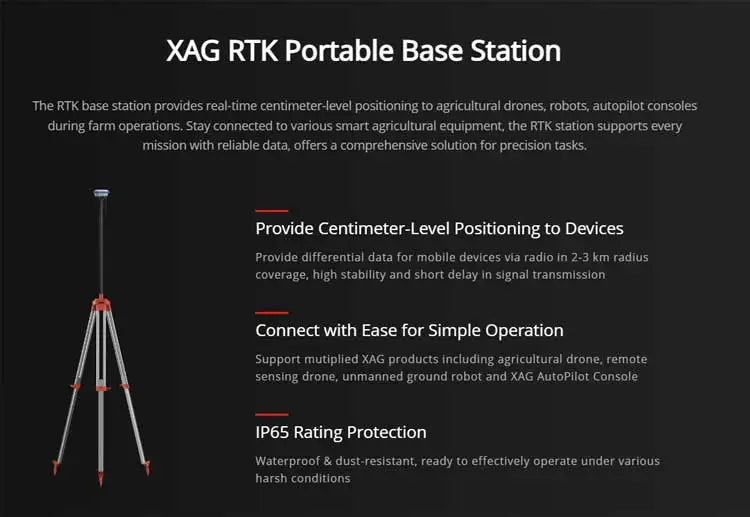

The XAG RTK Base Station ensures accurate and real-time centimeter-level positioning for agricultural drones, robots, and autopilot consoles during farming operations. This portable base station provides reliable data support for every mission, offering a comprehensive solution for precision tasks.

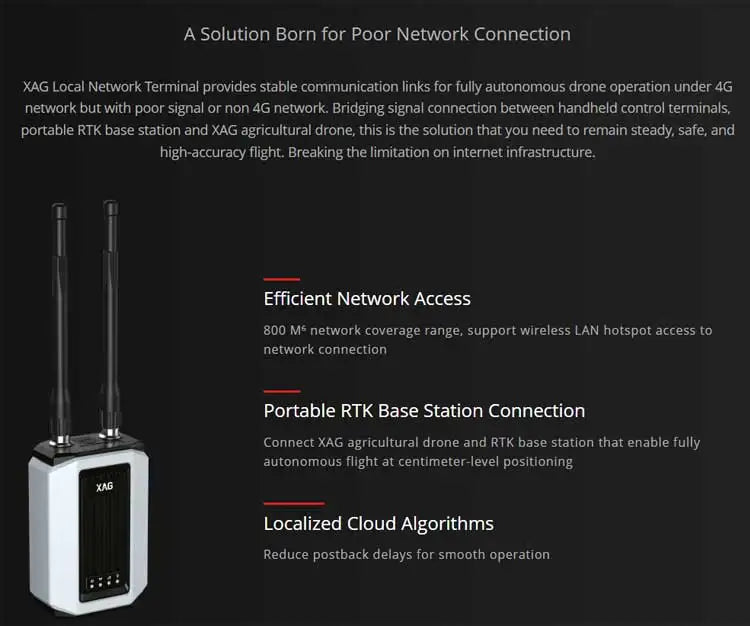

XAG’s Local Network Terminal ensures seamless connectivity and enables fully autonomous flight operations over 4G networks. However, in areas with poor signal strength or no 4G coverage, this terminal provides a reliable solution for maintaining stable connections.
