TYI 3W TYI6-30C Agriculture Spray Drone Parameters
- Usage: Agriculture
- Applicable Industries: Seeding Drone, Thermal Fogger Drone, Biological Control Drone
- Place of Origin: China
- Brand Name: TYI
- Sprayer Type: Unmanned aerial vehicle (UAV)
- Diameter: 70 inch
- Feature: Folding structure, easy to carry
- Condition: New
- Warranty: 1 Year
- Key Selling Points: High Productivity
- Marketing Type: FACTORY PRICE
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 1.5 years
- Core Components: agriculture drone frame, Power system, flight controller, remote controller, battery, charger
- Weight: 60 KG
- Product name: drone agricultural sprayer
- Drone frame: 6 axis
- spraying system: tank+pump+sprinkler+water pipe
- Hobbywing: X9 power kit(motor+esc+propeller)
|
TYI Tech provides OEM/ODM services for agriculture drones
|
|||
|
Model
|
3W TYI6-20C Spray Drone
|
3W TYI6-30C Spray Drone
|
|
|
Pesticide Tank
|
20L
|
30L
|
|
|
Net Weight
|
32KGS
|
35KGS
|
|
|
Take-off Weight
|
52KGS
|
65KGS
|
|
|
Flight Time
|
10-25min
|
10-25min
|
|
|
Flight Radius
|
0-1000m
|
0-1000m
|
|
|
Flight Height
|
0-30m
|
0-30m
|
|
|
Flight Speed
|
0-10m/s
|
0-10m/s
|
|
|
Work Humidity
|
-10-70℃
|
-10-70℃
|
|
|
Work Humidity
|
0-90%
|
0-90%
|
|
|
Spray Speed
|
0-10M/S
|
0-10M/S
|
|
|
Spray Width,Nozzles Q’ty
|
5-6M,8 Nozzles
|
5-6M,8 Nozzles
|
|
|
Spray Flow
|
0.8-8.0L/min
|
0.8-8.0L/min
|
|
|
Spray Efficiency
|
5~6Ha/Hr
|
10~13Ha/Hr
|
|
|
Wind Resistance
|
10m/s
|
10m/s
|
|
|
Machine Size
|
Expand size
|
1770*1770*500/mm
|
1770*1770*500/mm
|
|
Folding size
|
1100*750*700/mm
|
1100*750*700/mm
|
|
|
Power System
|
Motor
|
Brushless
|
Brushless
|
|
Propeller
|
Carbon Fiber
|
Carbon Fiber
|
|
|
ESC
|
Rapid Throttle Response
|
Rapid Throttle Response
|
|
|
Flight Control
|
JIYI K3A PRO
|
JIYI K3A PRO
|
|
|
Remote Controller
|
T12/H12
|
T12/H12
|
|
|
Battery / Quantity
|
1pc 22000mah 14S
|
1pc 22000mah 14S
|
|
|
Adapter + Charger
|
PC1500 intelligent fast charging
|
PC1500 intelligent fast charging
|
|
|
Toolkit
|
Maintenance/Repair Tools
|
Maintenance/Repair Tools
|
|
TYI 3W TYI6-30C Agriculture Spray Drone Details

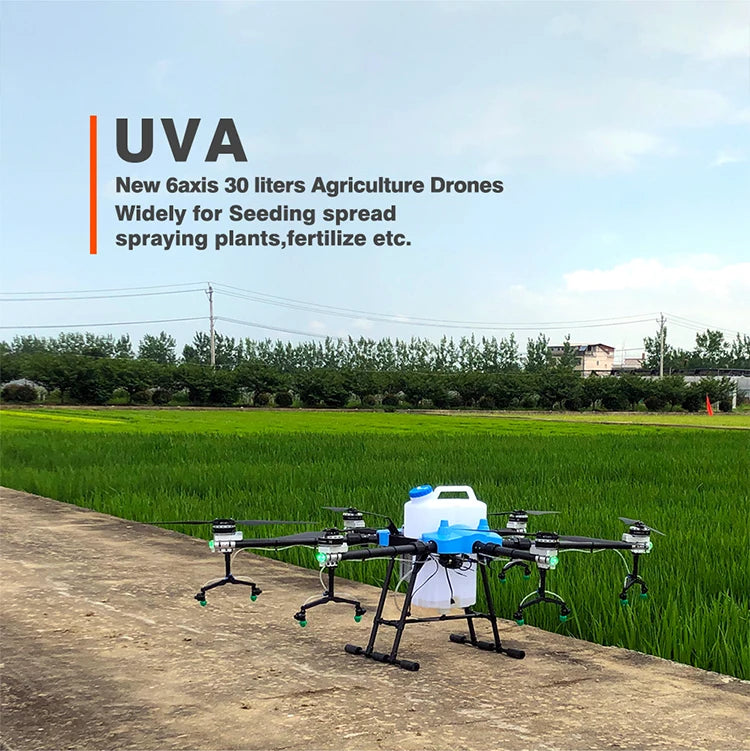

Introducing TYI’s 3W TYI6-30C, a 30L agriculture spray drone featuring a 17L/30L tank capacity, ideal for seeding, spreading fertilizers, and other plant-related applications. This brushless motor-powered drone ensures power redundancy for reliable operation.
The TYI 6-30C 30L Agriculture Spray Drone features a powerful high-power brushless motor, providing exceptional strength and efficiency to ensure reliable performance.

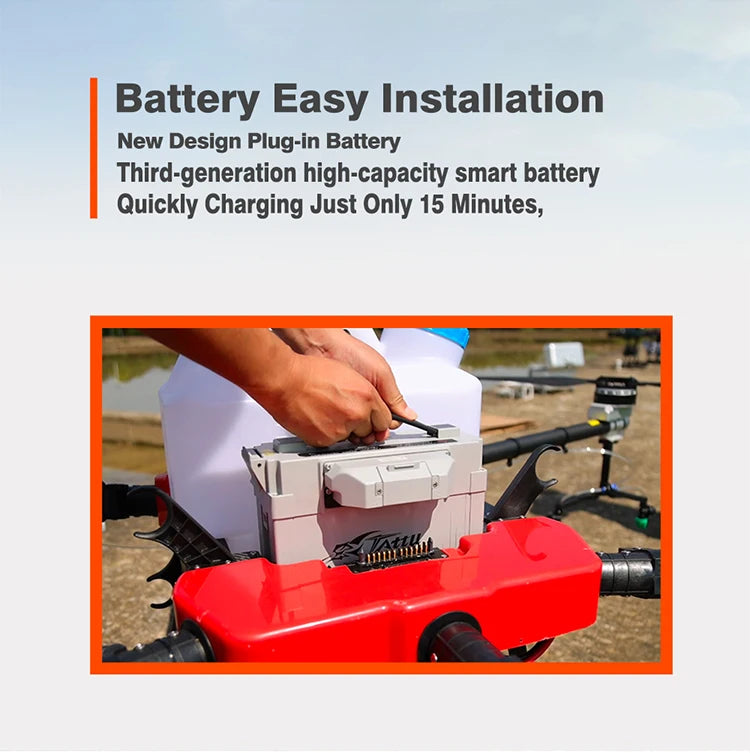

Features a new design plug-in battery with third-generation high-capacity smart technology, allowing for quick and easy charging in just 15 minutes.

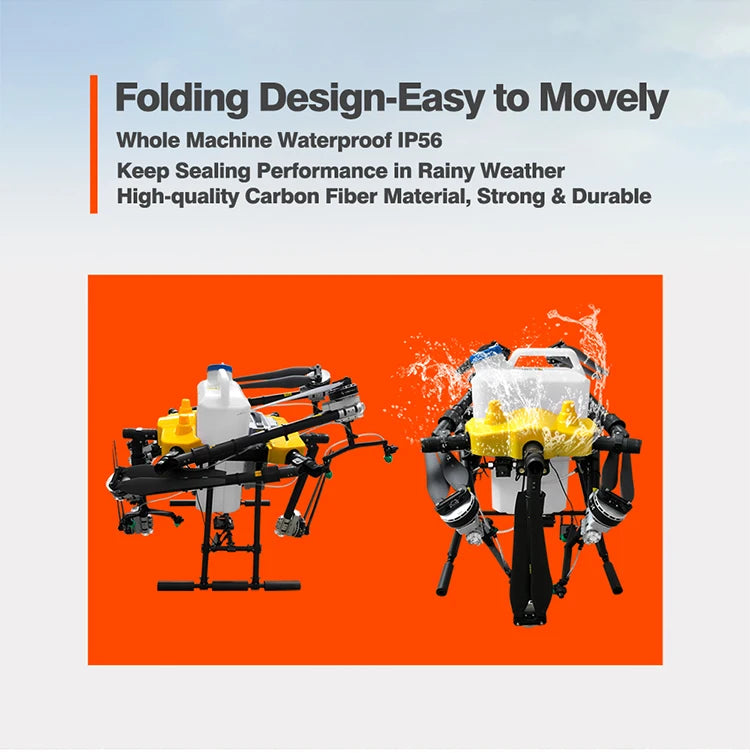

Folding design enables easy mobility, while the entire machine features waterproofing with an IP56 rating, ensuring consistent sealing performance in various weather conditions. The high-quality carbon fiber material used ensures strong and durable construction.

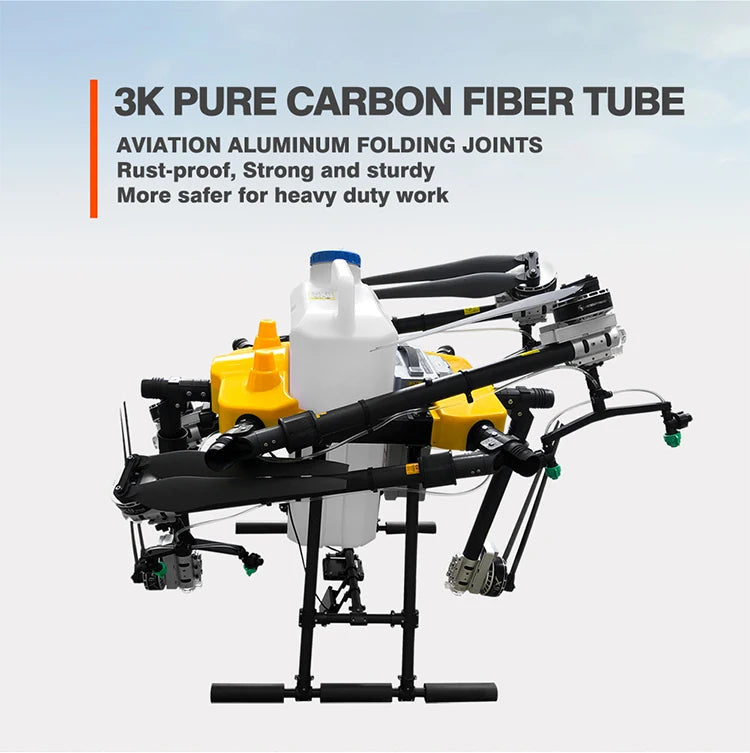

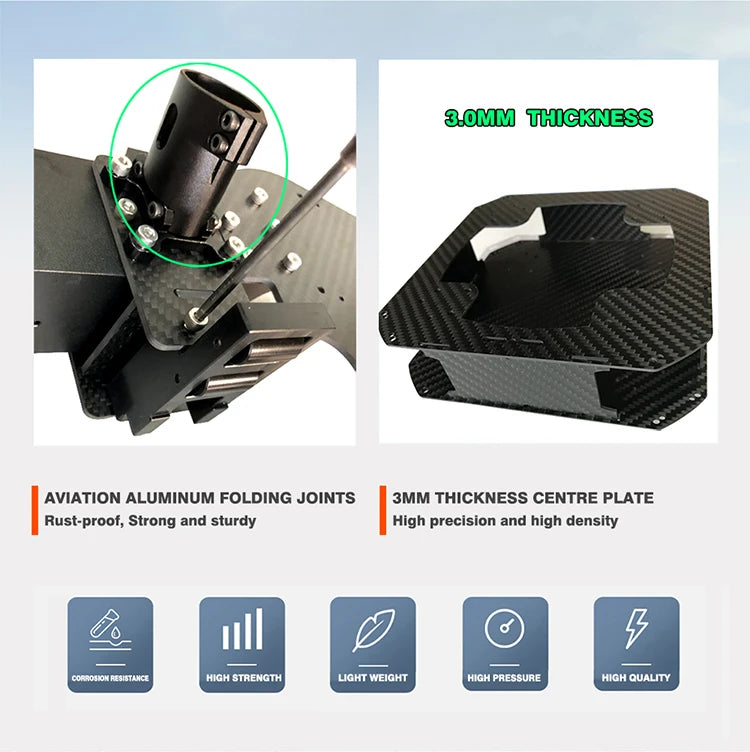

Featuring 100% pure carbon fiber tubes, aviation-grade aluminum folding joints that are rust-proof, strong, and sturdy.

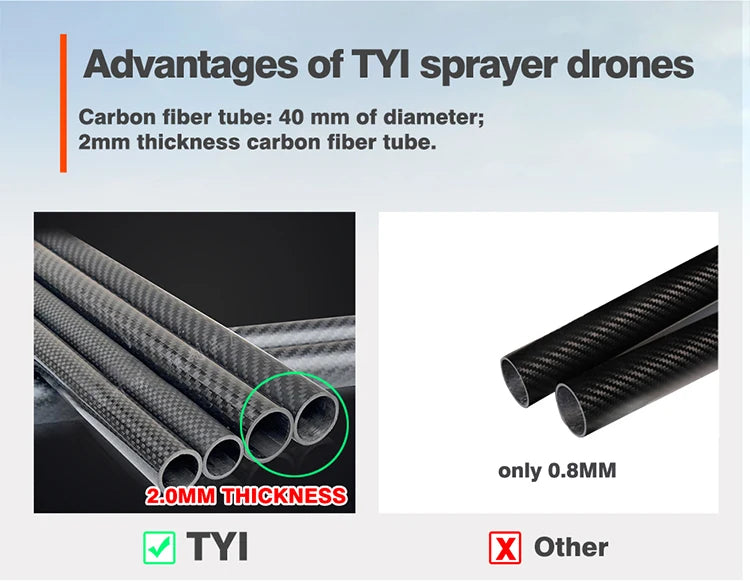

The TYI 3W drone’s unique design allows it to safely carry and deploy carbon fiber tubes with a remarkably small diameter of just 0.8mm, while maintaining a thickness of 2mm.
The aviation-grade aluminum folding joints are strong, sturdy, and rust-proof, featuring high precision and density, providing exceptional strength and minimal weight. This ensures high-quality performance and longevity.

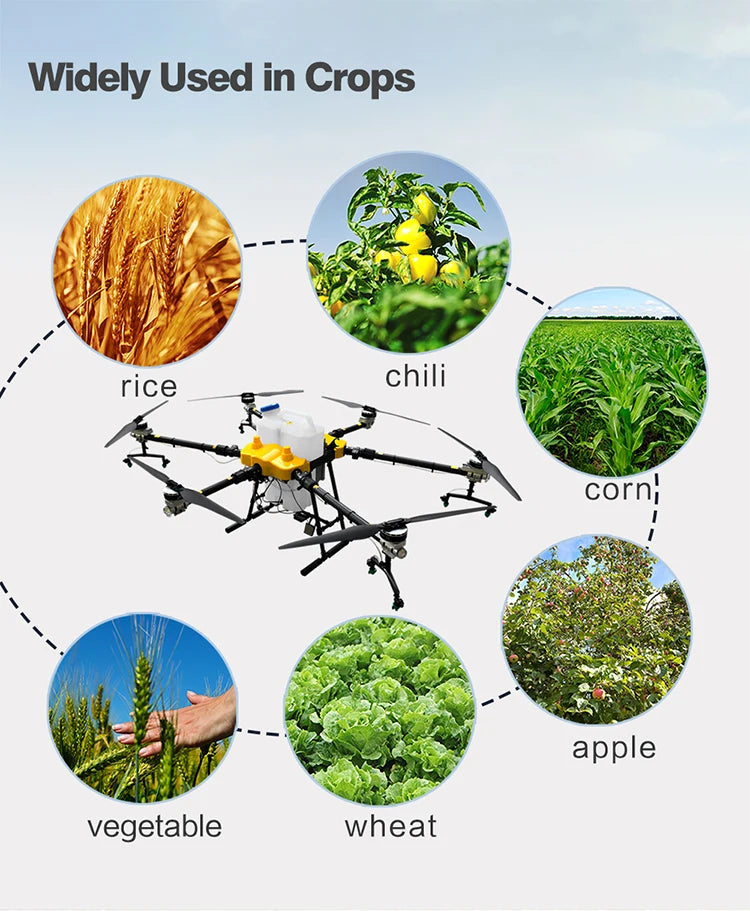

Agriculture Drone Applications

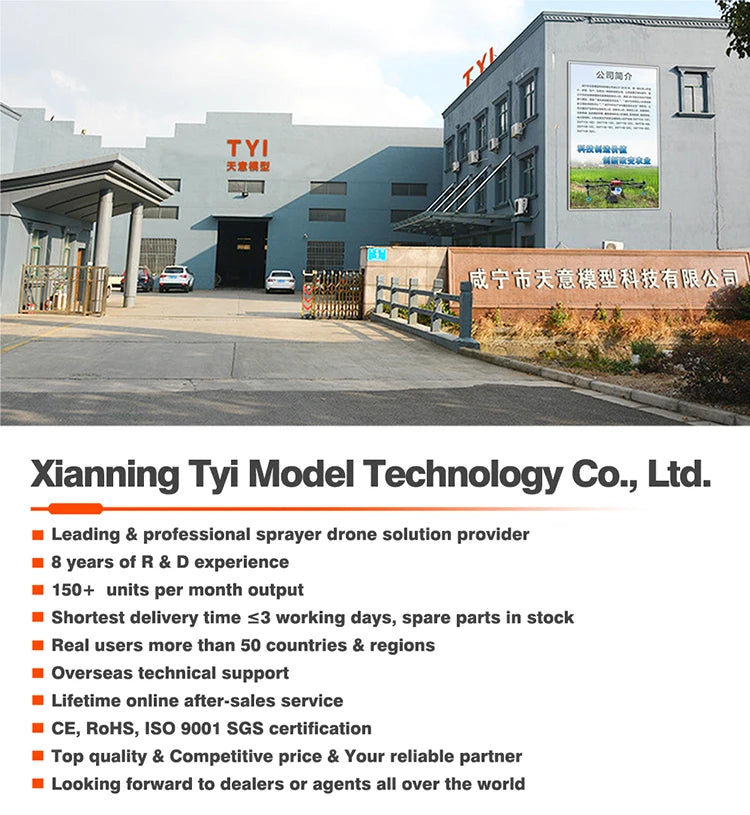

Xianning TYI Model Technology Ltd. is a leading and professional sprayer drone solution provider with 8 years of research and development experience. We have a monthly output of over 150 units, ensuring the shortest possible delivery time of just 3 working days, while keeping a stock of spare parts on hand.

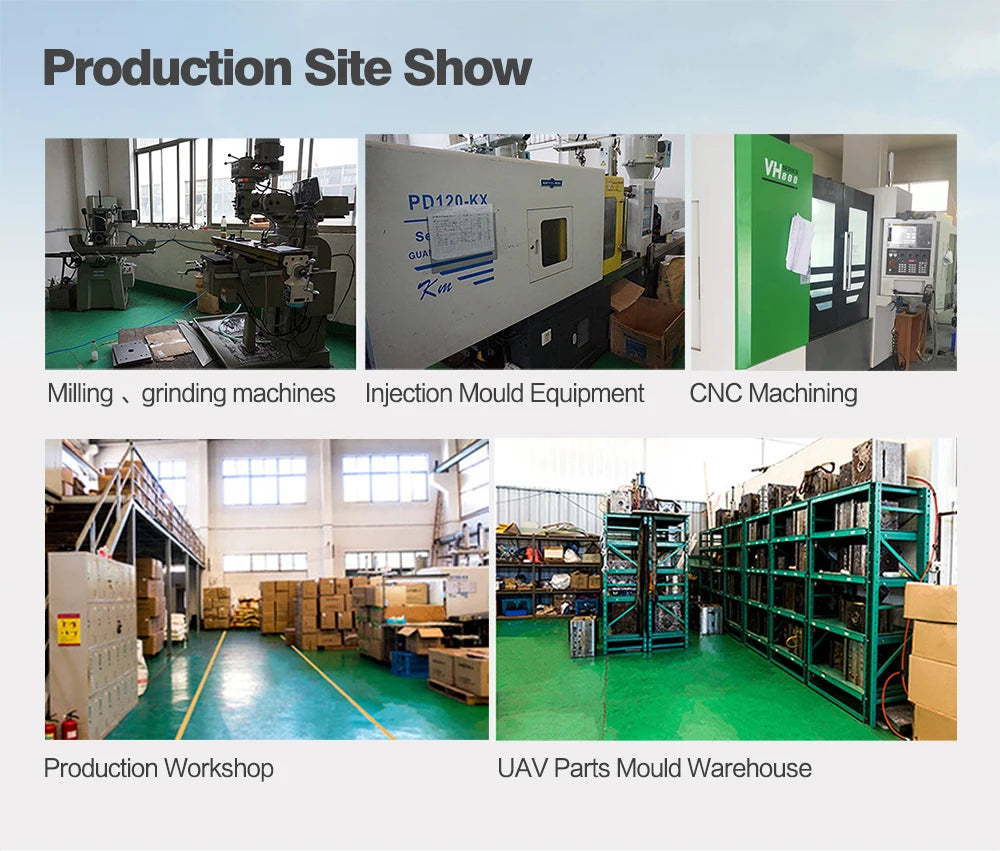

PD1?-kX GUA Milling grinding machines injection mould equipment CNC Machining Production Workshop UAV Parts Mould Warehouse VHao

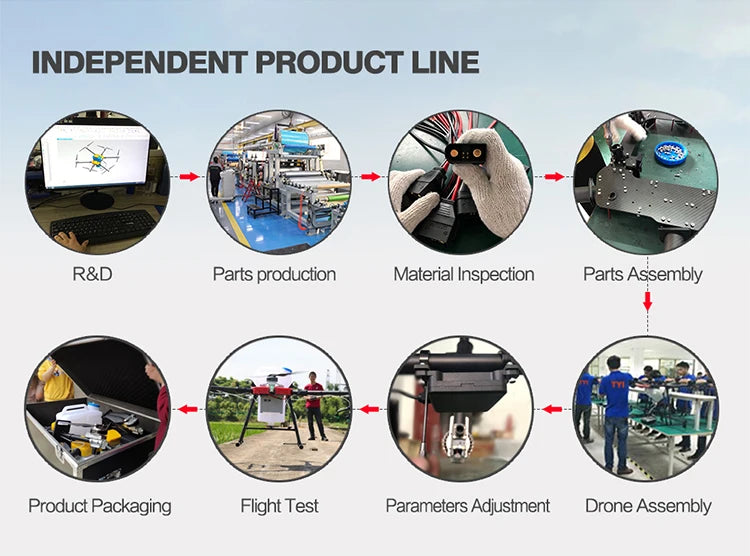

Independent Research and Development (R&D) department designed this product line, featuring dedicated parts production, material inspection, assembly, packaging, flight testing parameters adjustment, and drone quality control.
TYI 3W TYI6-30C: A High-Quality Agriculture Spray Drone
Patented with Alibaba’s Gold Supplier Certificate, this product conforms to the requirements of TYI 3W and TYI6-30C certifications for agricultural spray drones. Additionally, it features variable air flow control and robust design for stable flying.
Prior to shipping, our team at XIANNING TYI PACKING & TRANSPORTATION LOGISTICS undergoes a thorough inspection and packaging process to guarantee that each product meets high standards of quality, ensuring that every item arrives at its destination in excellent condition for our customers.
final products meet your requirements.
attention to after-sales service.
Spoken:English,Chinese
