TOPOTEK TP30 is a UAV load system that integrates a 30x optical zoom camera and a 3-axis HDMI output gimbal. The MINI HDMI interface outputs 1080P 60FPS high-definition video, supporting gimbal control and zoom camera control. The gimbal uses a high-precision encoder FOC control scheme, characterized by high stability, small size, light weight, and low power consumption. The camera uses a low-illumination sensor with an effective pixel of 4 million, supporting 1080P local TF storage. Built-in camera core TOP-3082.

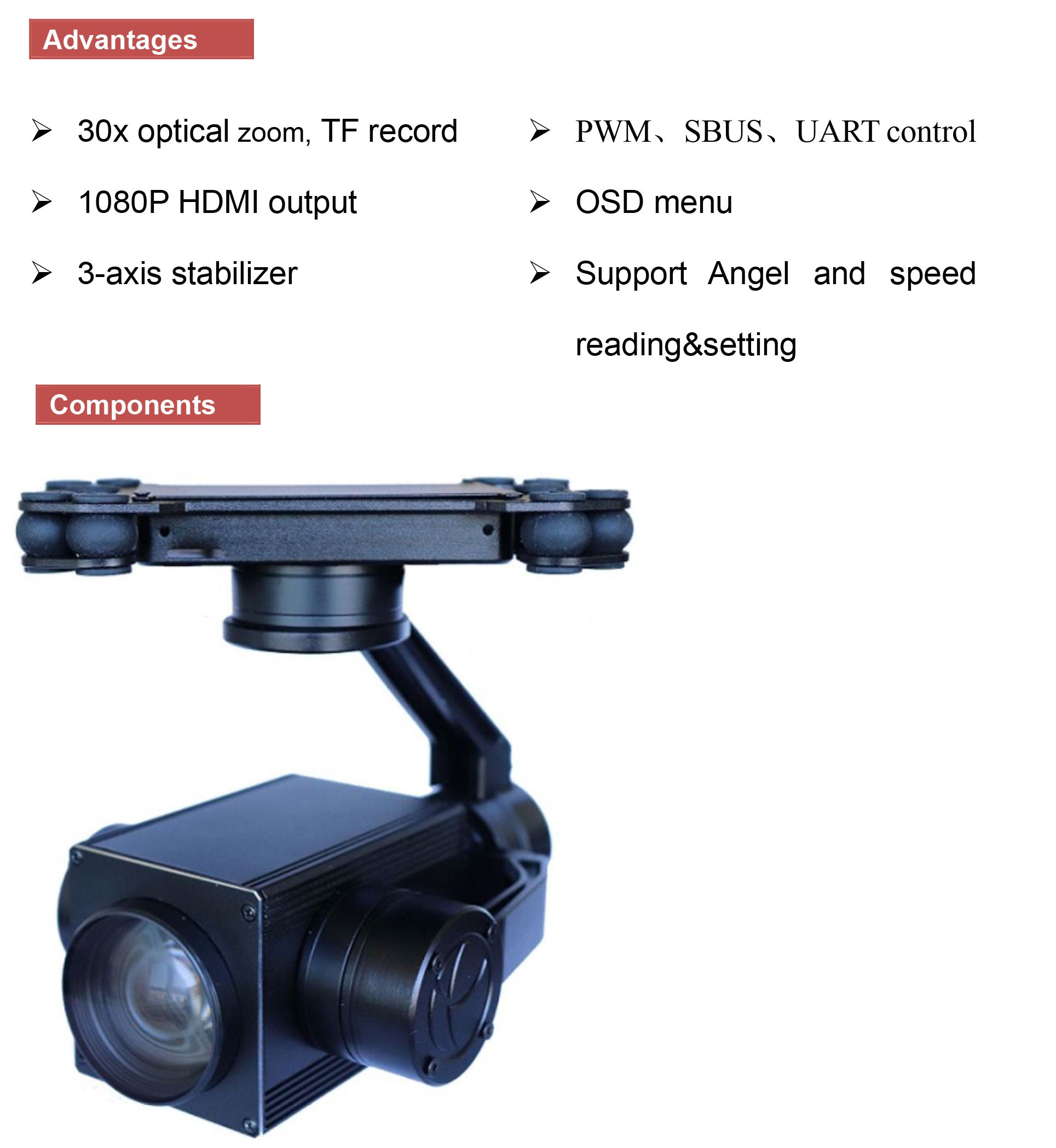

Advantages：
- 30x optical zoom, TF record
- 1080P HDMI output
- 3-axis stabilizer
- PWM, SBUS, UART control
- OSD menu
- Support Angle and speed reading & setting

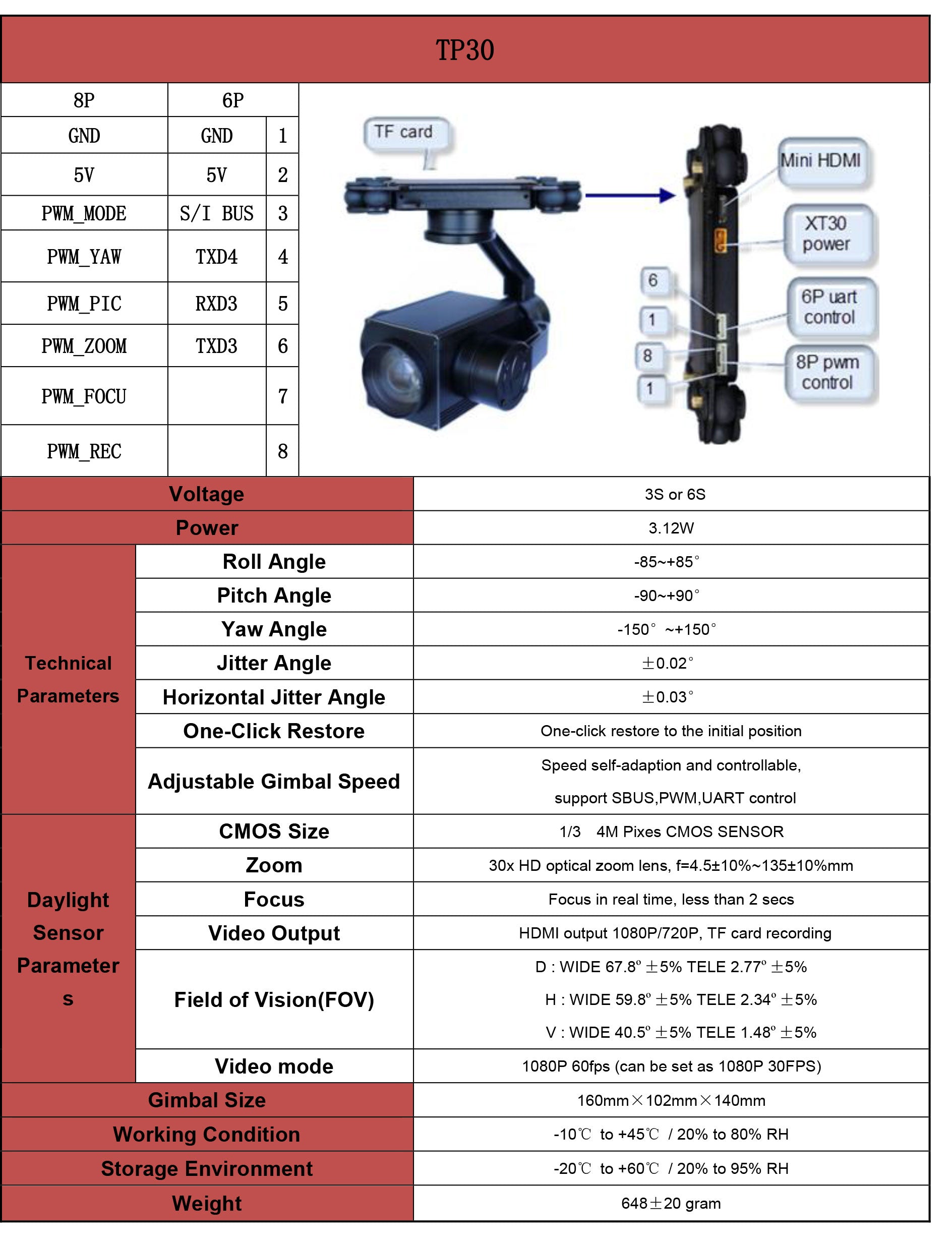

TOPOTEK TP30 Specifications
| Voltage | 3S or 6S |
|---|---|
| Power | 3.12W |
| Technical Parameters | |
| Roll Angle | -85° ~ +85° |
| Pitch Angle | -90° ~ +90° |
| Yaw Angle | -150° ~ +150° |
| Jitter Angle | ±0.02° |
| Horizontal Jitter Angle | ±0.03° |
| One-Click Restore | One-click restore to the initial position |
| Adjustable Gimbal Speed | Speed self-adaption and controllable, support SBUS, PWM, UART control |
| Daylight Sensor Parameters | |
| CMOS Size | 1/3 4M Pixels CMOS SENSOR |
| Zoom | 30x HD optical zoom lens, f=4.5±10% ~ 135±10%mm |
| Focus | Focus in real time, less than 2 secs |
| Video Output | HDMI output 1080P/720P, TF card recording |
| Field of Vision (FOV) | D : WIDE 67.8° ±5% TELE 2.77° ±5% |
| H : WIDE 59.8° ±5% TELE 2.34° ±5% | |
| V : WIDE 40.5° ±5% TELE 1.48° ±5% | |
| Video Mode | 1080P 60fps (can be set as 1080P 30FPS) |
| Gimbal Size | 160mm x 102mm x 140mm |
| Working Condition | -10°C to +45°C / 20% to 80% RH |
| Storage Environment | -20°C to +60°C / 20% to 95% RH |
| Weight | 648 ± 20 gram |
Features include a 30x optical zoom, TF recording, PWM, SBUS, and UART control. It also has an HDMI output with OSD menu options, a 3-axis stabilizer for smooth footage, and support for angle and speed settings. All components are included.
