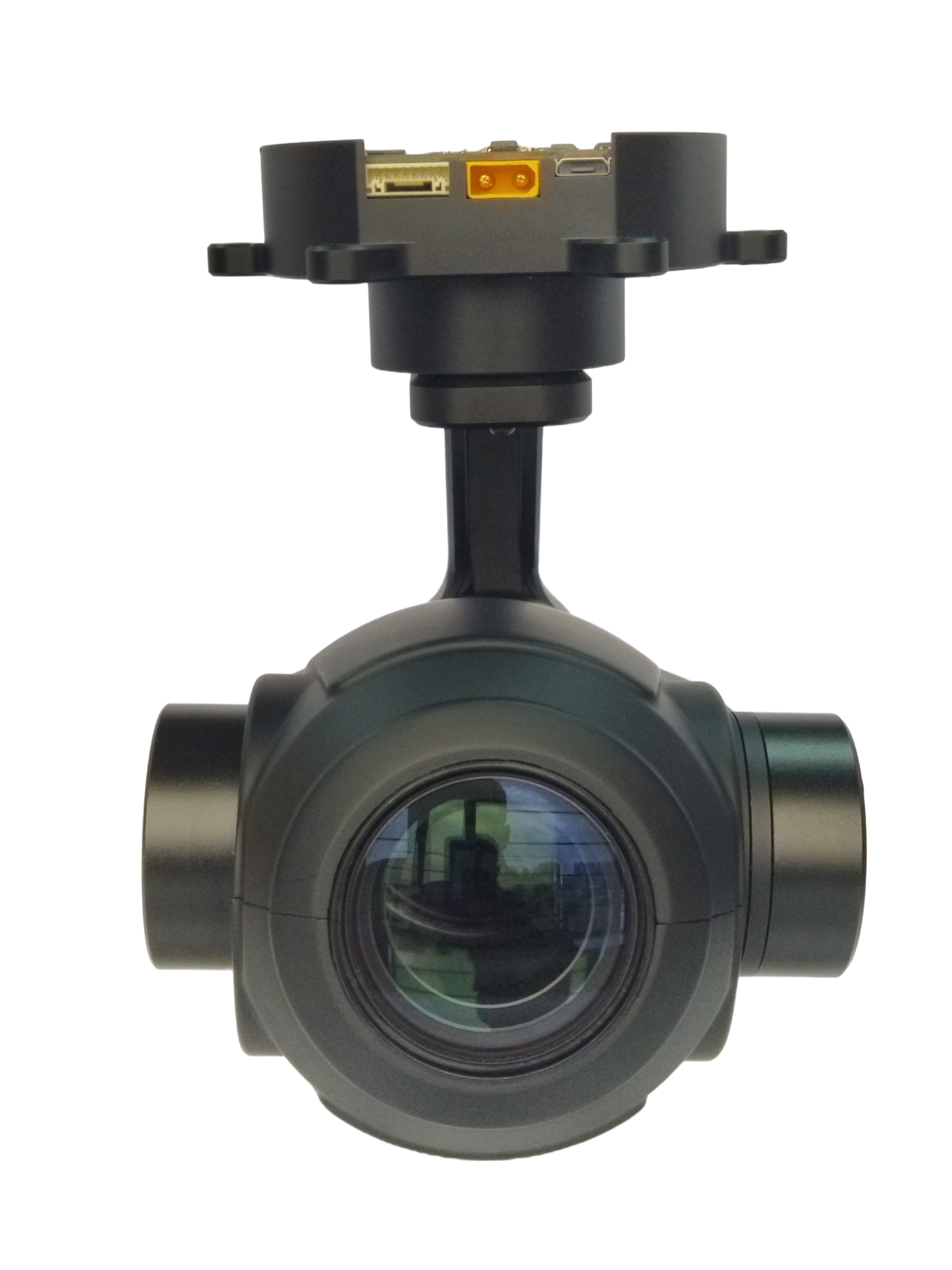

TOPOTEK RIP10S4K Drone Camera Gimbal, featuring a 10x optical zoom lens, 1/3 inch 8MP CMOS sensor, and 3-axis stabilization, offers high-resolution 4K video recording and seamless IP streaming, making it ideal for professional aerial photography, videography, and surveillance.
TOPOTEK RIP10S4K Features
- 10x Optical Zoom and 4K Video Recording: Equipped with a visible light optical zoom lens (f=4.9 to 49mm), the RIP10S4K allows for detailed close-ups and high-quality 4K video recording on a TF card, ensuring every detail is captured with clarity.
- Advanced Stabilization: The 3-axis stabilized pod PTZ ensures smooth and stable footage, with precise control over roll, pitch, and yaw angles. It features an angle jitter of just ±0.02° in pitch and roll directions, enhancing the stability of your shots.
- High-Resolution Imaging: The 1/3 inch 8MP CMOS sensor supports real-time fast focusing with a focusing time of less than 1 second, providing sharp and clear images. It offers a comprehensive field angle (FOV) for wide and telephoto views.
- Network IP Output: The gimbal supports 4K 30fps network IP RTSP code stream, allowing for seamless video transmission and real-time streaming.
- Integrated Control Systems: With support for network IP, SBUS, and serial port command control, along with ground station software for display and control, the RIP10S4K offers versatile and integrated control options for ease of use.

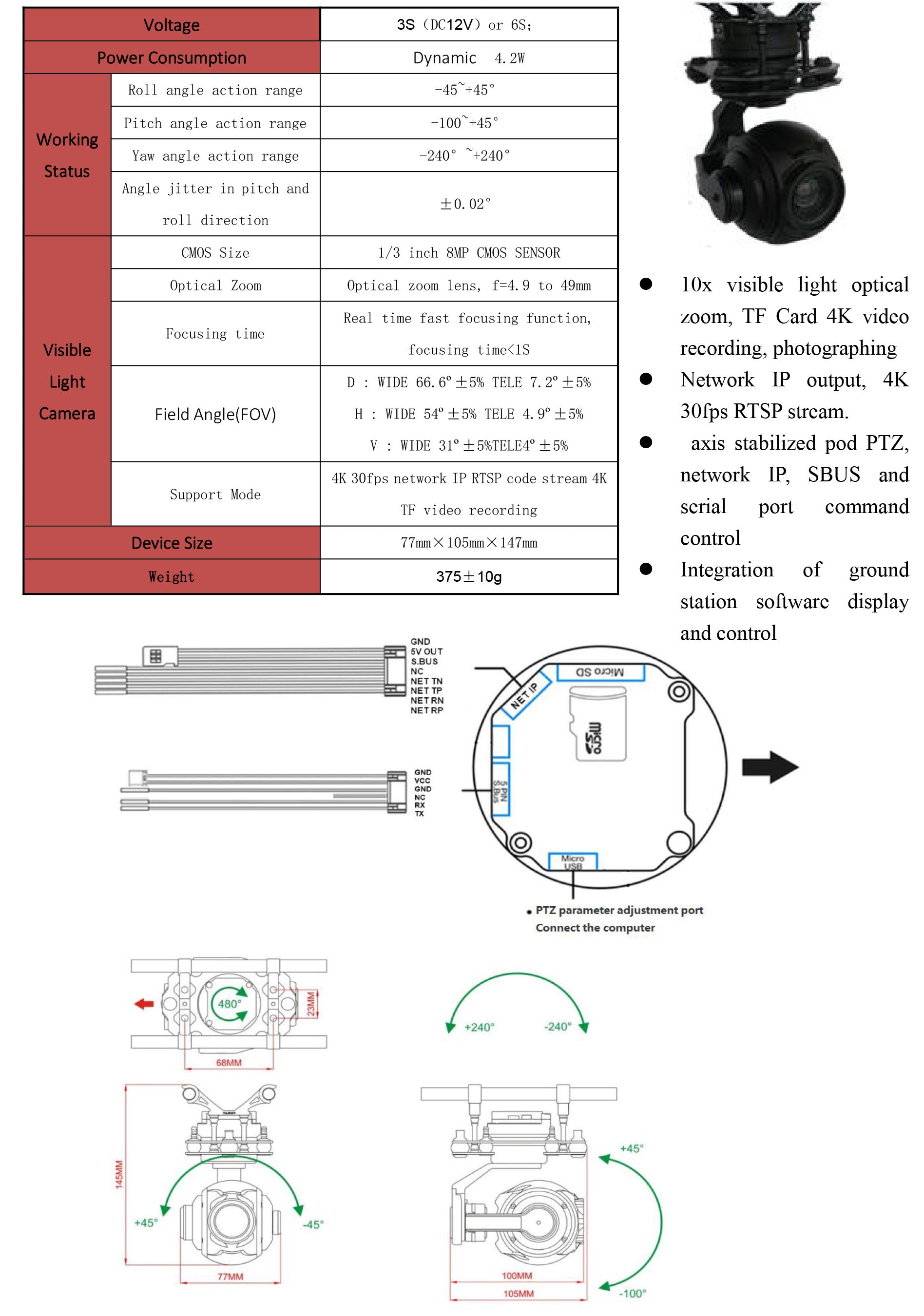

TOPOTEK RIP10S4K Specifications
| Parameter | Specification |
|---|---|
| Voltage | 3S (DC12V) or 6S |
| Power Consumption | Dynamic 4.2W |
| Working Status | |
| Roll Angle Action Range | -45°~+45° |
| Pitch Angle Action Range | -100°~+45° |
| Yaw Angle Action Range | -240°~+240° |
| Angle Jitter in Pitch and Roll Direction | ±0.02° |
| Visible Light Camera | |
| CMOS Size | 1/3 inch 8MP CMOS SENSOR |
| Optical Zoom | Optical zoom lens, f=4.9 to 49mm |
| Focusing Time | Real-time fast focusing function, focusing time <1s |
| Field Angle (FOV) | D: WIDE 66.6°±5% TELE 7.2°±5% <br> H: WIDE 54°±5% TELE 4.9°±5% <br> V: WIDE 31°±5% TELE 4°±5% |
| Support Mode | 4K 30fps network IP RTSP code stream <br> 4K TF video recording |
| Device Size | 77mm×105mm×147mm |
| Weight | 375g±10g |
