TOPOTEK KHP415 Gimbal camera Parameters
| Parameter | Specification |
|---|---|
| Voltage | DC 12V-26.2V |
| Power | Dynamic 4W |
| Roll Angle action range | -45° ~ +45° |
| Pitch Angle action range | -45° ~ +100° |
| Heading Angle action range | -150° ~ +150° |
| Angle jitter in pitch and roll direction | ±0.02° |
| Horizontal Angle jitter | ±0.03° |
| One-click back to center function | One key automatic fast return to the initial position |
| Pan-tilt control speed is adjustable | When the pan-tilt rotates, the speed is adaptive based on the current speed mode and the multiple of the visible light camera. |
| Control mode | Support network IP control, SBUS control, serial port control (optional PWM control) |
| Sensor | 1/2.8 inch 8 megapixel HD CMOS SENSOR |
| Digital zoom | Supports 7x digital zoom |
| Compressed storage mode | H264, H265, local TF storage for video streams |
| HDMI video | Micro-D HDMI 1080P 30fps |
| Network Output mode | 1080P 30fps |
| Angle of view (FOV) | 25mm lens, FOV: 10.5° x 7.8° |
| Dimensions | φ: 120mm, H: 68mm |
| Working environment | -10°C to +45°C / 20% to 80% RH |
| Storage environment | -20°C to +60°C / 20% to 95% RH |
| Main applications | Drone aerial photography |
| Weight | 110 ± 10g |
TOPOTEK KHP415 Gimbal camera Features:
- 4K visible light
- Supports 7x digital zoom
- Support IP, HDMI dual output
- 3-Axis stabilized gimbal, 110g
- Network, S.BUS, and UART controls
- TF card double record
TOPOTEK KHP415 Gimbal camera Details
The KHP415 is a 4K network dual output system integrating 7x digital zoom and a high-precision professional three-axis enhanced stability gimbal. It adopts network IP and HDMI dual outputs, with the gimbal utilizing a high-precision encoder FOC control scheme. This system boasts high stability, small size, light weight, and low power consumption. The visible light camera is equipped with a high-definition sensor with effective pixels of 8 million. The system supports 4K and 1080P network RTSP stream output. It can be controlled via network, serial port, and S.BUS, and supports local TF storage.

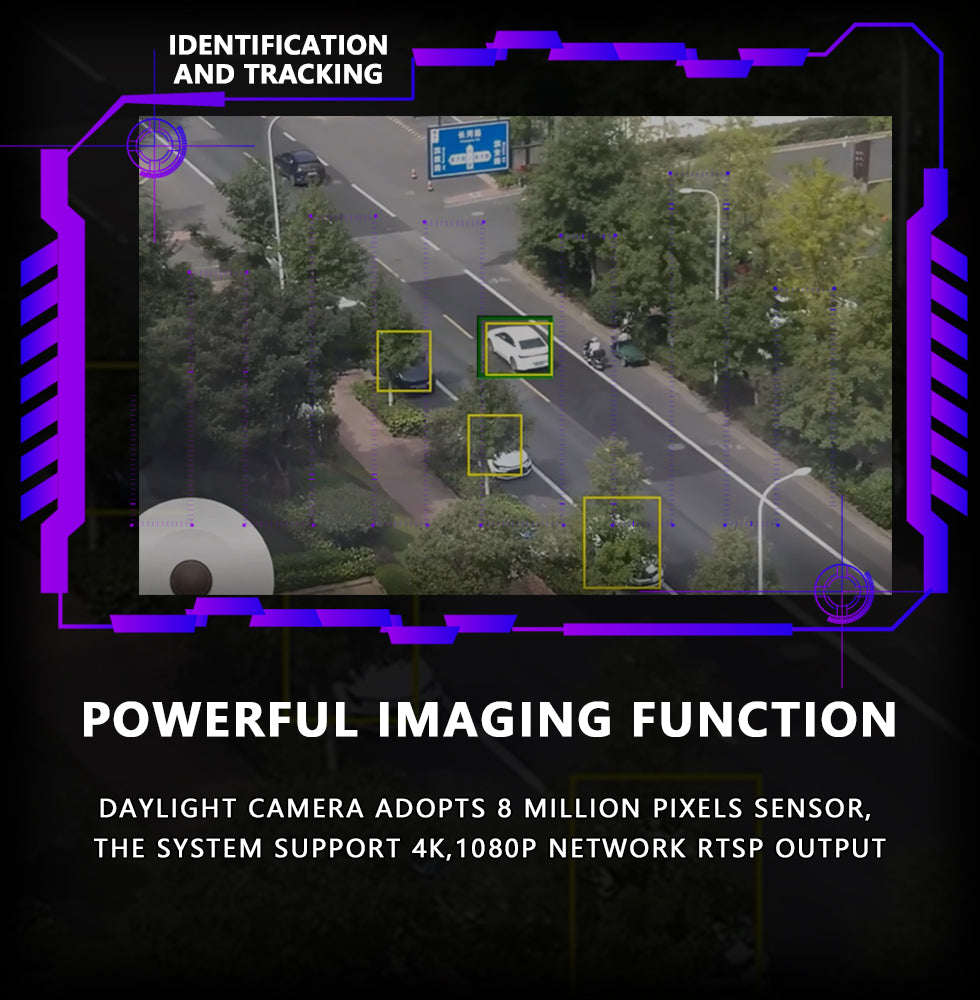

Identification and tracking made easy with powerful imaging functionality. This daylight camera features an 8 million pixel sensor, supporting 4K and 1080P network output via RTSP protocol.
Equipped with a 1/2.8-inch CMOS sensor and 8 million pixels, this camera captures high-definition (HD) video at 1080p resolution and 30 frames per second. It features a 9x digital zoom and a 25mm lens with a 10.5′ x 7.89′ field of view.

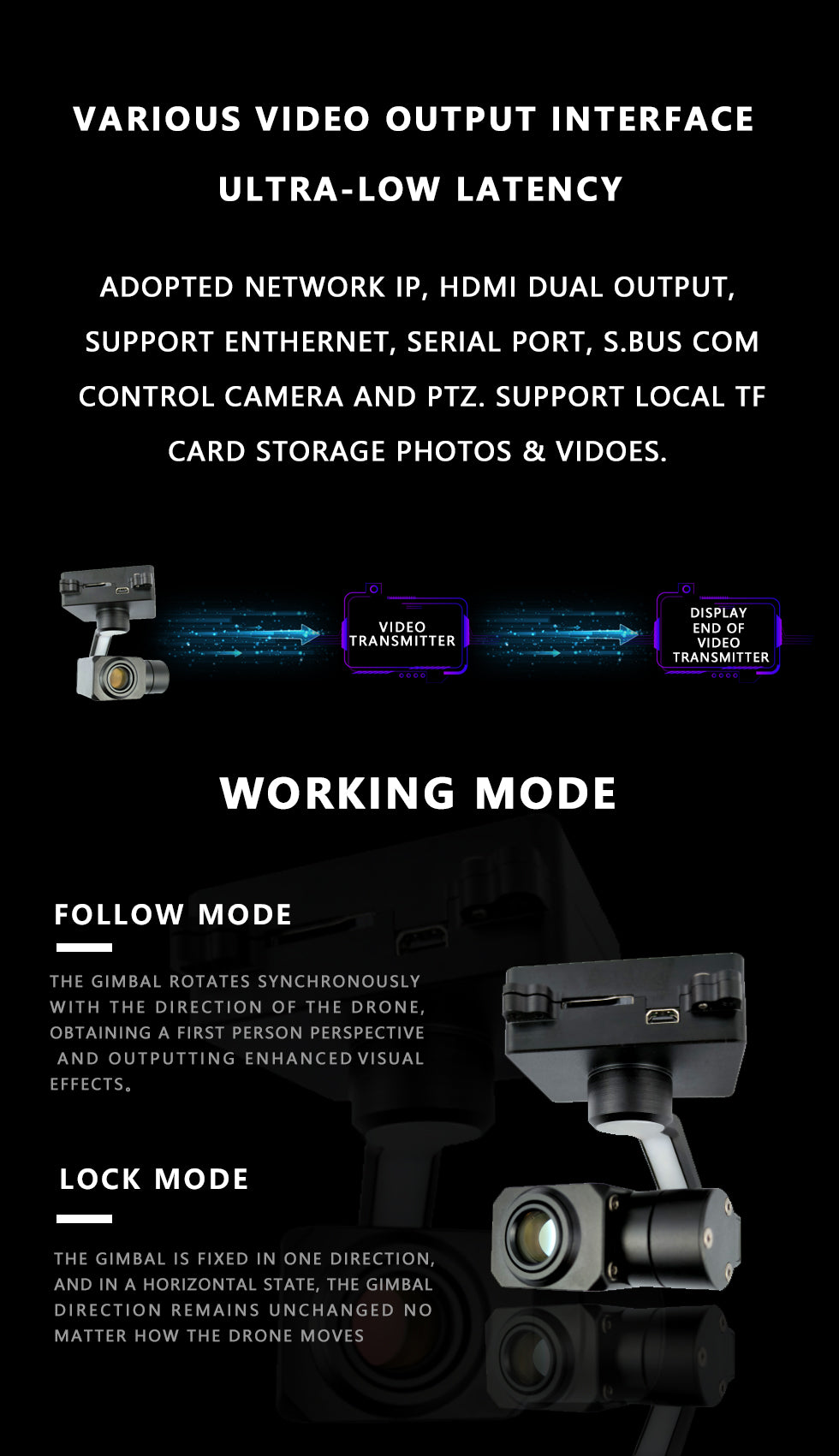

This high-performance camera features a 4K resolution, 8MP sensor, and 7x digital zoom. The gimbal offers three-axis stabilization for smooth video capture. It supports various output interfaces, including network IP, HDMI dual output, Ethernet, serial port, and S.Bus COM control. You can store photos and videos on a local TF card. The camera has two working modes: Follow mode, where the gimbal rotates in sync with the drone’s direction, providing a first-person perspective with enhanced visual effects; and Lock mode, where the gimbal remains fixed in one direction, unaffected by the drone’s movements.

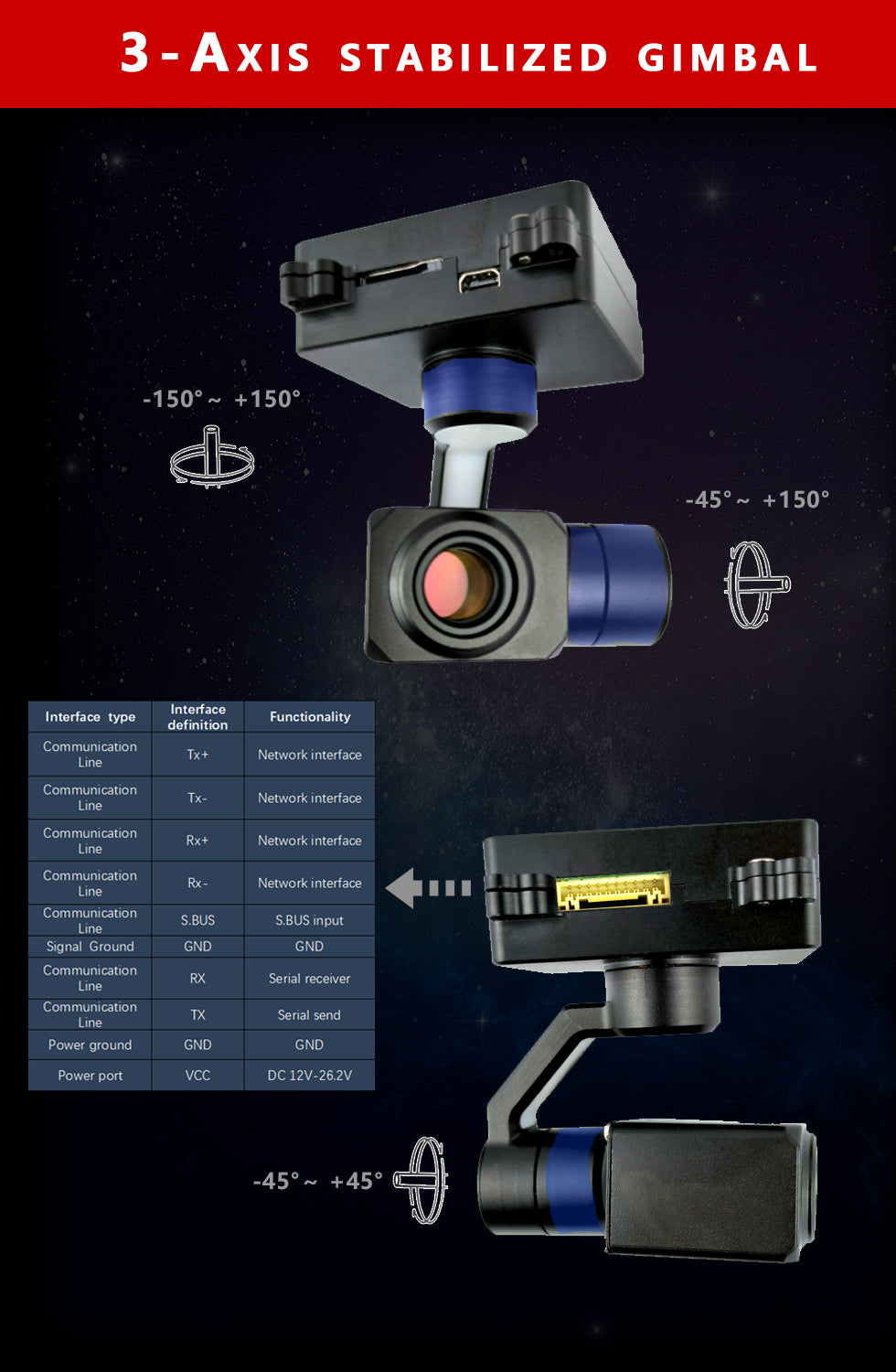

This 3-axis stabilized gimbal camera features a robust interface system, including Tx+/Rx+, Rx-, S.BUS SBUS input, and serial receiver/ sender. It also has power ports for VCC (12V-26.2V) and GND ground connections. This enables seamless communication and data transfer.
Whole-machine structure features adjustable settings for smooth operation, providing optimal stabilization and precise control.
The TOPOTEK KHP415 is a compact, 4K-resolution gimbal camera featuring dual outputs and weighing only 110g. Its working status indicates power and voltage levels are visible.

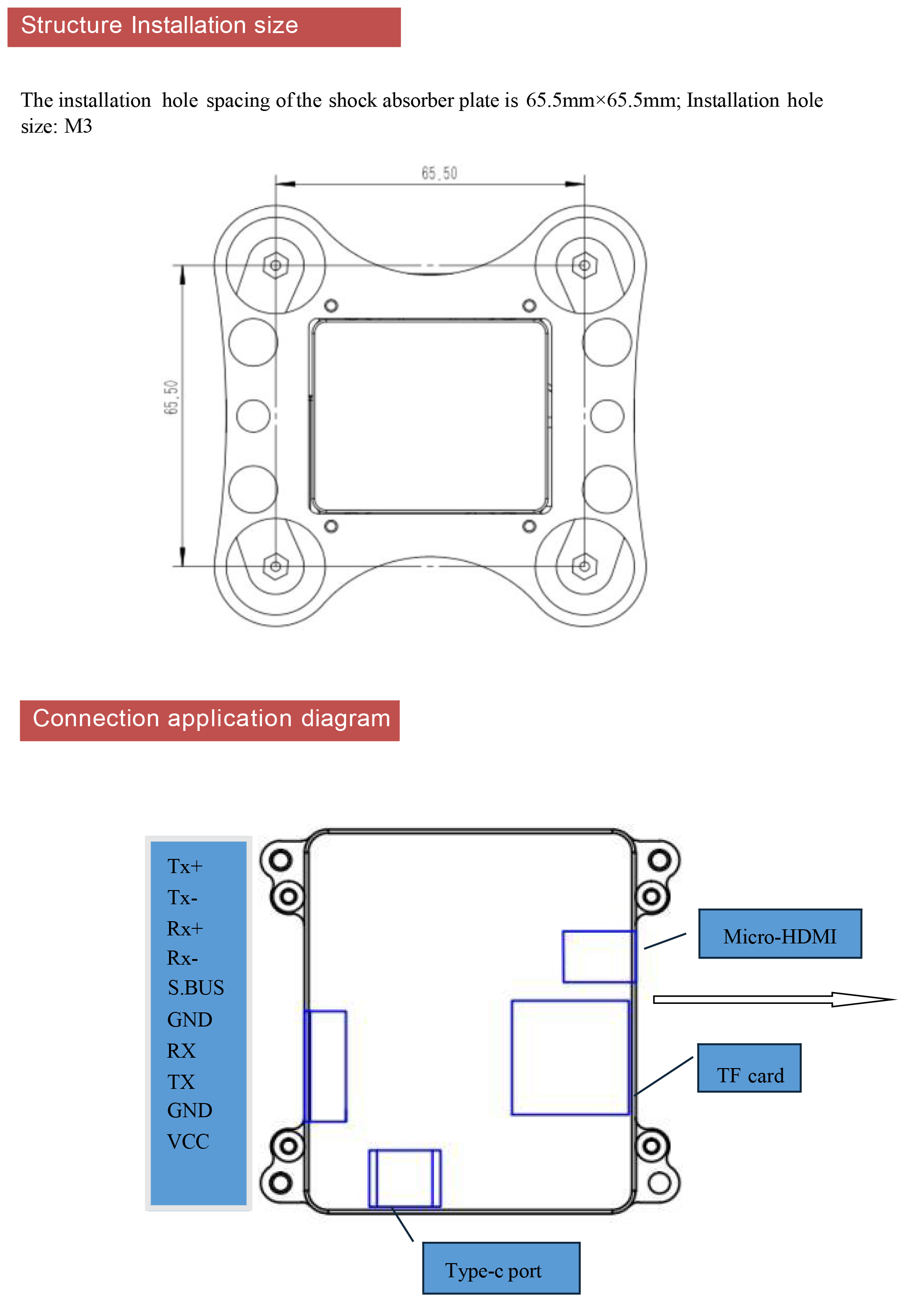

Key specifications include: installation size 65.5mm; connection ports include Tx+/Tx-, Rx+, Micro-HDMI, Rx-, SBUS, GND, RX, TX, TF card slot, with VCC and GND power supplies, as well as a Type-C port.
