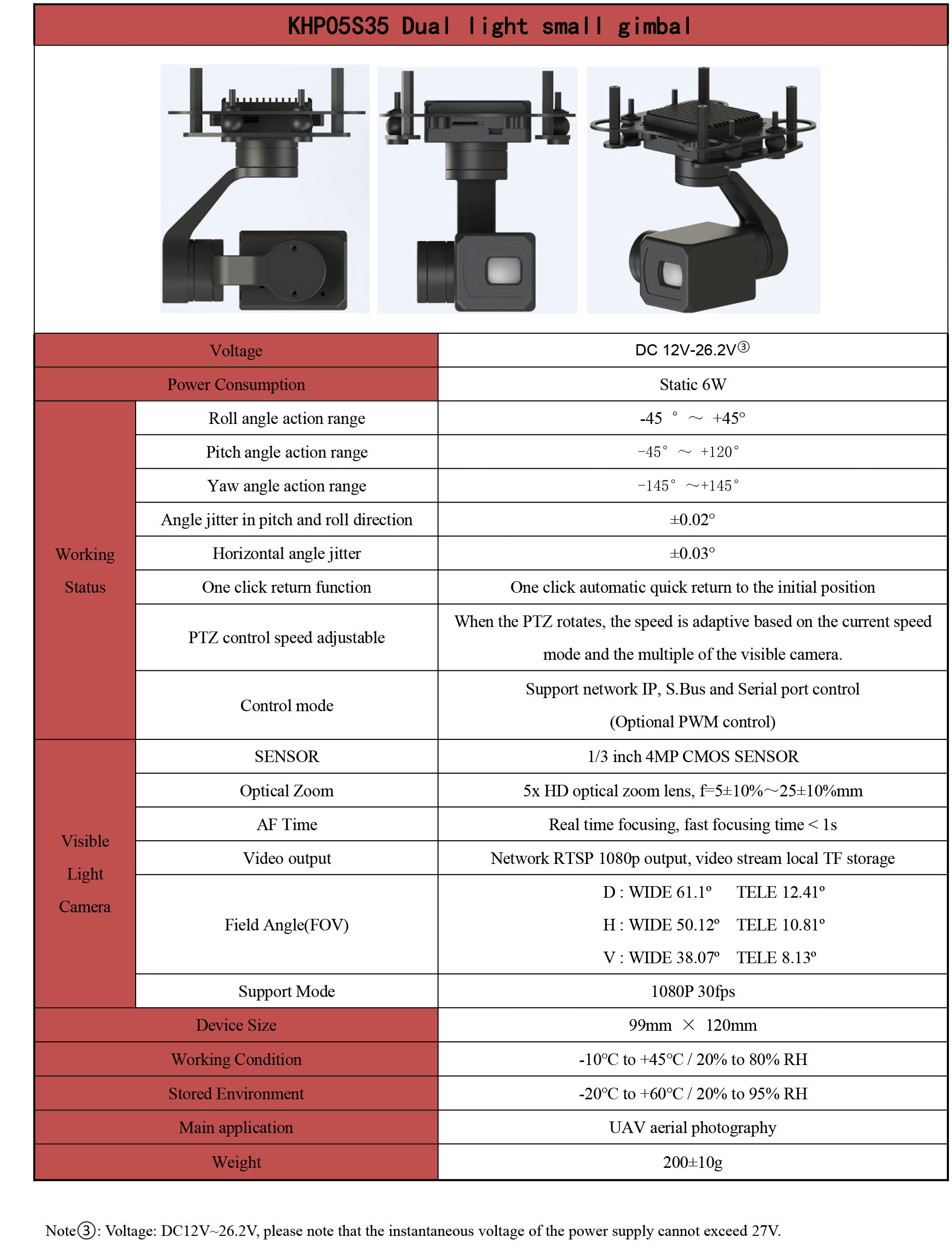

TOPOTEK KHP05S35 Gimbal Specifications
| Parameter | Specification |
|---|---|
| Voltage | DC 12V-26.2V |
| Power Consumption | Static 6W |
| Roll angle action range | -45° ~ +45° |
| Pitch angle action range | -45° ~ +120° |
| Yaw angle action range | -145° ~ +145° |
| Angle jitter in pitch and roll direction | ±0.02° |
| Horizontal angle jitter | ±0.03° |
| One click return function | One click automatic quick return to the initial position |
| PTZ control speed adjustable | Adaptive speed based on current speed mode and camera zoom |

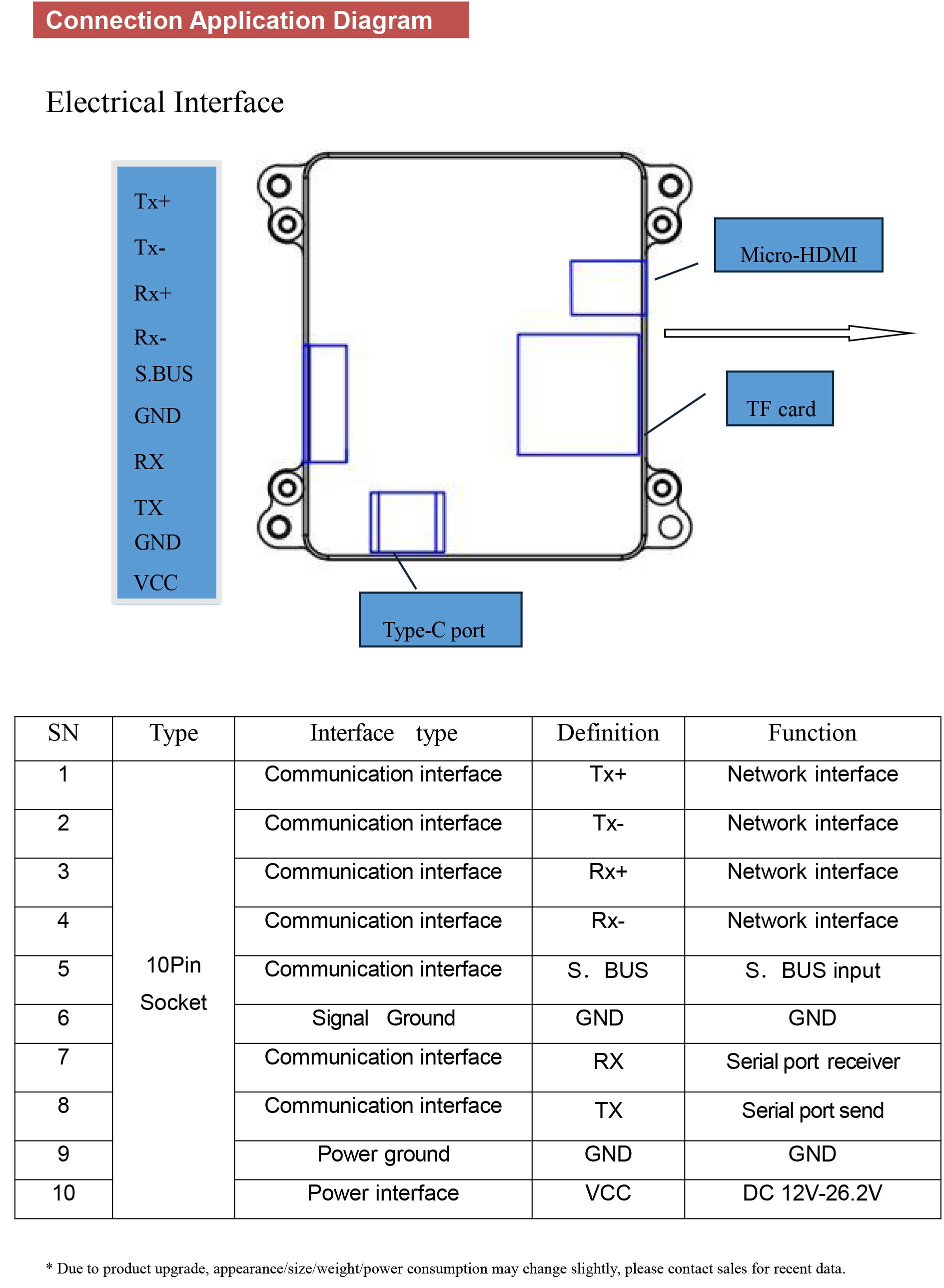

| Control mode | Support network IP, S.Bus, and Serial port control (Optional PWM control) |
| SENSOR | 1/3 inch 4MP CMOS SENSOR |
| Optical Zoom | 5x HD optical zoom lens, f=5±10%~25±10%mm |
| AF Time | Real-time focusing, fast focusing time < 1s |
| Video output | Network RTSP 1080p output, video stream local TF storage |
| Field Angle (FOV) | D: WIDE 61.1° |
| Support Mode | 1080P 30fps |

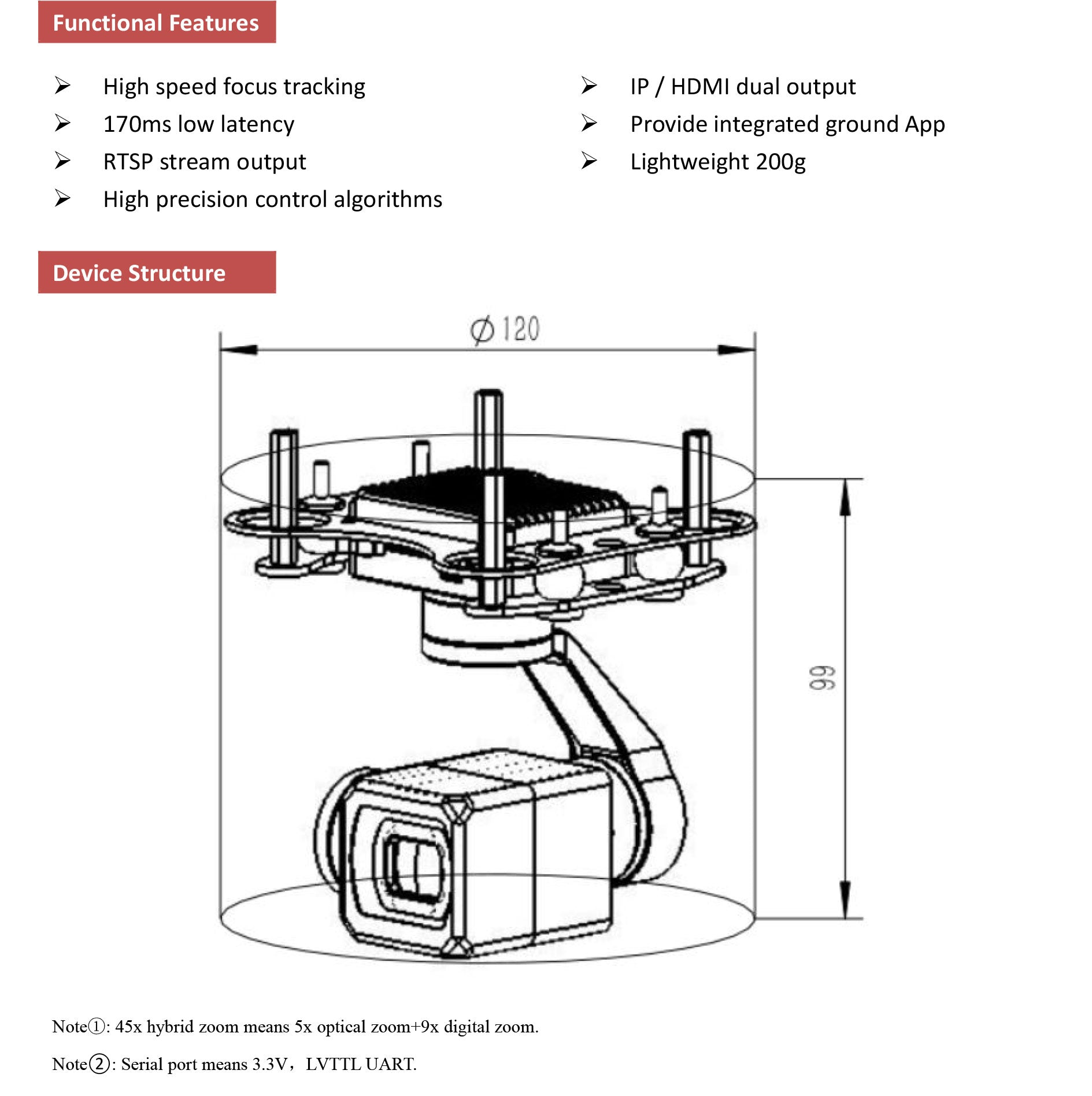

| Device Size | 99mm x 120mm |
| Working Condition | -10°C to +45°C / 20% to 80% RH |
| Stored Environment | -20°C to +60°C / 20% to 95% RH |
| Main application | UAV aerial photography |
| Weight | 200±10g |
TOPOTEK KHP05S35 Dual Light Small Gimbal Description
The KHP05S35 is a compact, single-zoom gimbal featuring a 45x hybrid zoom camera (5x optical + 9x digital) paired with a professional-grade 3-axis stabilization PTZ. Designed for high performance, it offers dual IP and HDMI outputs and can be controlled via IP with a high-precision encoder FOC control scheme PTZ. Its lightweight, compact design ensures high stability and low power consumption. The visible light camera is equipped with a sensor boasting an effective pixel count of 4 million. The gimbal and camera can be controlled through serial ports, S.BUS, and network interfaces. Additionally, it supports local TF dual-channel recording and photography.
This camera features high-speed focus tracking, IP HDMI dual output, and low latency. It also provides integrated ground app RTSP stream output and has a lightweight design weighing only 200g. The device uses high-precision control algorithms for smooth operation.
The TOPOTEK KHP05S35 Dual Light Small Gimbal features a hybrid zoom camera with 45x optical + 9x digital zoom. It has 3-axis stabilization for smooth video capture and supports PTZ (Pan-Tilt-Zoom) control. The gimbal operates on a DC voltage of 12V-26.2V, with power consumption at 6W. It has a roll angle range of -45 to +450 degrees, pitch angle range of -45 to +120 degrees, and yaw angle range of -145 to +145 degrees. The camera has a 1/3 inch 4MP CMOS sensor and an optical zoom lens with a focal length of f5-10% and aperture of 25-10mm. It also features real-time focusing and fast focusing time of 1 second. The gimbal supports various control modes, including network IP, S.Bus, and serial port control.
