SPECIFICATIONS
Wheelbase: Bottom Plate
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Tires
Tool Supplies: Battery
Technical parameters: KV1100
Size: As show
Remote Control Peripherals/Devices: Remote Controller
RC Parts & Accs: AXLE
Model Number: TSHD10T3
Material: Metal
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes

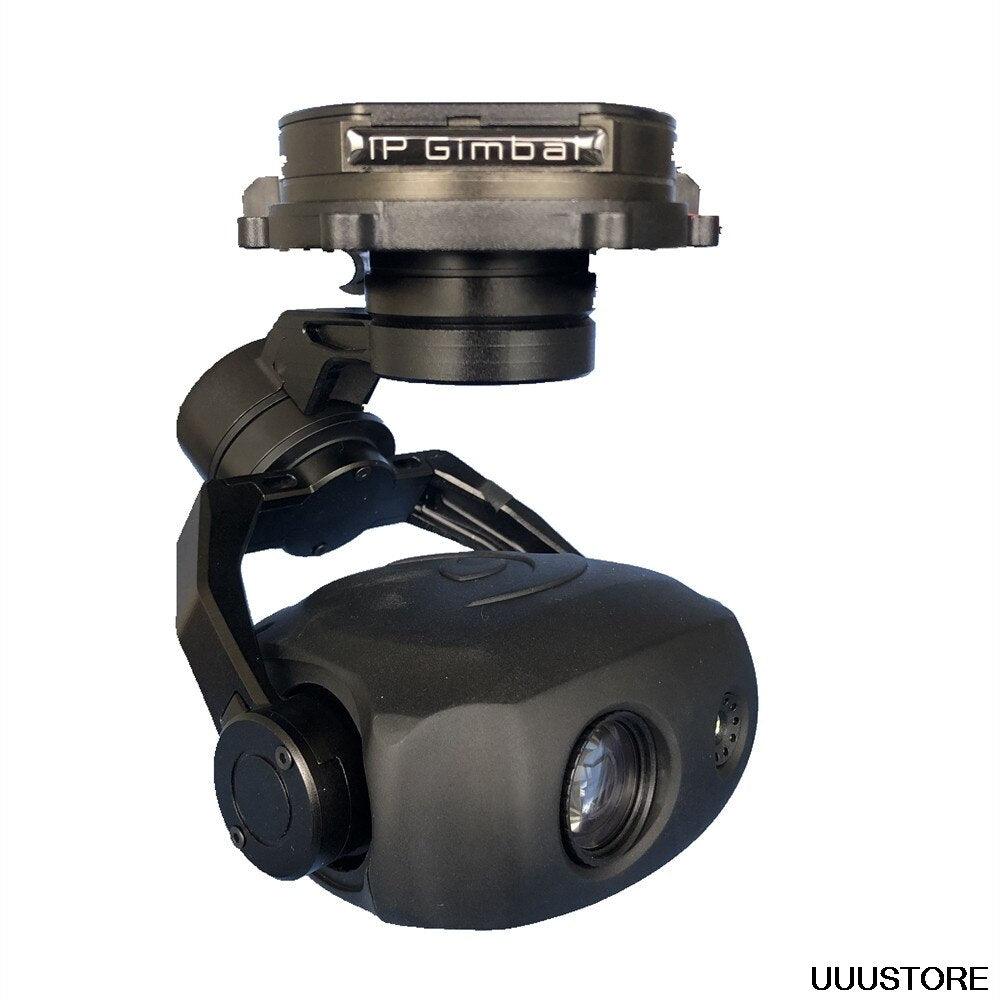

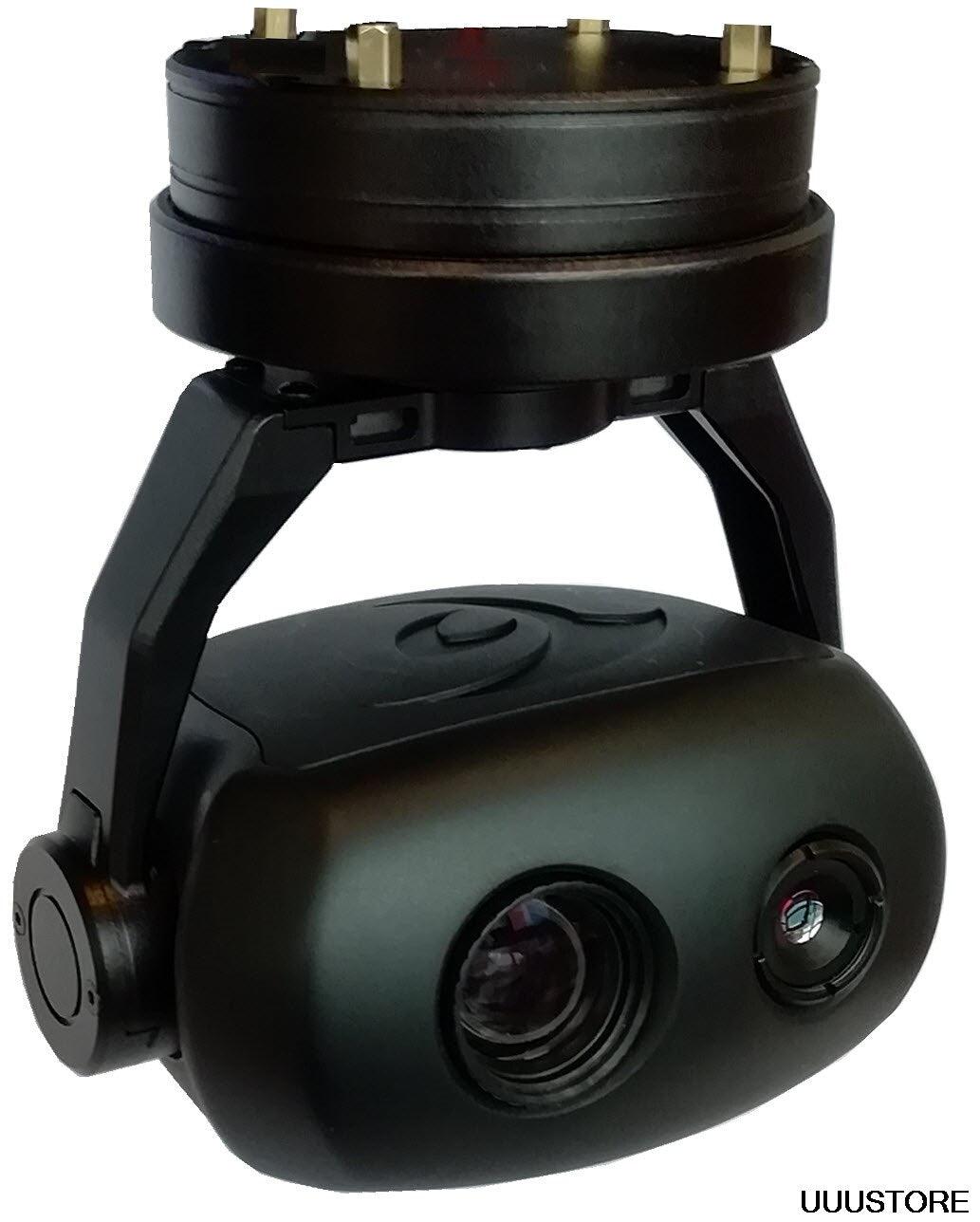

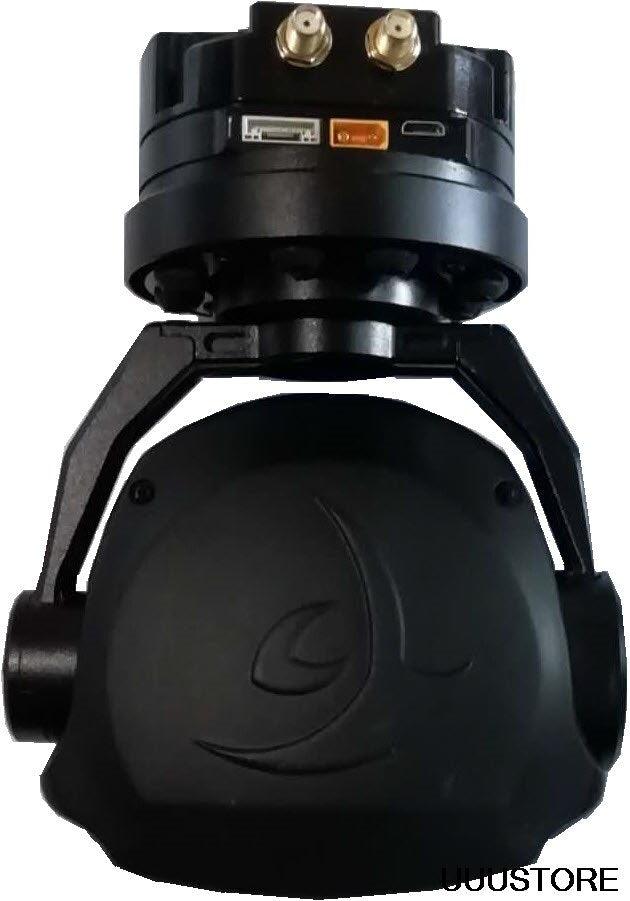

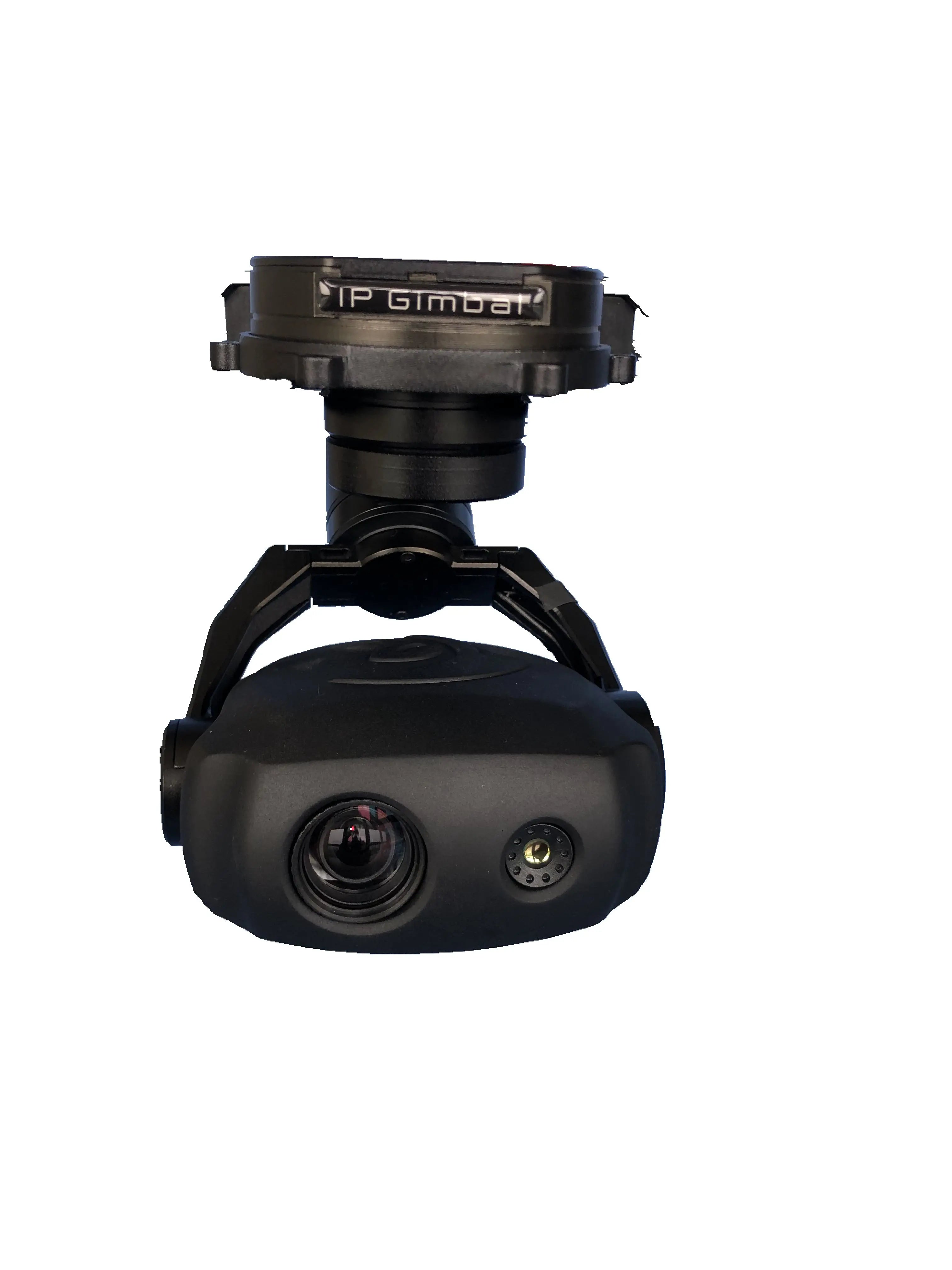

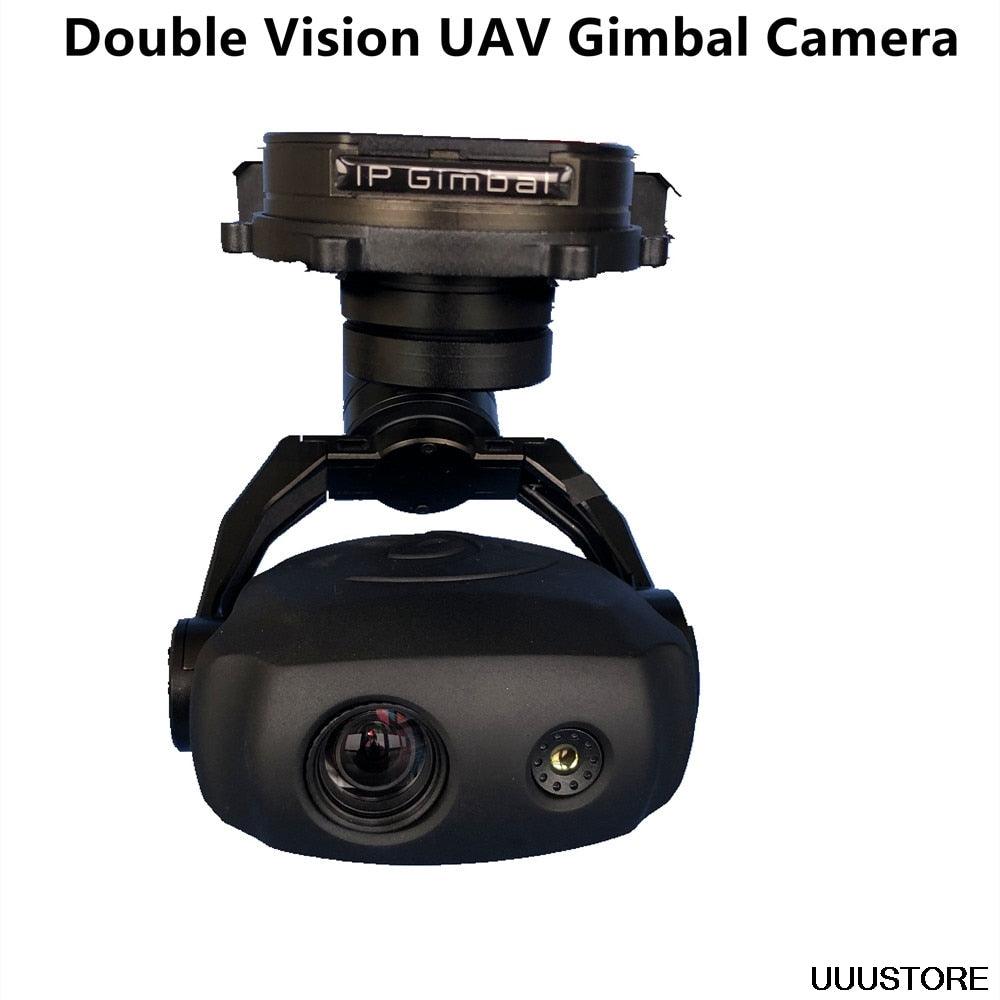

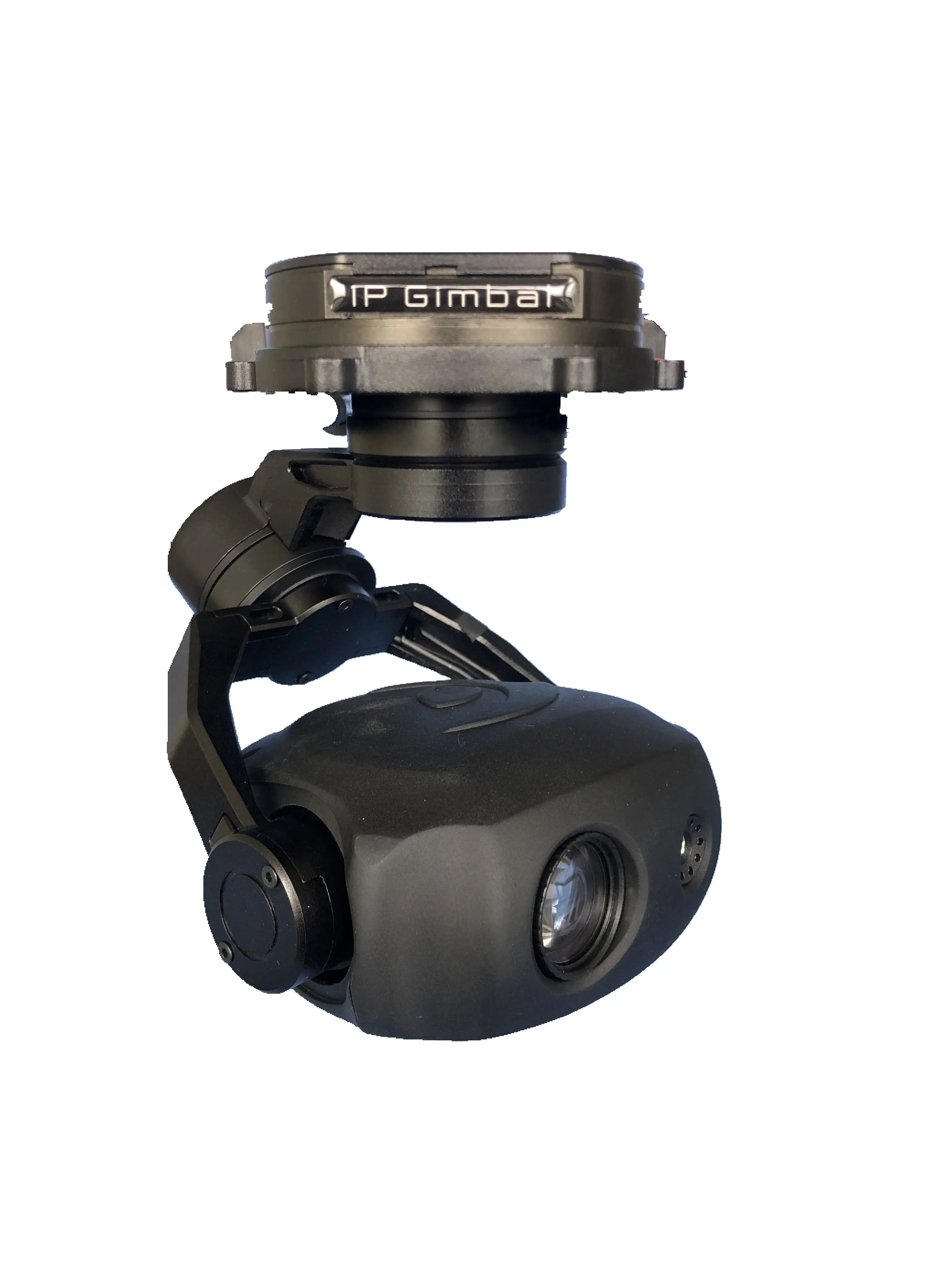

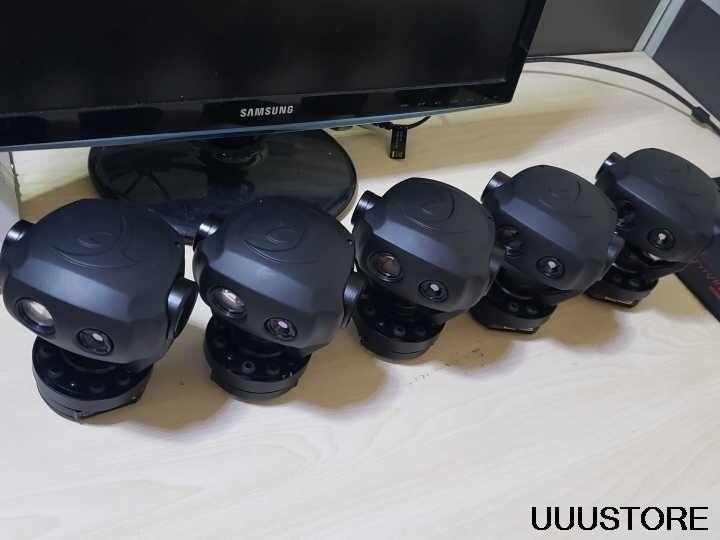

TSHD10T3 three-axis 10x optical zoom Infrared thermal imaging + visible HDMI camera for UAV FPV drone
The TSHD10T3 is a zoom dual-optical integrated system with integrated 10x optical zoom camera, thermal imaging, high-precision professional three-axis stabilization cloud, with high-precision encoder FOC control scheme, high stability, small size, light weight and strong function; The system supports HDMI picture-in-picture output, local TF storage, dual-synchronous recording, pseudo-color switching, temperature measurement, support for a variety of picture-in-picture modes.
- Working Environment: -10 ° to + 45 ° / 20% to 80% RH
- Storage conditions: -20 ° to + 60 ° / 20% to 95% RH
- Transportation: the pod after wrapping is complete, to meet the aviation, road, rail and waterway transport requirements.
Visible light camera parameters:
- SENSOR pixels: 400 million pixels
- Focal length: f = 4.9to49 mm ± 5%
-
Angle of view (FOV):
- D: WIDE 66.6º ± 5% TELE 7.2º ± 5%
- H: WIDE 53.2º ± 5% TELE 5.3º ± 5%
- V: WIDE 399.8º ± 5% TELE 4.2º ± 5%
- Zoom: motorized optical zoom 10x
- Zoom: electric zoom and continuously adjustable
-
Image and video storage format:
- Image: jpeg format; choose from a variety of pixel
- Video: mp4 format; 1080P or 720P to choose from
Thermal infrared camera parameters:
- Detector Resolution: 320 * 240
- Pixel pitch: 12μm
- Wavelength range: 8 ~ 14μm
- Type: Uncooled micro-bolometer
- Thermal sensitivity NETD: -5 ° to 150 ° (5% accuracy)
- Field of view: 6.5mm lens, angle: 34.4 x 25.8
- Refresh rate: 9Hz
-
Image and video storage:
- Image: 320 * 240
- Video: 320 * 240
Voltage | 3S or 6S (DC 1 2 V -26V ) | ||
power | Dynamic 1 2 W | ||
Working characteristics | Rolling angle range | -45°~ +135° | |
Pitch angle range | – 120 ~+ 120 ° | ||
Heading angle range | -150°~+150° | ||
Angle and roll angle angle jitter | ±0.02° | ||
Horizontal angle jitter | ±0.03° | ||
One-click back function | One-click automatic rapid return to the initial position | ||
PTZ control speed adjustable | Support angle and speed control When the pan/tilt is rotated, the speed is adaptive based on the current speed mode and the visible light camera multiple. | ||
Storage TF card | Support 16G to 128G class10 TF card | ||
control method | Support UART control and SBUS control | ||
| Characteristics | HDMI picture-in-picture switching, pseudo color switching, temperature measurement | |
White light camera parameters | CMOS size | 1/3 inch 4 00 megapixel CMOS SENSOR | |
optical zoom | 10x HD optical zoom lens, f= 4.9 to 49 mm | ||
Focusing time | Real-time fast focus function, focus time <1S | ||
Video output | HDMI 1080P 60FPS , video stream local TF storage | ||
Field of view (FOV) | D : WIDE 66.6o ± 5% TELE 7.2o ± 5% H : WIDE 53.2o ± 5% TELE 5.3o ± 5% V : WIDE 39.8o ± 5% TELE 4.2o ± 5% | ||
Support mode | 1080P 60fps | ||
Thermal Imaging | Resolution | 320*240 pixel | |
Pixel spacing | 12 μ m | ||
Types of | Uncooled focal plane microbolometer | ||
Wavelength range | 8 to 14 μm | ||
Thermal sensitivity (NETD) | ≤65mk@30°C | ||
Contrast, brightness | Adjustable | ||
Field of view | 6.5mm lens, angle: 34.4 x 25.8 | ||
Measurement function | Center point, highest temperature and lowest temperature display temperature function; | ||
Overall size | 108mm*150mm*180mm | ||
working environment | -10 °C to +45 °C / 20% to 80% RH | ||
Storage environment | -20 °C to +60 °C / 20% to 95% RH | ||
main application | Drone aerial photography | ||
weight | 610 ± 20 grams |
