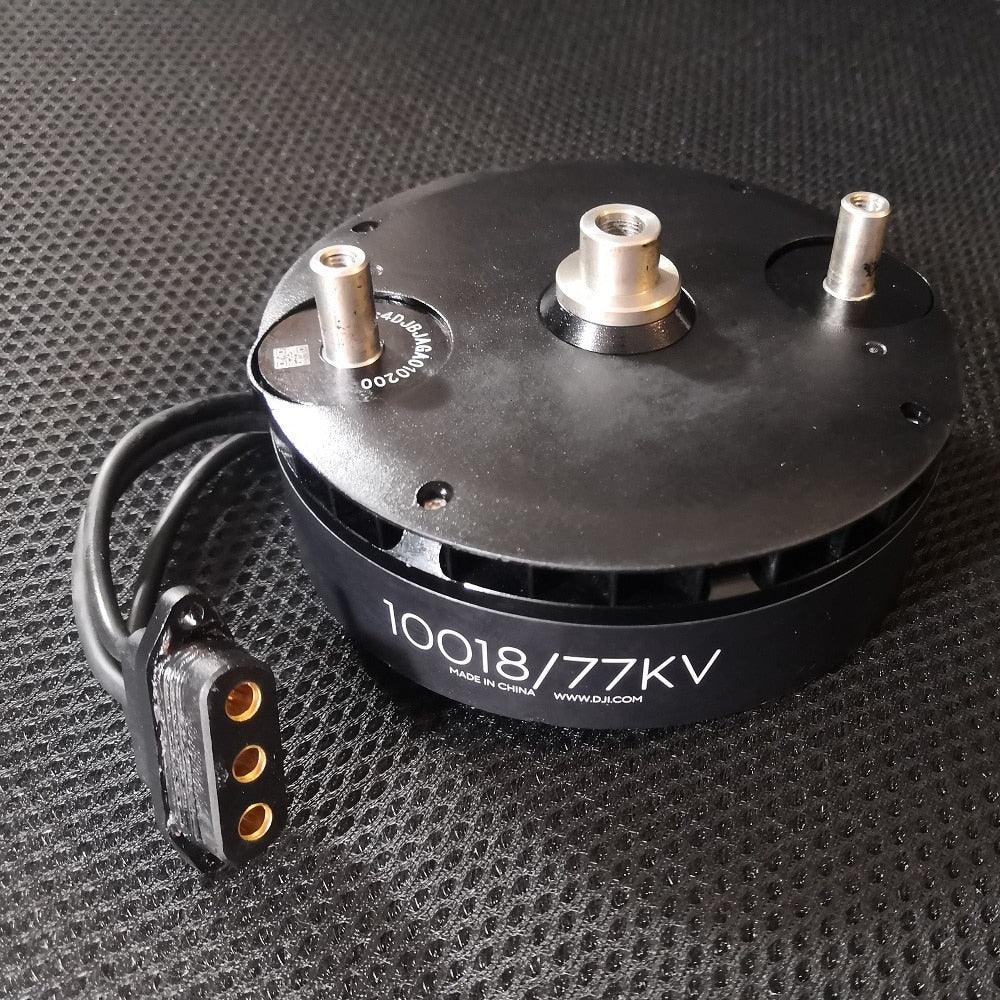

T30(10018) DJI Brushless Motor SPECIFICATIONS
Origin: Mainland China
Model Number: T30
Brand Name: MAXUAV
10018 DJI Brushless Motor 77kv Aircraft Plant Protection UAV T30 Motor Accessories Drone T30 Engine Parts Airplane
Model condition: Used Drone disassembly motor，all the functions could be work well
Model:T30(10018)
Stator size:100*18mm
Motor Diameter: 150mm
Motor height:30mm
Configuration:36N42P
Wire：16# silica gel wire 15mm in length
Protection grade：IP55
kv：77kv
Motor weight：616g
NO load current(18v)：1A
Interphase resistance:22mΩ
Max current(180s):100A
Max Power(180s):2400W
Maximum pulling force:13.5KG
Battery:10-14S Lipo
POP:3390
ESC:FLAME 100A, ALPHA 100A HV
Four axis flight parameters
Standard takeoff weight
39.5kg (16L medicine box)
Maximum effective takeoff weight
40.5kg (near sea level)
Packing include:
1pc T30 brushless motor
