SPECIFICATIONS
Wheelbase: Upper Shell
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Shock Absorber
Tool Supplies: Assembled class
Technical parameters: KV1100
Size: As description
Remote Control Peripherals/Devices: ESC
Recommend Age: 18+
RC Parts & Accs: Radio Systems
Quantity: 1 pcs
Origin: Mainland China
Model Number: 61688
Material: Composite Material
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes

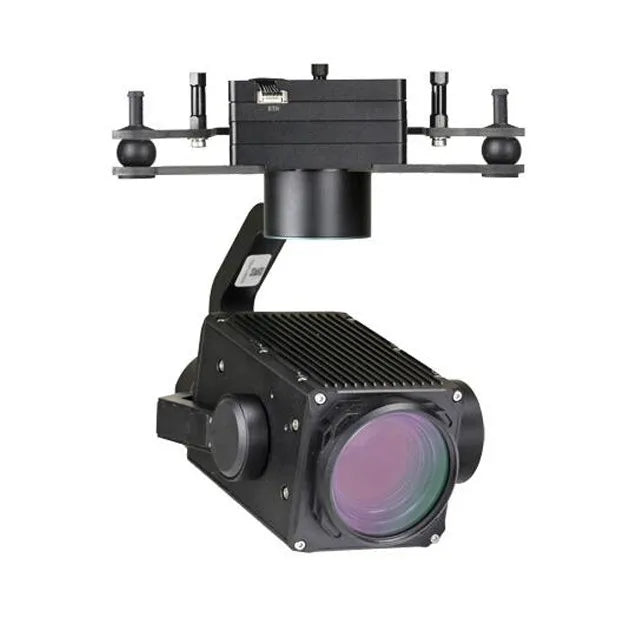

T30-Pro 30X Optical Zoom PTZ 2MP Pixels w/ HDMI Output 1080P Tracking Function Z30P1

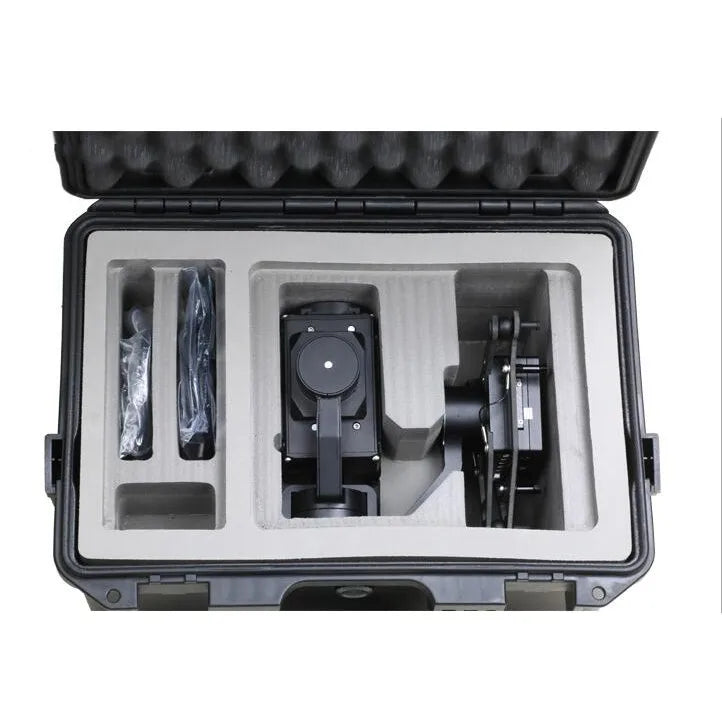

Package Included:
– 1 x PTZ Main Unit HDMI Version
– 1 x Parameters Setting Module
– 1 x PTZ Power Cord
– 1 x S.Bus Receiver Cable
– 1 x Serial Cable
– 1 x Micro-USB Cable
– 1 x Video Output Debugging Module
– 1 x Micro-SD Memory Card 32GB
Description:

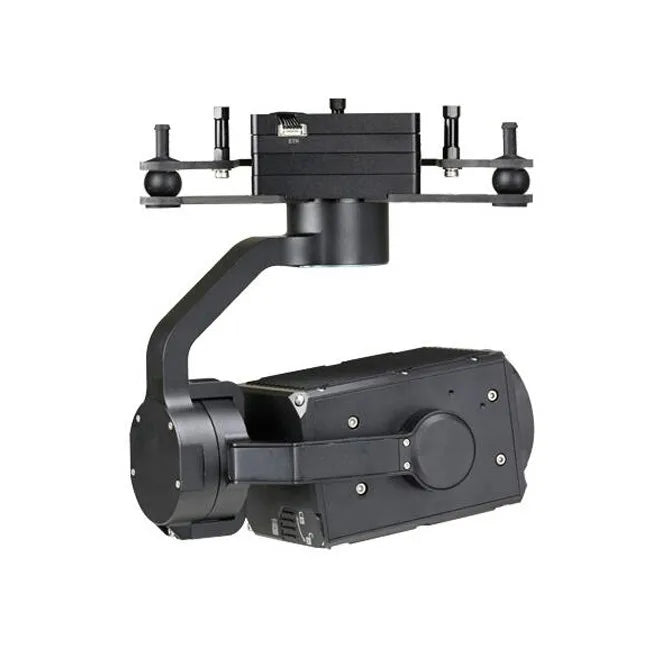

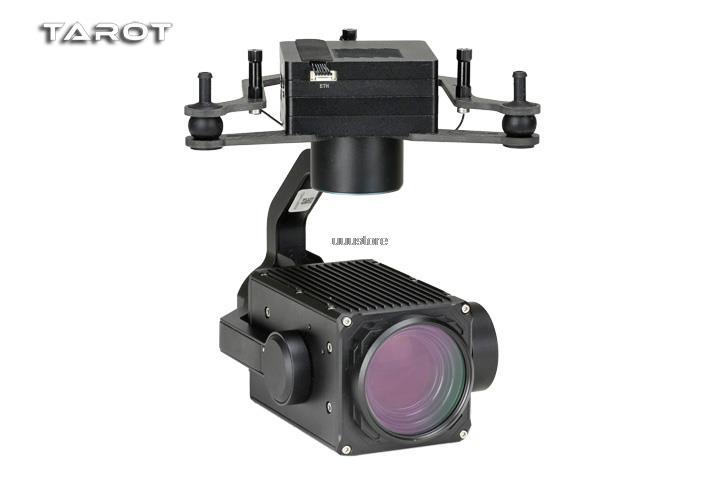

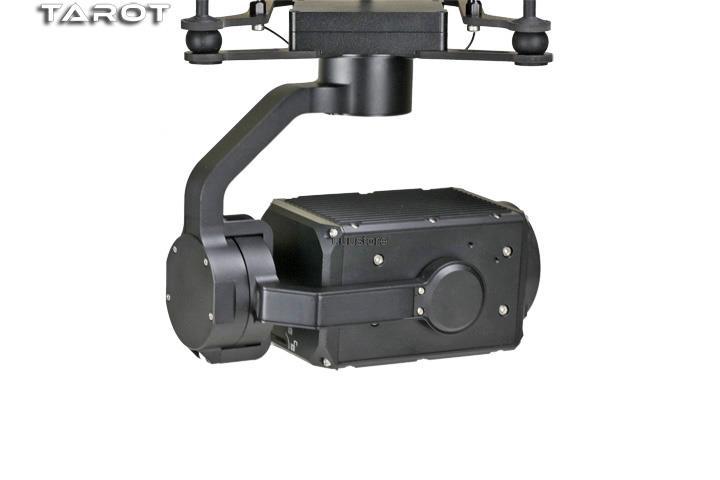

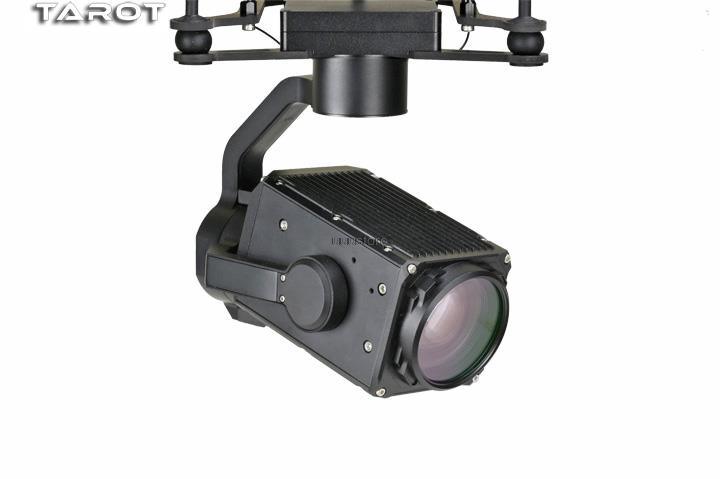

The T30-Pro is a three-axis optical zoom PTZ developed for industrial applications. It is equipped with a 30X optical zoom lens and a high-performance 1/2.8” CMOS sensor with a maximum real-time recording resolution of 2.16 million. It has built-in high-precision sensor module and integrated servo-driven module for stabilization and stability. The image stabilization accuracy is up to 0.01°. It can be widely used in electric power inspection, security and search and rescue industries.
Features:
– Equipped with a professional 30X optical zoom camera
– Three-axis image stabilization
– Leading dedicated decoupling attitude algorithm
– Highly optimized servo motor vector control algorithm
– Control frequency up to 5000Hz
– Stabilization accuracy of ±0.01°
– All aluminum alloy structure design features light and sturdy, good heat dissipation performance
– HDMI video output interface
– Support intelligent tracking
Functions:
– Video Output: HDMI (1080P 30FPS)

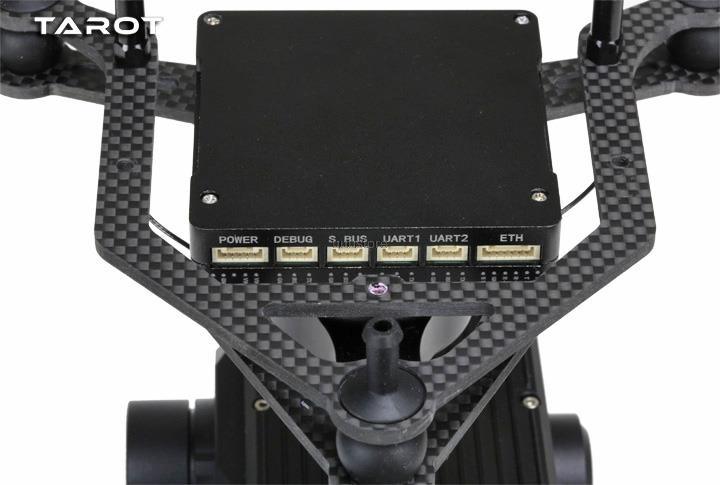

– Supported Control Mode: UART (TTL), S.Bus
– Advanced Function: Intelligent Tracking
Technical Parameters:
– Sensor Size: 1/2.8” CMOS
– Pixels: 2.16MP
– Video Resolution: 1080P@30fps
– Optical Zoom: f:4.7 ~141mm
– FOV (Horizontal): 60~2.3°
– Minimum Illumination: Colorful: 0.05Lux/F1.5; Black & White: 0.005Lux/F1.5
– Video Compression Mode: H.265/H.264/H.264H
– Memory Function: Support TF Card up to 128G
– Stabilization Accuracy: ±0.01°
– Max. Controllable Speed:
PAN: ±200°/S
TILT: ±200°/S
– Controllable Rotation Range:
PAN: ±360°Continuous
TILT: -120 to 30°
– Working Environment: -20 to 60℃
– Storage Environment: -20 to 70℃
– Humidity: ≤85% (Non-condensing)
– Working Voltage: 20 to 52V
– Average Power Consumption: 8.0W

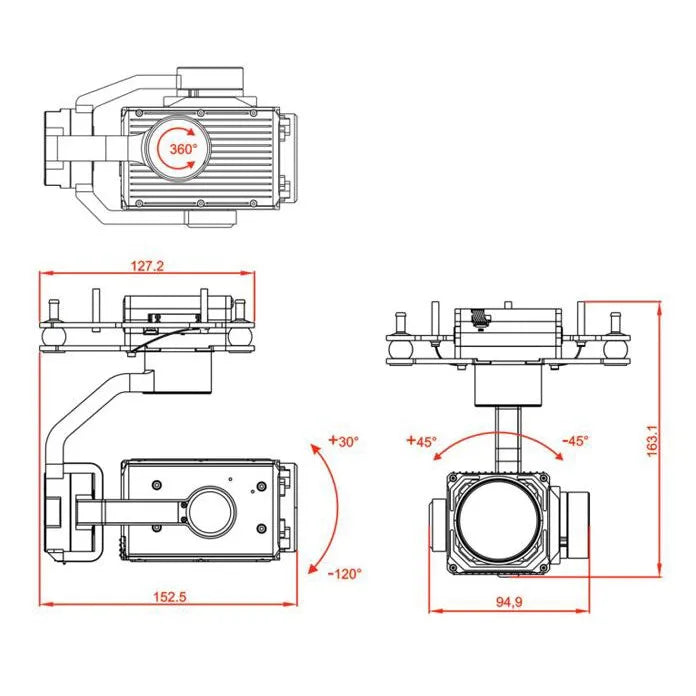

– Dimensions: 152 x 144 x 162mm
– Weight: 675g
