T-motor V505-S KV260 SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Technical parameters: Value 2

Remote Control Peripherals/Devices: ESC

Recommend Age: 18+

RC Parts & Accs: Motors

Origin: Mainland China

Material: Metal

For Vehicle Type: Helicopters

Brand Name: T-MOTOR

SHARP TAKEOFF V6o5kto STEADY LANDING V series is the motors designed for VTOL power system . big pull-to-weight ratio, strong over- load ability & environment adaptiveness features .

Suggested Thrust Propeller Recommendation: 16×8 or 16×10 inches. Recommended Wing-Mounted VTOL ESC: 14.2V – 52V.

Note that a performance reduction of approximately 25% may occur when used in a coaxial configuration. The motor’s maximum thrust rating is approximately 8.7 kg, with an adequate power reserve.

Featuring special high-temperature resistant enameled wire and curved magnets, this motor strengthens its passive heat-resistant ability through a centrifugal fan structure.

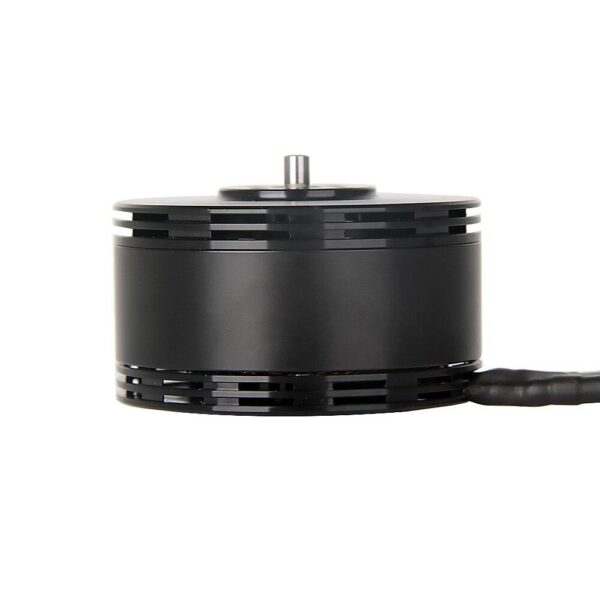

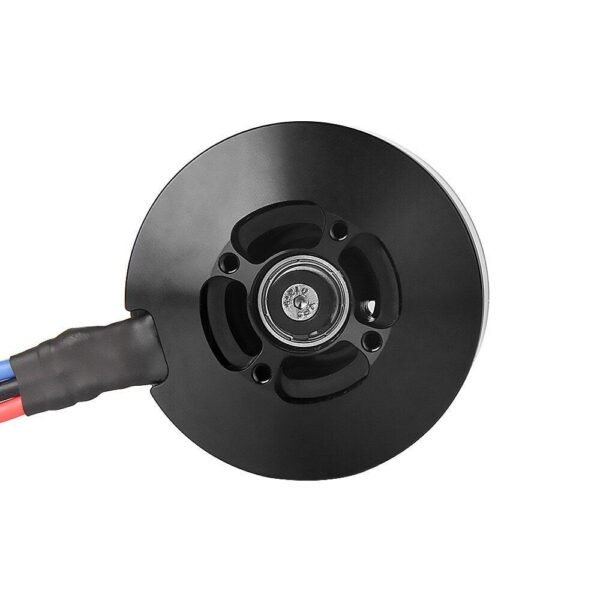

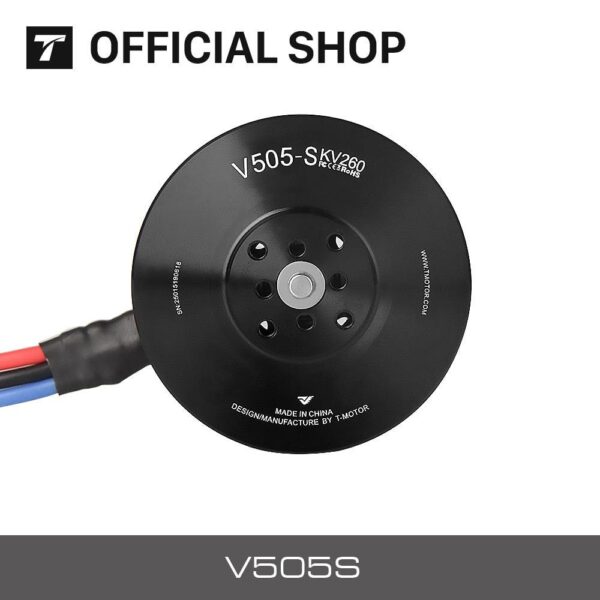

Product Specifications: T-motor V505-S KV260 12S 8.7KG Thrust Motor for UAV Drone Helicopter.

Key Features:

* Dimensions: 55.6mm x 38.9mm
* Internal Resistance: 58mΩ
* Lead Wire: 16AWG, 1 meter long
* Configuration: 24N28P
* Shaft Diameter:
+ Inner: 6mm
+ Outer: 4mm
* Rated Voltage (Lipo): 12.5V
* Idle Current (1S/V): 1.5A
* Peak Current (2x80s): 52A
* Flame Resistant Material: HV+, P16 (5.4mm)
* Maximum Power (1 hour): 2500W
* Recommendation: P22 x 6.6 (please note that this may require further clarification)

This package includes one T-motor V505-S motor and one parts bag (KV260). Please inspect your package contents to ensure everything is included before use. If you find any missing items, please contact our online customer service.
