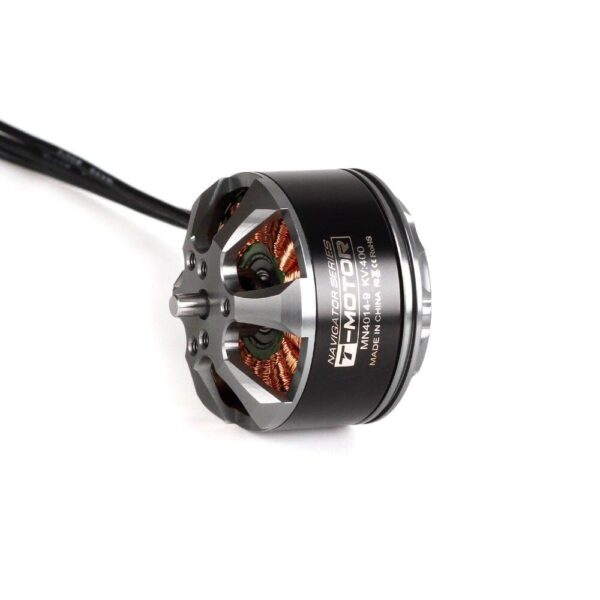

T-motor MN4014 KV330 KV400 Outrunner Brushless Motor SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Recommend Age: 14+y

RC Parts & Accs: Motors

Origin: Mainland China

Model Number: MN4014 KV330 KV400

Material: Metal

For Vehicle Type: Helicopters

Brand Name: T-MOTOR

a high quality, smooth running, durable brushless motor built for multirotor UAV application . the custom assembly methods and components unique to Navigator series to provide the reliability required for & dependable aerial platform.

The motor features a robust propulsion system, ensuring reliable performance for dependable aerial applications.

The T-Motor MN4O series motors feature twice as large bearings as those in similar-sized motors, ensuring a smoother performance at low speeds through the use of high-precision, oversized ball bearings designed specifically for applications like the CN4014 LM2TQR.

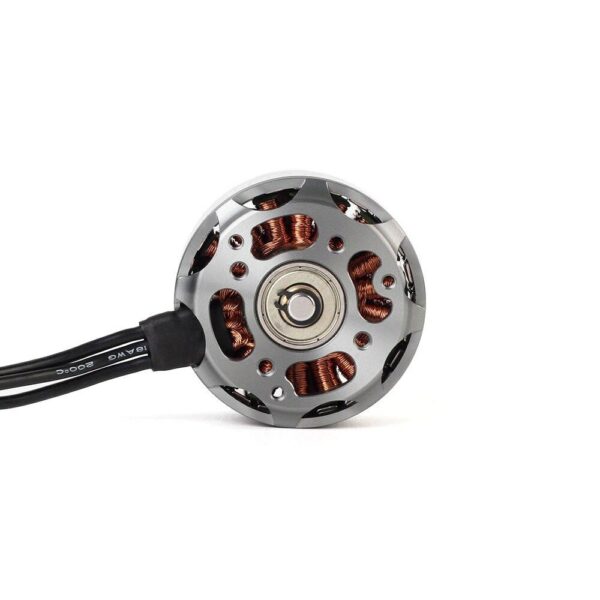

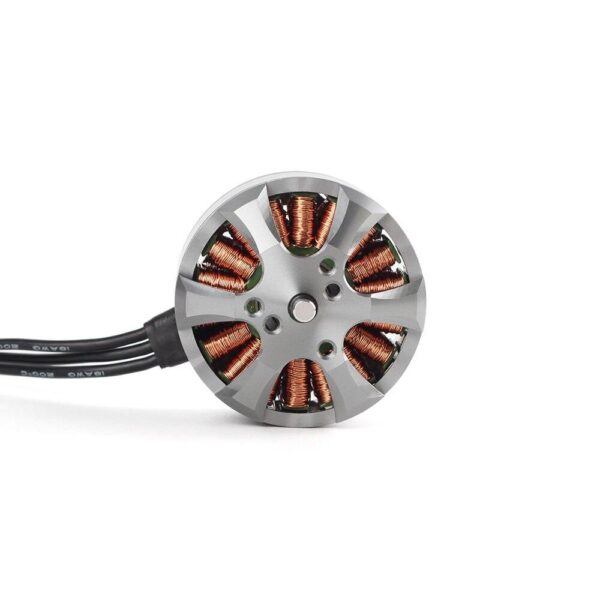

Featuring flexible mount holes, this design accommodates various frame configurations and allows for easy installation of standard-sized main props (25x25mm) on most frames. Additionally, it includes three mounting holes compatible with DJI S800, ensuring seamless integration with other relevant parts.

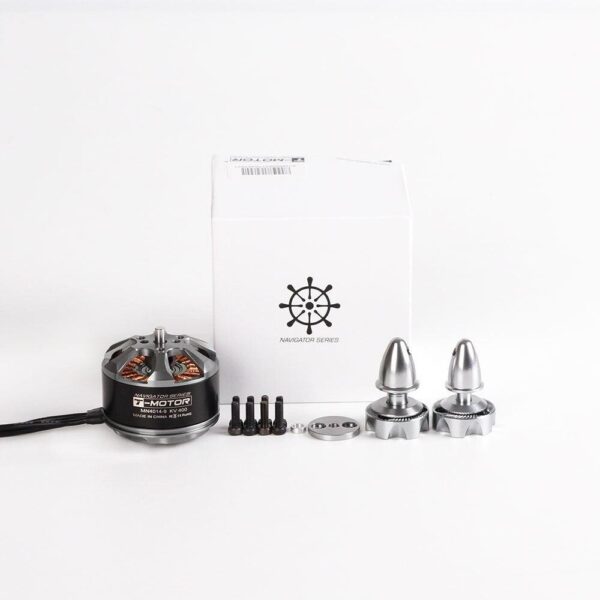

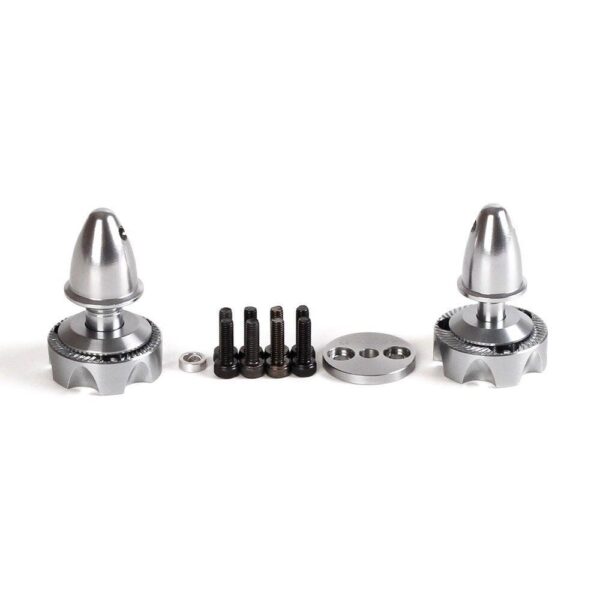

The package includes two sets of prop adapters, one for M6 and one for M8, as well as eight screws (M3 x 12mm) for installing T-motor CF props onto the plate cover.

Installation instructions are provided for M6 propeller installation, including a flat cover for use with a carbon fiber (CF) prop adapter.

Test Report: MN4014 KV330 (Report Number: MN.00026)

Specifications:

* Internal Resistance: 0.085 ohms
* Configuration: Outrunner, 18N24P
* Shaft Diameter: 4 mm
* Motor Dimensions: 44.7 mm x 34.5 mm
* Stator Diameter: 40 mm
* Stator Height: 14 mm
* AWG (American Wire Gauge): 18#
* Cable Length: 600 mm
* Weight (including cables): 171 g
* Weight (excluding cables): 150 g
* Number of Cells (Lithium-Ion): -85
* Idle Current at 10V: 1.1 A

Test Report: MN4014 KV400 Motor Specifications:
Internal Resistance: 0.67 mOhms
Configuration: 18N24P (polarity)
Shaft Diameter: 4 mm
Motor Dimensions: 44.7 mm x 34.5 mm
Stator Diameter: 40 mm
Stator Height: 14 mm
AWG Cable: #18, Length: 600 mm
Weight with Cables: 171 g
Weight without Cables: 150 g
Number of Cells (Lipo): Not specified
Idle Current @ 10V: [Not provided]
