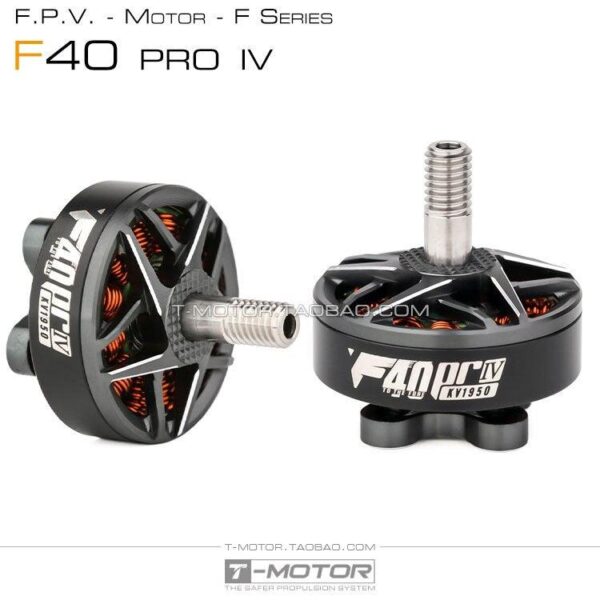

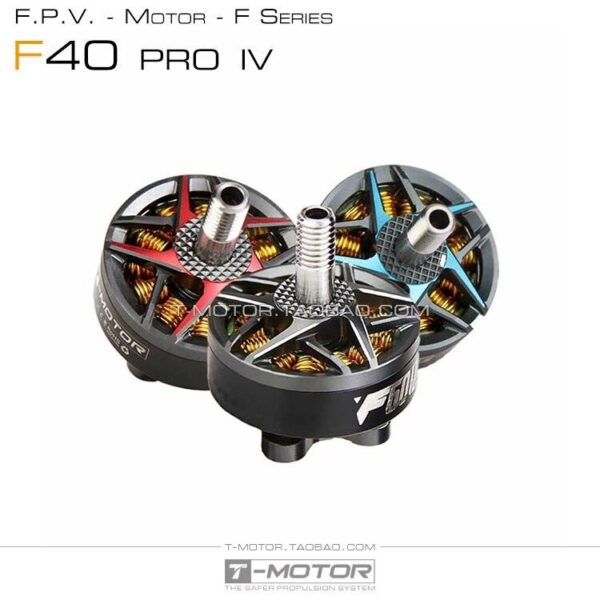

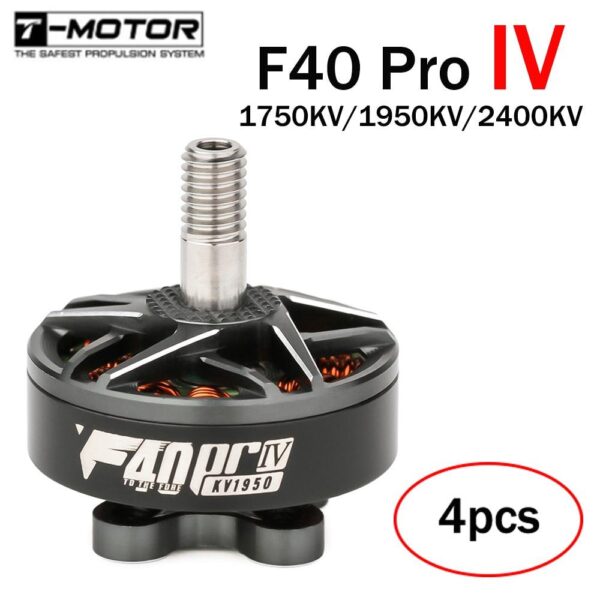

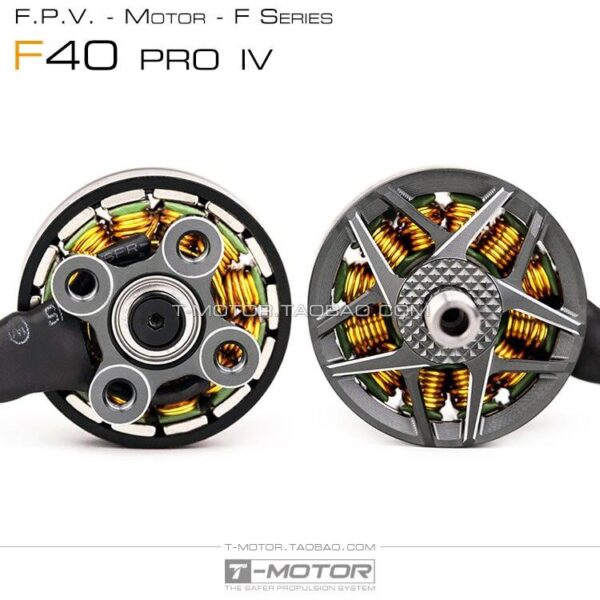

T-motor F40 PRO IV Motor - 1950KV 2400KV Brushless Electrical Motor Max Thrust 1.5KG For FPV Racing Drone FPV Freestyle Frame
T-motor F40 PRO IV Motor - 1950KV 2400KV Brushless Electrical Motor Max Thrust 1.5KG For FPV Racing Drone FPV Freestyle Frame - Image 2
T-motor F40 PRO IV Motor - 1950KV 2400KV Brushless Electrical Motor Max Thrust 1.5KG For FPV Racing Drone FPV Freestyle Frame - Image 3
T-motor F40 PRO IV Motor - 1950KV 2400KV Brushless Electrical Motor Max Thrust 1.5KG For FPV Racing Drone FPV Freestyle Frame - Image 4
T-motor F40 PRO IV Motor - 1950KV 2400KV Brushless Electrical Motor Max Thrust 1.5KG For FPV Racing Drone FPV Freestyle Frame - Image 5
T-motor F40 PRO IV Motor - 1950KV 2400KV Brushless Electrical Motor Max Thrust 1.5KG For FPV Racing Drone FPV Freestyle Frame - Image 6

T-motor F40 PRO IV Motor – 1950KV 2400KV Brushless Electrical Motor Max Thrust 1.5KG For FPV Racing Drone FPV Freestyle Frame

$47.64 – $151.03

+ Free Shipping
1 PCS Red 2400KV1 PCS Blue 2400KV1 PCS Red 1950KV4 PCS Red 2400KV1 PCS Blue 1950KV4 PCS Red 1950KV4 PCS Blue 2400KV1 PCS Gray 2400KV4 PCS Blue 1950KV4 PCS Gray 2400KV1 PCS Gray 1950KV4 PCS Gray 1950KV
1 PCS Red 2400KV
1 PCS Blue 2400KV
1 PCS Red 1950KV
4 PCS Red 2400KV
1 PCS Blue 1950KV
4 PCS Red 1950KV
4 PCS Blue 2400KV
1 PCS Gray 2400KV
4 PCS Blue 1950KV
4 PCS Gray 2400KV
1 PCS Gray 1950KV
4 PCS Gray 1950KV
Clear
SKU: N/A Category:
Ask for more info

T-motor F40 PRO IV Motor SPECIFICATIONS

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Lithium Battery

Tool Supplies: Assembled class

Technical parameters: Value 2

Remote Control Peripherals/Devices: Motor

Recommend Age: 12+y

RC Parts & Accs: Motors

Quantity: 1 pcs

Origin: Mainland China

Model Number: F40 Pro III

Material: Metal

Four-wheel Drive Attributes: Motors

For Vehicle Type: Airplanes

Brand Name: NoEnName_Null

T-motor, LIGHTER & MORE AGILE Cornering More Durable Accurate Control 6 4T-motor, FAOPRO IV KV1950 Throttle: 100% Volt: 23.53

FAOPRO IV KV1950 Throttle: 100% Volt: 23.53V 1902g T5150 Tri-blade Current: 43.03A RPM: 30869RPM Max Thrust F4SA ESC Power: 1012.67W Power Ratio: 1.88 96*C after 100% throttle running 1 min (Ambient Temp: 30*C)

T-motor, F4SA ESC Power: 666.32W Power Ratio: 2.17

The F4SA ESC has a power output of 666.32 watts, with a power ratio of 2.17. After running at 100% throttle for one minute, the motor temperature reached 97 degrees Celsius (ambient temperature: 30 degrees Celsius).

T-motor, Customized Silicone Wire (0.3g Less) DURABLE Durability enhanced greatly

The motor features customized silicone wire, which has been optimized for durability. Specifically, this design includes an interlaced rib pattern on the base, reducing the shaft height to just 12mm. This results in a 0.3g weight reduction, making the motor even more durable.

T-motor, F40 PRO IV Motor SPECIFICATIONS Wheelbase : Screws Use T-motor, roptirpeeictounticg 0 the frames/arms T-motor, Product Drawing 29,8 027,9 016 4-M3 Specifications Test Item K

Product Drawing 29,8 027,9 016 4-M3 Specifications Test Item KV1950 Weight (Incl. Cable) 30.8g Motor Dimensions 027.9*29.8mm Interna Resistance 65mn Lead 20#AWG 150mm Configuration 12N14P Shaft Diameter 4mm Rated Voltage(Lipo) 4-65 Idle Current(1 OV) 1.34 Peak Current(60s)

T-motor, F40 PRO IV Motor SPECIFICATIONS Wheelbase : Screws Use T-motor, F40 PRO IV Motor SPECIFICATIONS Wheelbase : Screws Use T-motor, F40 PRO IV Motor SPECIFICATIONS Wheelbase : Screws Use

Color

1 PCS Red 2400KV, 1 PCS Blue 2400KV, 1 PCS Red 1950KV, 4 PCS Red 2400KV, 1 PCS Blue 1950KV, 4 PCS Red 1950KV, 4 PCS Blue 2400KV, 1 PCS Gray 2400KV, 4 PCS Blue 1950KV, 4 PCS Gray 2400KV, 1 PCS Gray 1950KV, 4 PCS Gray 1950KV
