Radiolink mini osd SPECIFICATIONS
Use: Vehicles & Remote Control Toys
Recommend Age: 12+y
Origin: Mainland China
Material: Composite Material

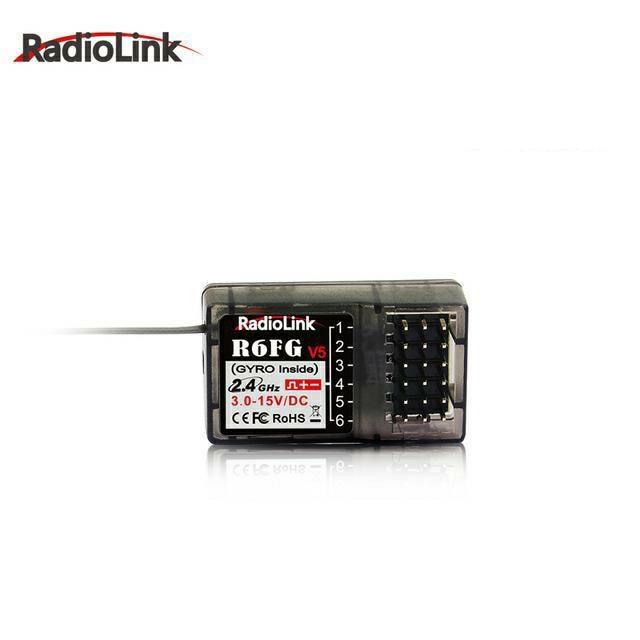

R6FG Features:
【Excellent Anti-interference】: pseudo random algorithm FHSS communication technology makes R6FG with stable signal and outstanding range over 1300 feet (400 meters).
【Integrated Gyro】: built-in gyro can keep the vehicle in a straight line, and Gyro sensitivity can be adjusted by transmitter, which fits for drifting and on-road cars.
【Superb Fast Response】: high resolution ratio of 4096, stable signal output to provide a fast response for rock crawler, truck, buggy, drifting, etc.
【Compact Case】: small size its save space effectively and works well for most of rc car receiver’s box.
【Simple Bind】: easy-to-use bind button, only 1 second to bind with your radio RC4GS/RC4GS V2/RC6GS V2/RC6GS/T8S/T8FB/RC8X.
Attention: R6FG default have not turn on the gyro function. Make sure the R6FG keep motionless when power on it, because the R6FG will do the self-test.
Working Mode：
1.Normal Working Mode– Green LED, gyro will not working.
2.Gyro Function Working Mode– Red LED on indicate.
3.Quick press the ID SET switch 3 times within 1 second, the LED change from green to red means gyro function has turn on.
R6FG Receiver Specifications:
Channel: 6
Model: Cars/boats
Control Distance: more than 400m
Spread Spectrum: FHSS
Antenna Length: 200mm
Work Current: 30mA
Work Voltage: 3~15V DC
RF Power: <10dbm
Channel Resolution: 4096
Size: 3*2*1.3cm
Weight: 6g
