SPECIFICATIONS
Brand Name: NoEnName_Null
Origin: Mainland China
Certification: CE
Model Number: Tiny1-C
Smart home platform: Other
Smart home platform: none
Maximum aperture:: F#1.0
interface: USB2.0
Resolution:: 256×192
Effective frame rate:: 25HZ
Introducing the New Tiny1-C Uncooled Thermal Camera Module, featuring a compact size of 13x8mm. This cost-effective module boasts a high-performance self-developed ISP chip with a resolution of 256×192 pixels at 25Hz, ideal for consumer-grade applications. The camera also features a brilliant optical design, high frame rate, and built-in shutter for excellent image quality.
Key Features
The self-developed special infrared ISP chip is introduced to realize low power consumption and good performance and reduce the development difficulty.
Adopt 12μm WLP VOx uncooled infrared detector is used as the core, providing two available resolutions: 256×192 and 160×120.
25Hz high frame rate.
By combining the excellent optical design of lens with the high-resolution detector, it can provide excellent images.
With built-in shutter, it has a mini size of 13mm×28mm×10mm and is easy to integrate.
Support full-array temperature data output.
|
Technique Data
|
Tiny1-C
|
|
Overview
|
|
|
Sensor Technology
|
Uncooled VOx microbolometer
|
|
Spectral Band
|
8 μm ~14 μm
|
|
Resolution
|
256×192/160×120
|
|
Pixel Pitch
|
12 μm
|
|
NETD
|
＜50mK @25℃，F#1.0，25Hz
|
|
Response Time
|
<10ms
|
|
Effective Frame Rate
|
≤25Hz
|
|
Non-uniformity Correction
|
Automatic with shutter
|
|
Image Output
|
10/14-bit CMOS
|
|
Lens
|
Athermalized
|
|
Temperature Measurement
|
|
|
Measurement Range
|
Industrial: -15℃~+150℃ (High gain mode); +50℃~+550℃ (Low gain mode)
Biological: +30℃~+45℃ |
|
Measurement Accuracy
|
Industrial: ±2℃ or ±2%
Biological: ±0.5℃ |
|
Electricity
|
|
|
Input Supply Voltage
|
3.3V, 5V
|
|
Image Data Interface
|
SPI/DVP
|
|
Command and Control
|
I2C
|
|
Power Consumption
(@Room Temperature) |
Operating: 240 mW (Typical)
During shutter event: 600mW (Typical) |
|

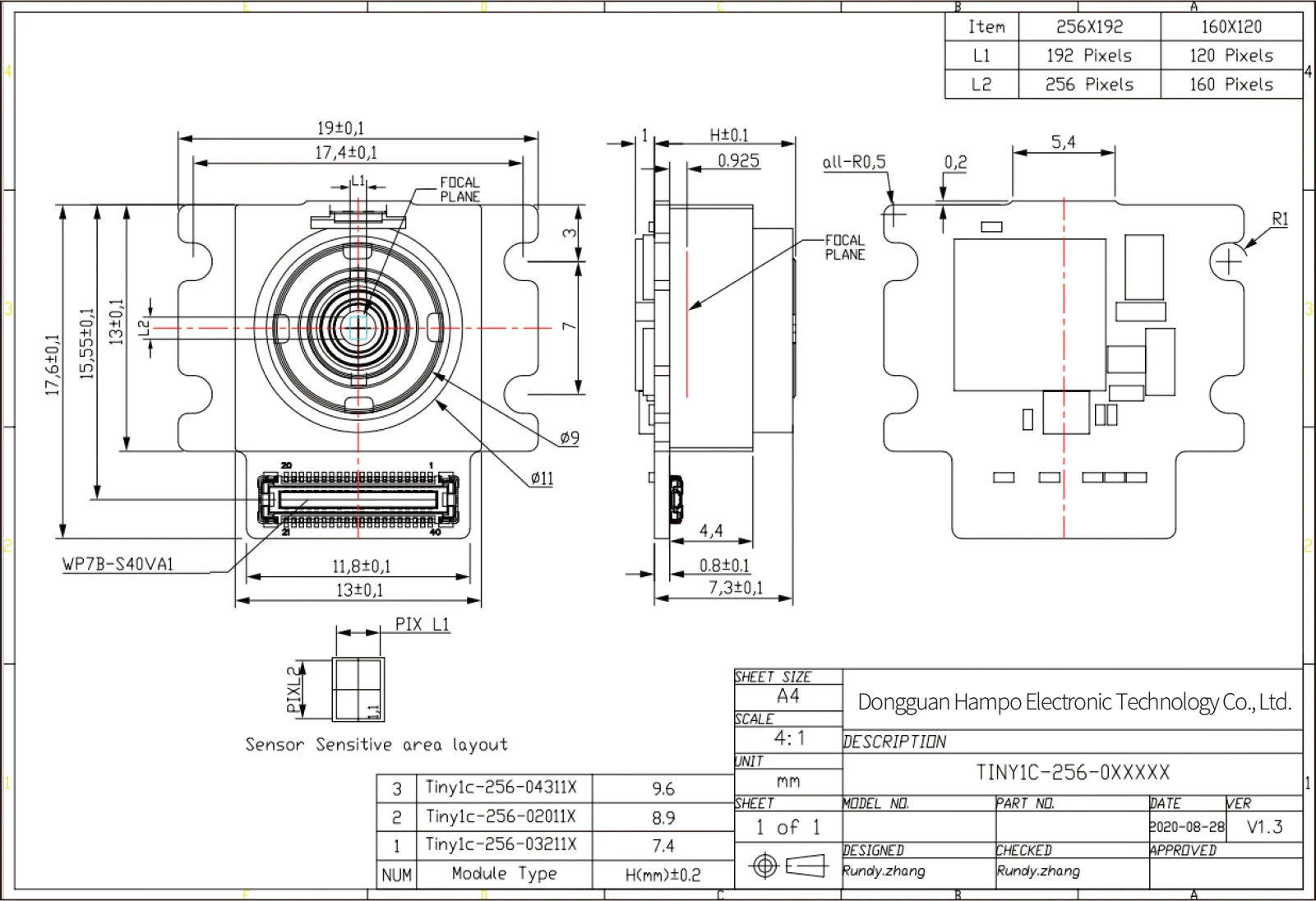

Mechanical
|
|
|
Package Dimension
|
13×13×8 mm
|
|
Weight
|
3.7g (2.0mm lens); 3.9g (3.2mm lens); 4.1g (4.3mm lens)
|
|
Environmental
|
|
|
Operating Temperature
|
-40℃~80℃ (Thermal maging)
-10℃~75℃ (Industrial temperature measurement) 10℃~50℃ (Biological temperature measurement) |
|
Storage Temperature
|
-45℃~85℃
|
|
Shock
|
25g @11ms, half sine wave, XYZ directions
|
