NEW 4CH 3s 4s Lipo Battery Parallel Charging Board SPECIFICATIONS
Use: Vehicles & Remote Control Toys
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Frame
Unit Type: Pack
Tool Supplies: Sticker
Technical parameters: Value 5
Size: As description
Remote Control Peripherals/Devices: Battery
Recommend Age: 12+y
RC Parts & Accs: Motor Components
Package Weight: 0.2kg (0.44lb.)
Package Size: 10cm x 12cm x 10cm (3.94in x 4.72in x 3.94in)
Origin: Mainland China
Model Number: 4CH 3s 4s Lipo Battery Parallel Charging Board
Material: Composite Material
Four-wheel Drive Attributes: Battery
For Vehicle Type: Airplanes
Brand Name: uuustore
NEW 4CH 3s 4s Lipo Battery Parallel Charging Board XT60 Banana Plug For ISDT D2 Q6 SC-608 SC-620 Imax B6 Charger RC Models Part

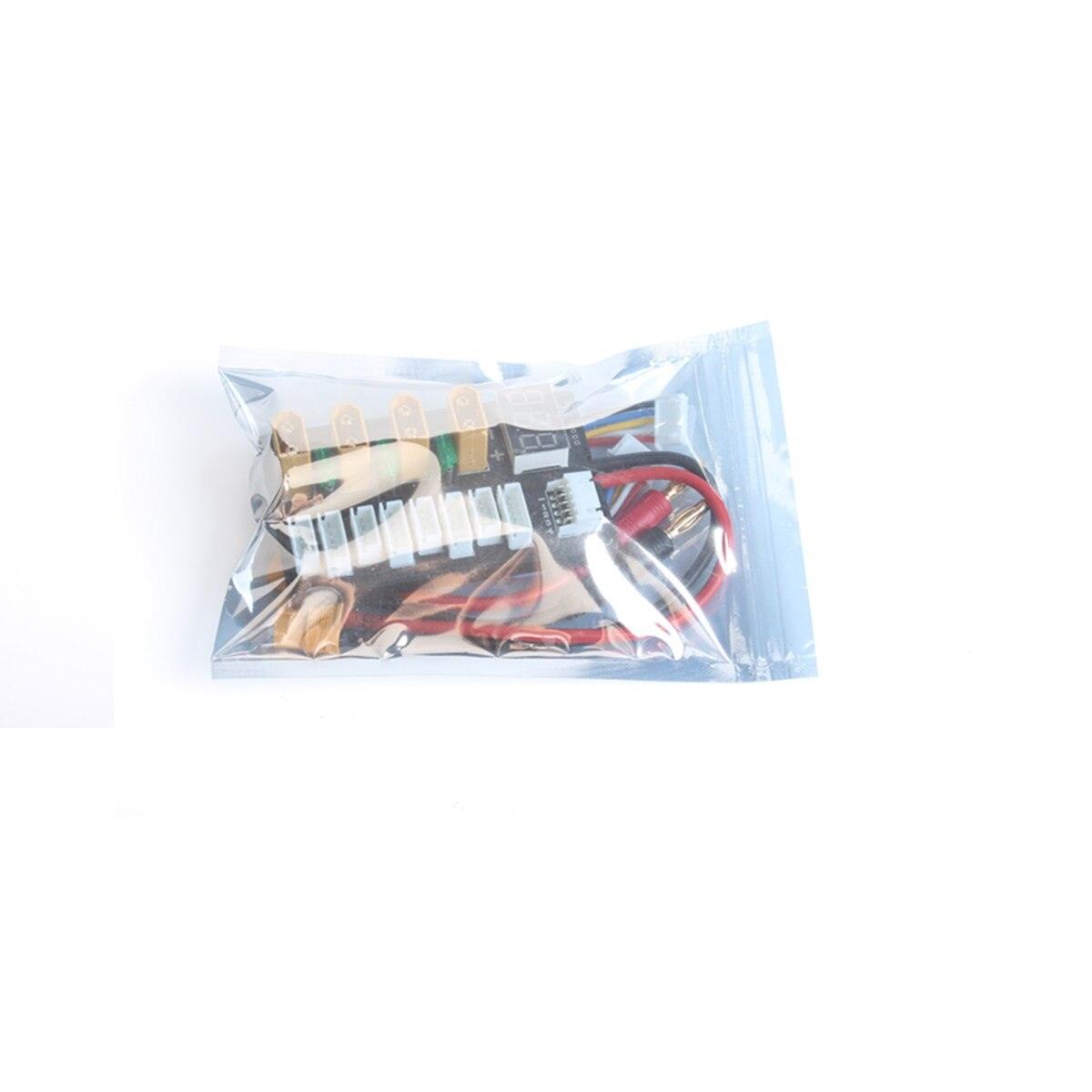

Package Included:
1x Parallel Charging Board

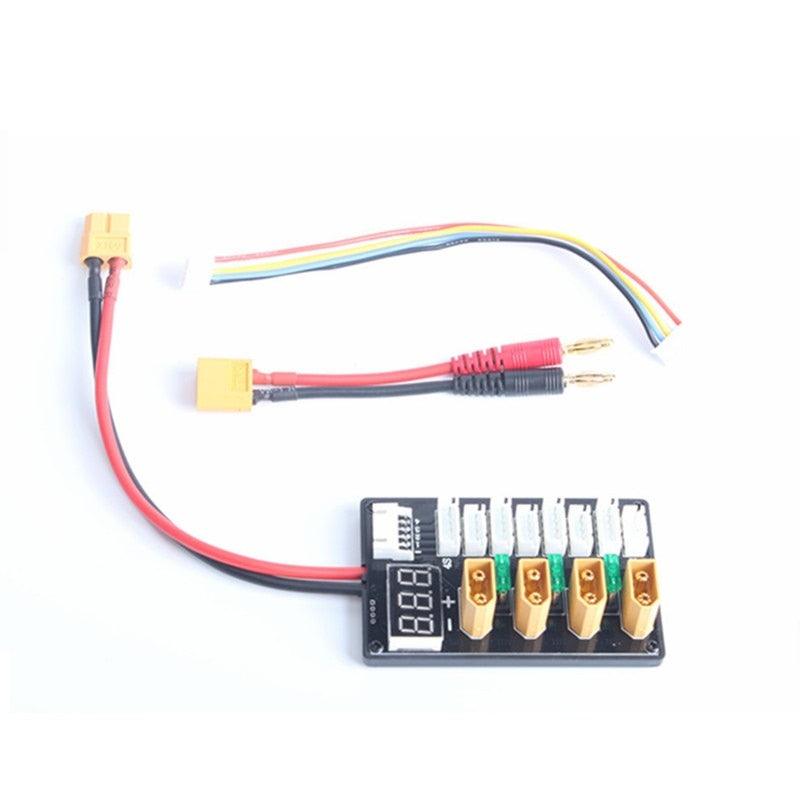

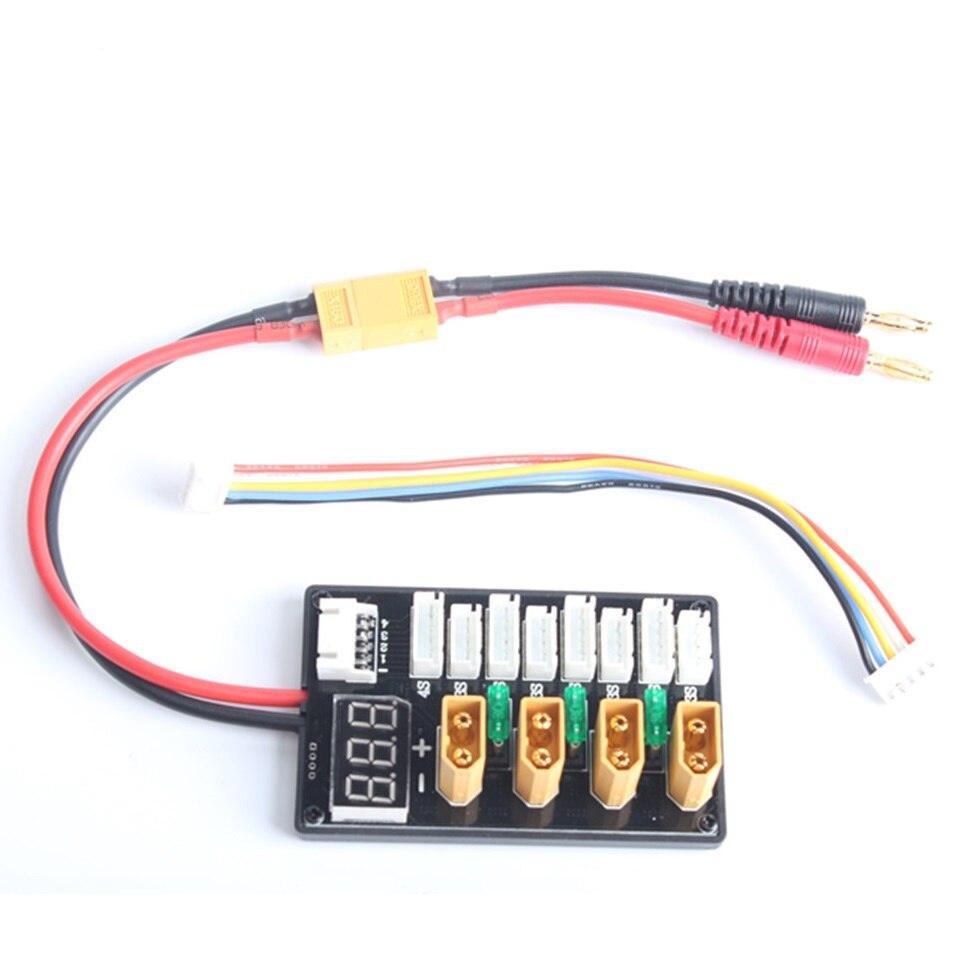

This board’s main power lead comes equipped with an XT60 connector, which is handy for chargers like ISDT. It also comes with an adapter to go from XT60 back to traditional 4mm banana style. The included balance lead is 5 pin XH style and one tab may need to be trimmed to fit properly into the balance socket depending on your charger’s needs.

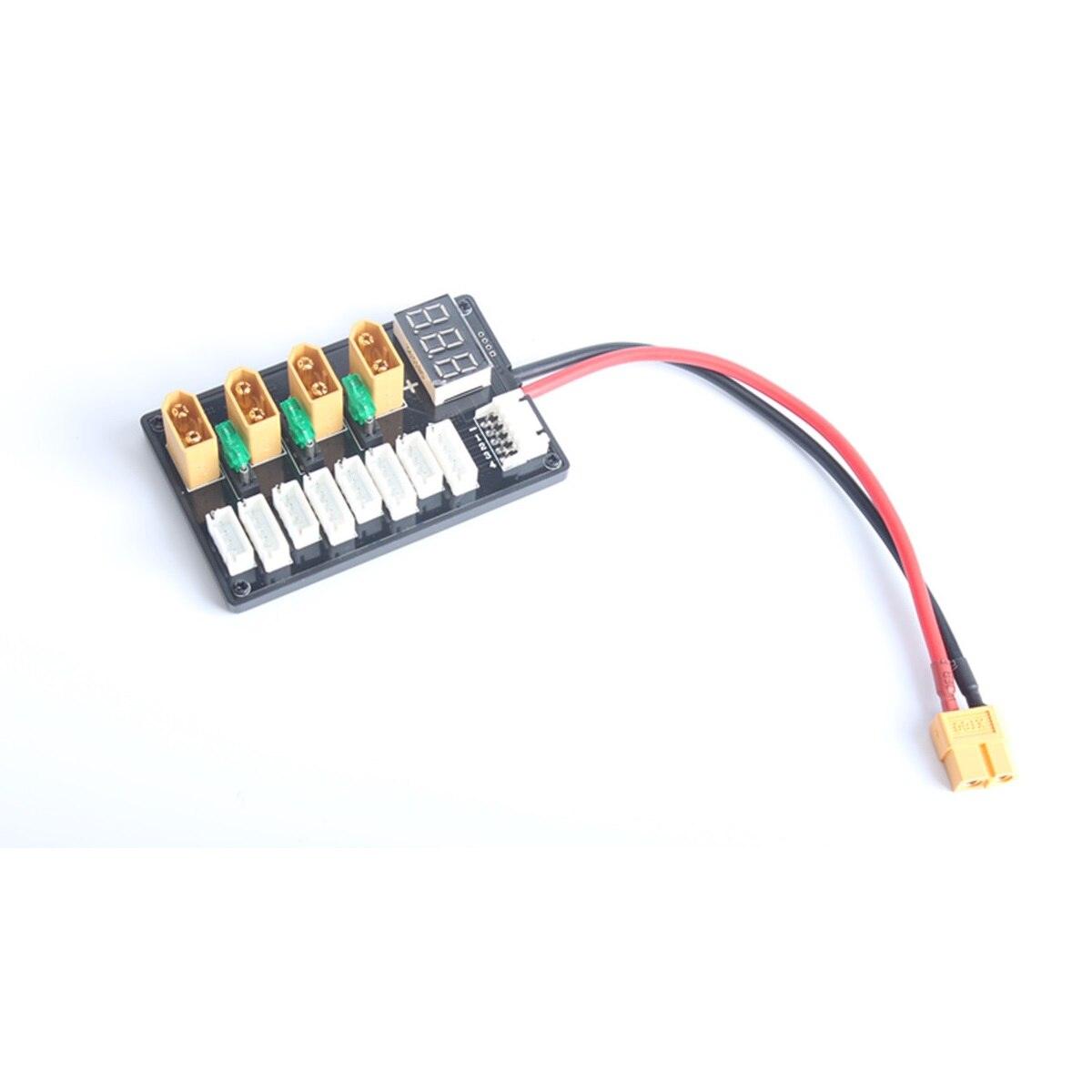

Safetyis a major concern for any form of parallel charging.Checking each cell of every single batterybefore connecting them together is extremely important! If you see a cell’s voltage that is not like the rest, do not charge it with the others in parallel! To help with this, we have added a cell check at the top of the board. You need to check them one at a time before plugging them all into the board, however. We have also provided replaceable fuses between the main power leads to aid in preventing surges from one pack to another. We suggest only parallel charging packs that are within roughly 0.1 volts per cell, or 0.4 volts for a 4S pack. So a pack that is at 15.0 volts total would be safe to charge with another pack that was 15.4 volts or 14.6 volts.
Specifications:
Input Power Connector: XT60 Male housing, Female Bullets with 14AWG wire
Also includes 4mm banana adapter
Charge Connector: 4x XT60 Female housing, Male Bullets
Fuse: 15A automotive (removable without de-soldering)
Balance Connector: 8x XH 4s Connectors
Dimension: 85 x 53 x 23mm
