Mateksys Matek Systems DIGITAL AIR SPEED SENSOR AS-DLVR-I2C ArduPilot RC Multirotor Airplane Fixed-Wing FPV

$85.01

+ Free Shipping
Minus Quantity- Plus Quantity+
SKU: N/A Categories: ,

SPECIFICATIONS

Brand Name: Matek

Origin: Mainland China

Material: Composite Material

Recommend Age: 14+y

Use: Vehicles & Remote Control Toys

Specifications

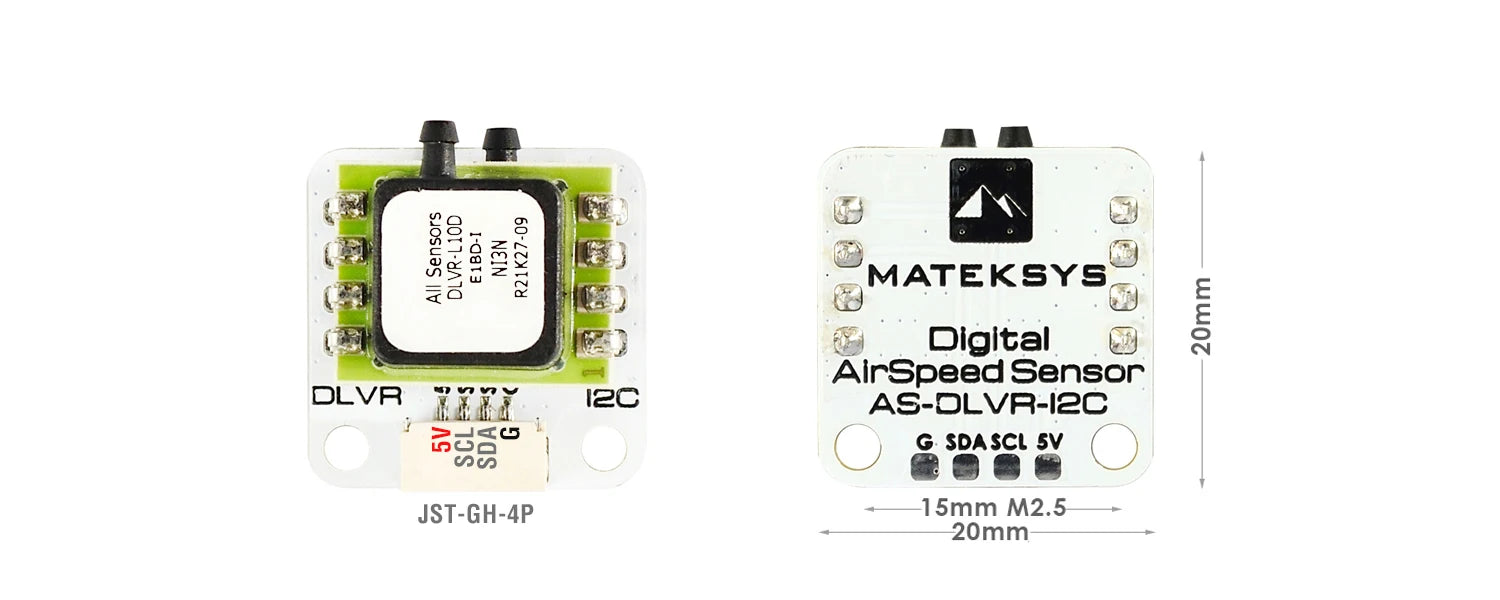

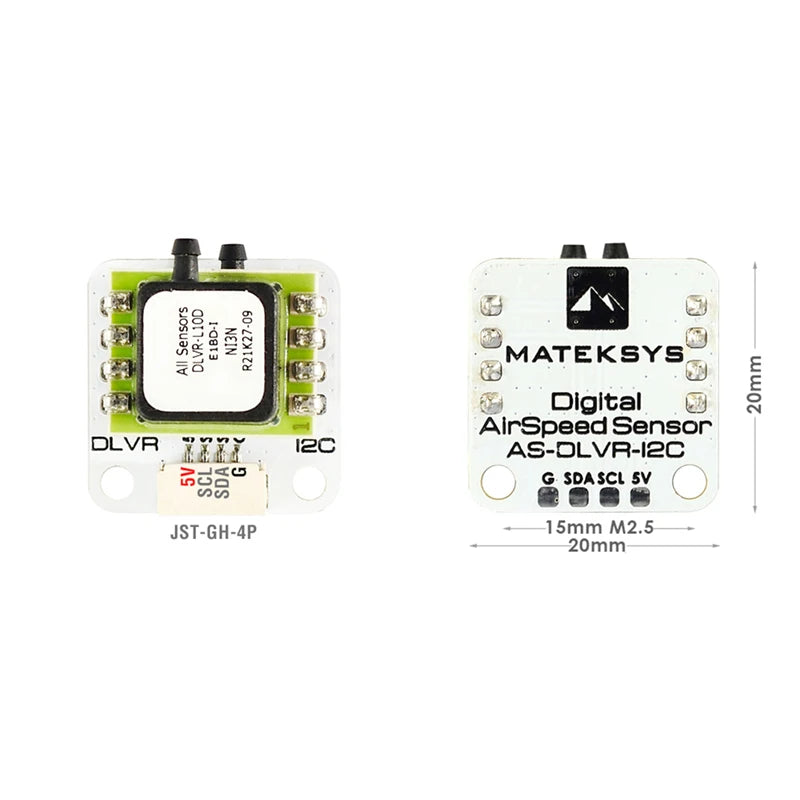

  • Sensor: All sensors DLVR-L10D,  Industrial temperature range

  • DLVR-L10D Sensor datasheet, pls visit www.allsensors.com

  • Interface: I2C (SCL & SDA)

  • Sensor I2C address: 0x28

  • Pressure Ranges: 2500Pa

  • Maximum Pressure: 75kPa

  • Operating Temperature: -25°C ~ 85°C

  • Board Supply voltage: 4~5.5V DC

  • Working current: 5mA

  • Red LED:  3.3V power indicator

  • JST-GH sequence: 5V, SCL, SDA, GND

  • Weight: 3.5g (sensor board)

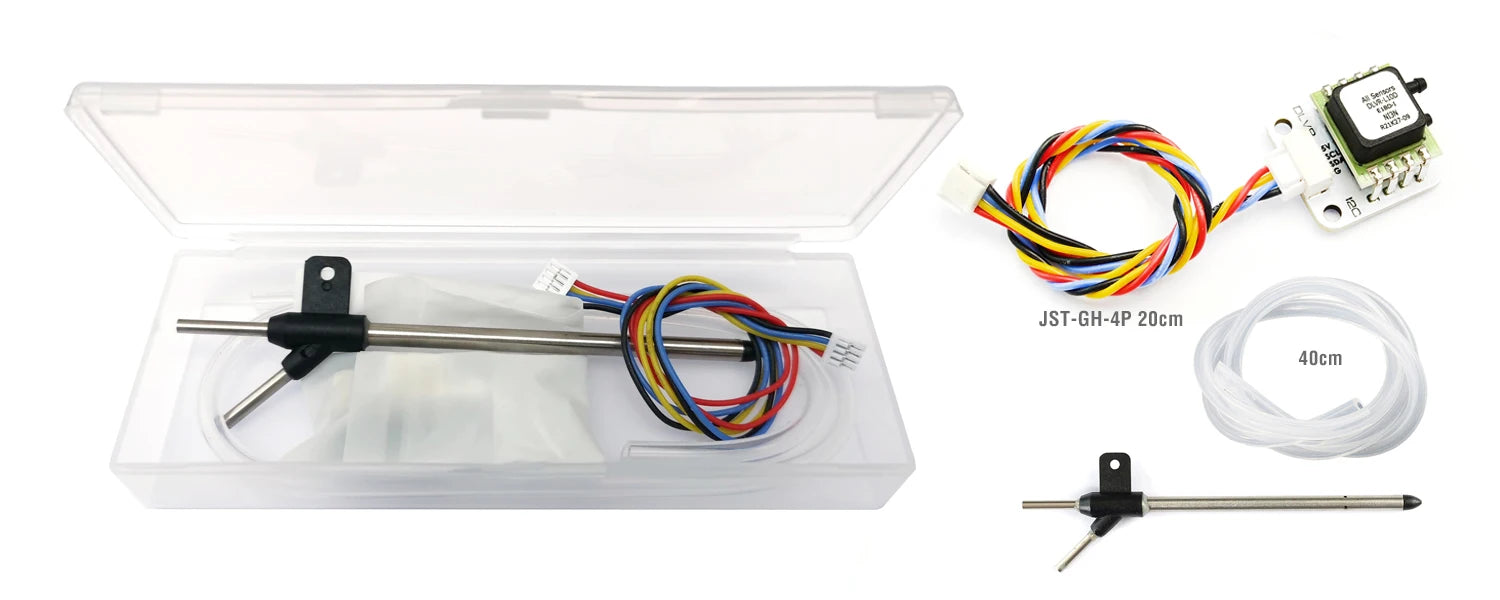

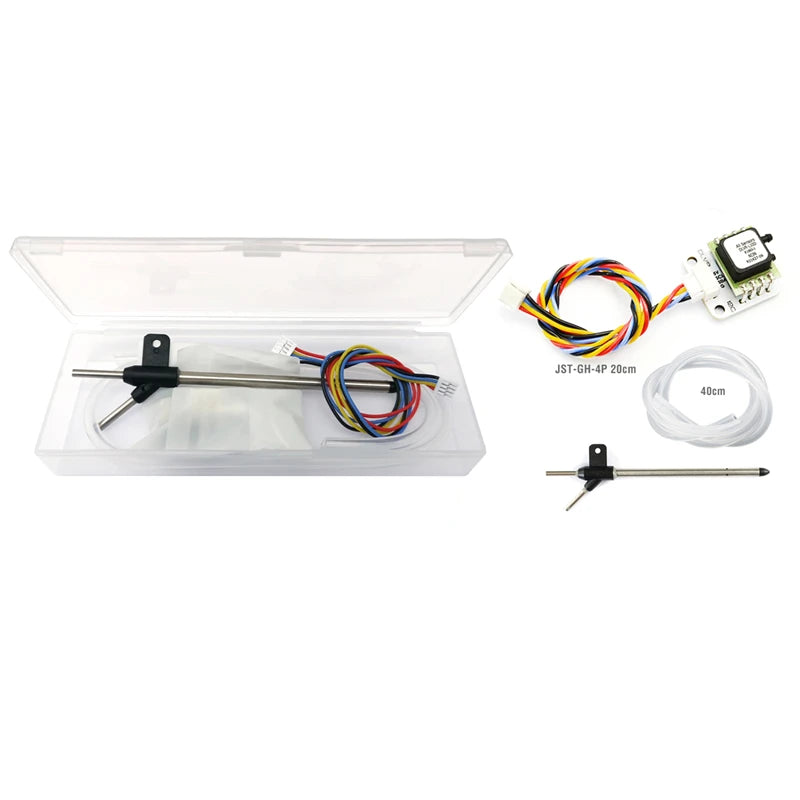

Including

  • 1x AS-DLVR-I2C Sensor Board.

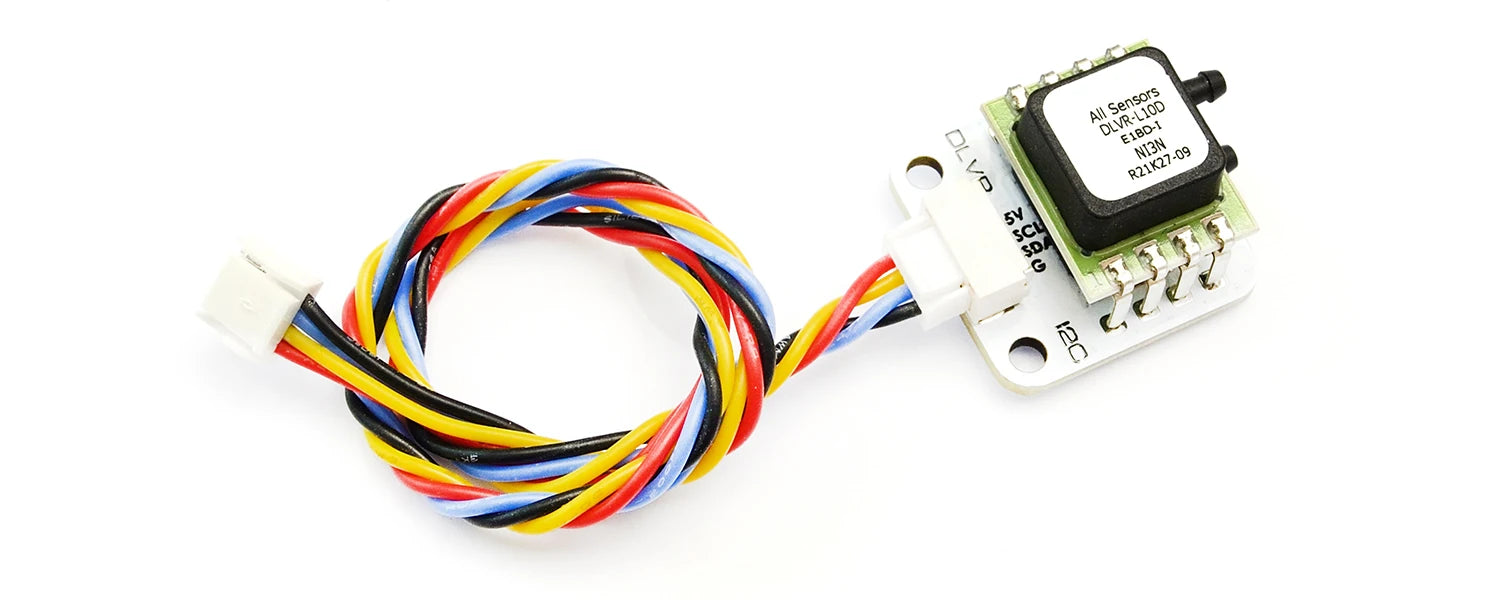

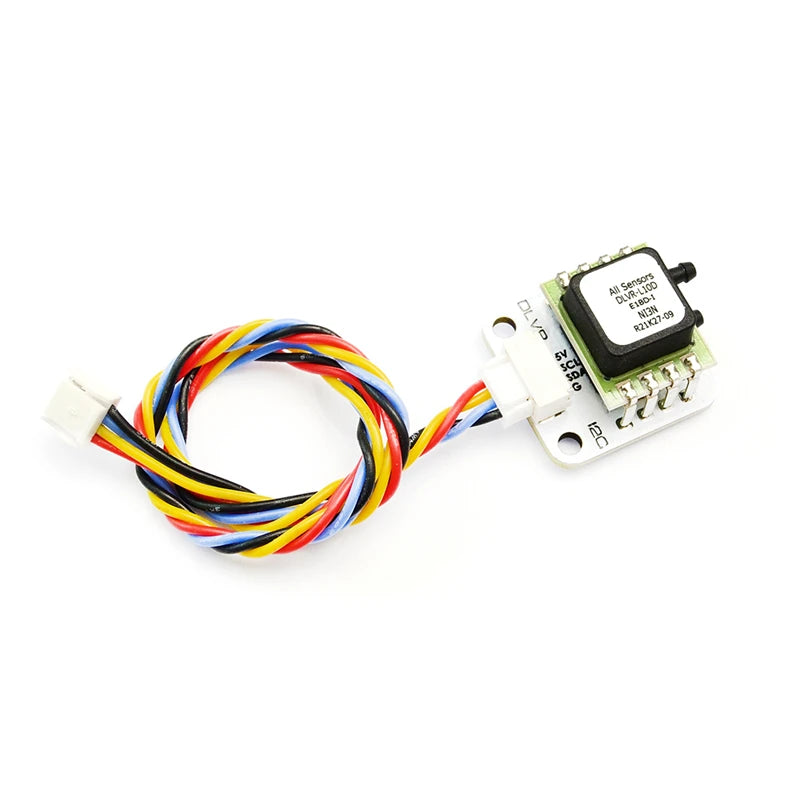

  • 1x JST-GH-4P to JST-GH-4P 20cm silicon wire

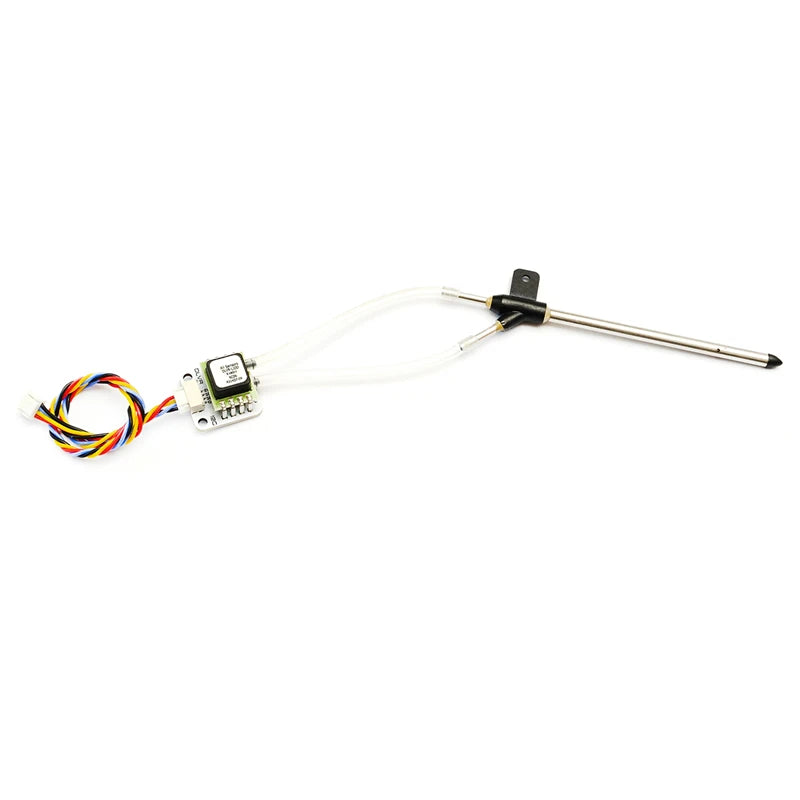

  • Pitot Tube.

  • Clear silicon tubing  40cm

Wiring

  • 5V to FC 4~5.5V

  • SCL to FC I2C_SCL

  • SDA to FC I2C_SDA

  • G to FC GND

Parameters

  • ArduPilot: ARSPD_TYPE = 9 (I2C-DLVR-10in)
    Mateksys Matek Systems DIGITAL AIR SPEED SENSOR, Iied MATEKSYS 3 Digltal 1 AlrSpeed Sensor DLVR AS

    Iied MATEKSYS 3 Digltal 1 AlrSpeed Sensor DLVR AS-OLVR-IzC 5 ’33 SDA SCL sv JST-GH-4P 1Smm M2.5 20

    Mateksys Matek Systems DIGITAL AIR SPEED SENSOR, 41267.09 SC Sentor DLva-LICD EtebMateksys Matek Systems DIGITAL AIR SPEED SENSOR, 1x JST-GH-4P 20cm silicon wire Pitot Tube.Mateksys Matek Systems DIGITAL AIR SPEED SENSOR, Clear silicon tubing 40cm Wiring 5V to FC 45.5V SCL

  • Mateksys Matek Systems DIGITAL AIR SPEED SENSOR, Sensor: All sensors DLVR-L10D, Industrial temperature range . Sensor:
