Leopard Hobby LBA3660 SPECIFICATIONS
Wheelbase: Bottom Plate
Upgrade Parts/Accessories: Gear
Technical parameters: KV1100
Size: As show
Remote Control Peripherals/Devices: Remote Controller
RC Parts & Accs: Motors
Quantity: 1 pcs
Origin: Mainland China
Model Number: LBA3660-2450KV
Material: Metal
Four-wheel Drive Attributes: Motors

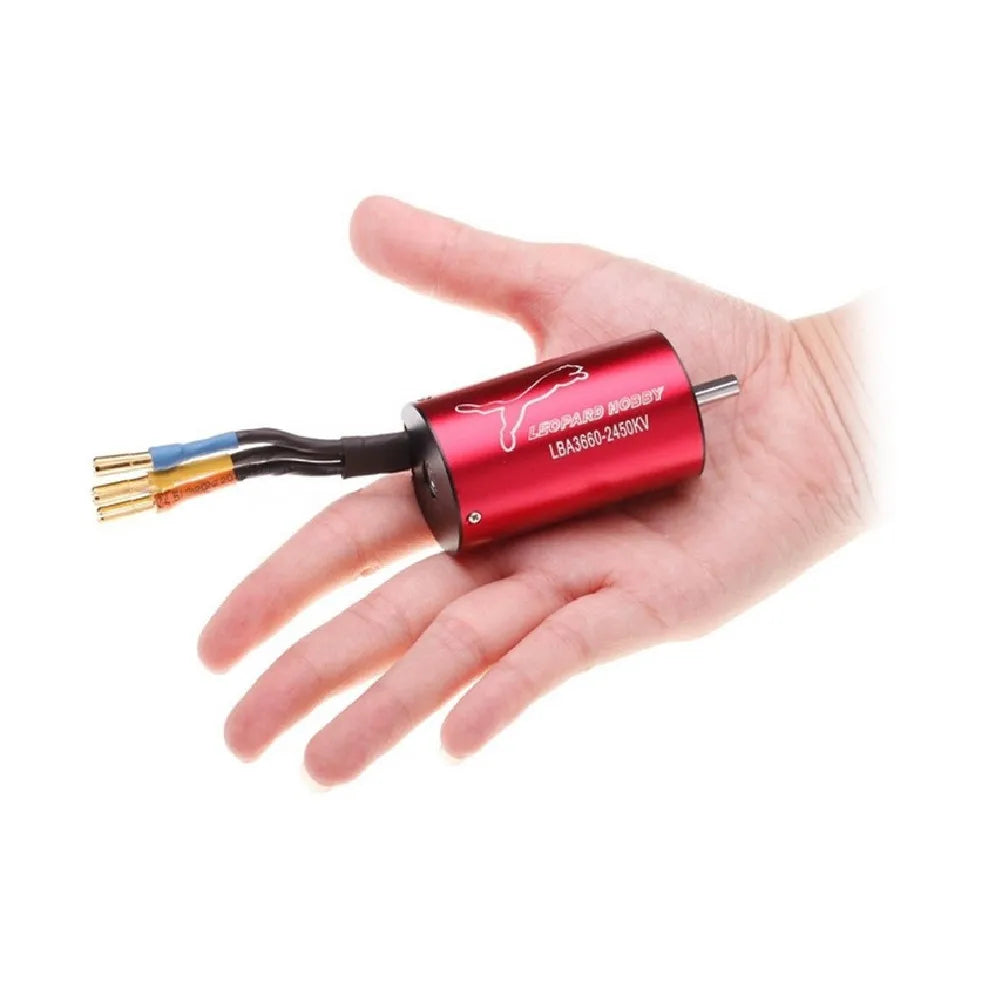

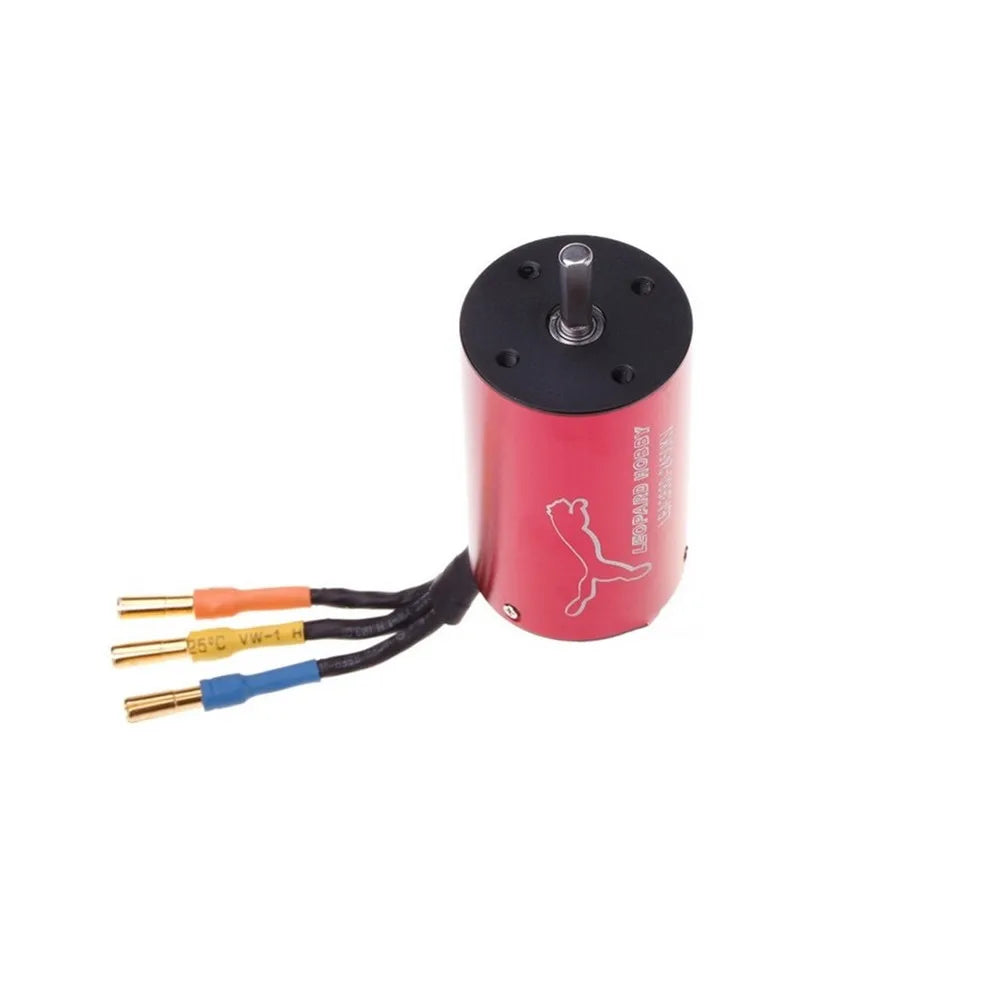

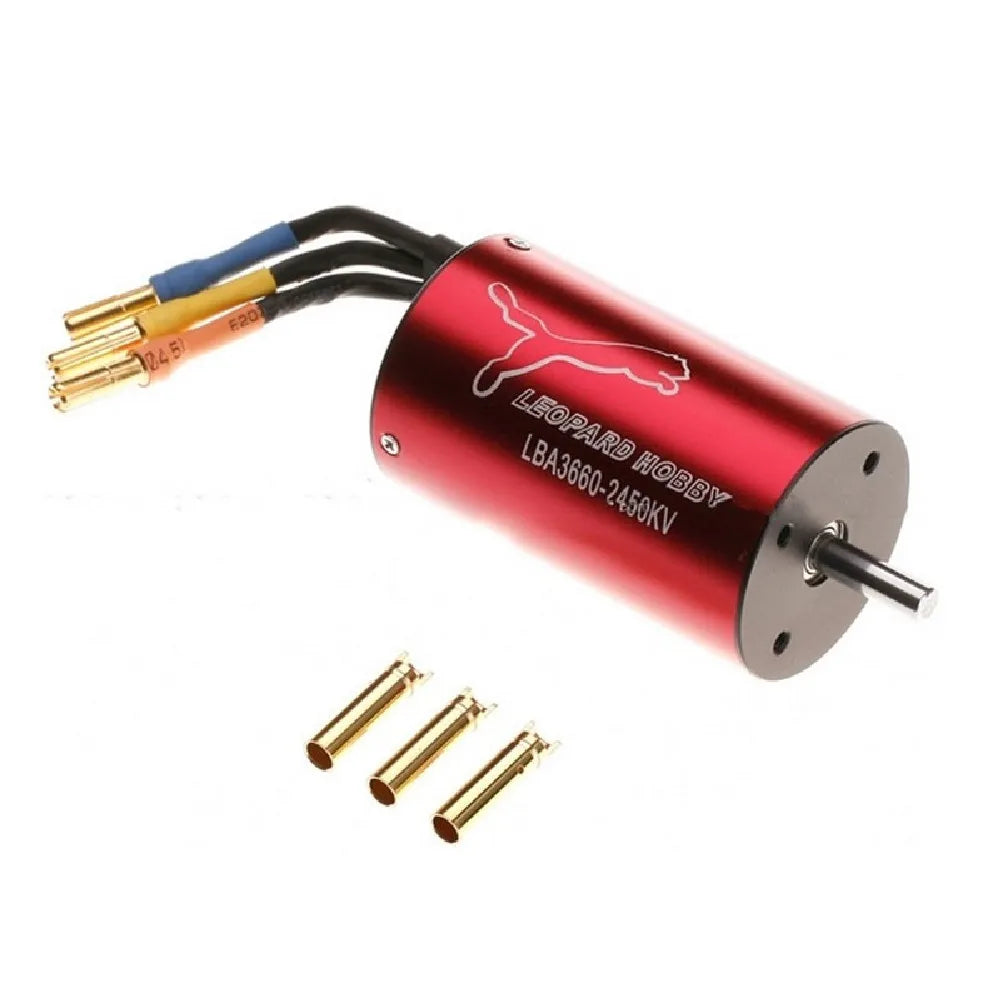

Leopard Hobby LBA3660/10T 2450KV 2 pole Inrunner Brushless Motor for RC Cars Remote control boat

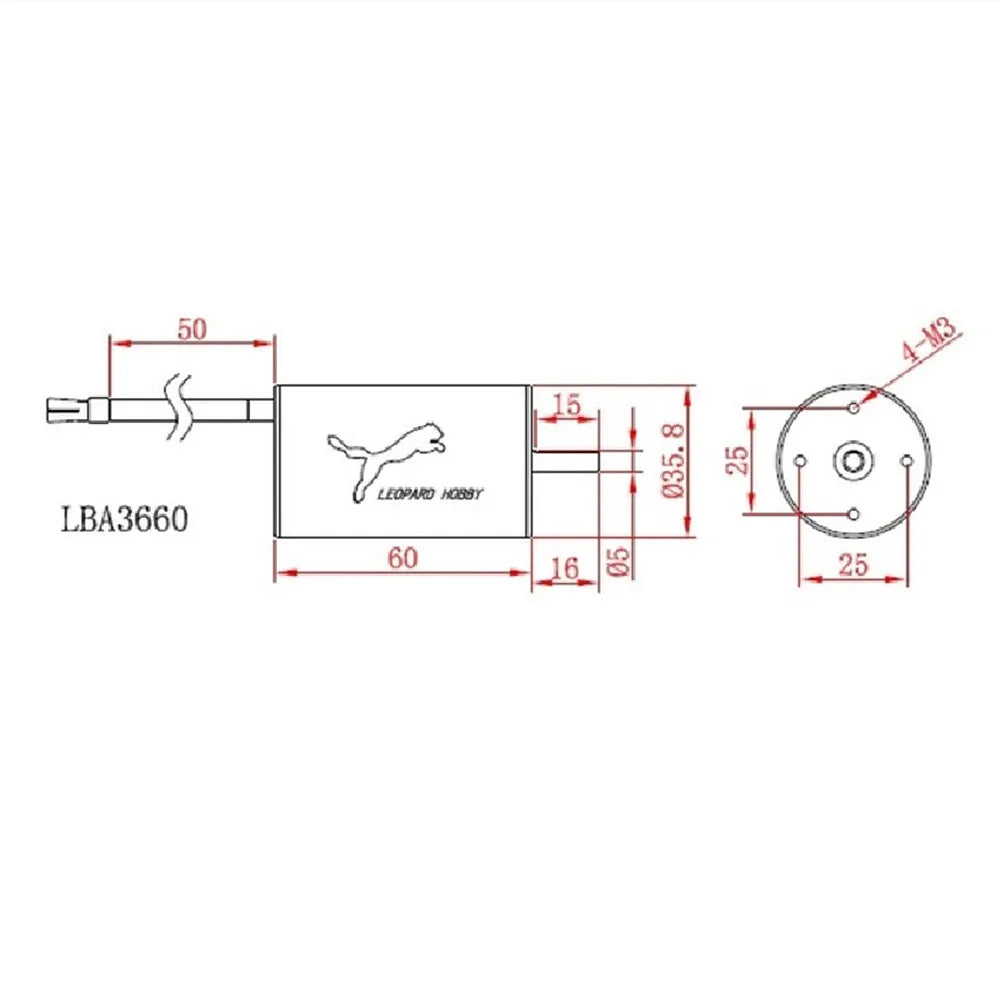

LBA3660 / 2450Kv (2 pole) Turns: 10 Suitable for: 2-4S Lipo Max Current: 61A Max Power: 1100W Shaft dia: 5 mm Max Voltage: 18V Dimensions (Ø x Length): 35.8mm x 60mm Weight: 280g |
Model | Max Amps KV(RPM/Volt) | Lipo Cell | Max | KV | Resistance | No-load | Dia. x Length | Mounting | Length of extended shaft | Shaft | Weight |
LBA3660/8T | 77A | 3-4s | 1100W | 3060KV | 0.0088 | 4.1A | Φ35.8×60.0 | 5mm | 16mm | Φ5 | 280g |
LBA3660/10T | 61A | 3-5s | 1100W | 2450KV | 0.0138 | 2.9A | Φ35.8×60.0 | 5mm | 16mm | Φ5 | 280g |
LBA3660/12T | 51A | 3-5s | 950W | 2040KV | 0.0199 | 2.2A | Φ35.8×60.0 | 5mm | 16mm | Φ5 | 280g |
