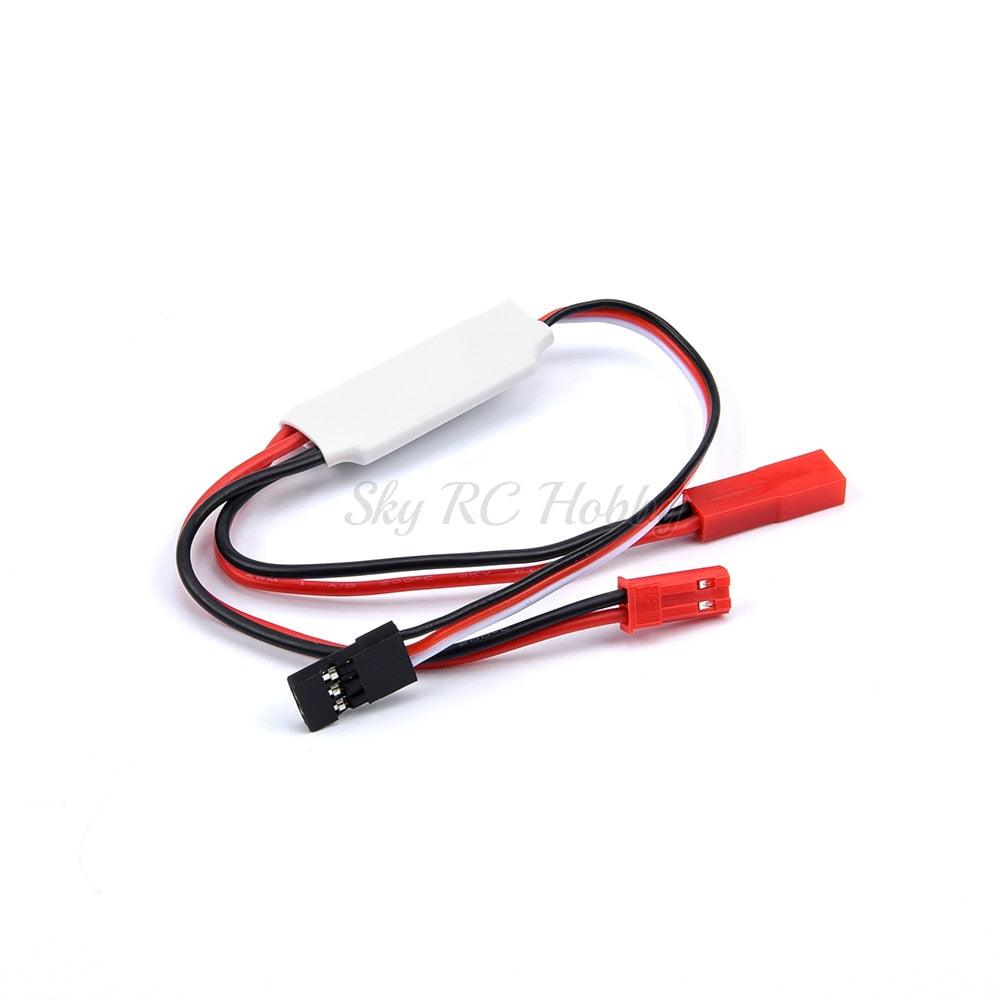

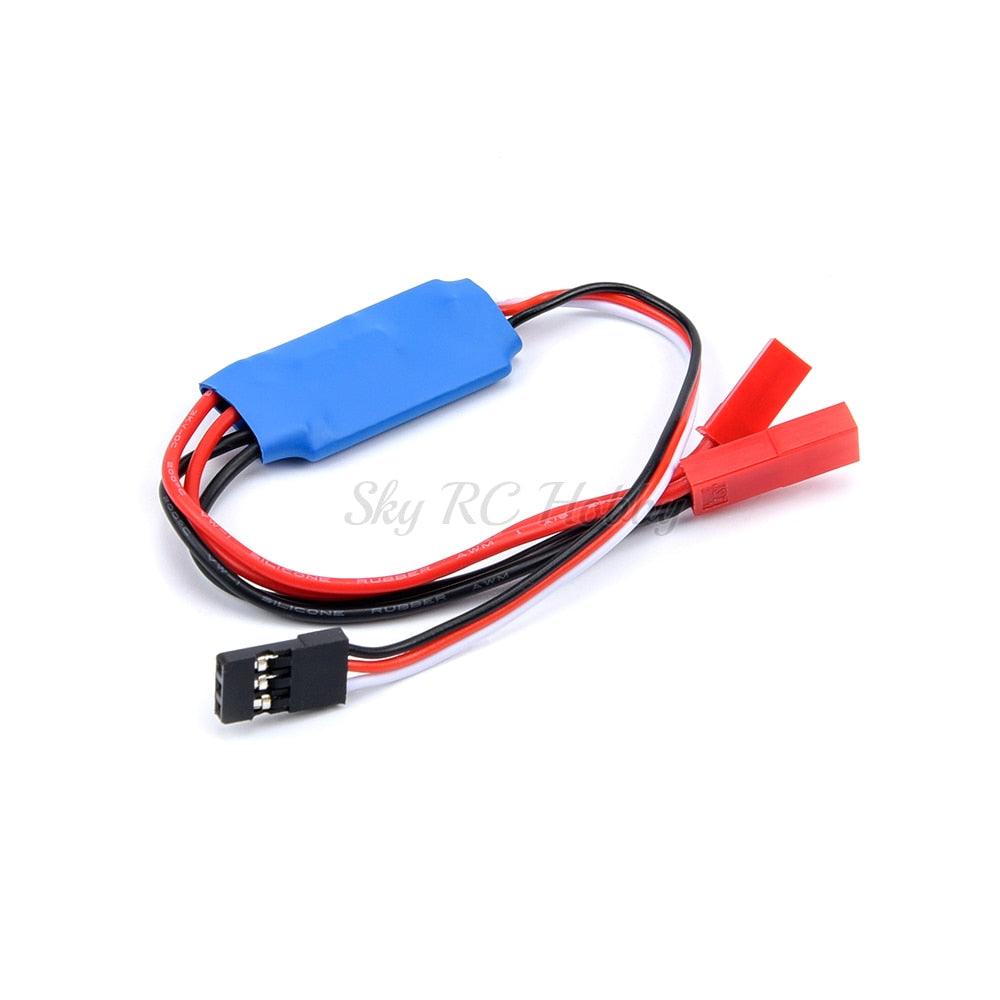

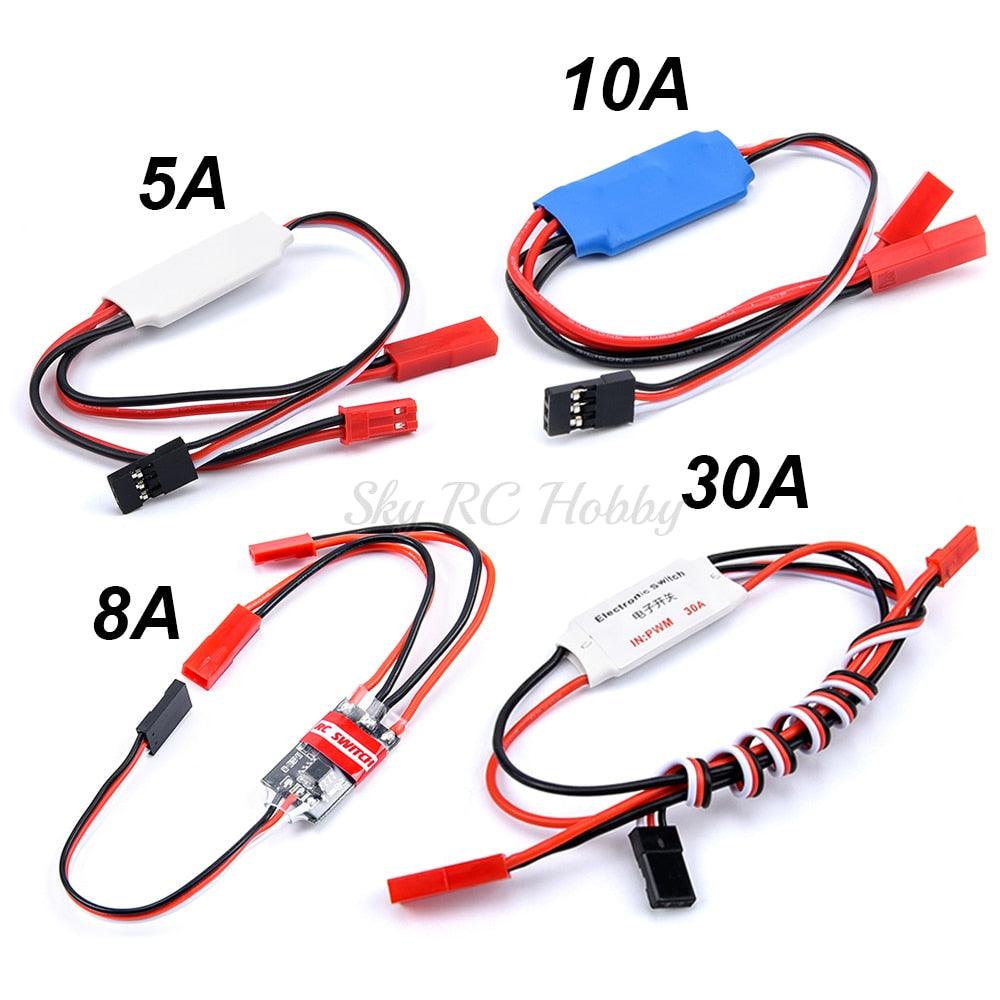

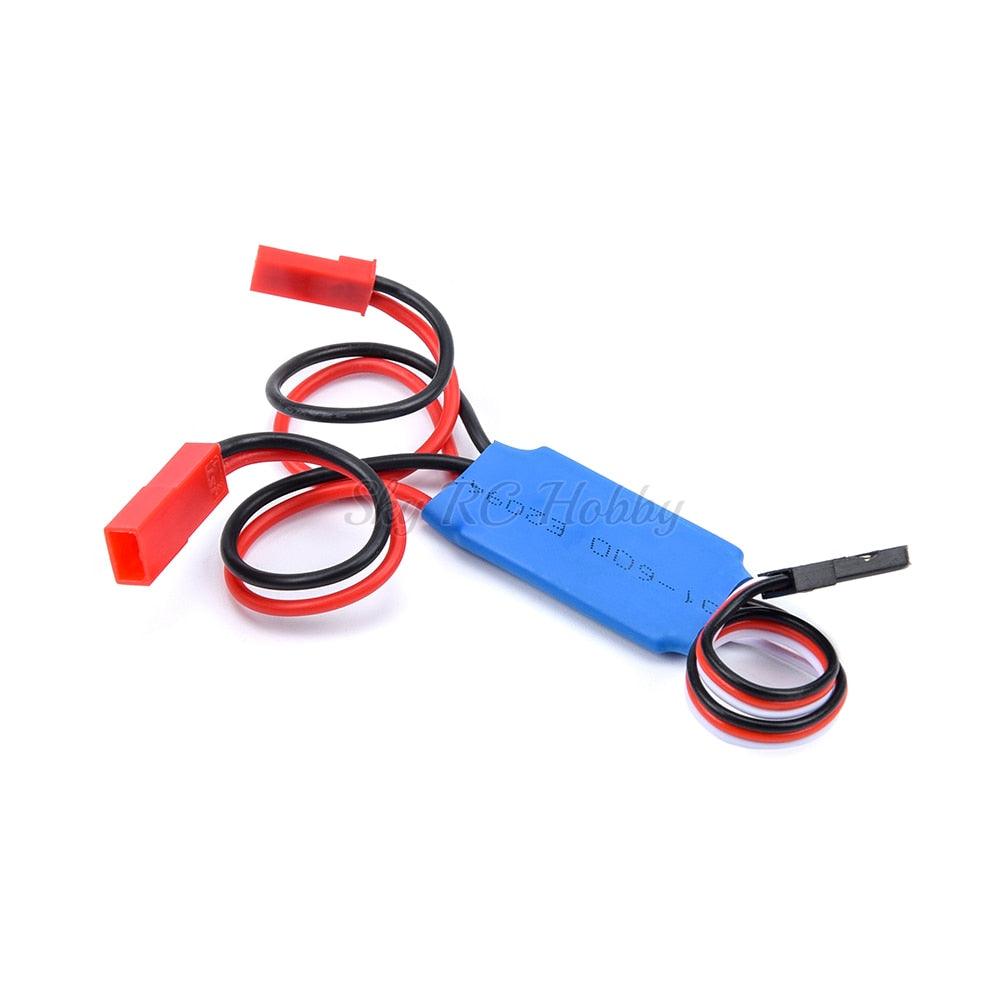

5A / 10A RC Controlled Switch:
Features:
This module is a nice little relay switch controlled by a spare auxiliary channel on your receiver. Ideal for switching lights, sound, and any other auxiliary electrical items.
when PWM duty is more than 1500us, the switch will turn on; when PWM duty is less than 1400us, the switch will turn off.
Specifications:
RX lead length:100mm
Power in/out lead length:100mm (each)
Switching load current (DC):5A or 10A (Continuous current)
Input Voltage (DC):5-28V
Normal mode
The module can read a pulse width that can range from 400 to 2600us.
If the width of the pulse is more than 1800us, the MOSFET switch will close, if less than 1200us, the MOSFET switch will open.
Safe-protection function
This module has a safe-protection feature that reduces the likelihood of unexpected activation.
In below 2 conditions the Safe-protection mode will active:
1. The pulse is more than 1800us at first power-up, the MOSFET switch open. The LED will blink, you should move the input to the off position, then normal more will active ;
2. The signal is bad continuously for 500ms, the MOSFET switch open. The LED will blink. When the signal is good, the device will deactivate safe-protection mode.
LED
Normal mode: the LED will on when input pulse >1800us; the LED will off when input pulse <1200us;
Safe-protection mode: the LED will fast blink

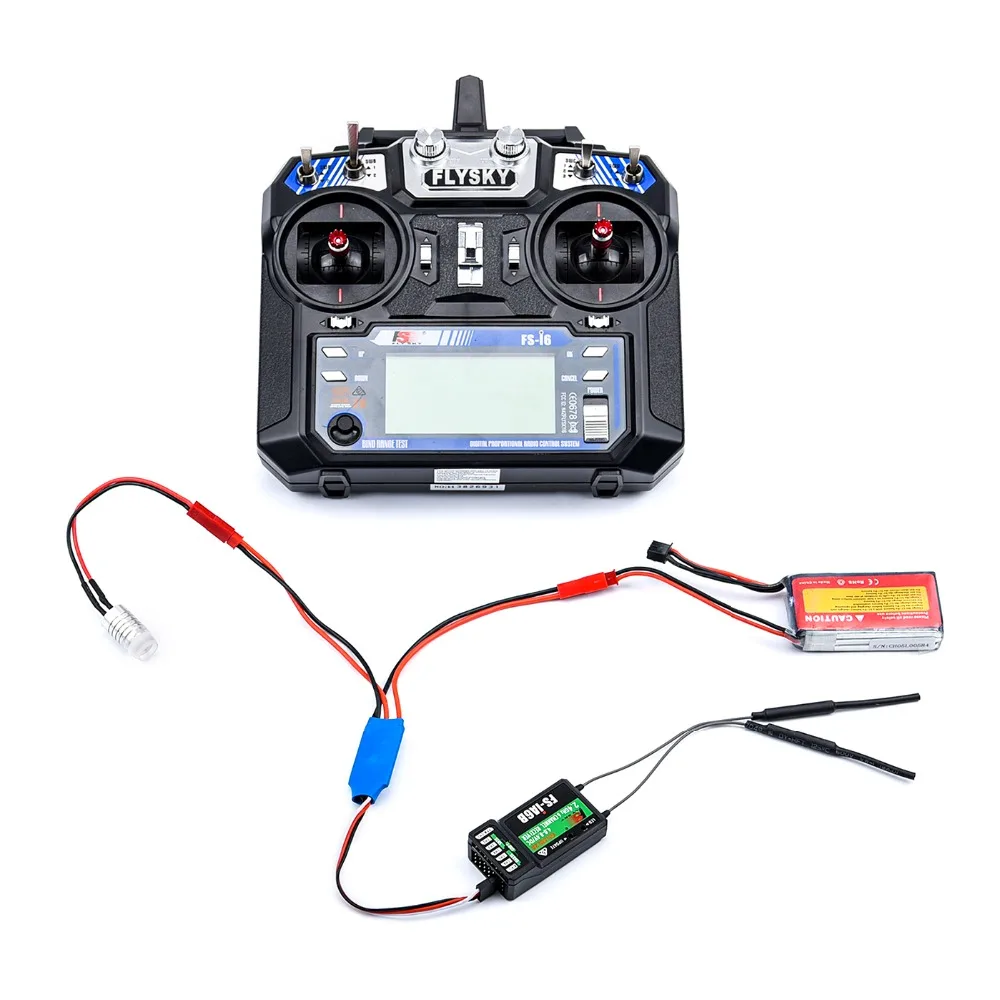

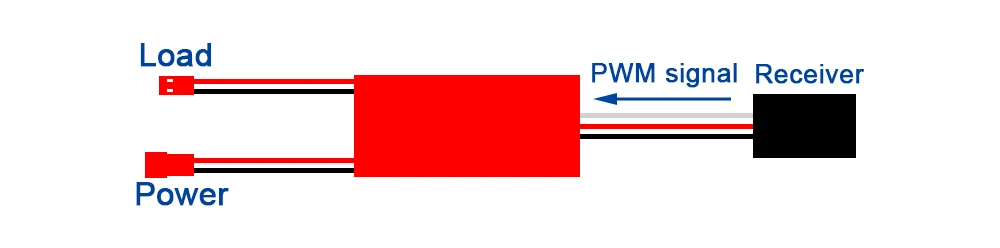

Note: When you use the electronic switch, make sure to supply 5V to the receiver. If the voltage is over than 5V, it will not work properly. In addition, the remote control channel needs more than 3 channels. Here is the reference video to share you: https://youtu.be/yNtCeBftsoI

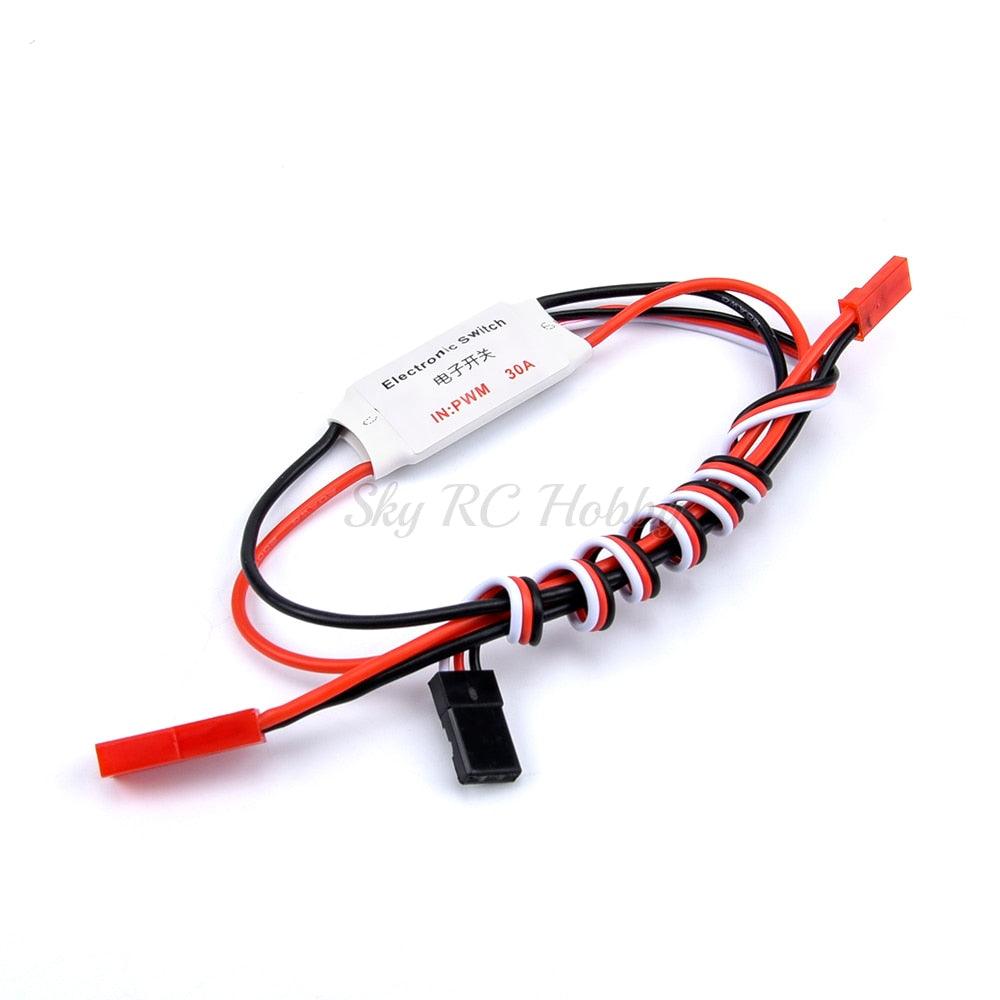

30A RC Controlled Switch:

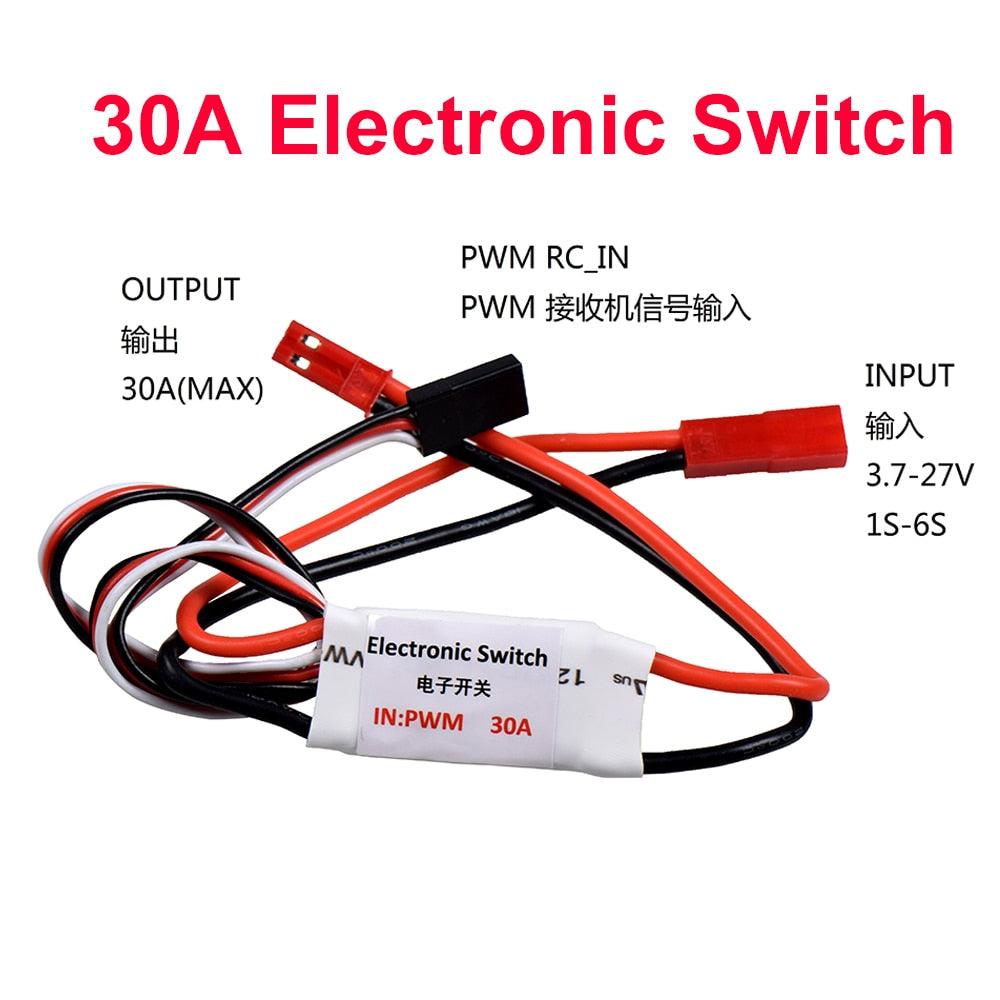

Features:
stable performance, large current, simple control, no need to set up, strong compatibility, wide application, small size and light weight.
Applied to:
1.Remote control model car light bar light on and off, easy to use – insert switch channel.
2.Power switch for various power supply and controlled equipment.
3.Electronic ignition, the output stage can be connected to the resistance heating wire.
4.The electric start control increases the relay and the water pump switch.
The wire adopts high current 18AWG silica gel wire, the plug is JST head (input female, output male), the signal wire is also made of super soft silicone wire material, the total length of power cord is about 20CM, the switch weight is about 11G.
Instructions for use:
This electronic switch is recommended to be controlled by a 2-segment switch, and the on and off strokes each account for half of the rudder. When the switch is turned on, there is an LED light indicating that the current cannot exceed the nominal value, otherwise the wire may be heated or burned.
This switch is not suitable for controlling led lights
Switch input voltage range: 3.7-27V

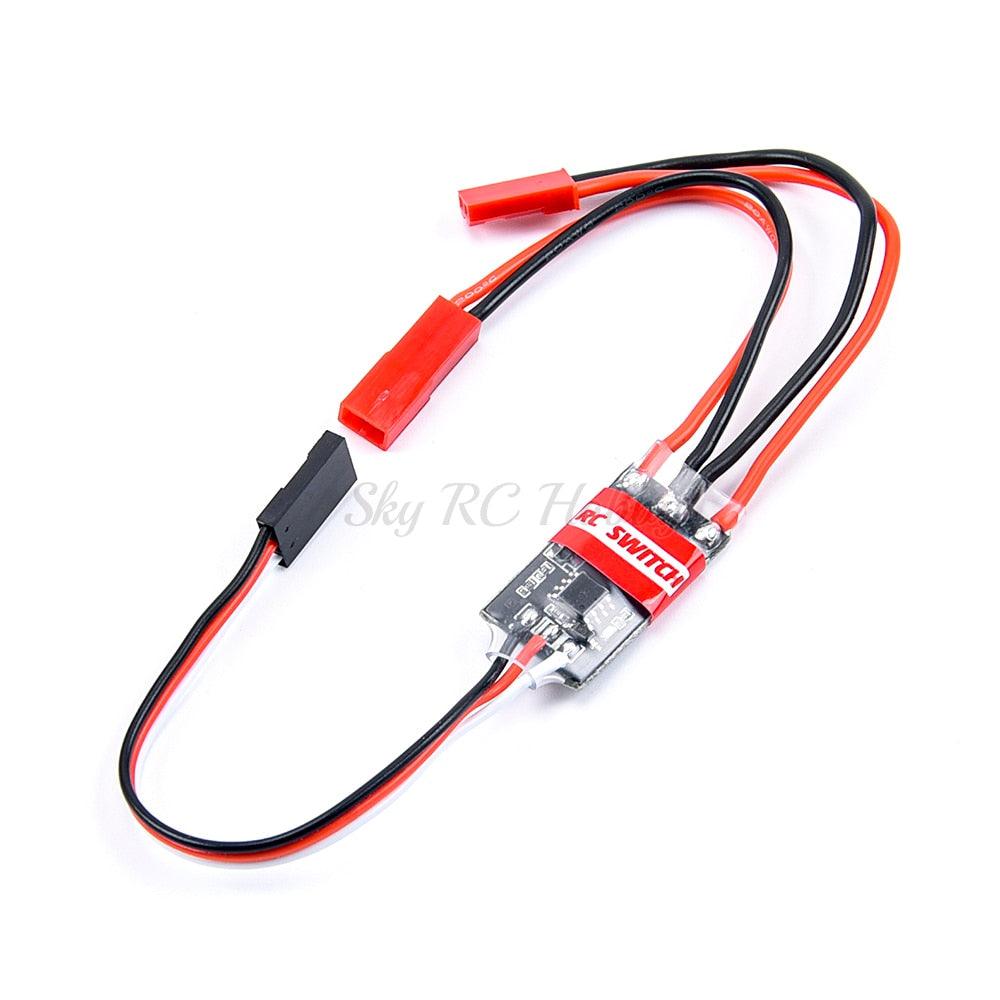

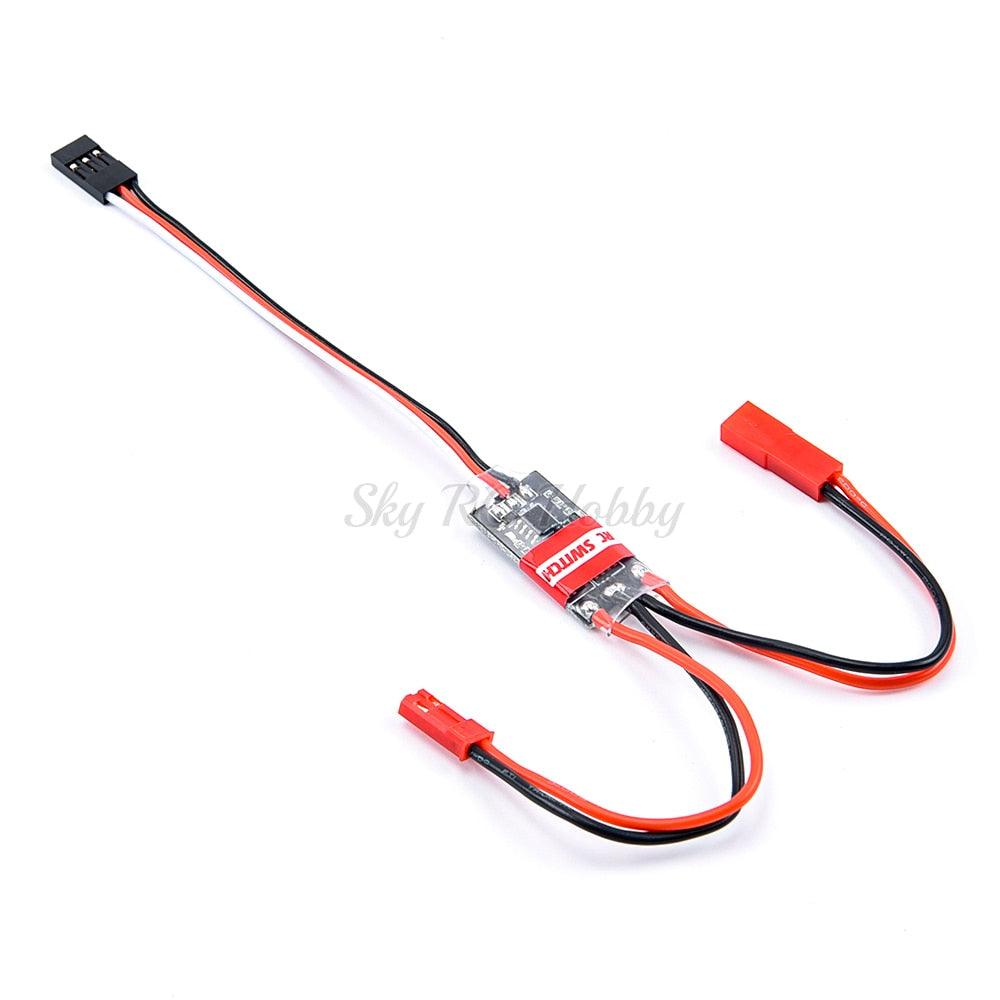

8A RC Controlled Switch:
Features:
This RC switch is ideal for switching lights, smoke system, bomb drops, plane canopies, sound and any other auxiliary electrical items.
It can be connected to receiver AUX channel or other desire channel. toggle the related switch on the transmitter, this RC switch will close or open.
Specifications:
RX lead length:100mm
Power in/out lead length:100mm (each)
Switching load current (DC):8A (Continuous current)
Input Voltage (DC):3.7-28V
Normal mode :
The module can read a pulse width that can range from 400 to 2600us.
If the width of the pulse is more than 1600us, the mosfet switch will close, if less than 1400us, the mosfet switch will open.
Safe-protection function :
This module has a safe-protection feature that reduces the likelihood of unexpected activation.
In below 2 conditions the Safe-protection mode will active:
1.The pulse is more than 1600us at first power up, the mosfet switch open. The LED will blink, you should move the input to the off position, then normal more will active ;
2.The signal is bad continuously for 500ms, the mosfet switch open. The LED will blink. When the signal is good, the device will deactivates safe-protection mode.
LED :
Normal mode: the LED will on when input pulse >1600us; the LED will off when input pulse <1400us;
Safe-protection mode: the LED will fast blink
Package Included:
1PCS x 5A / 10A / 8A / 30A remote switch (Send as your choice)
