SPECIFICATIONS
Brand Name: NoEnName_Null
Origin: Mainland China
Material: Metal
RC Parts & Accs: Antennas
For Vehicle Type: Cars
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Gear
Remote Control Peripherals/Devices: Servos
Tool Supplies: Assembly Category
Quantity: 1 pcs
Model Number: PDI-HV1151MG Servo
Four-wheel Drive Attributes: Assemblage

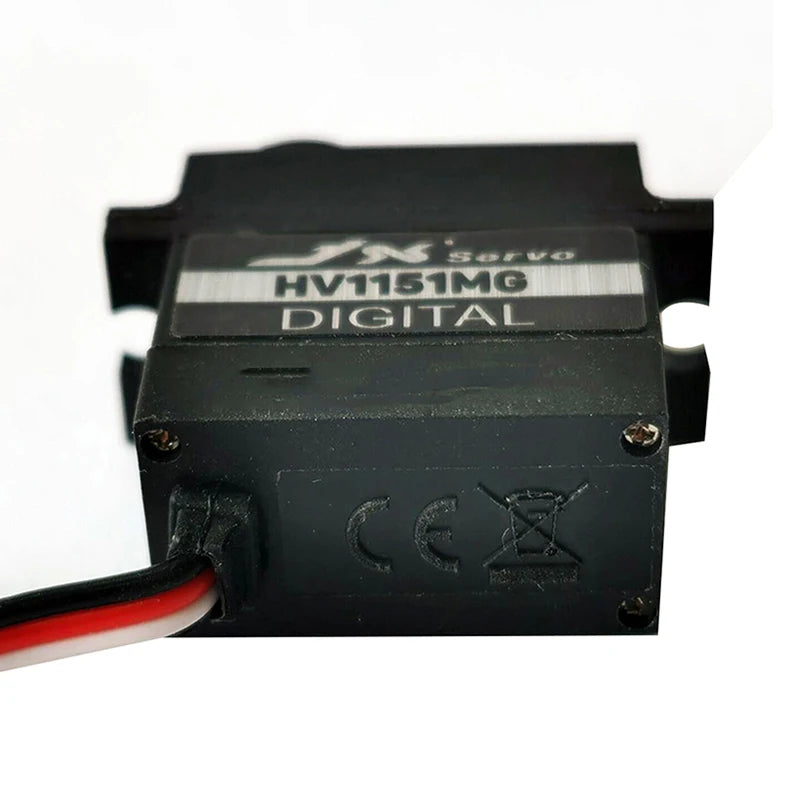

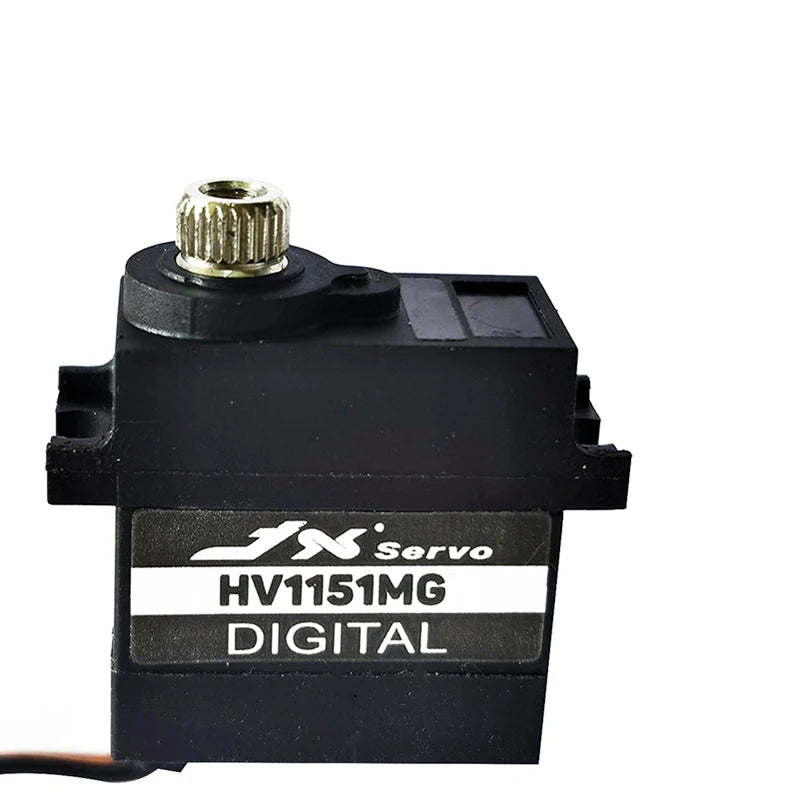

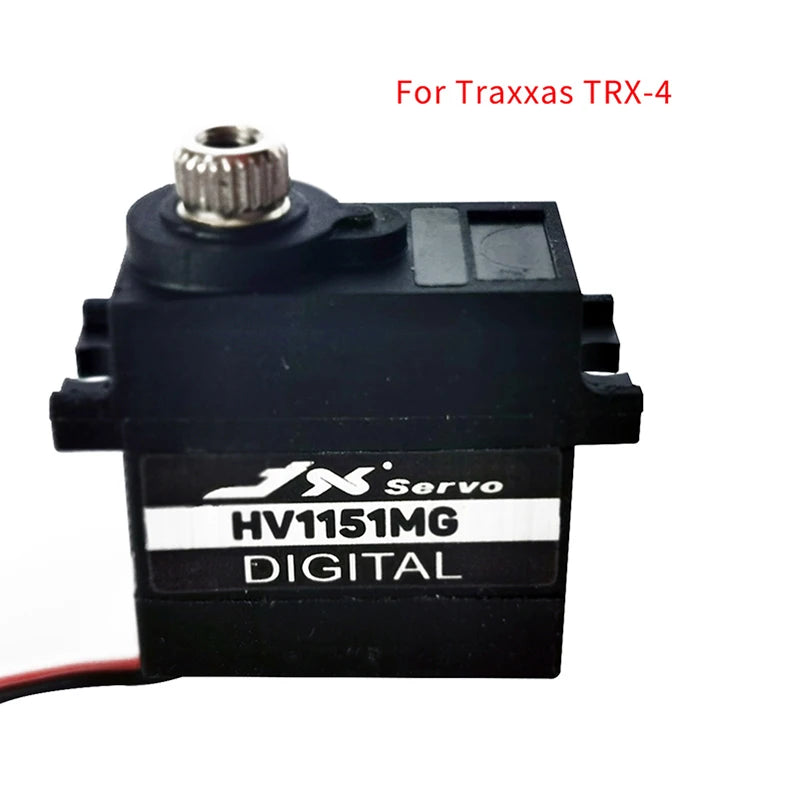

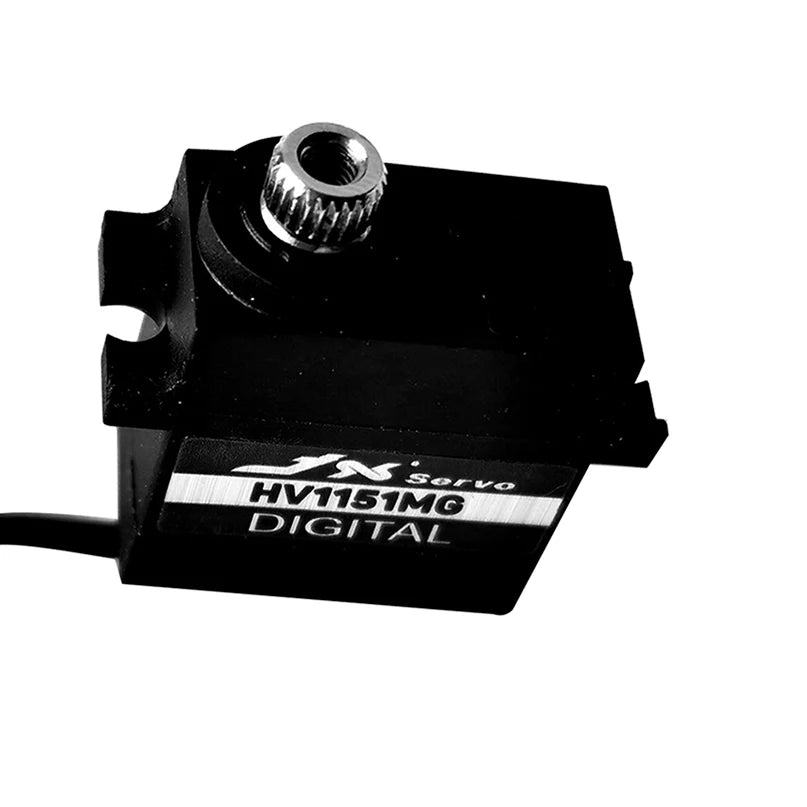

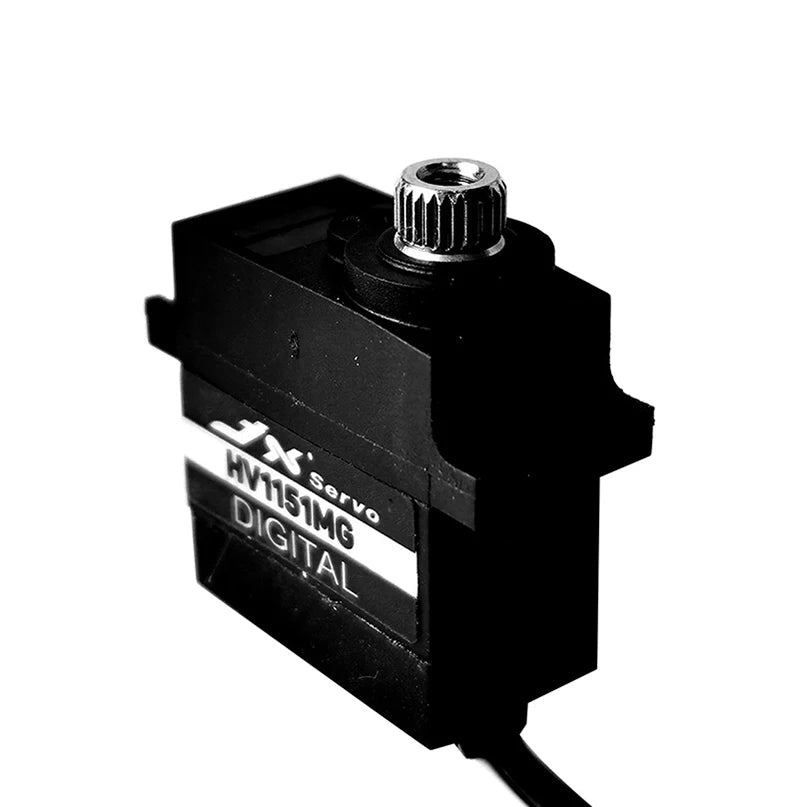

JX Servo 8.4V Waterproof Metal Gear Digital Servo PDI-HV1151M Mini for Traxxas TRX-4
Product description: Model: PDI-HV1151MG 8.4V Mini Waterproof 4.5kg
Extreme factory direct sales JX SERVO high voltage 8.4V waterproof metal gear digital steering gear PDI-HV1151M special for Traxxas TRX-4
Features:
– High voltage 8.4V waterproof mini servo
— High precision metal gear made in Taiwan
— Double ball bearing
— Extra long cable JR 360mm
Product parameters:
Pulse width:1000-2000μs=90°
Pulse width:500-2500μs=180°
Dead band: 2μs 1520μs / 330hz
Motor: coreless motor
Operating Speed 6V): 0.12sec/60°
Operating Speed (8.4V): 0.1sec/60°
Stall Torque (6V): 3.5kg.cm
Stall Torque (8.4V): 4.5kg.cm
Dimensions: 23.2 x 12.5x 25.6mm
Weight: 15g(0.5oz)
Connector Wire Length: JR 360 mm
Bearing: 2BB
Operating Temperature: 20deg ~ 60deg
Waterproof
Spline: 25T
Apply to:
Traxxas TRX-4
Boom Racing BRX01
And the remote control car that needs to change gears
