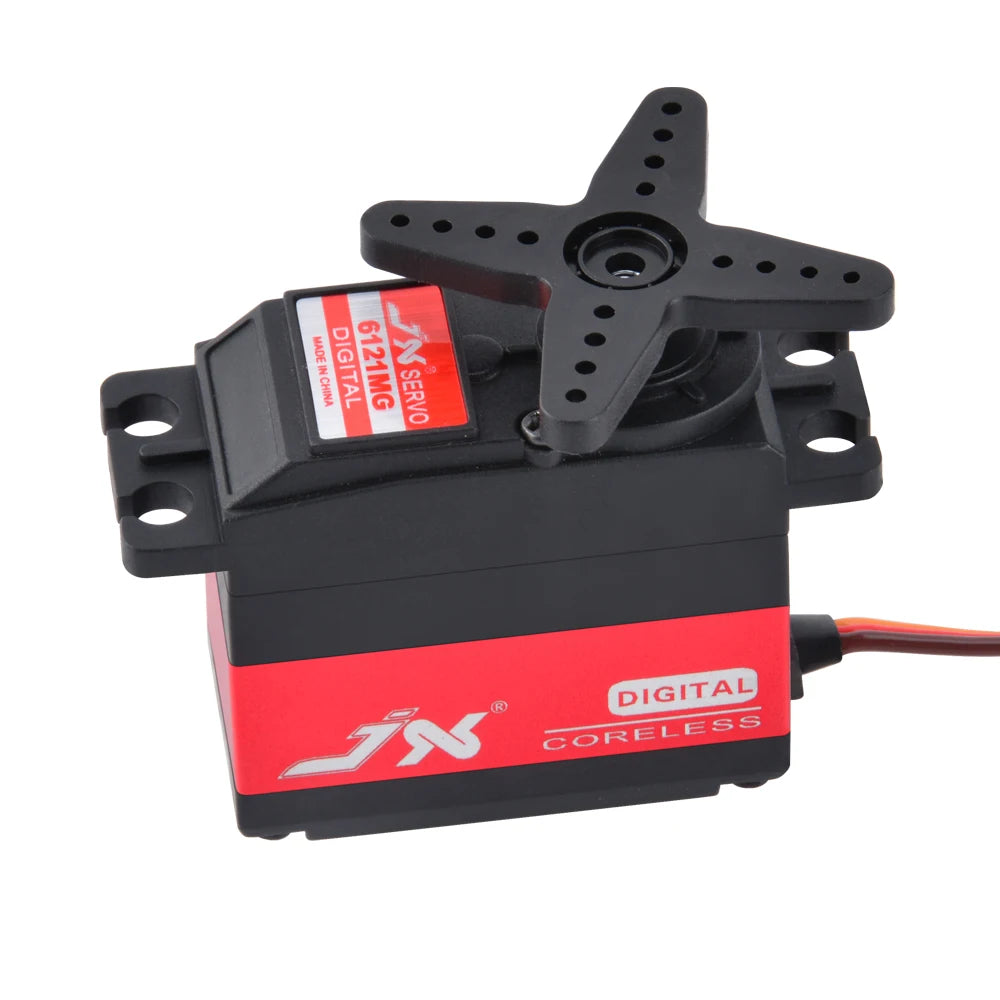

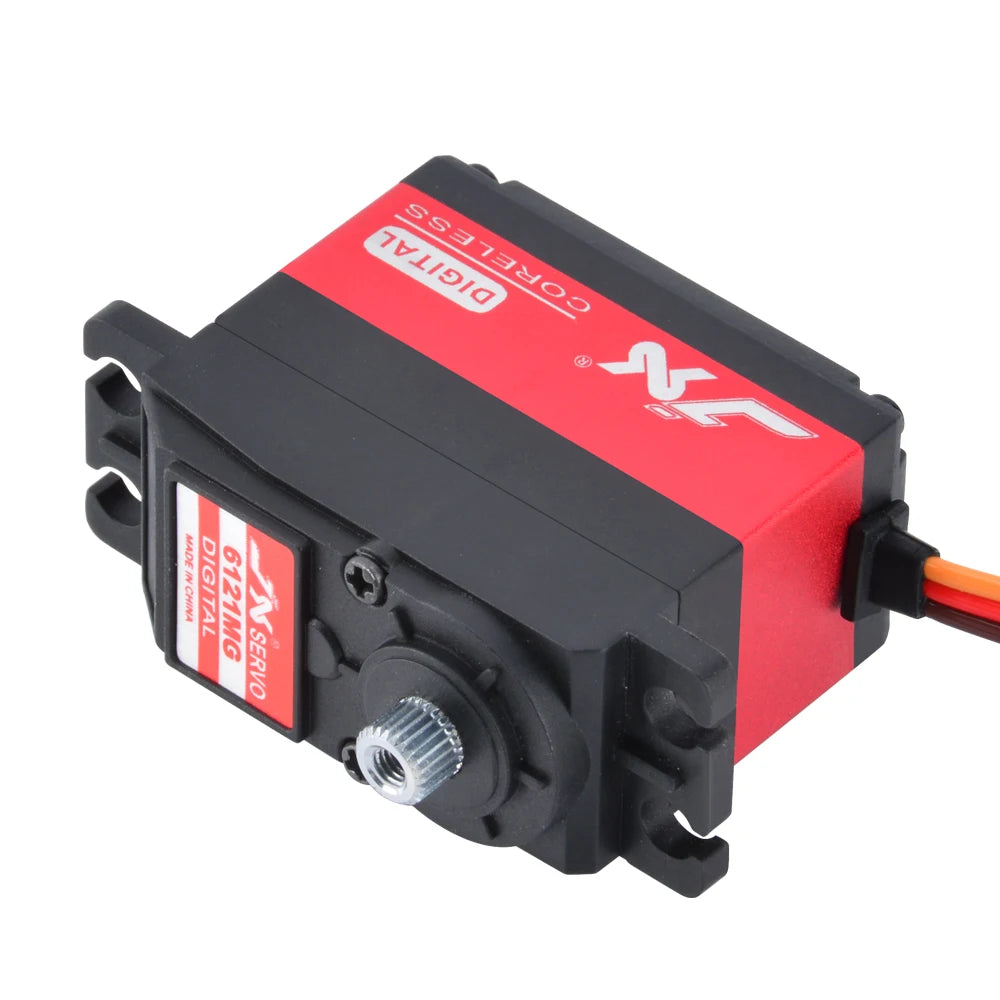

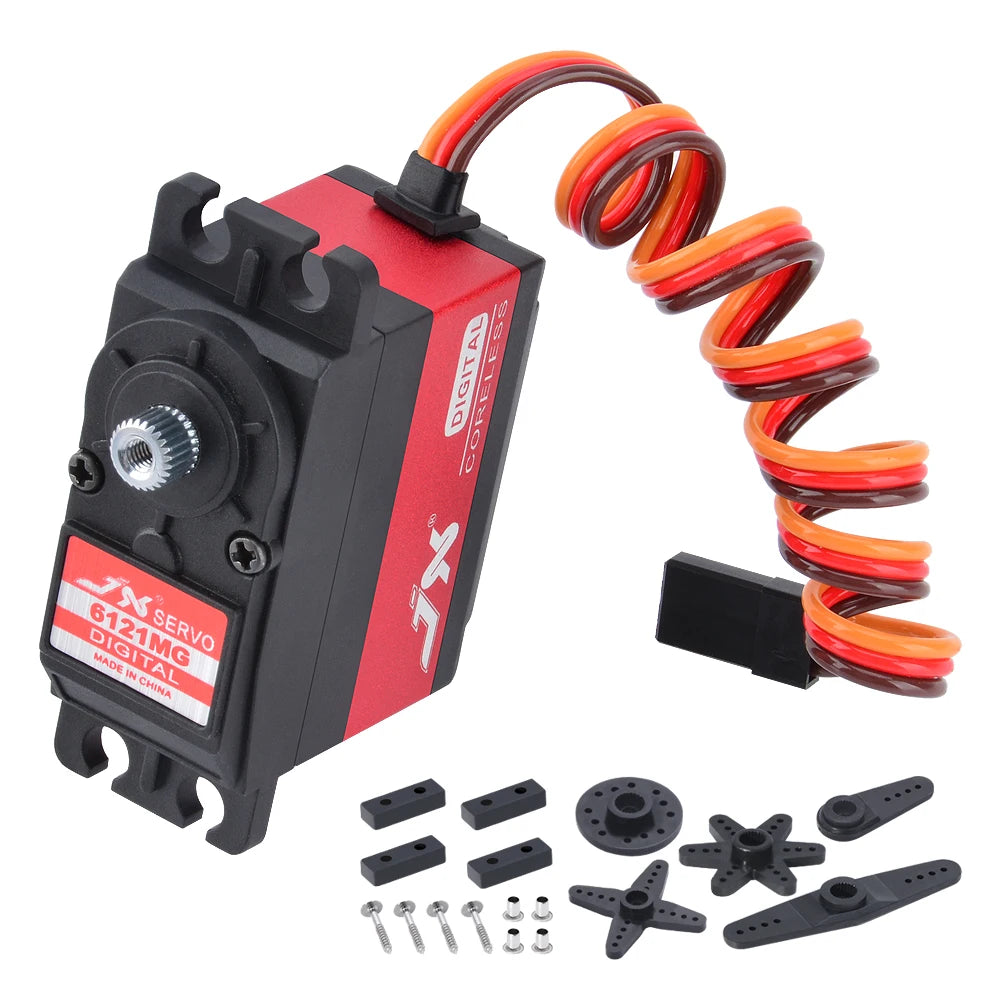

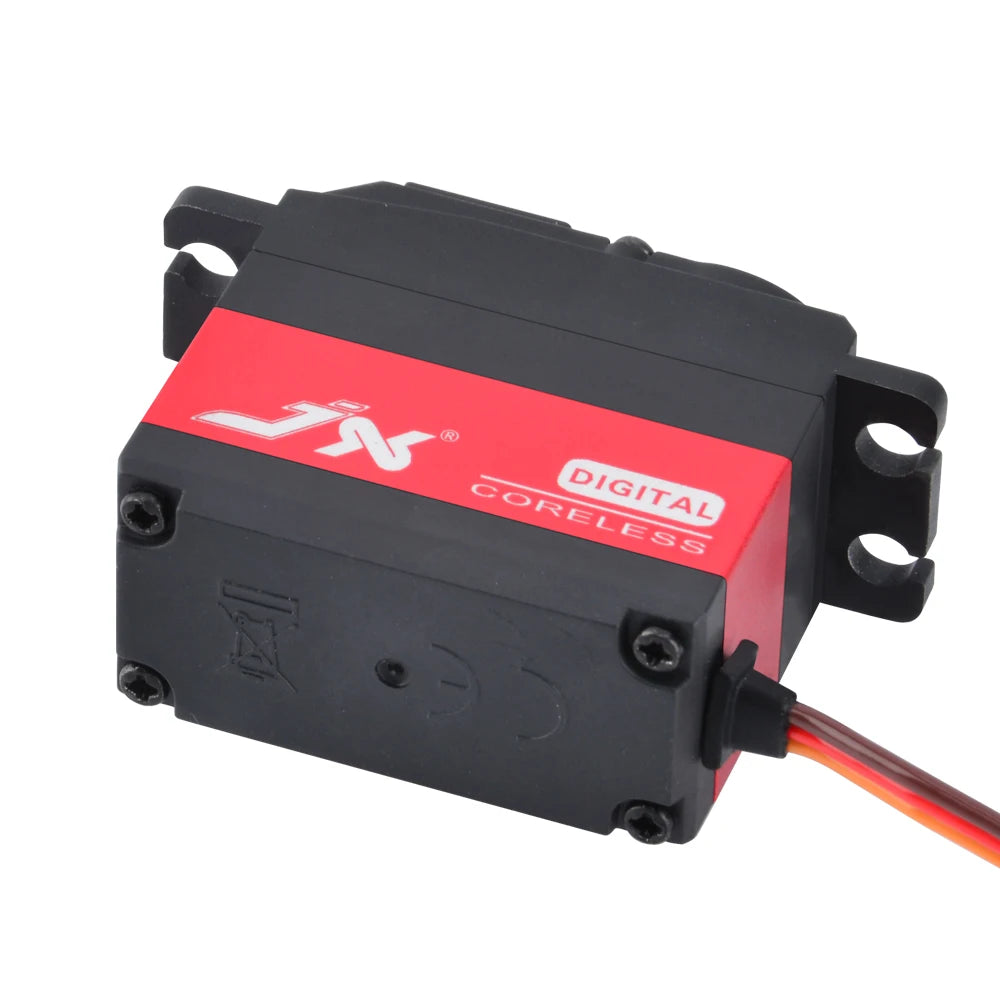

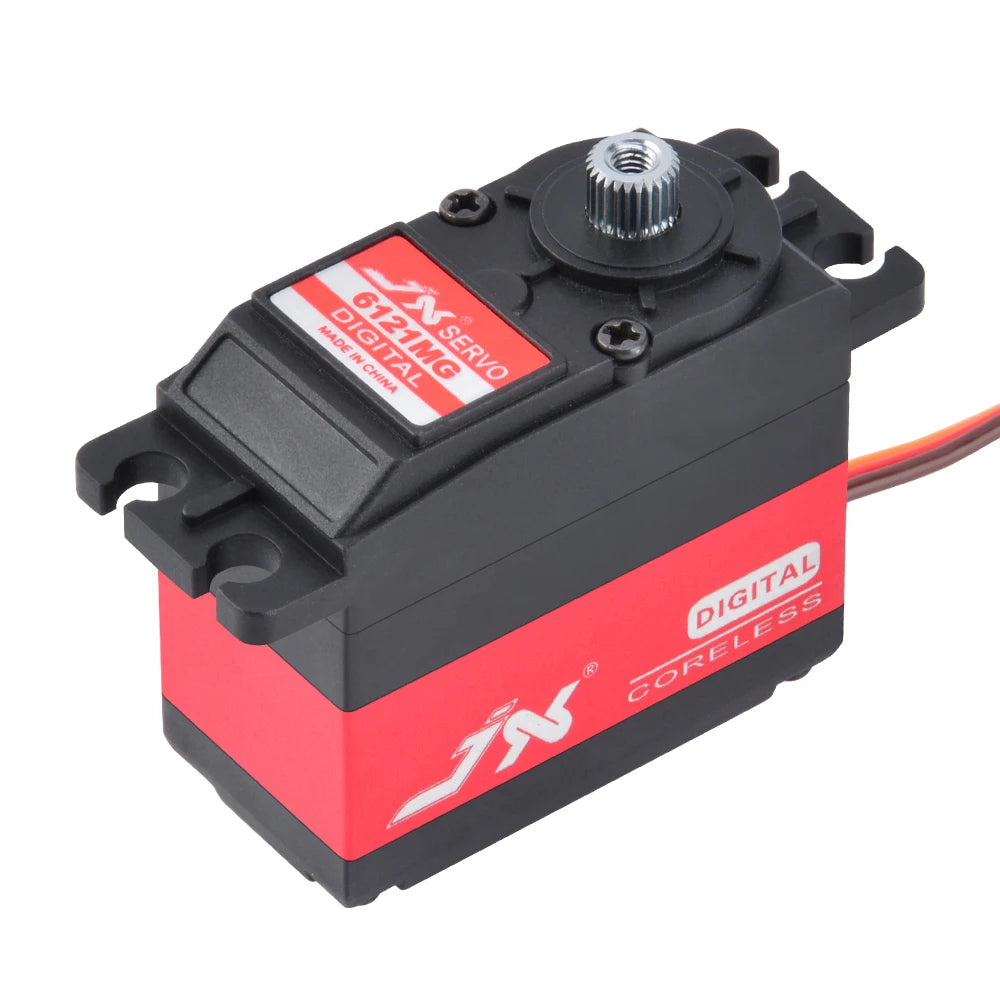

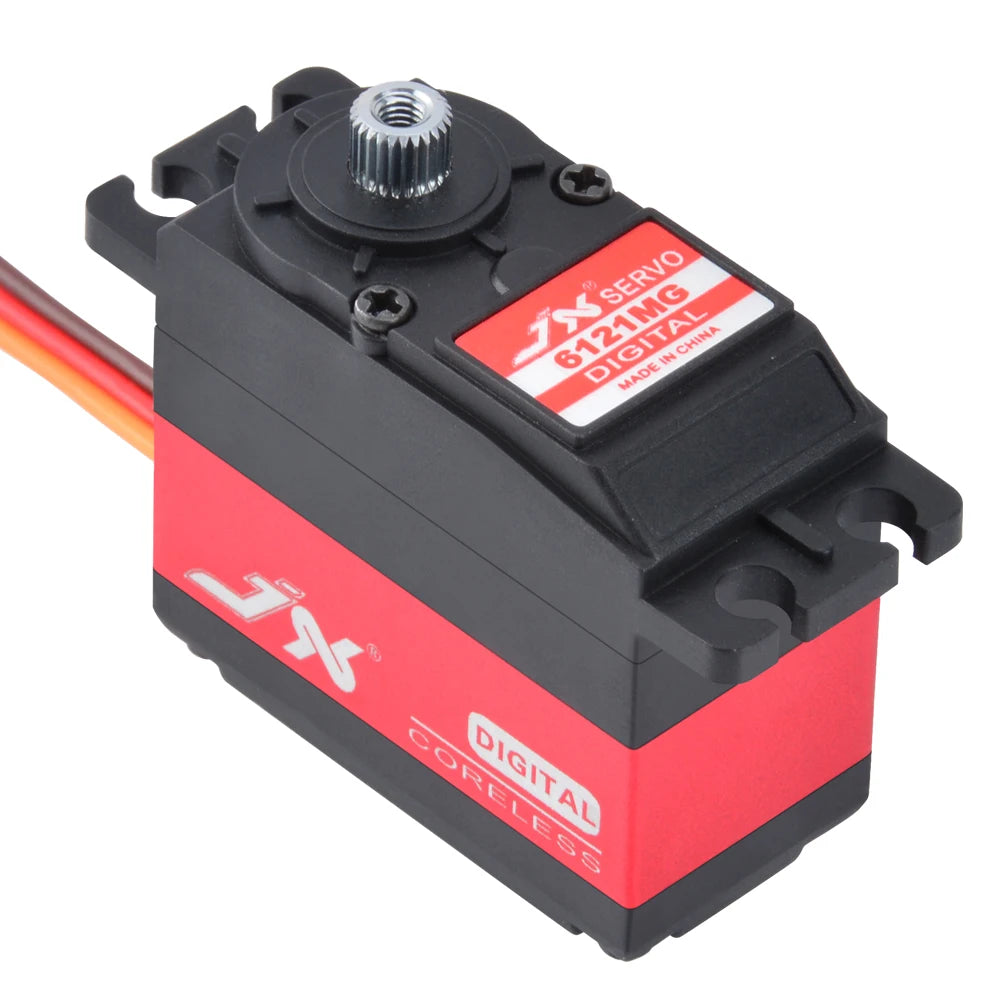

JX Servo PDI-6121MG – 6V 21KG Servo SPECIFICATIONS
Brand Name: JX
Origin: Mainland China
Material: Composite Material
RC Parts & Accs: Servos
Size: 40.5X20.5X40mm
For Vehicle Type: Airplanes
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Servos
Remote Control Peripherals/Devices: Servos
Tool Supplies: Assembled class
Technical parameters: Value 5
Model Number: PDI-6121MG
Four-wheel Drive Attributes: Assemblage
Wheelbase: Screws
Gear Teeth: 25T

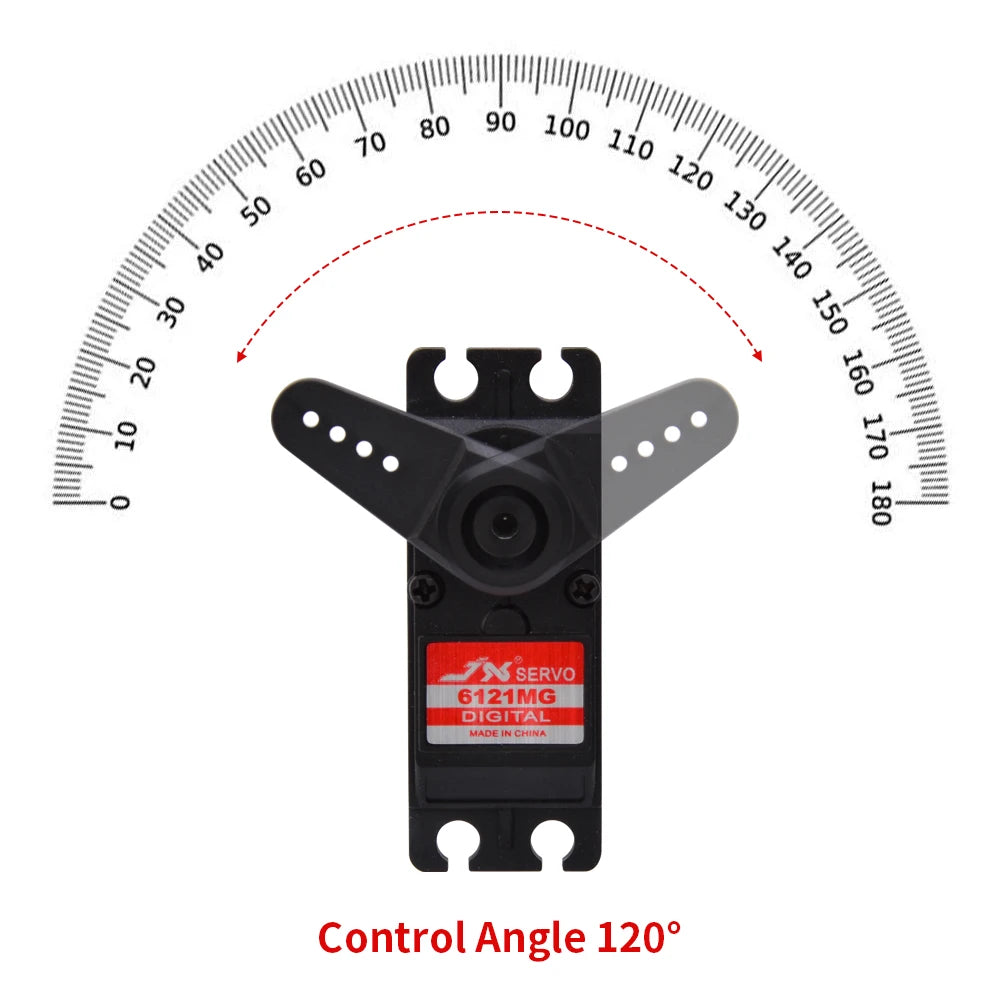

Control Angle: 120 Degree
Factory supply， Huge stocks, Support wholesale！
FEATURE:
— High performance digital coreless standard servo
— High-precision Taiwan-made aluminium gears with hard anodizing
— CNC aluminium middle Shel
— Dual ball bearings
SPECIFICATIONS:
Dead band: 1μs
Working frequence: 1520μs / 330hz
Motor: coreless motor
Operating Speed (4.8V): 0.152sec/60°
Operating Speed (6V): 0.131sec/60°
Stall Torque (4.8V): 17.21 kg.cm (239.03oz/in)
Stall Torque (6V): 21.06kg.cm (292.46oz/in)

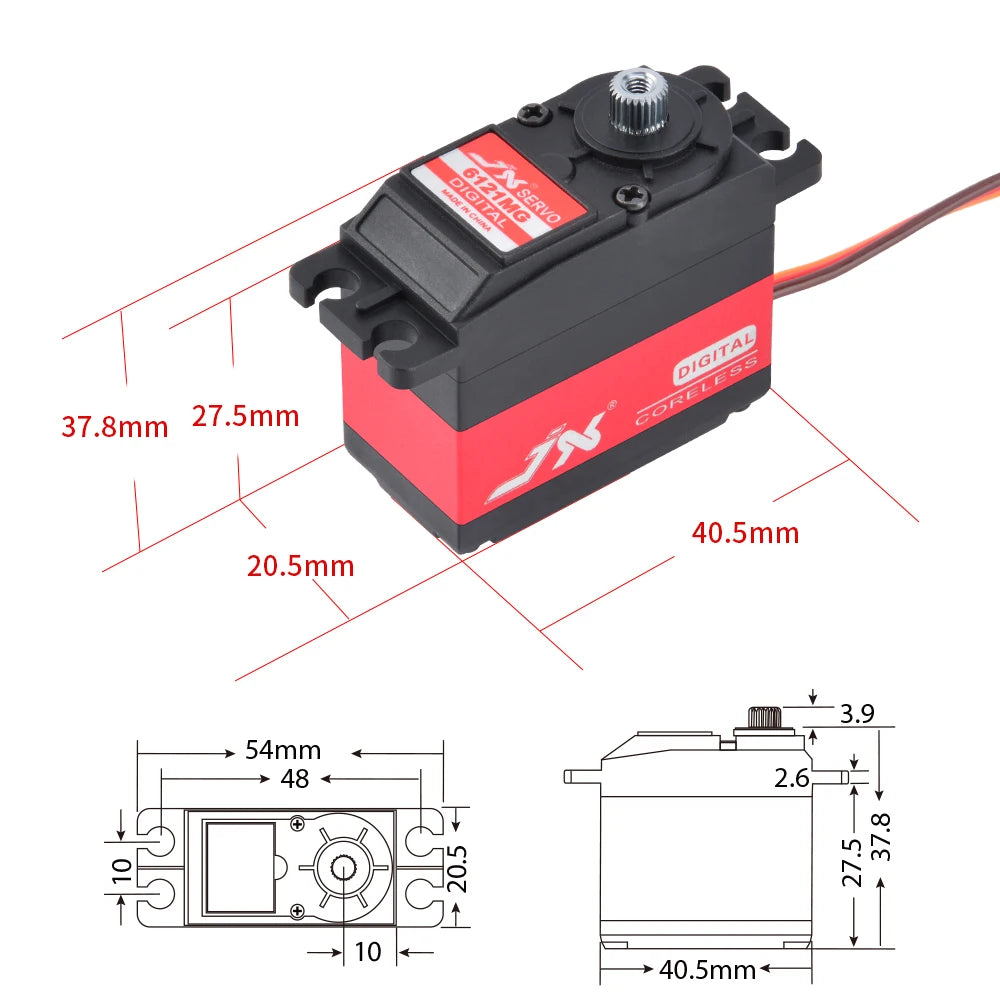

Dimensions: 40.5X20.5X36.5mm /1.59X0.80X1.43in
Weight: 61 g (2.15oz)

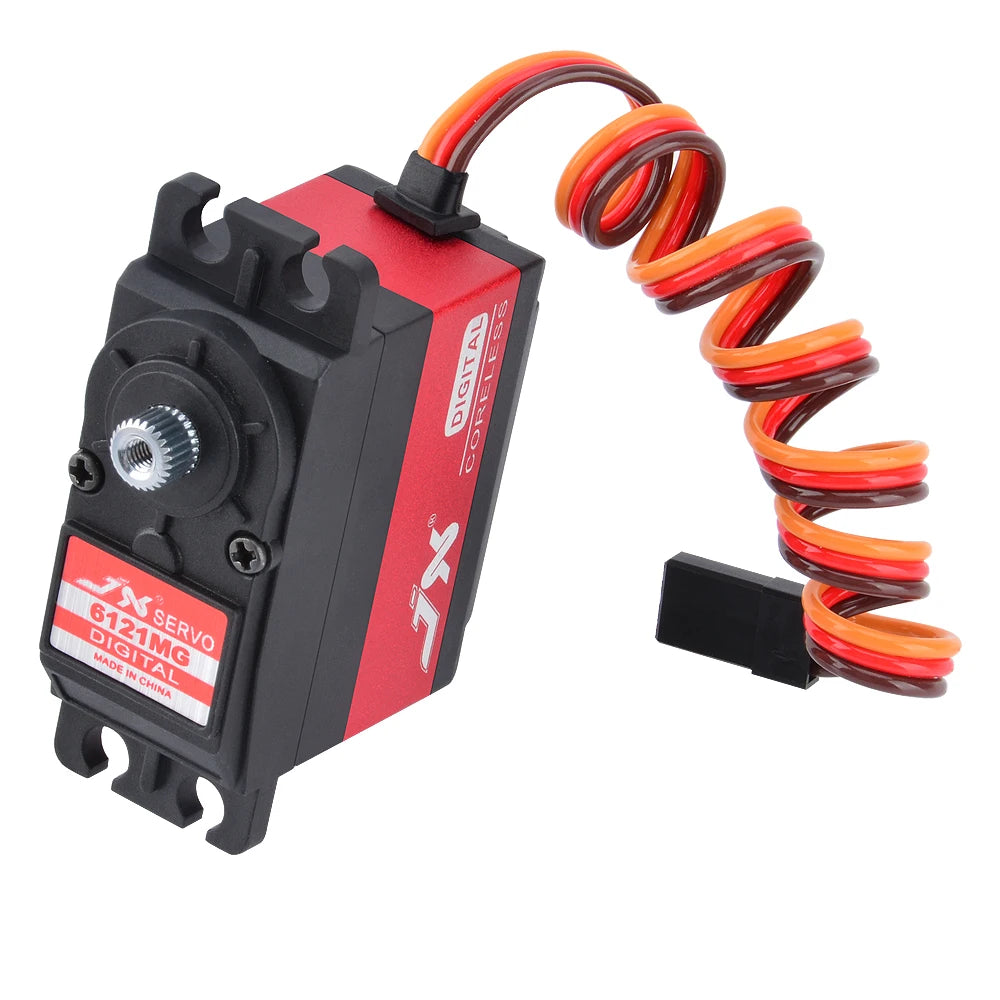

Connector Wire Length: JR 265 mm (10.43in)
Bearing: 2BB
Tooth Count：25

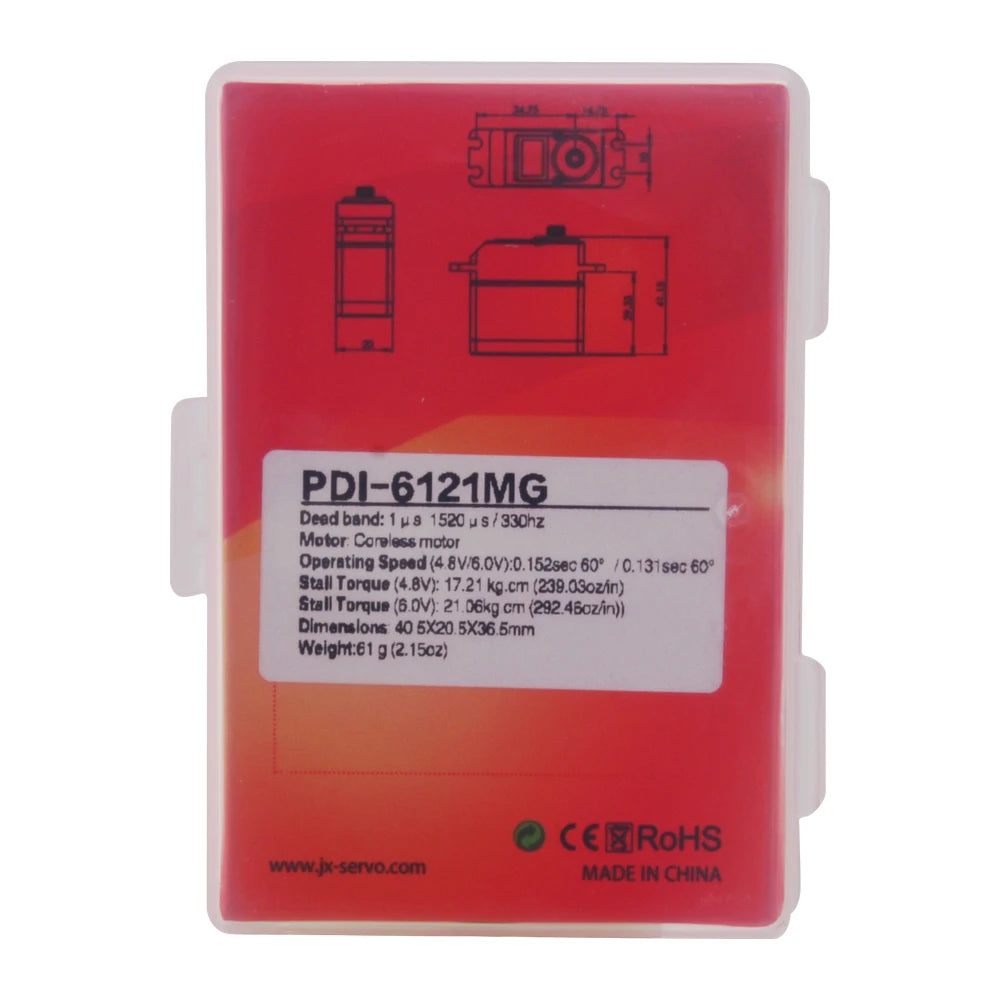

Dlmanslona 40 5X20 5X36 Bmm Welpht61 9 (2.1502) CerRoHS MaAX-senvo com MADE In CHINA Oekg 5 / g30hz Motor Careless motor Oporating Spead (4 8Vig.OV)
