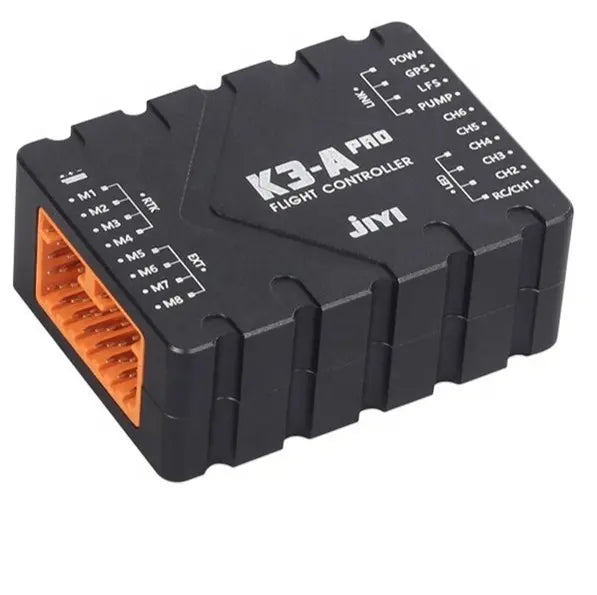

JIYI K3Apro flight controller for agricultural drones Overview
Essential details
- Type:
-
uav drone flight controller
- Condition:
-
New
- Year Built:
-
2021
- Place of Origin:
-
SHN
- Product name:
-
Agriculture drone flight controller
- Application:
-
Crop Vegetable Rice Beans Spraying
- Material:
-
Aviation Aluminum Alloy
- Certificate:
-
CE, FCC, RoHS, ISO 9001
- Spray Width:
-
10 meters
- Flight time:
-
10-15 Minutes/flight
- Payload:
-
32 liters/KG
- Spray efficiency:
-
16 hectares/hour
- Feature:
-
Pluggable Tank
- Function:
-
Spraying Pesticides Automatically
Product Parameter
|
Capacity:
|
32 liters
|
|
Spraying width:
|
≥ 10m
|
|
Spraying efficiency:
|
≥ 14~16 hectares/hour
|
|
Battery:
|
2pc 16s 16000mAh Li-po battery
|
|
Nozzle:
|
4pcs centrifugal nozzles
|
|
Fold size:
|
1.3 * 0.7 * 0.63 m
|
|
Spread size:
|
2.4 * 1.18* 0.63 m
|
|
Charge time
|
35 minutes full charge 2 batteries
|
|
Fly Time
|
10-15 minutes
|
|
1. How long can the battery fly?
|
|
2pcs batteries can fly for 10-15 minutes.
|
|
2. How long does it take to fully charge the battery?
|
|
About 35 minutes to full charge 2 batteries
|
|
3. How many batteries are needed for a whole day’s continuous spraying?
|
|
For continuous spraying, we recommend 12 batteries and 2 chargers
|
|
4. Do you provide training?
|
|
Yes, we provide 3 days’ free training online or in China
|
Main Parts
Brushless Motor
Waterproof & Dustproof
Waterproof level IP67
Heavy-duty
With self-cooling system
Work continuously for 12 hours/day
Waterproof & Dustproof
Waterproof level IP67
Heavy-duty
With self-cooling system
Work continuously for 12 hours/day
Centrifugal Nozzle
Droplet diameter of 50~200um
Better atomization effect
Better penetration
Spray more evenly
Not easy to be blocked
Aviation Aluminum Folding Joint
Firm and durable, not deformed.
Carbon fiber drone arm with diameter 40mm, thickness 2.0mm
Suitable for heavy duty work
Long service life
Long service life
Carbon Fiber Propeller
Foldable during transport
FOC integrated power system
Nozzles under propeller
Remote Controller
Integrated with Radio telemetry and Image transmitter, FPV camera, 5 inch screen. 1.5km control distance
Aviation Aluminum Alloy Frame
The whole frame is made of aviation aluminum alloy material, strong and durable
Product Feature
1. Autonomous Flight: Mark waypoints on Google map, program flight routes in the App, the drone will fly automatically according to the routes. The flight routes can be saved in the account for next time use.
2. Cloud Service: the spraying datas can be uploaded to cloud service platform with internet connection, and the administrator can monitor all the drones registered in this system in real time.
3. Obstacles Detection: the Millimeter wave radar on the front of drone can detect if there are any obstacles in front and stop drone flying forward to avoid any possible crash.
4. Intelligent Spraying: the spray flow can be automatically adjusted by chemical volume per hectare and fly speed.
5. Break-point Record: When the chemical runs out the drone will record break-point and continue spraying after refill.
6. Terrain Following: the Millimeter wave radar can detect the distance between drone and ground/crop surface and automatically adjust flight height to keep constant distance between drone and crops surface to get even spraying.
