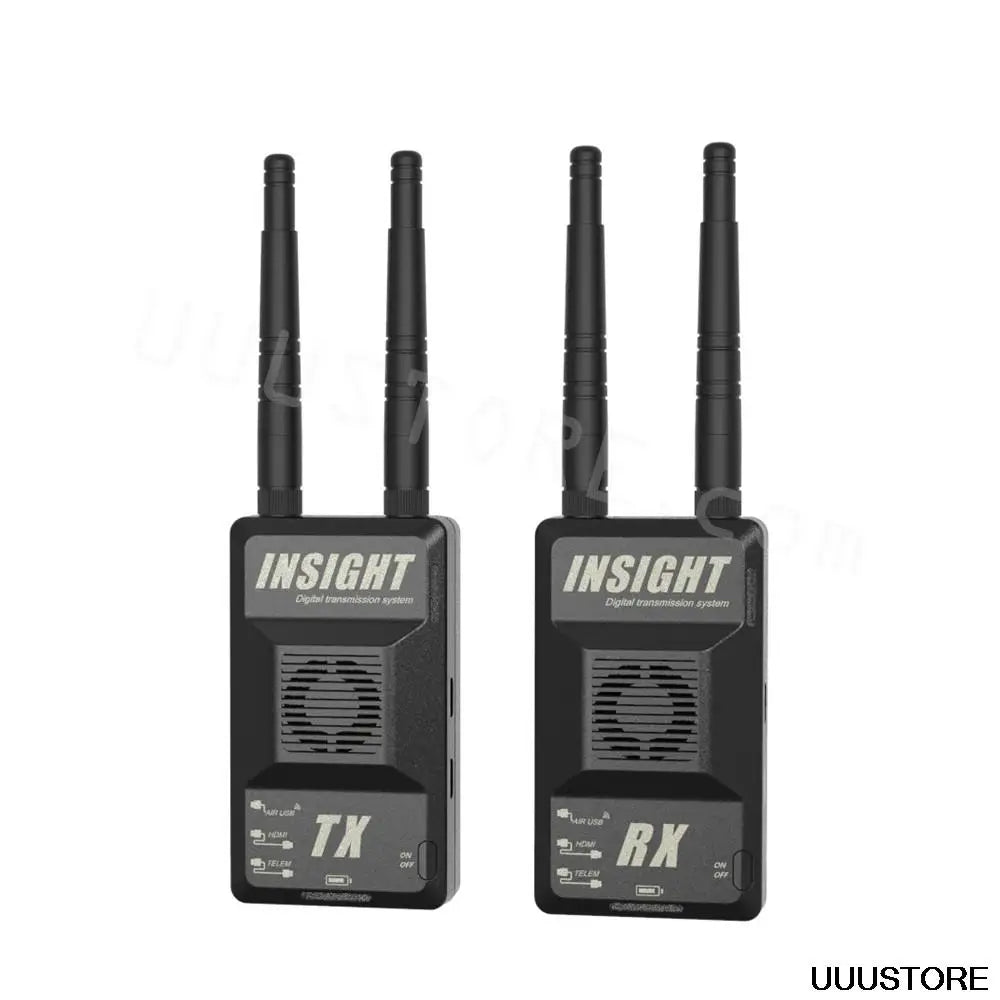

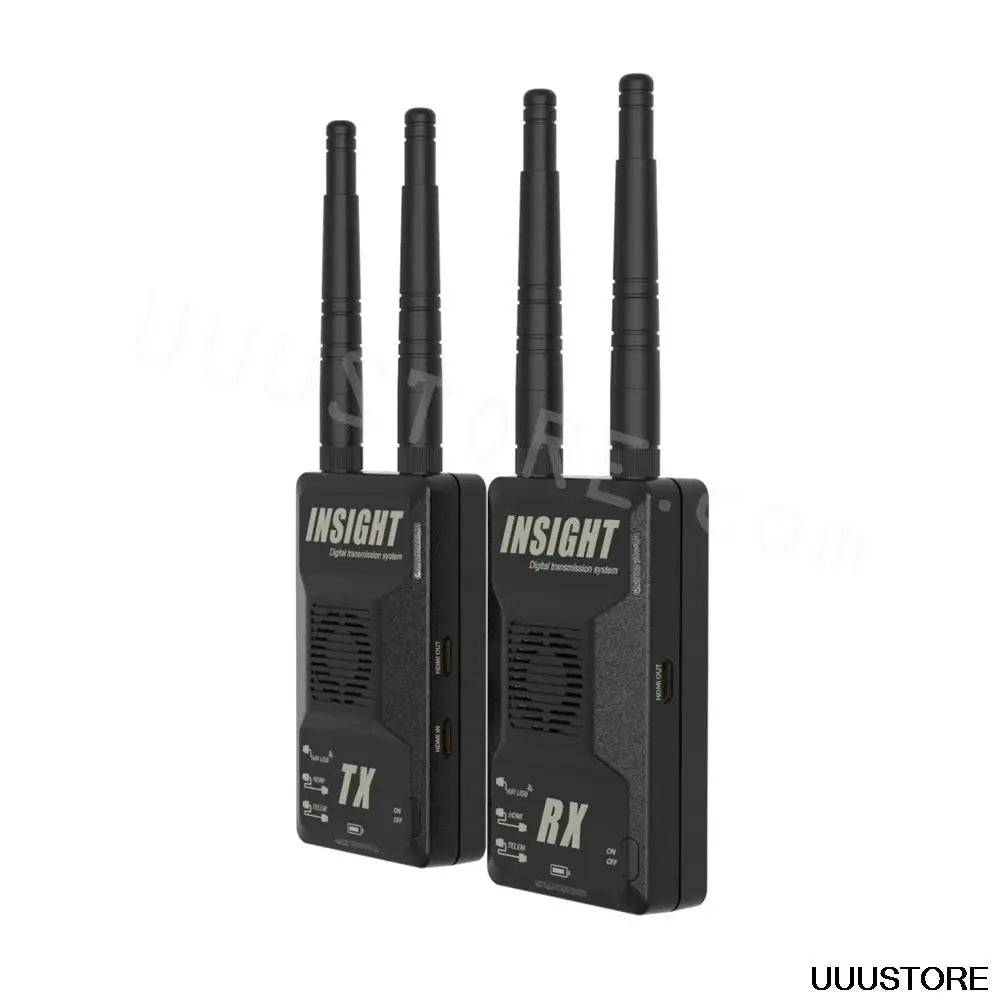

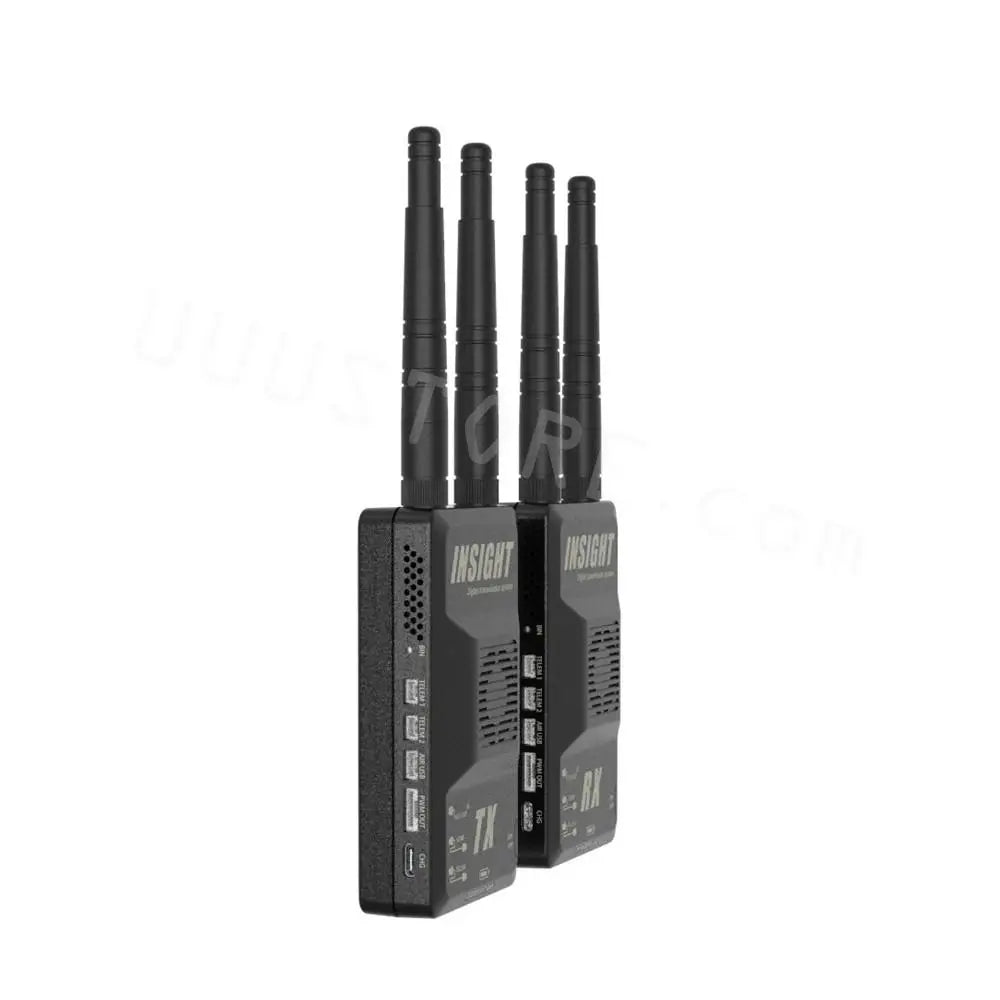

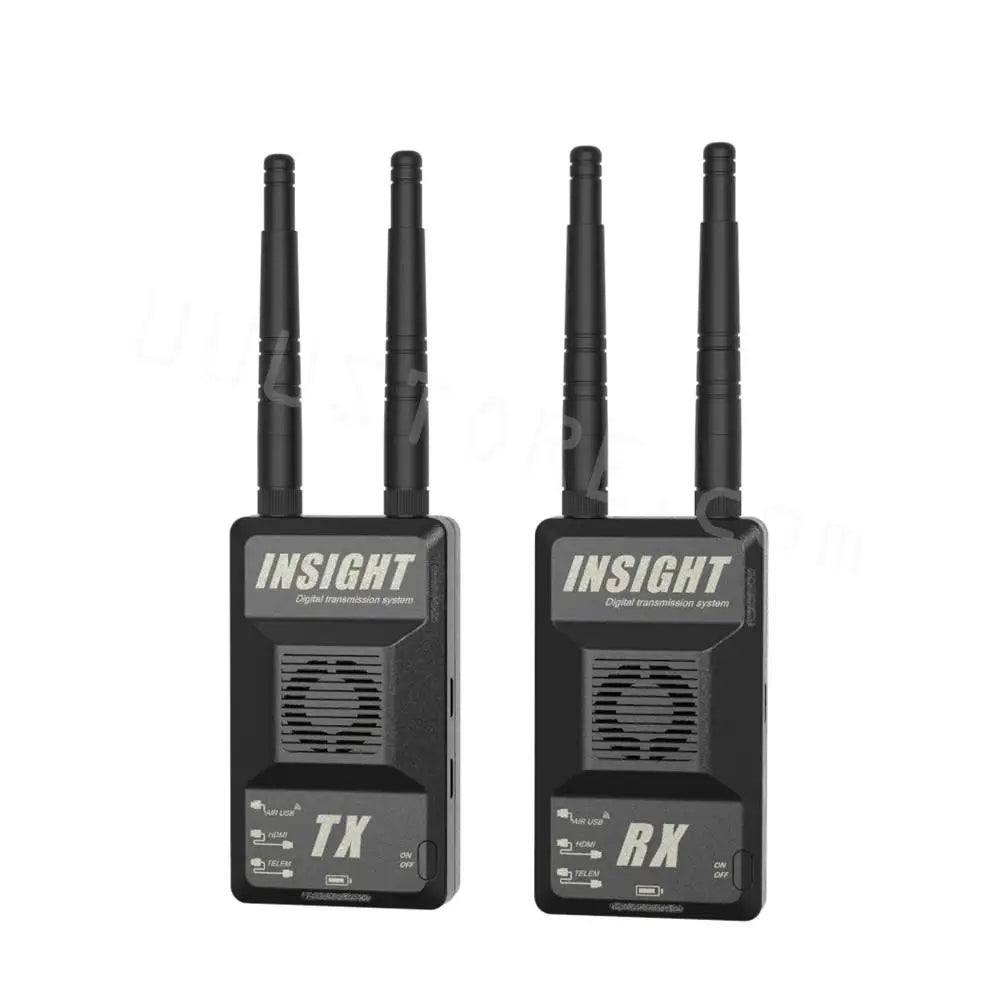

Insight HD Digital Transmission System
4K UHD/1080P Lite Pro/Pro 1080p FHD
HDMI 5G 10KM Wireless Video Transmission 4H Working Time Built-in 3000mAh LiPo
Specification:
Brand: Insight
Model: Pro 4K UHD
Transmission range (outdoor): standard antenna 500m
Output delay: 50-60ms
Frequency: 5.1GHz-5.8GHz
Modulation: OFDM
Input/output interface: Mini HDIM
Input video format: HDIM 4K UHD@30, compatible with 1080P@30@60
Output format: HDIM 4K UHD@30
Compression ratio: HEVC 3A TV broadcast level
Channels: 24 channels
Supported device: HDIM display, mobile phone, tablet, computer (requires WIFI support 802.11n/ac)
Supported system: Windows, Android, iOS
Data interface: USB, UART serial port data transparent transmission interface
PWM: 6 sets of PWM signal output PTZ and other external equipment control
Encryption: 256 bit encryption
Operating temperature: -20℃~60℃
Certification: FCC, CE standards
Charging port: type-c 5V charging port
Battery: (receiver/transmitter) built-in 3000mAh Li-Po battery (continuous work for 4 hours/2.5 hours)
Size: (116.9 SMA connector included) 112.6*64.6*31.5mm, weight 220g
Model: 1080P Lite Pro
Transmission range (outdoor): standard antenna 3km，（using panel antenna can reach up to 10km）
Output delay: 50-60ms
Frequency: 5.1GHz-5.8GHz
Modulation: OFDM
Input/output interface: Mini HDIM
Input video format: HDIM full format up to 4K UHD @30
Output format: 1080P@30@60
Compression ratio: HEVC 3A TV broadcast level
Channels: 24 channels
Supported device: HDIM display, mobile phone, tablet, computer (requires WIFI support 802.11n/ac)
Supported system: Windows, Android, iOS
Data interface: USB, UART serial port data transparent transmission interface
PWM: 6 sets of PWM signal output PTZ and other external equipment control
Encryption: 256 bit encryption
Operating temperature: -20°C~60°C
Certification: FCC, CE standards
Charging port: type-c 5V charging port
Battery: built-in 3000mAh Li-Po battery (continuous work for 4 hours)
Size: (116.9 SMA connector included) 112.6*64.6*31.5mm, weight 220g
Model: PRO 1080P FHD
Transmission range (outdoor): standard antenna 1km
Output delay: 50-60ms
Frequency: 5.1GHz-5.8GHz
Modulation: OFDM
Input/output interface: Mini HDIM
Input video format: HDIM full format up to 4K UHD @30
Output format: 1080P@30@60
Compression ratio: HEVC 3A TV broadcast level
Channels: 24 channels
Supported device: HDIM display, mobile phone, tablet, computer (requires WIFI support 802.11n/ac)
Supported system: Windows, Android, iOS
Data interface: USB, UART serial port data transparent transmission interface
PWM: 6 sets of PWM signal output PTZ and other external equipment control
Encryption: 256 bit encryption
Operating temperature: -20°C~60°C
Certification: FCC, CE standards
Charging port: type-c 5V charging port
Battery: built-in 3000mAh Li-Po battery (continuous work for 4 hours)
Size: (116.9 SMA connector included) 112.6*64.6*31.5mm, weight 220g
Note: Only 1080P lite pro version can reach up to 10km-15km with panel antenna.
WFUT 5ov Wputadv >== J0 anen? M003m222m o 2mt encu MndeinchaM Ardrs Tatnlody (Nendthco Lto ARous TEGNOLDGY (SHEN DIEM Co, LTD.

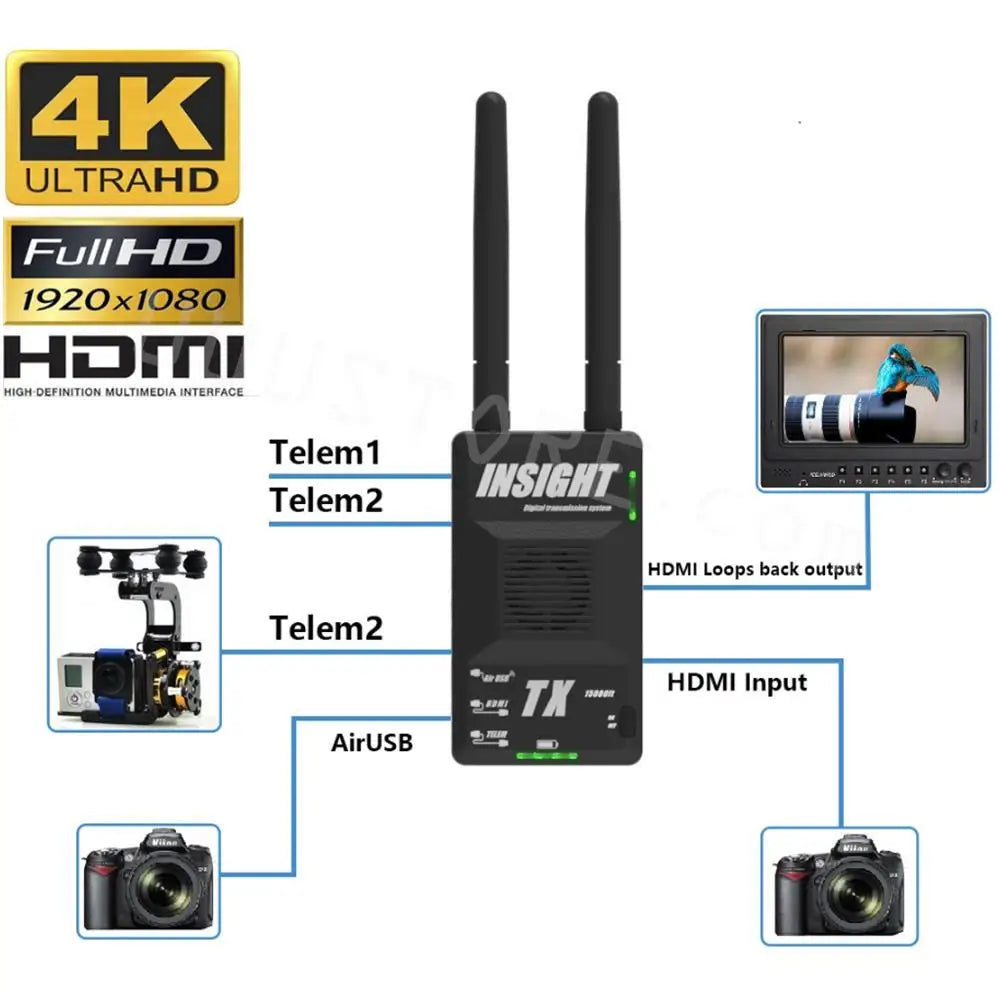

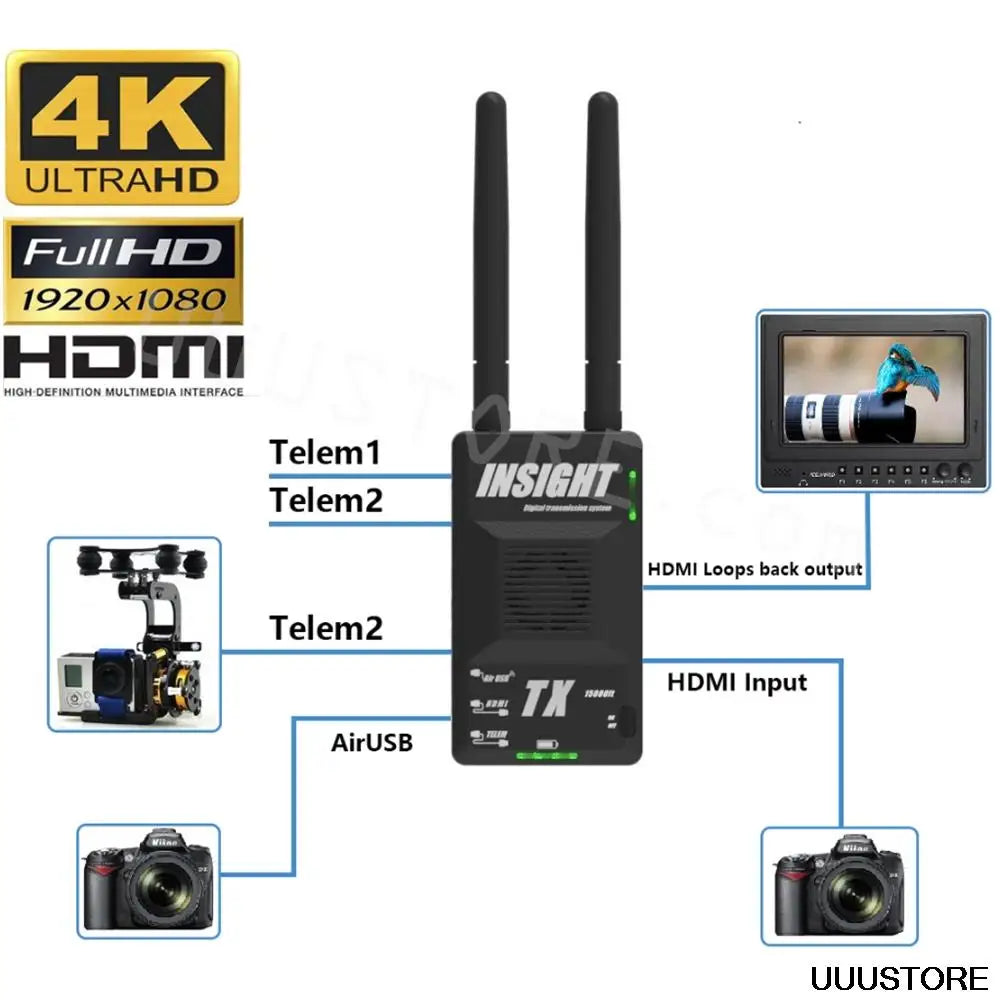

4K ULTRAHD FullHD 1920xio80 HDMi Hich DeFinitor MULTIMEDiA INTERFACE Telem1 INSIGHT Telem2 HDMI Loops back output s Telem3 HDMI Input TX AirUSB

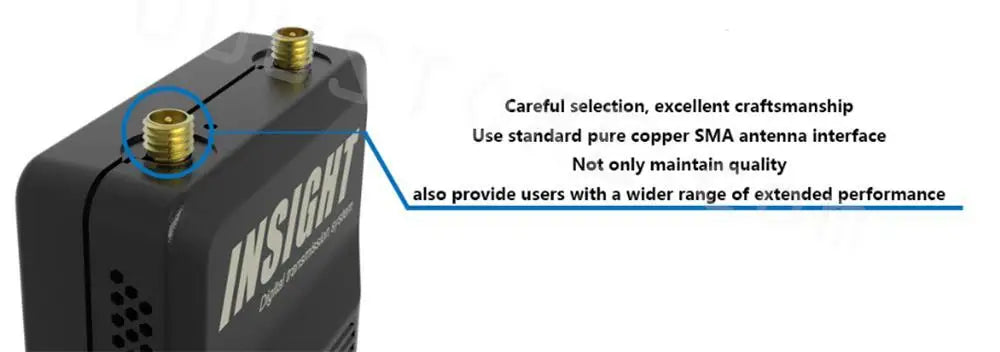

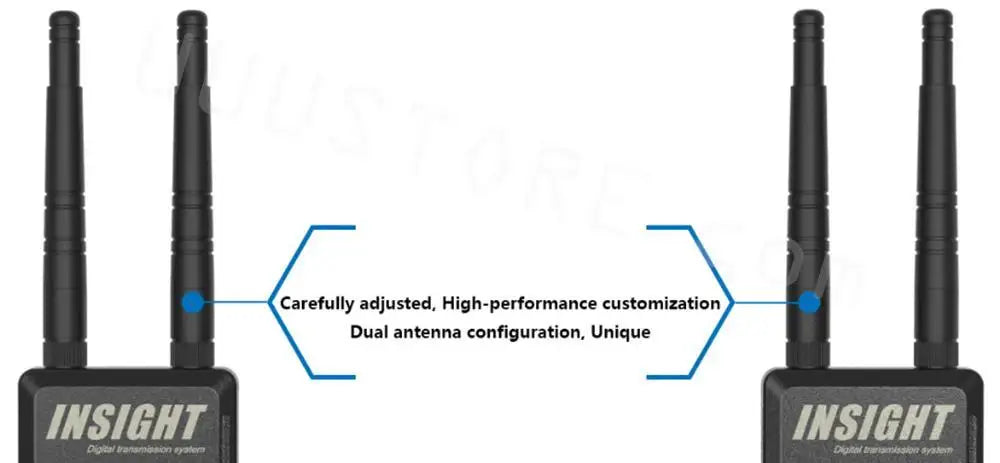

use standard pure copper SMA antenna interface . a wider range of extended performance 0 – 10 dB/s .

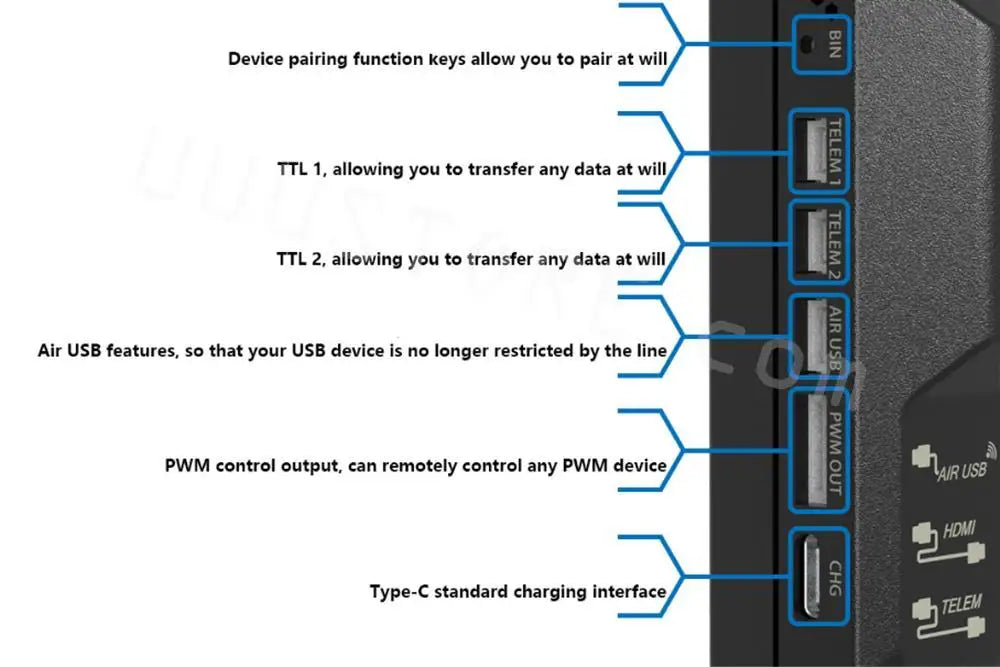

device pairing function keys allow you to at will 2 TTL 1, allowing you to transfer any data at will TTL 2 . Air USB features, so that your USB device is no longer restricted by the line PWM control output .

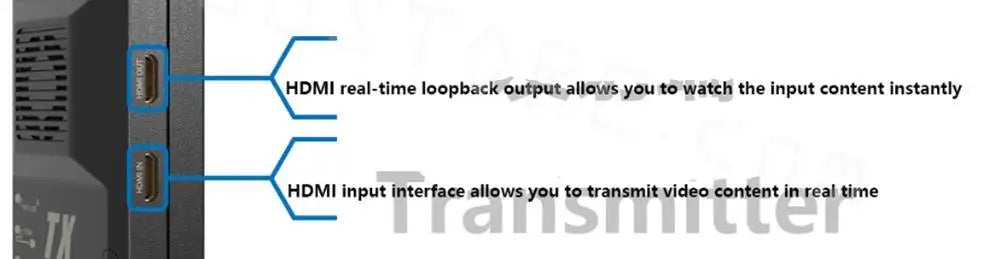

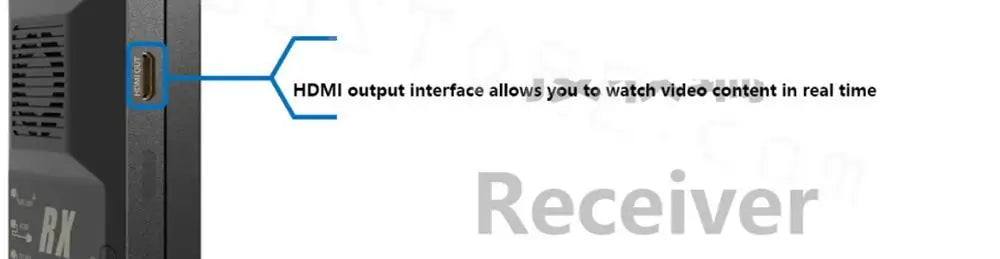

HDMI real-time loopback output allows you to watch the input content instantly TK TK is a TK protocol used to transmit

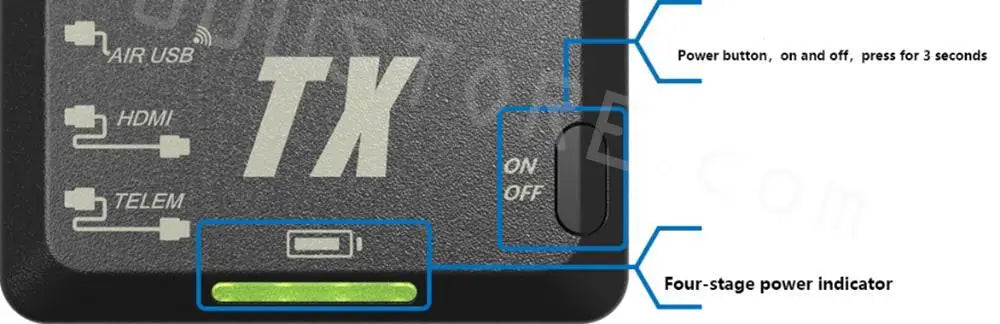

‘AIR USB Power button on and off , press for 3 seconds HDMI TX ON TELEM OfF Four-stage power

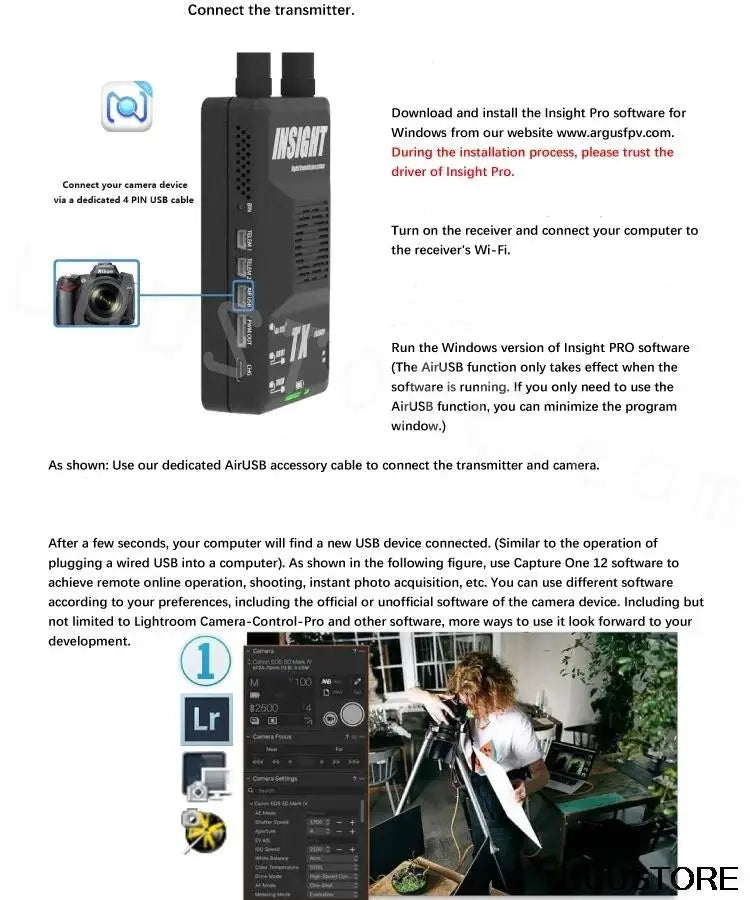

download and install the Insight PRO software for windows from our website wwwargusfpvcom . use our dedicated AirUSB accessory cable to connect the transmitter and camera .

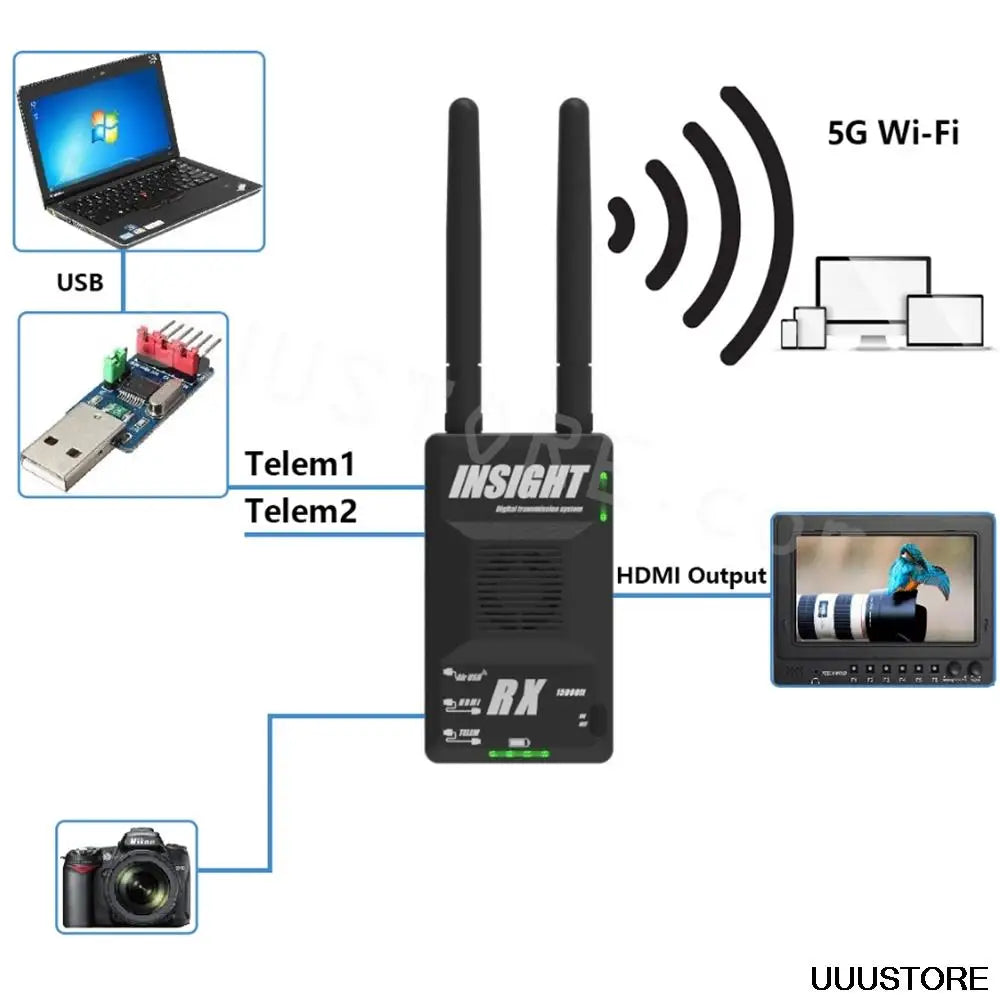

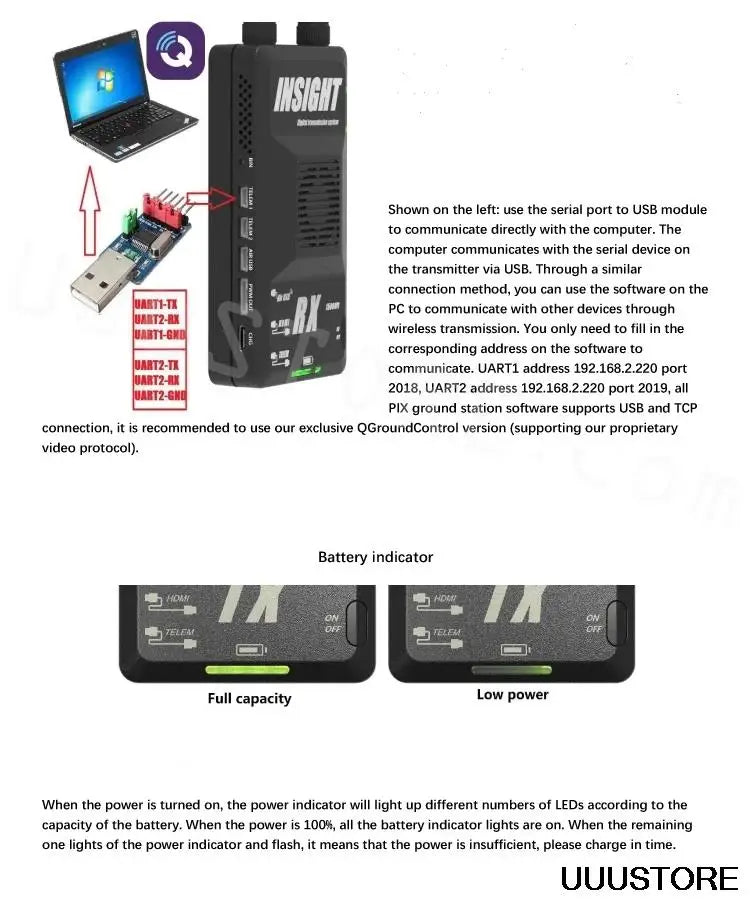

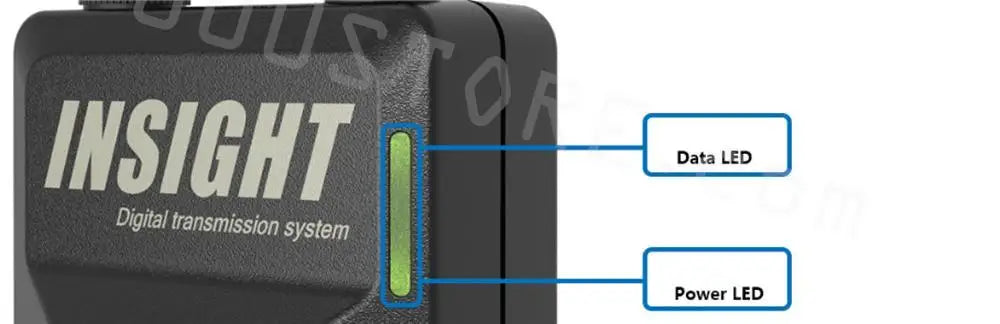

use the serial port to USB module to communicate directly with the computer . all PIX ground station software supports USB and TCP connection . when the power is turned on, the power indicator will light up different numbers of LEDs .
