iFlight XING Eco 2306 SPECIFICATIONS
Wheelbase: Screws
Upgrade Parts/Accessories: Motor
Tool Supplies: Motor
Technical parameters: Value 5
Size: As Show
Remote Control Peripherals/Devices: Motor
Recommend Age: 12+y
RC Parts & Accs: Engines
Quantity: 1 pcs
Origin: Mainland China
Model Number: iFlight XING Eco 2306
Material: Composite Material
Four-wheel Drive Attributes: Motors
For Vehicle Type: Helicopters
Brand Name: uuustore
iFlight XING E PRO 2306 1700KV 2450KV 2-6S Brushless Motor 1/ 2/ 4PCS for RC Models Car Multicopter FPV DIY Racing Parts Accs
Package included:
1/2/4pcs x MOTOR XING-E 2306 Pro motor
Description：
XING-E series are very strong and powerful FPV motors for FPV racing, great value choice with well known XING performance.focuses on quality, the XING-E series affordable motors that are strong and durable.
This 2306 sized motor features a high-strength 4mm steel hollow shaft, Single strand windings for performance, M3 shaft screw, and larger 9x4x4mm NSK bearings.
Features:
High-strength 4mm Steel shaft
N52SH High-temperature magnets, NSK bearings
16x16mm hole pattern
Single strand copper winding
6061 CNC machined aluminum top and base parts
Hex bolt shaft set screw
Specifications:
Configuration: 12N14P
Stator Diameter:24mm
Magnets: N52SH Curved
Bearing Size: 9x4x4
Shaft Diameter: 4mm / Steel
Base Mounting Pattern: 16x16mm M3 Thread
Motor Dimension:29.5×18.7mm

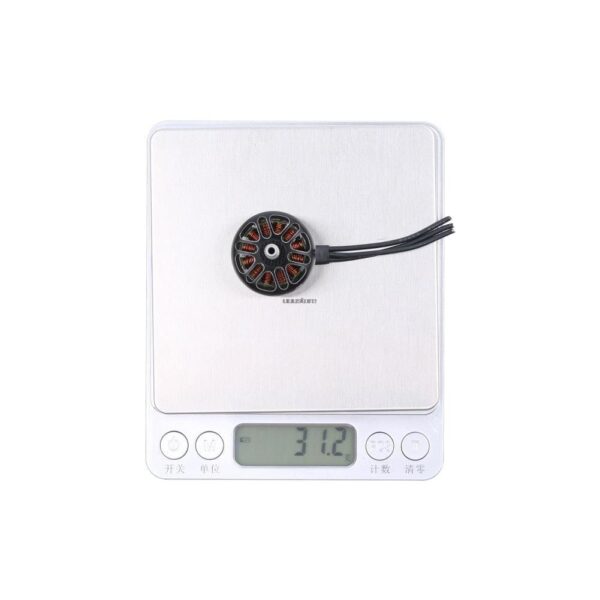

Weight:33.1g (150mm wires)
Idle Current @12.6v (Io):2.1A
Cells (LiPo): 2-6S
Max Burst Current <10s:55.22A
Max Power (W) 60s:885.4W
Internal Resistance (Rm):40.6mΩ
Motor Wire Length: 150mm / 20AWG
