SPECIFICATIONS
Wheelbase: Bottom Plate
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Frame
Tool Supplies: Cutting
Technical parameters: Value 2
Size: 30.5*30.5mm
Remote Control Peripherals/Devices: Remote Controller
Recommend Age: 12+y
RC Parts & Accs: Antennas
Quantity: 1 pcs
Origin: Mainland China
Model Number: Whoop AIO F4 V1.1 AIO
Material: Metal
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes
Certification: CE
Brand Name: IFLIGHT
Description：

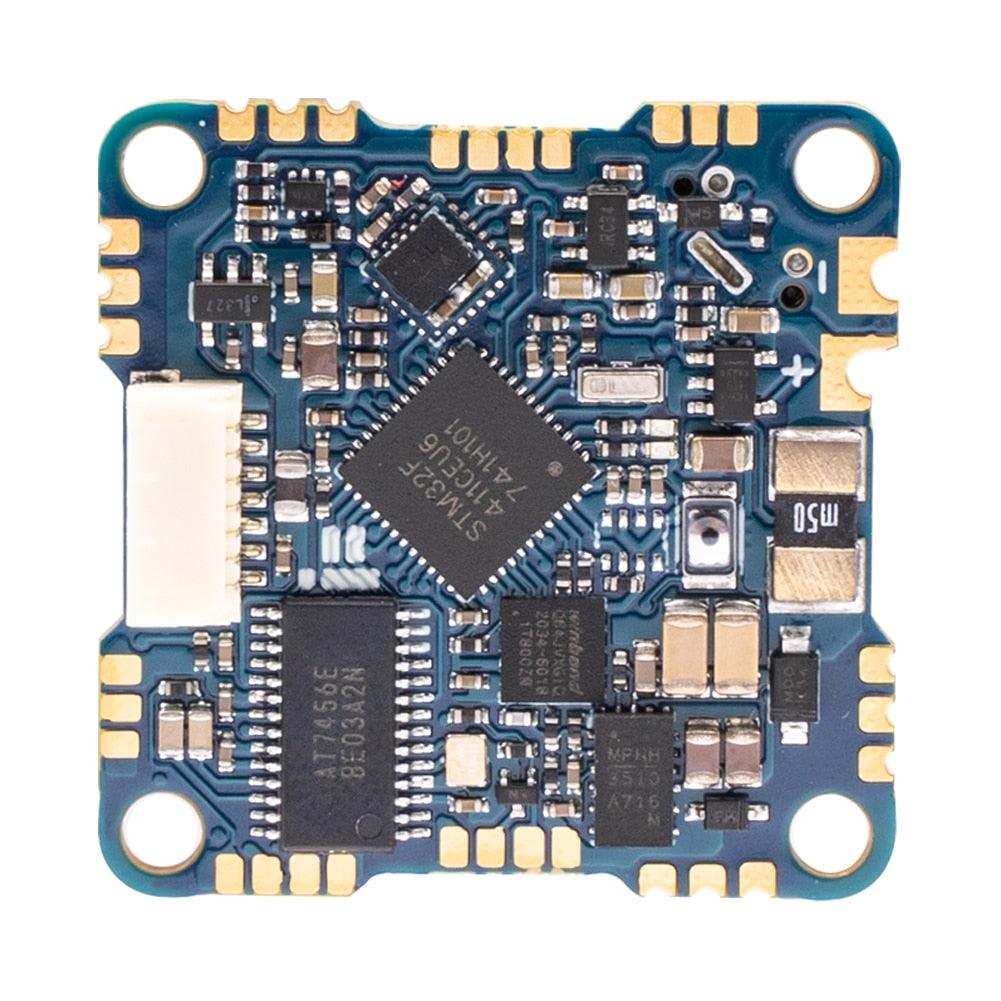

FC // Whoop AIO F4 V1.1 AIO
Size：30.5*30.5mm
Mounting pattern：25.5*25.5mm/φ3mm

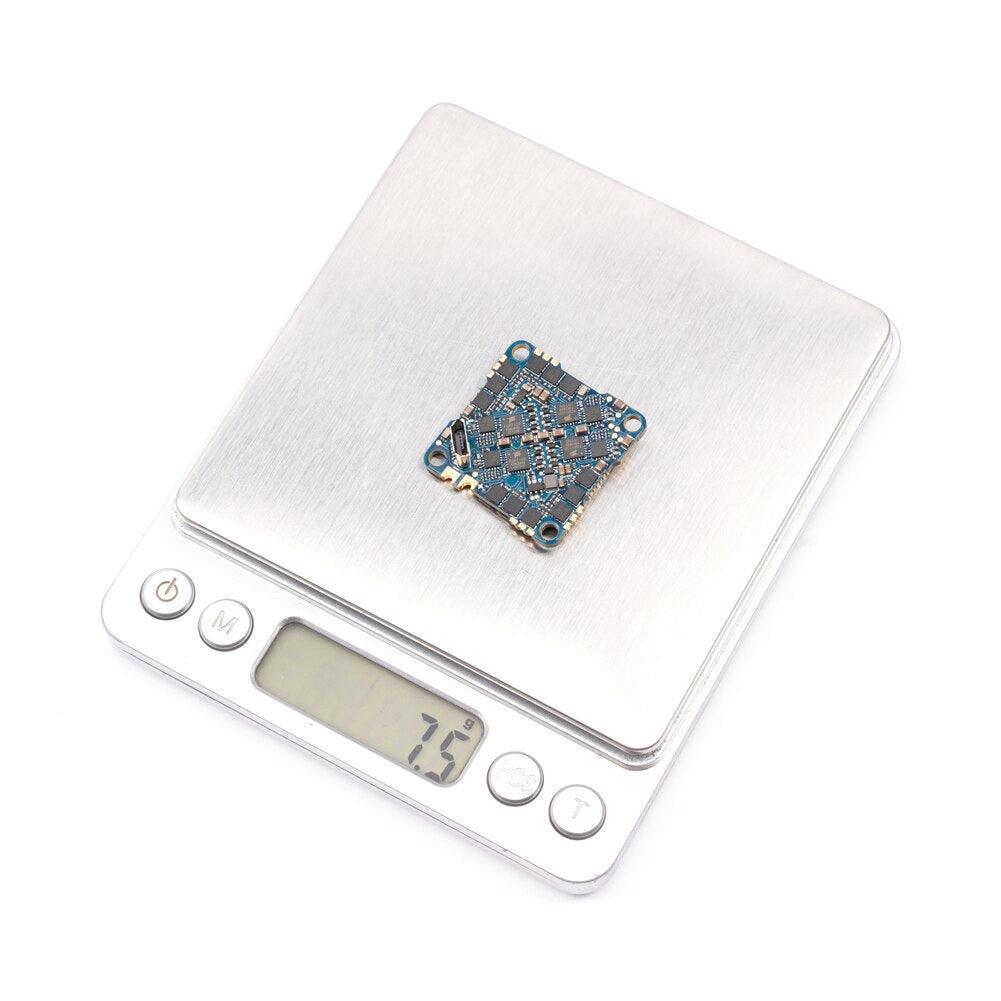

Weight: 7.4g

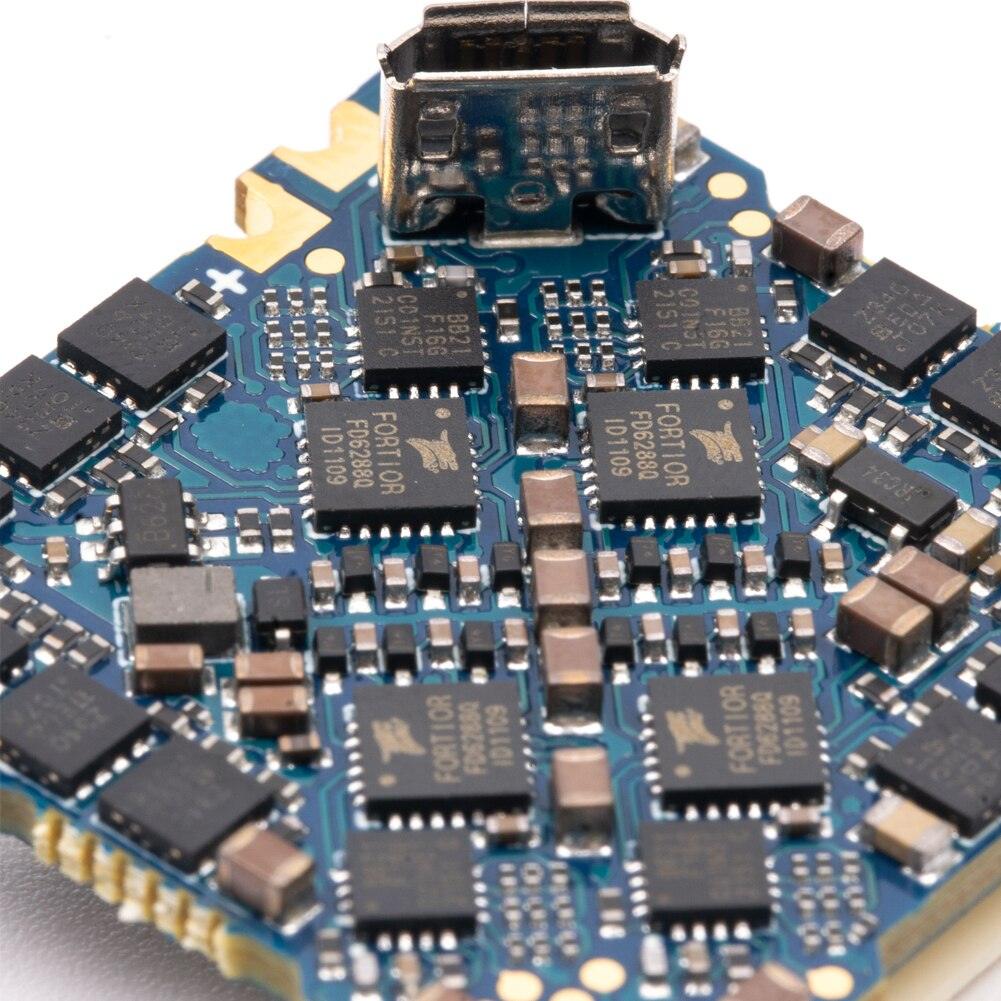

Connector：Micro-USB

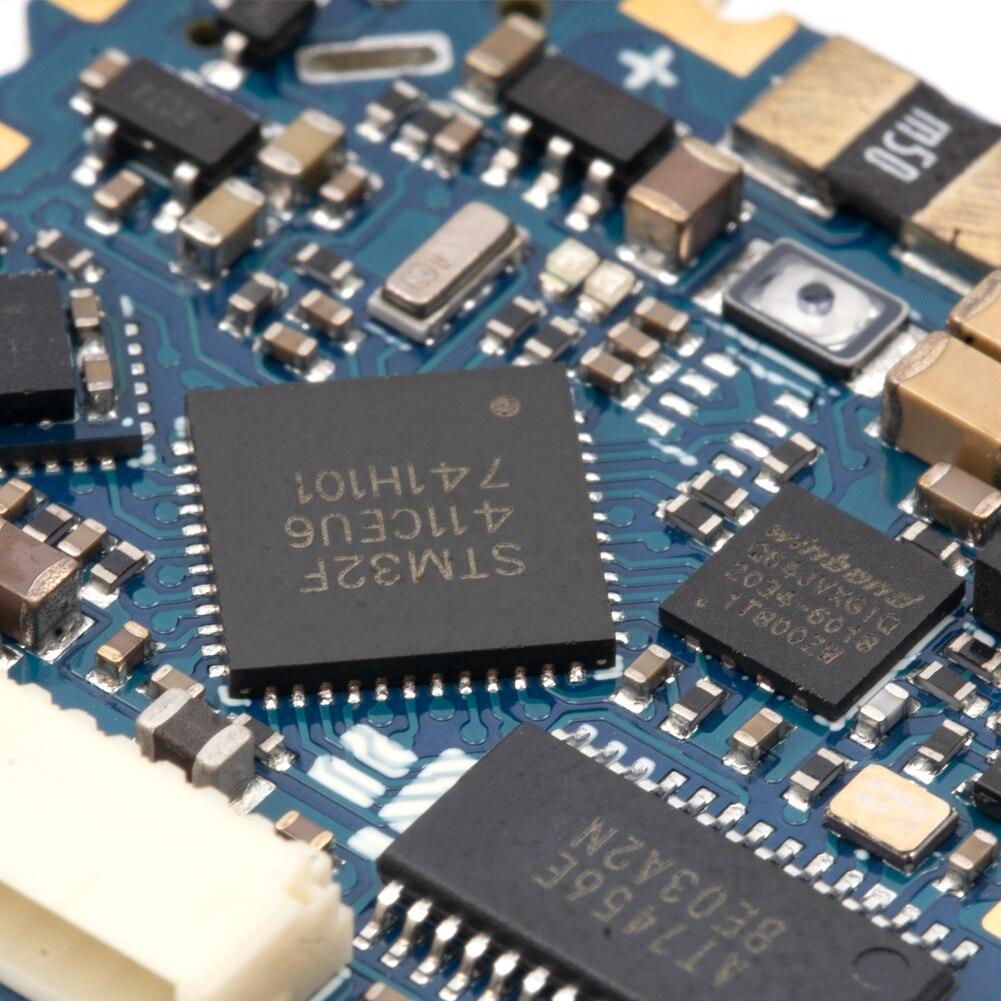

MCU：STM32F411
Gyro：BMI270
Blackbox：8MB
BEC output: 5V 2A
INA pad：nR2
Barometer：no
Constant current：20A，25A（Burst）
Input：2-4S
Current sensor：yes
BLHeli：BLHeli-S
ESC Telemetry：no
Firmware Target：IFLIGHT_F411_PRO
ESC Firmware：Q-H-15 / Bluejay Q-H-50 (Bluejay)
Package Includes:
Whoop AIO F4 V1.1 AIO Board× 1
Capacitor UPL 35V 470UF × 1
XT30 18awg cable
Wire harness (plug&play) for DJI Air Unit × 1
M2 silicon grommets × 4
M2 damping balls x 4
M2*8mm Screws x 4
