• Nazgul5 HD is a 5″ size BNF (Bind-and-Fly) quadcopter with the Caddx Vista Digital HD System on it. We sticked the lighter Caddx Vista on one of our new updated XL5 V5 FPV frames. Pre-tuned and setup, everything you need is just bind-and-fly! Loads of power and smooth flights guaranteed using our popular XING-E motors with long-lasting NSK bearings. Got a hard hit and snapped an arm? Don’t worry, get some spares with your order and easy-swap out in field. Wanna strap your GoPro on that beast as well? Checkout our collection of high quality TPU prints for your cam!

HIGHLIGHTS:

• 5mm arm design for more durability

• Easy-Swap arms

• LED illuminated Logo

• XING-E Pro 2207 motors and NAZGUL F5 props

• 5″ version also fits 5.1″ style propellers

• Popular True-X configuration

• TPU crash-guards

• Fits both 30.5x and 20x stacks

Nazgul XL5 HD frame specs:

• BLITZ F7 Flight Controller V1.1

• BLITZ E45S 4-IN-1 45A 2-6S ESC

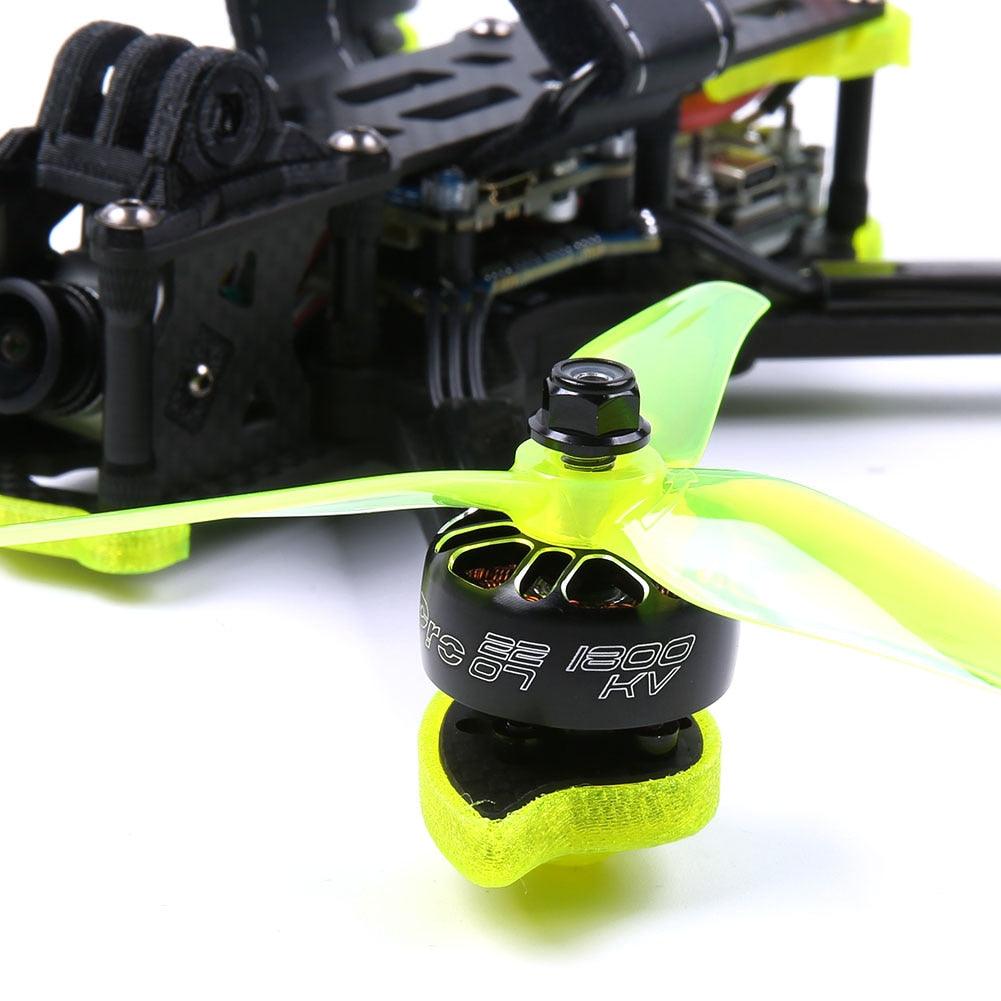

• XING-E Pro 2207 FPV Motor（6S 1800kv )

• Wheelbase:   240mm*240mm

• Body size: 170*170mm

• Propeller size: 5 inch /5.1 inch

• FC pattern: 30.5*30.5/20*20 mm

• FPV cam spacing: 19mm

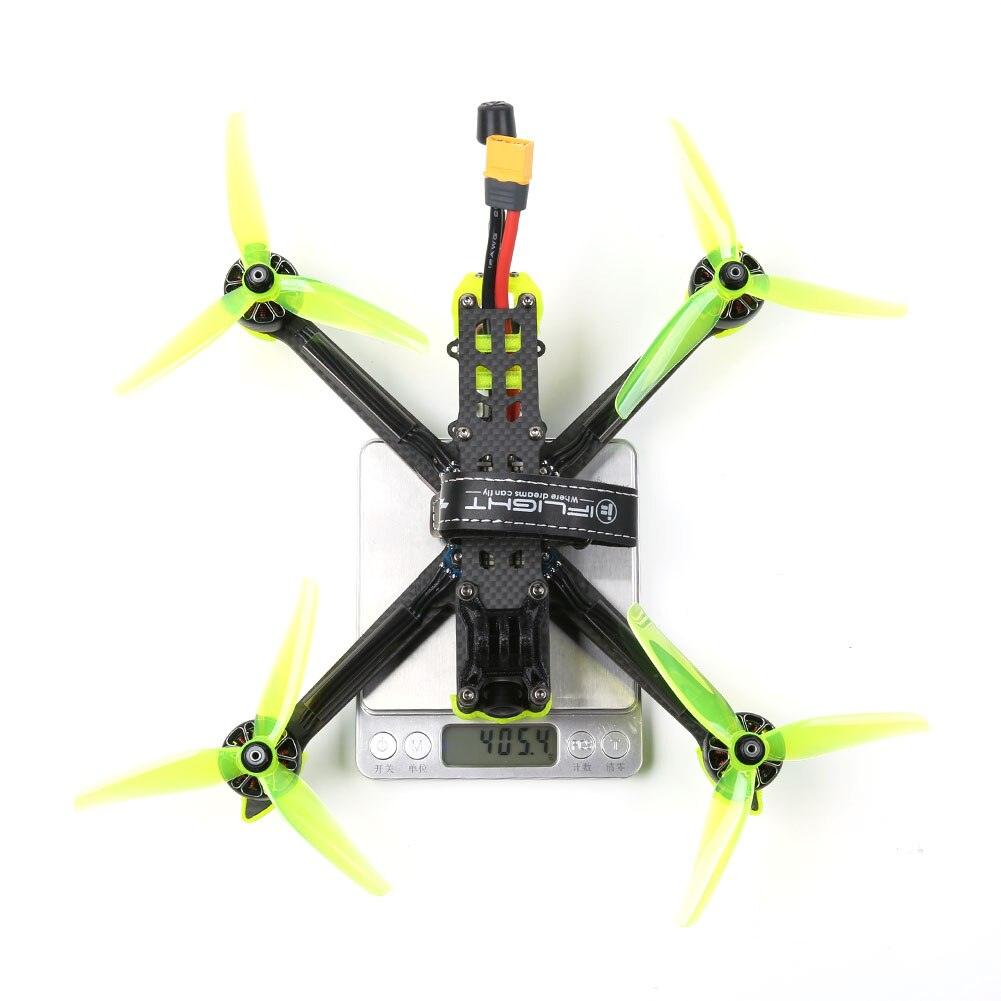

• Weight: 400.8g (without battery)

PRE-TUNED & PRE-SETUP:

• Don’t worry about tuning, we did that for you already! A basic PID- and Filter tuning was applied for a great flight experience!

• To restore lost tunes or updates, please check our linked article on“Firmware/Factory Dumps”

• Angle-Mode (self balancing level mode) is enabled by default to make sure your first flight doesn’t end in a mess!

• Please check our linked article on“How to disable Angle-Mode, activate Acro-Mode”

Changelog:

• June 2021: Upgraded SucceX-E F4 flight controller to SucceX-E F7


• February 2022: BeforeSucceX-E F7 flight controller changed to BLITZ F7 V1.1

• Prebuilt and tested Quadcopter

• 1x XL5 V5 Frame

• 1x Caddx Polar Vista Digital HD System Kit

• 1x Albatross LHCP RP-SMA 5.8g antenna

• 2sets x Nazgul 5 inch 3-blades (Set of 4 – Color may vary)

• 1x 20*200mm Microfiber PU Leather Battery Strap (Color May Vary)

• 1x 20*250mm Microfiber PU Leather Battery Strap (Color May Vary)

Additional Suggested Parts（donot include）

• DJI HD FPV Goggles

• Radio Controller

• Battery 6S 1300mAh

• GoPro Mounts


Important

The DJI Remote Controller is recommended for beginners since you won’t need to set up another receiver, but it is also optional in this BNF drone because it is NOT required in order to use the FPV system. If you don’t choose to use the DJI Remote Controller, you can choose a receiver option for your transmitter. and then bind to your own radio as usual.

• Our current frsky receivers default version in 2.XX, requires to use the same version of frsky transmitter.

• If you have none frsky transmitter,please downgrade the version lower than 2.X.X, www.frsky-rc.com for more details.
