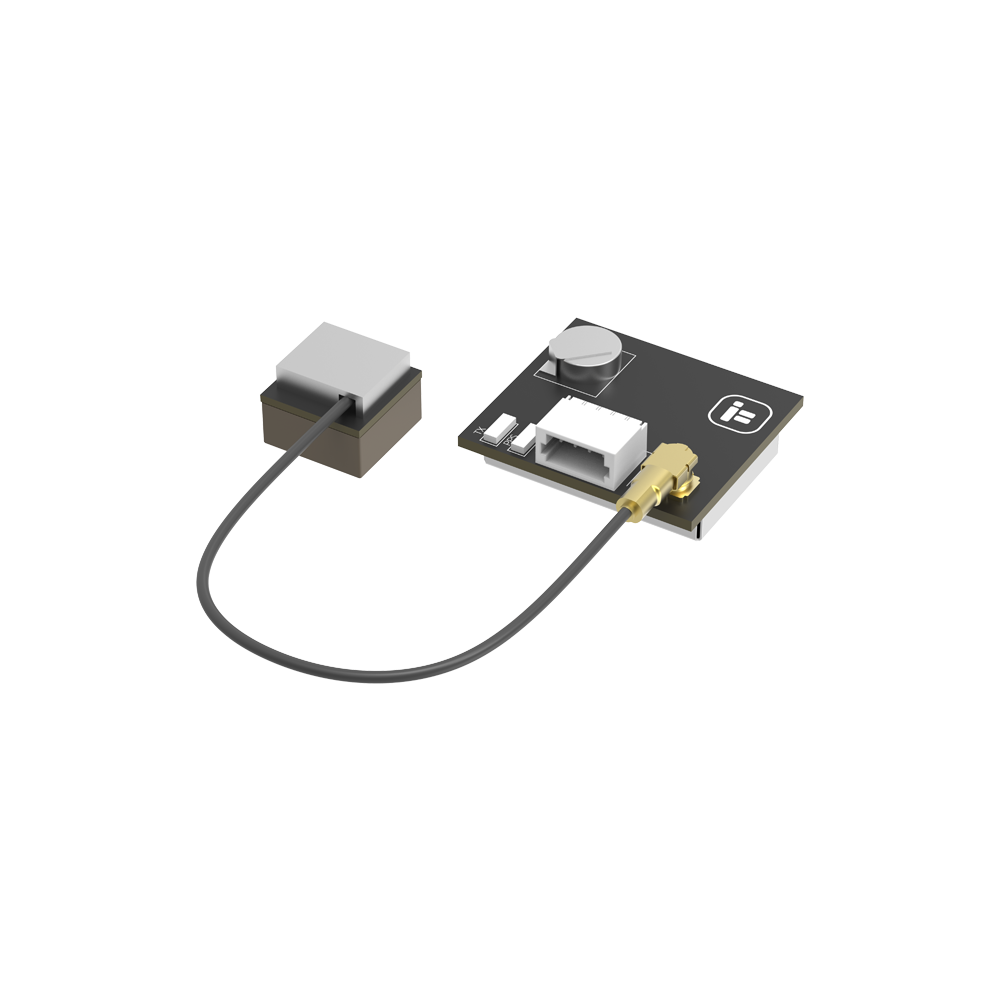

iFlight BLITZ SPLIT GPS SPECIFICATIONS
Wheelbase: Bottom Plate
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Frame
Tool Supplies: Battery
Technical parameters: Value 2
Size: 18x16x7mm
Remote Control Peripherals/Devices: Remote Controller
Recommend Age: 12+y
RC Parts & Accs: Antennas
Quantity: 1 pcs
Origin: Mainland China
Model Number: BLITZ SPLIT GPS
Material: Metal
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes
Certification: CE
Brand Name: IFLIGHT
Description：
- GPS specially designed for Defender25.
Features：
- UBLOX M10 chip
- Built-in farad capacitor for faster hot start
- Onboard LNA (Low Noise Amplifier)
- 10 Hz Refresh rate
- Built-in Flash

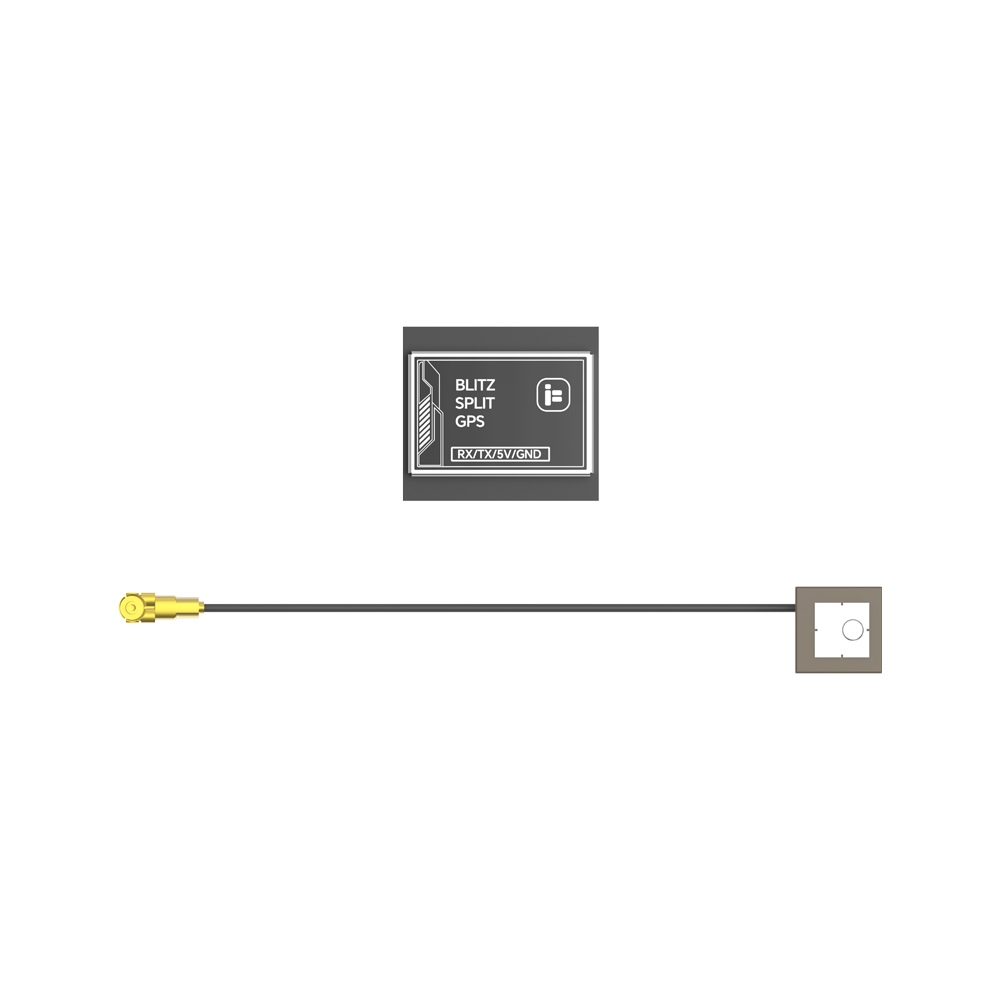

- The split antenna design enables the antenna to be hidden inside the drone
Specifications:
- Baud Rate: 4800bps-115200bps (Default – 115200bps)
- Sensitivity: Tracking: -167dBm
- Cold start: 60s
- Hot start: 1s
- Maximum height: 50000m
- Maximum speed: 500 m/s
- Speed accuracy: 0.05 m/s
- Maximum acceleration: ≦ 4G
- Refresh Rate: 10 Hz
- Total dimensions: 18 x 16 x 7 mm
- Weight: 1.8 g
- Input Voltage: 3.3-5.5 V, current 40mA

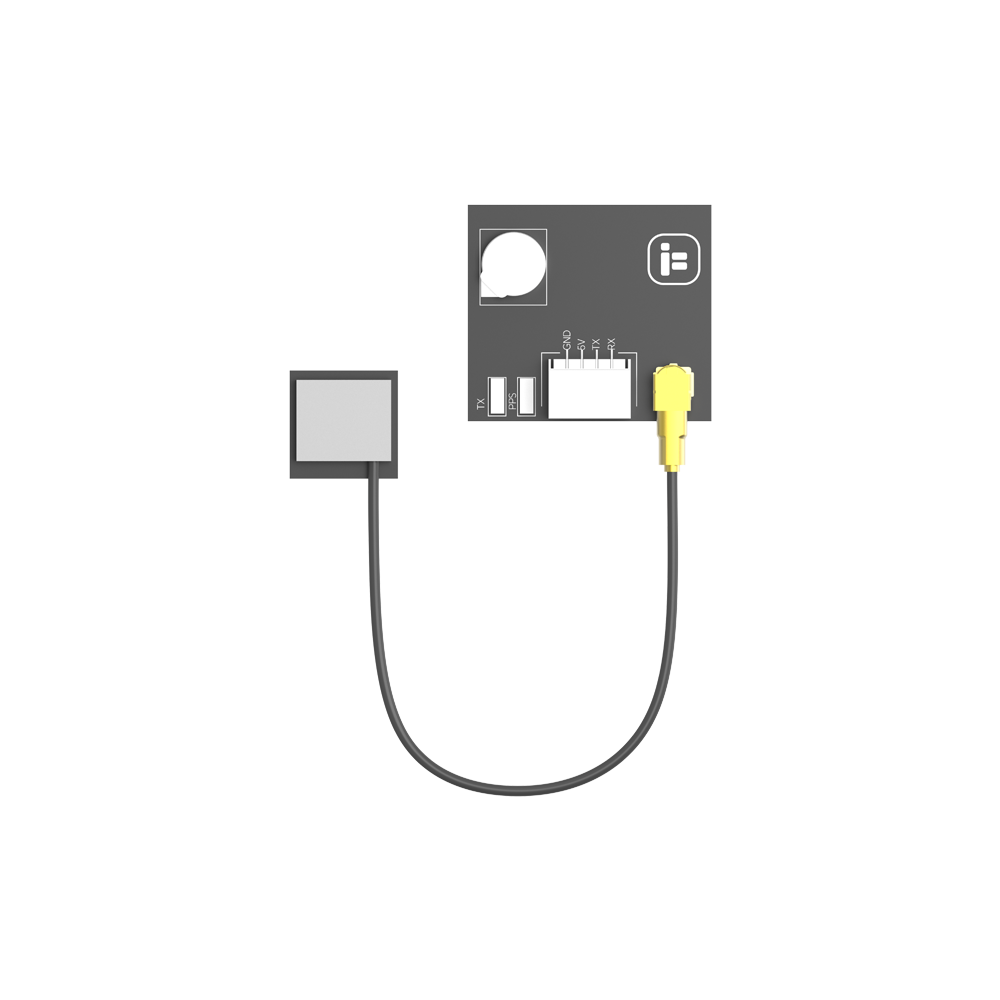

- GPS pin definition: RX/TX UART

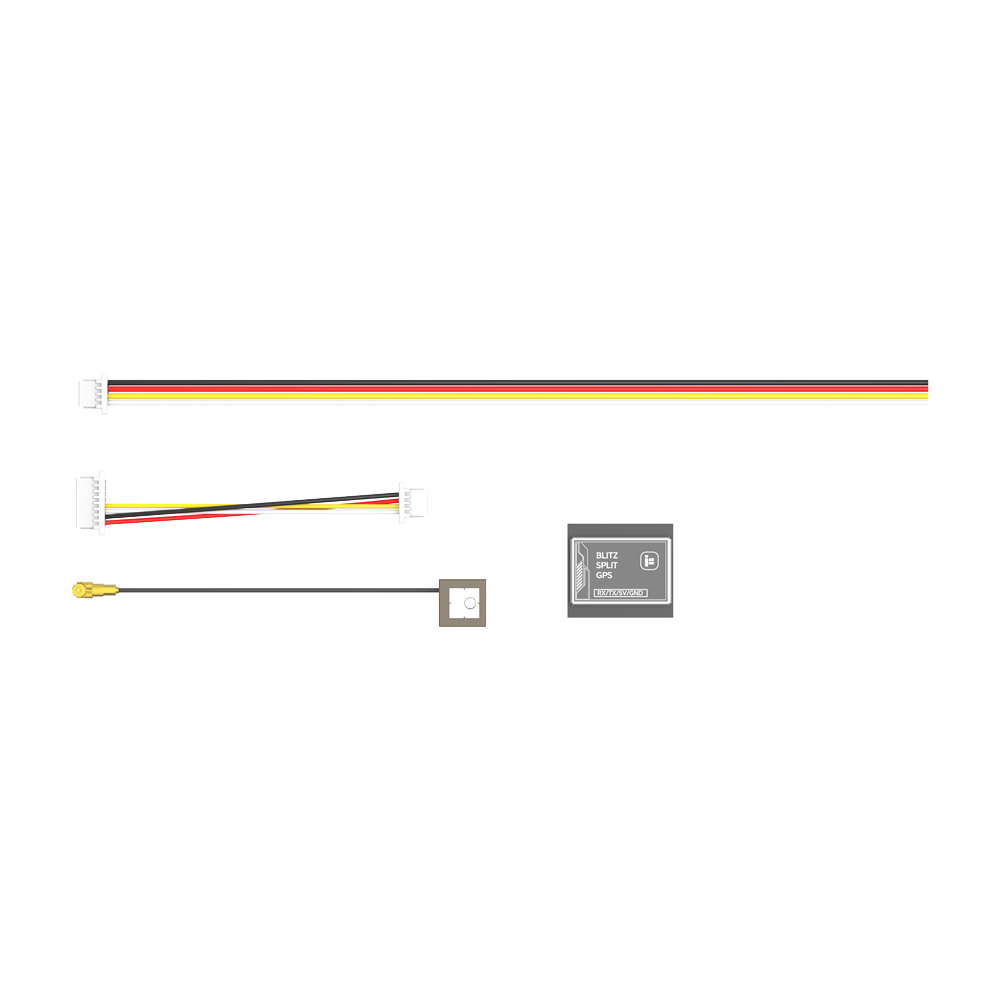

Package included:
- 1 x BLITZ SPLIT GPS
- 1 x Cable set
