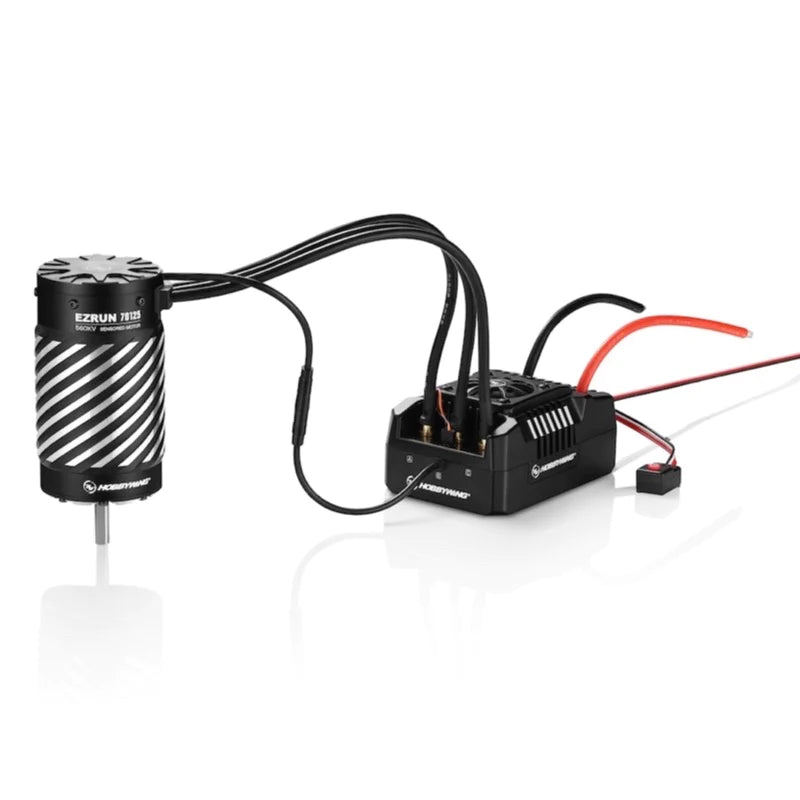

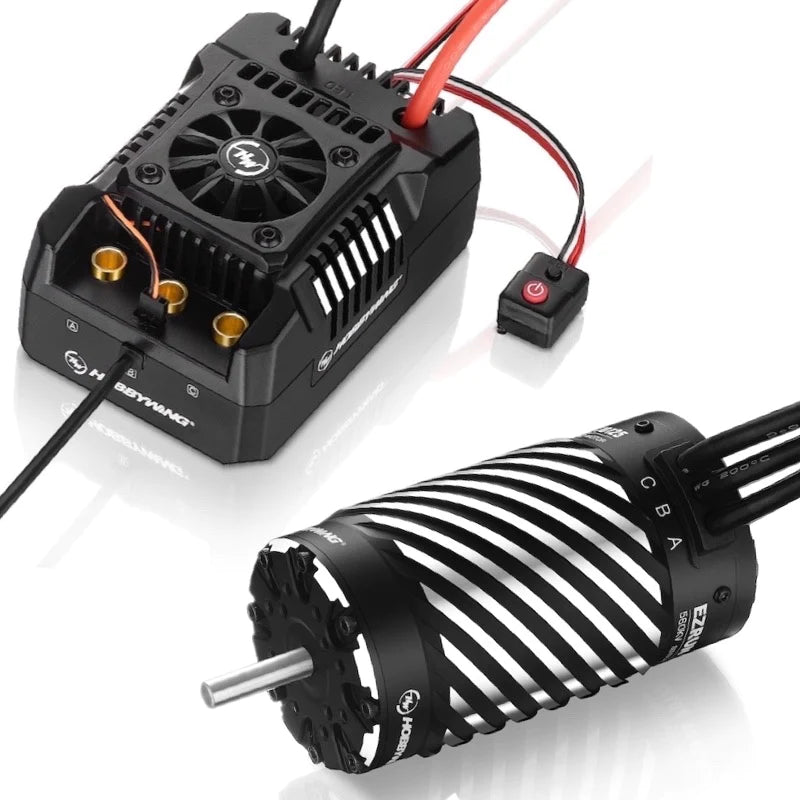

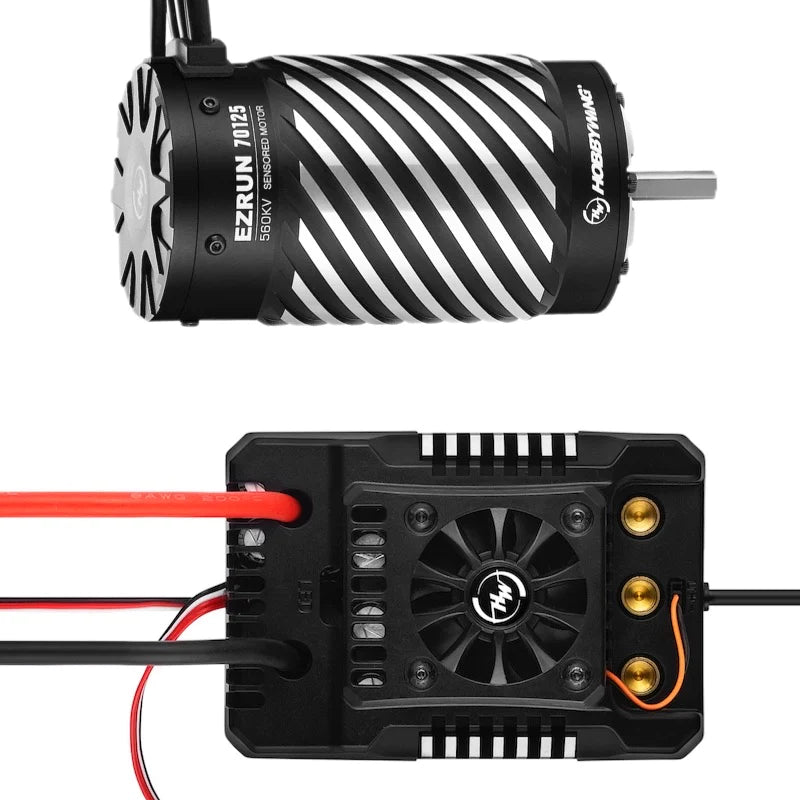

What’s in the box?
- (1) Ezrun MAX4 ESC
- (1) EzRun 70125 560KV Motor
- (1) Double side tape
- (2) Heat shrink tube
- User’s manual
- A HOBBYWING decal
Bottomline:
- The ESC uses a special process, coupled with an innovative waterproof design, to increase waterproofing and dust-proofing performance in different climates. It is easy to deal with the harsh conditions containing sediment, ice, snow, and water accumulation.
- Built-in ultra-powerful switch mode BEC with a continuous current of 10A, an instant 25A, and support for 6V/7.4V/8.4V switching, supporting a wide range of powerful and high-voltage servos.
-
Equipped with the most advanced and safe electronic switches. The traditional mechanical switch protects and prevents dust, humid and other harsh environments, contact rust, and violent impact (such as flying slope landing)
caused by the automatic closure of mechanical switches and other issues. - Built-in fire-proof circuitry to protect the battery plug, while effectively avoiding damage to the case from electrical sparks (fingers).
- Multiple protection functions: battery low voltage protection, ESC and motor overheat protection, signal loss protection, and current protection.
- Support LED program card, LCD program box, OTA programmer (Note: optional) to set the parameters of the ESC.
- Real-time data recording function to view various running data on the HW LINK app using the OTA Bluetooth module.
Manual Download
User’s Manual-MAX4 ESC
Specification Motor EZRUN MAX Motor
| 70125SL-560KV | |
| PN | 30402850 |
| Pole | 4 |
| KV(No-load) | 560KV |
| R. (Ω) | 0.0050 |
| Current No-load（A） | 3.6 |
| Motor D.&L（mm） | 70mm (2.760in) / 125mm (4.921in) |
| Shaft D.&L of the projecting part（mm） | 8mm (0.315in) / 30mm (1.181in) |
| LiPo(S) | 8-12S Lipo |
| W (g) | 1995g |
| Applicable | 1/4th, 1/5th Heavy-duty Off-road, Truck. |
| Best match with | MAX 4 HV ESC |
EZRUN MAX4 ESC
| MAX 4 (HV) | |
| Scale Vehicles | 1/4 – 1/5th |
| Cont./Peak Current | 300A/2000A |
| Motor Mode | Sensored and sensorless brushless motor |
| Input | 6-12S Lipo |
| Motor Limit | With 12S Lipo: KV≤600 70125 size motor |
| BEC Output | 6V / 7.4V / 8.4V adjustable, continuous current 10A (Switch-mode) |
| Programming Port | Share with Fan interface |
| Switch Mode | Electronic Switch |
| Capacitor protection | Yes |
| Waterproof | Yes |
| Size (L.W.H) mm | 125 x 85 x 61.7mm |
| Weight (g) | 775.4g |
