HGLRC Zeus VTX Transmitter SPECIFICATIONS
Wheelbase: Screws
Upgrade Parts/Accessories: Adapter
Tool Supplies: Assembled class
Technical parameters: Value 3
Size: as show
Remote Control Peripherals/Devices: Remote Controller
RC Parts & Accs: AXLE
Quantity: 1 pcs
Origin: Mainland China
Model Number: HGLRC Zeus 800mW
Material: Composite Material
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Helicopters

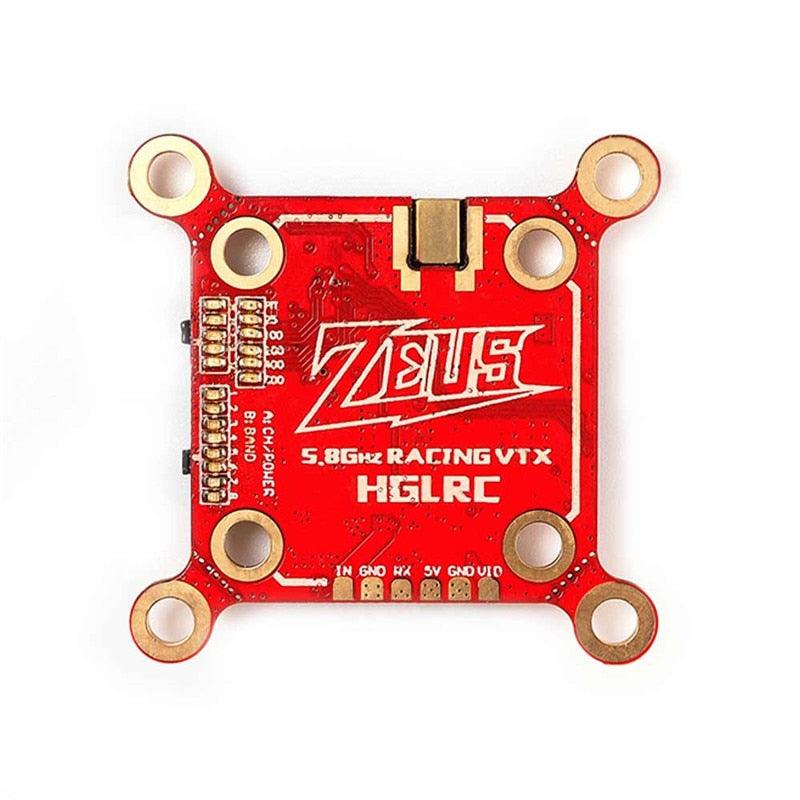

HGLRC Zeus VTX 5.8G 40CH PIT/25/100/200/400/800mW Smart Mounting 20*20mm/30*30mm FPV Transmitter Built-in Microphone For FPV RC Racing Drone

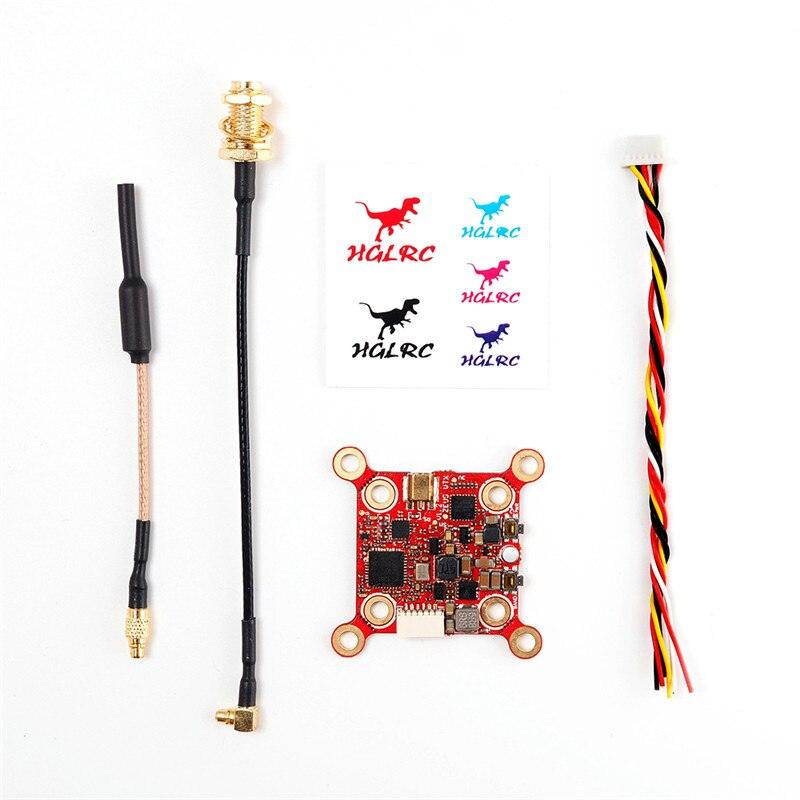

Package Included:
1 x Zeus VTX 800mW
1 x 80mm 5.8G MMCXLinear Brass Antenna
1 x SH1.0 6Pin 100mm Cable
1 x MMCX to SMA-KY Adapter Cable
Description:
Brand: HGLRC
Model: Zeus VTX 800mW
Built-in Microphone
Input voltage: DC 6-26V
Output voltage: 5V/2A
PIT@94mA
25mW@169mA/14dBm
100mW@199mA/20dBm
200mW@216mA/23dBm
400mW@279mA/26dBm
800mW@387mA/29dBm
Antenna interface: MMCX
Output power: PIT/25/100/200/400/800mW

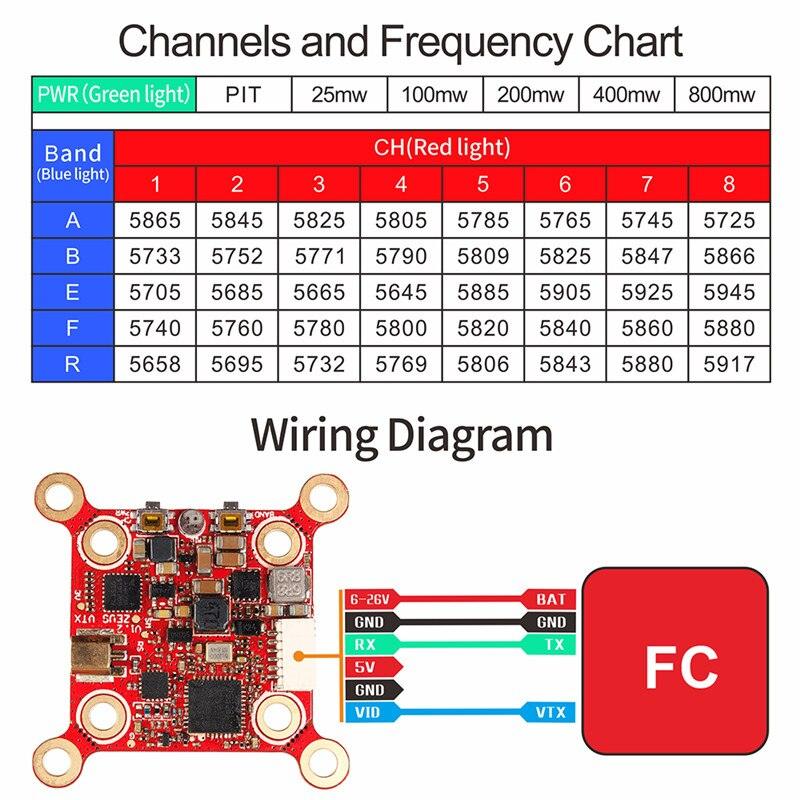

Frequency: 5.8GHz 5 bands, 40 channels
Installing Hole: 20X20/30X30mm.M3
Size: 37mm x 37mm x 5mm
Weight: 4.8g

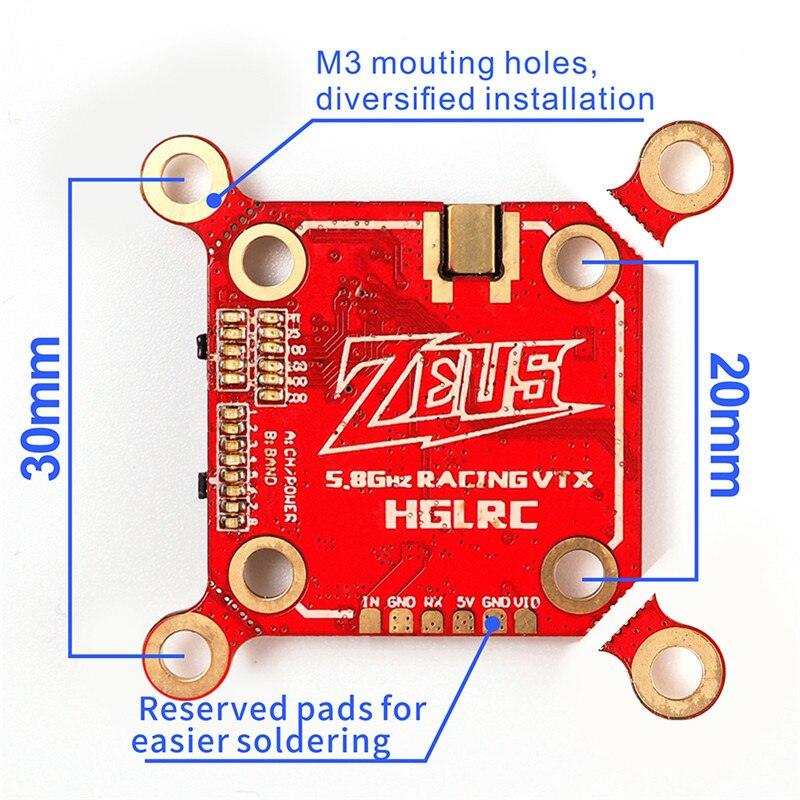

This product features M3 mounting holes, providing diversified installation options. Additionally, it includes reserved pads for easy soldering.

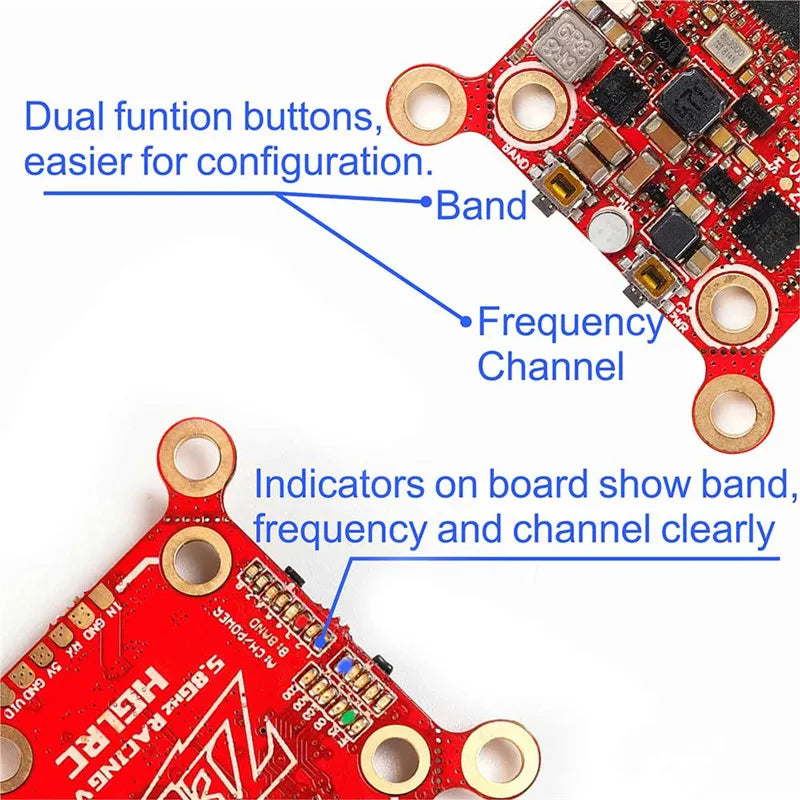

The transmitter features dual-function buttons that simplify configuration, as well as clear indicators on board to display band, frequency, and channel information.
Equipped with a built-in microphone, this transmitter enables real-time audio transmission, featuring enhanced noise reduction for crystal-clear communication.
